Waveshare 4.3inch Capacitive Touch LCD 800x480 Pixels Resolution IPS Panel 216 Colors Via 24-Bit RGB Interface For Pi- RS3060

Waveshare 4.3inch Capacitive Touch LCD 800x480 Pixels Resolution IPS Panel 216 Colors Via 24-Bit RGB Interface For Pi- RS3060

RS3060

Low stock: 8 left

Rs. 2,695.00
Rs. 2,695.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This is a Waveshare 4.3 Inch Capacitive Touch multicolour graphic LCD display, 4.3inch diagonal, 800x480 pixels. It is able to display 16,777,216 colours via the 24-bit RGB interface, supports up to 5-points capacitive touch control via an I2C interface. Although the 800x480 common HDMI display is made for Raspberry Pi, you can use it on other compatible boards too.

Specification:

  • LCD Type: IPS
  • LCD Interface: 24-bit RGB
  • Touch Screen Interface: I2C
  • Display Colors: 16,777,216
  • Touch Controller: GT911
  • Display Size: 95.04 (W) 53.86 (H)mm
  • Dot Pitch: 0.1188 (W) 0.1122 (H)mm
  • Backlight: LED
  • Resolution: 800 x 480
  • Power Supply Voltage: 5V
  • Logic Level: 3.3V

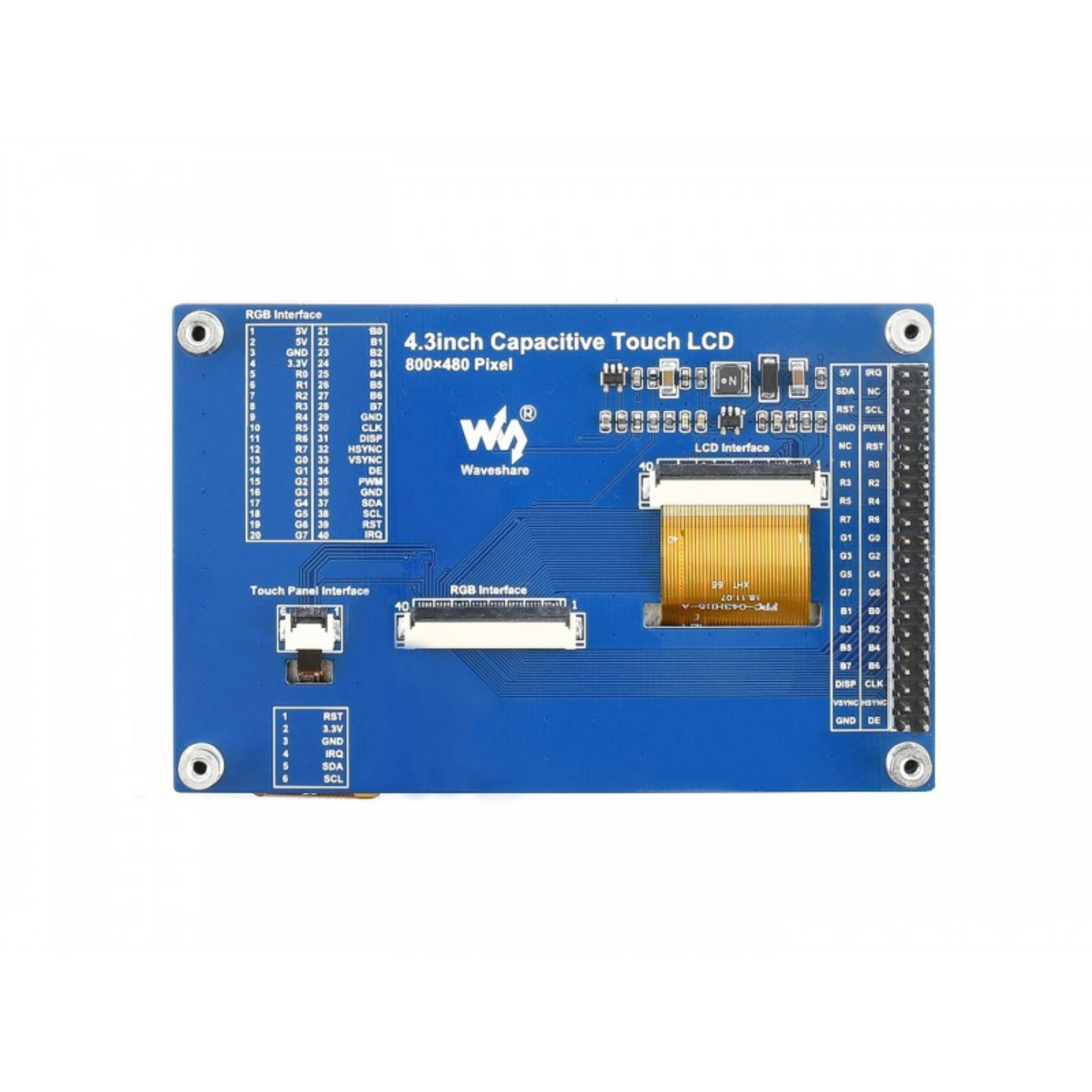

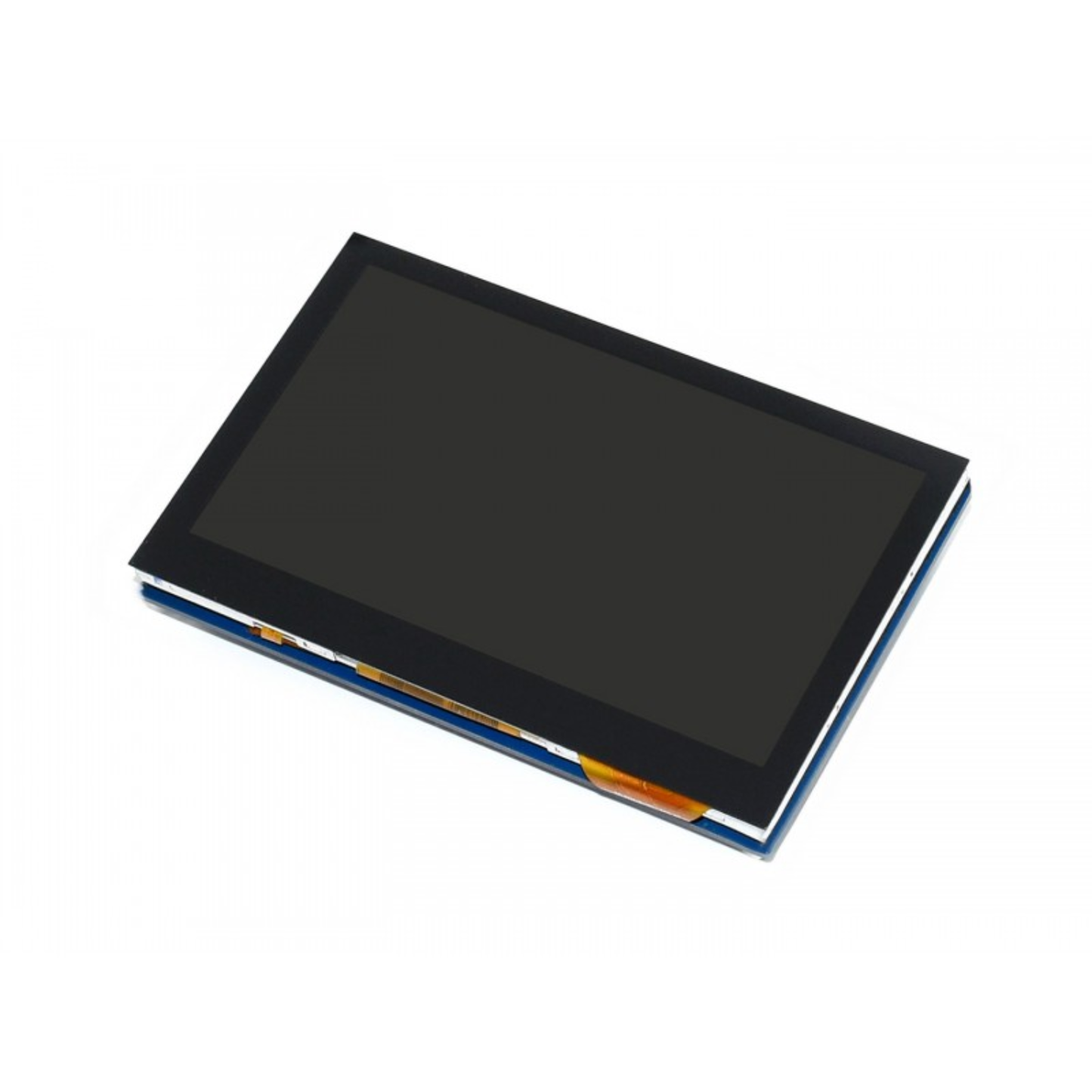

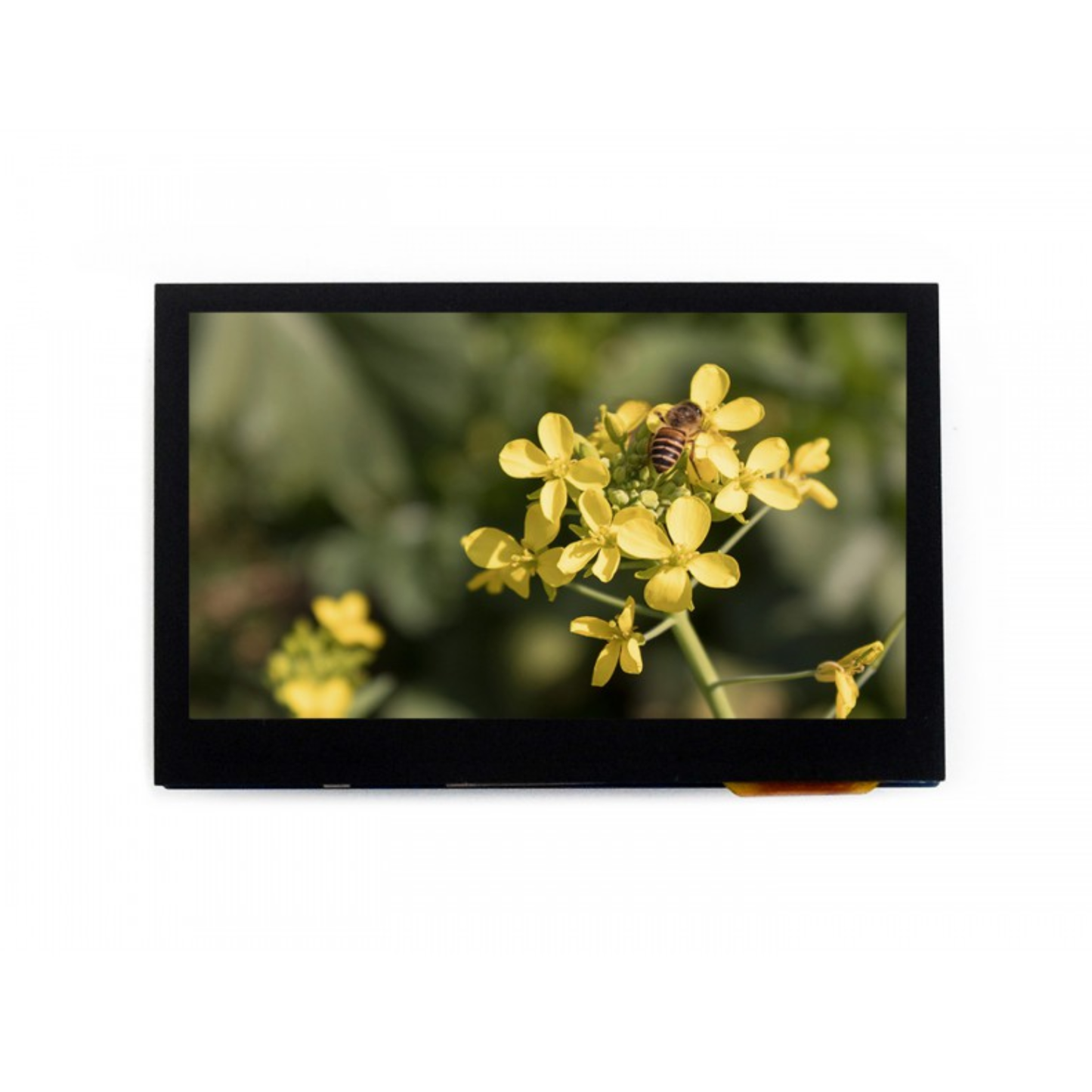

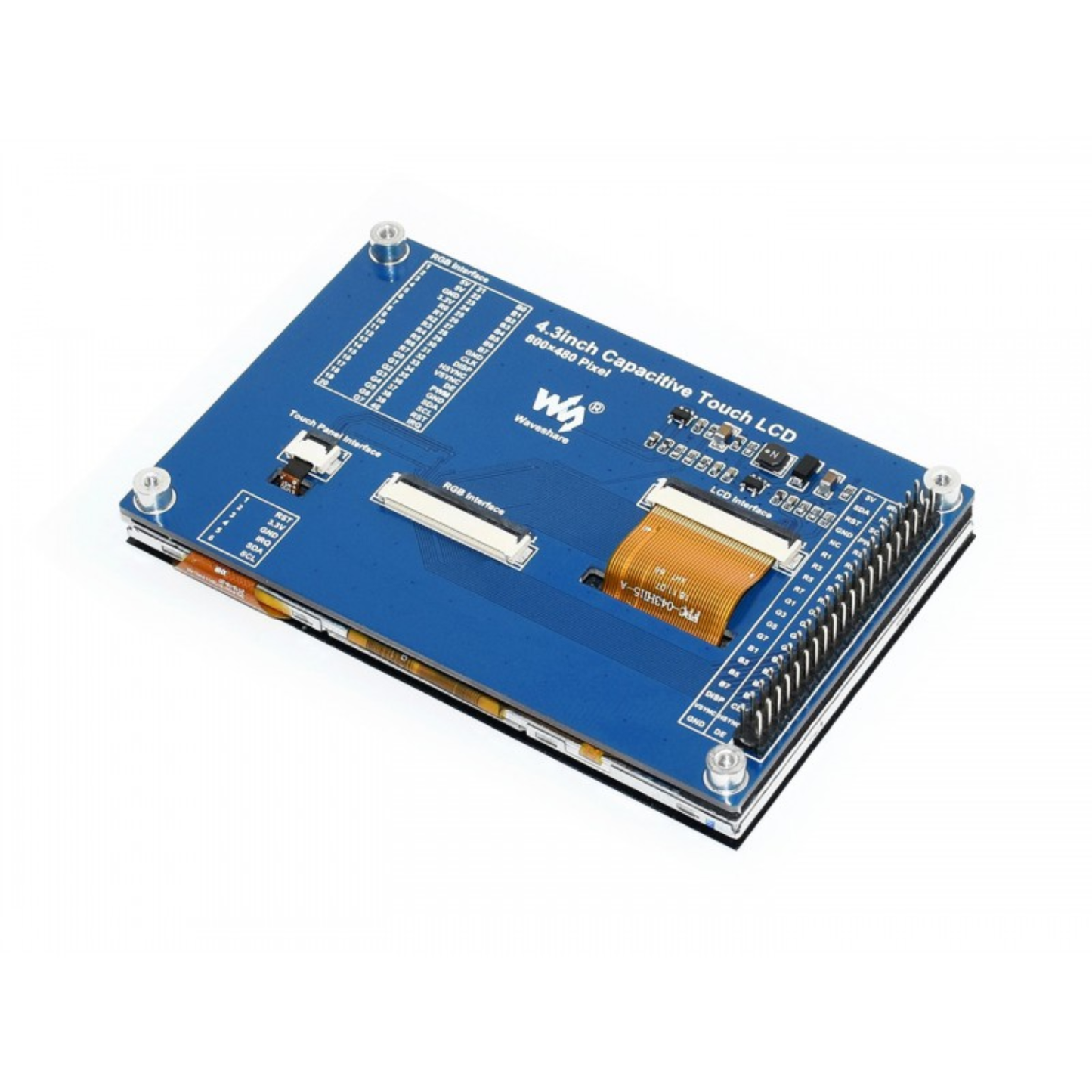

Waveshare 4.3 Inch Capacitive Touch LCD

Features:

  • 4.3-inch capacitive touch display, 800x480 resolution.
  • The capacitive touch panel on the I2C bus, 5-points touch control, with touch, interrupt.
  • 24-bit RGB display interface, 16,777,216 colors, fast refreshing.
  • Comes with development resources and a manual (examples for STM32F4 / STM32F7).

Package Included:

1 x Waveshare 4.3 Inch Capacitive Touch LCD Display
