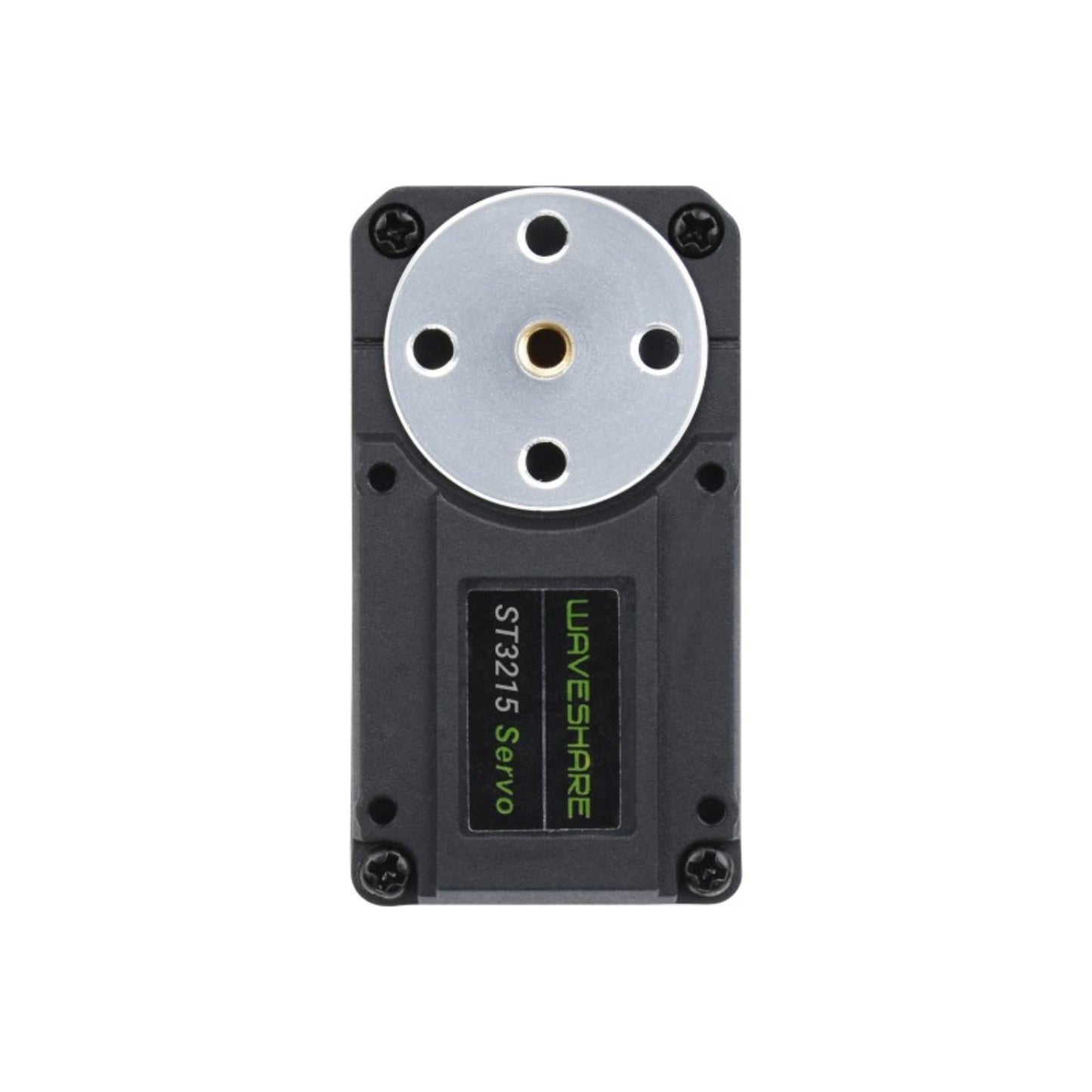

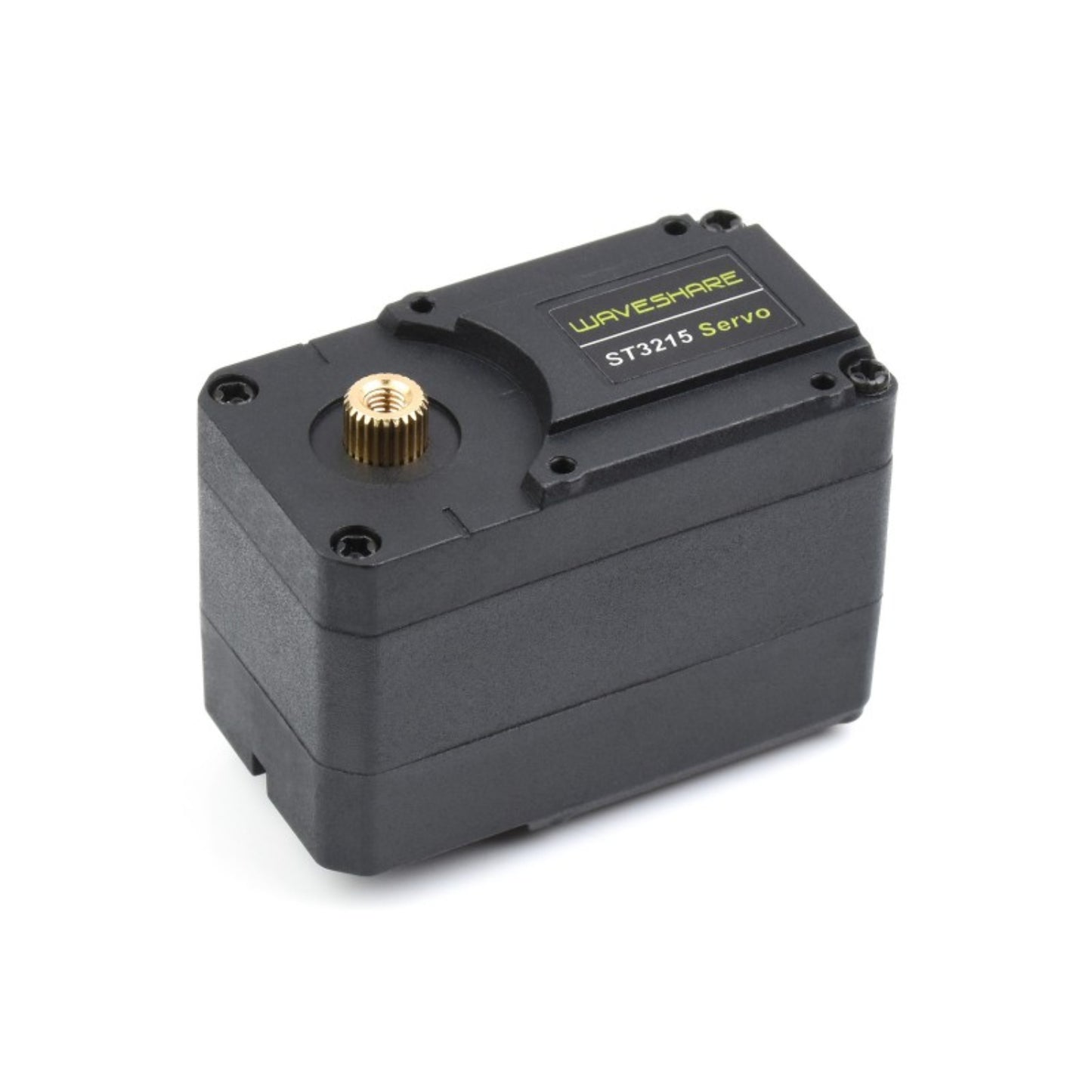

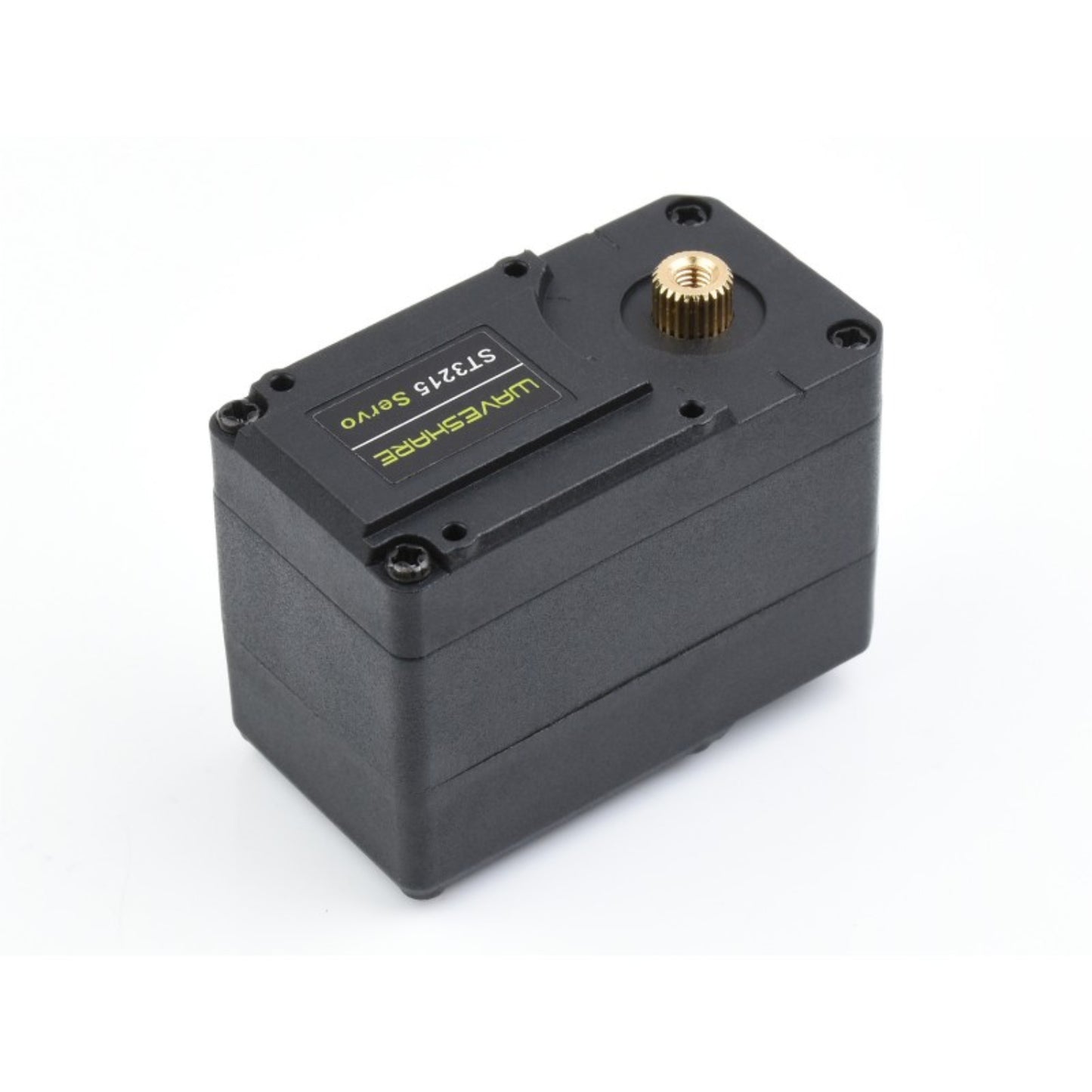

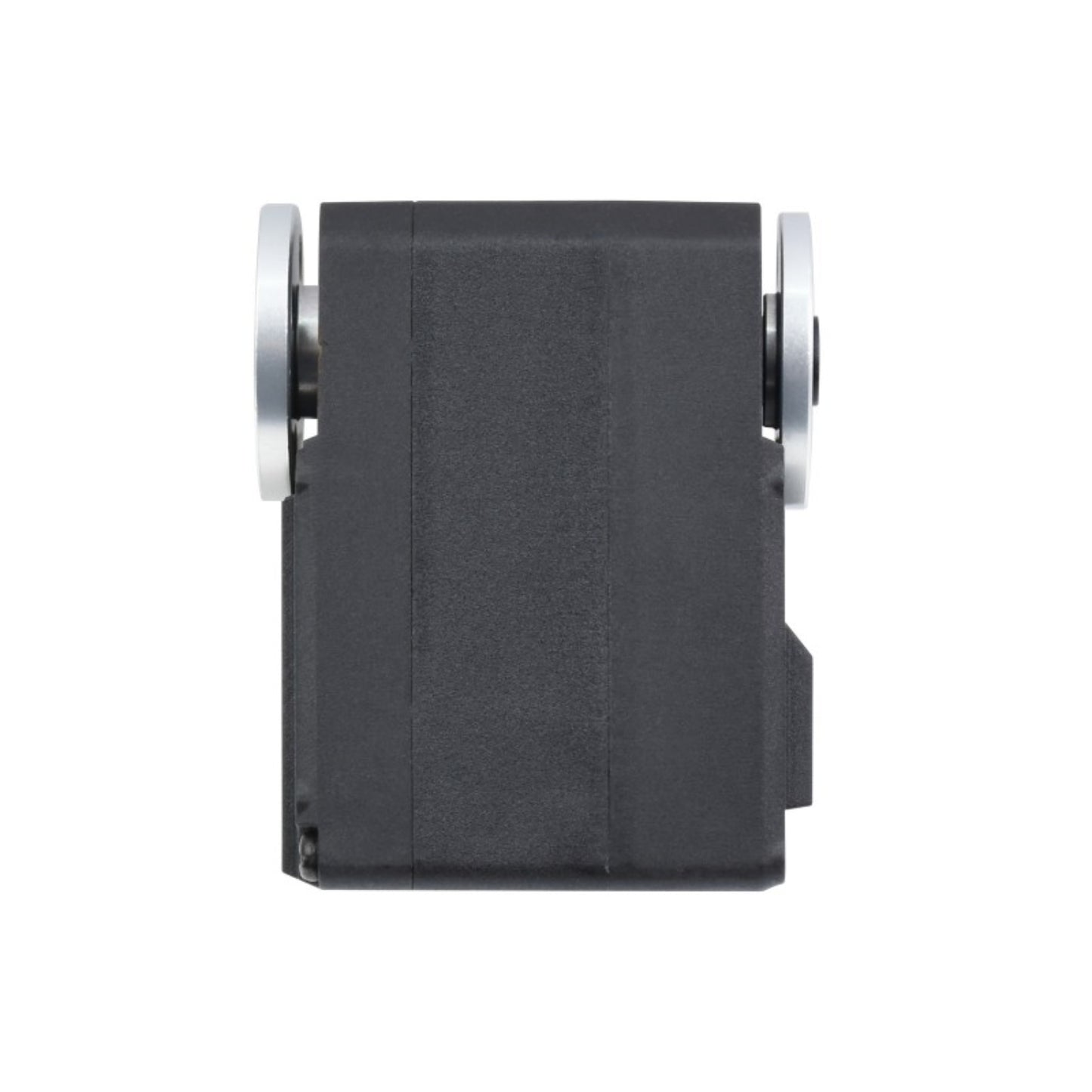

Waveshare 30KG Serial Bus Servo ST3215 Serial Bus Servo With Programmable High Torque 360° Rotation and Magnetic Encoder Servo Powerful 30KG Servo for Demanding Robotics Applications - RS8381

Description:

As a high-torque programmable serial bus servo, it is equipped with a 360° high-precision magnetic encoder, which can realize 360-degree absolute angle control. With the program to control, any angles can be set as the middle of the position, and it can also be switched to the continuously rotating motor or stepper motor mode. The built-in acceleration start-stop function makes the action softer.

There are two interfaces on each servo, which can be used in series. In theory, 253 bus servos can be controlled at the same time, and each servo can obtain its current angle, load, voltage, mode, and so on. It is suitable for robot projects, such as robotic arms, hexapod walkers, humanoid robots, wheeled robots, and so on, which require real-time feedback for closed-loop control.

Specifications:

Features:

• Up to 253 servos can be connected in series at the same time (requires full power), and feedback information can be obtained from each servo.

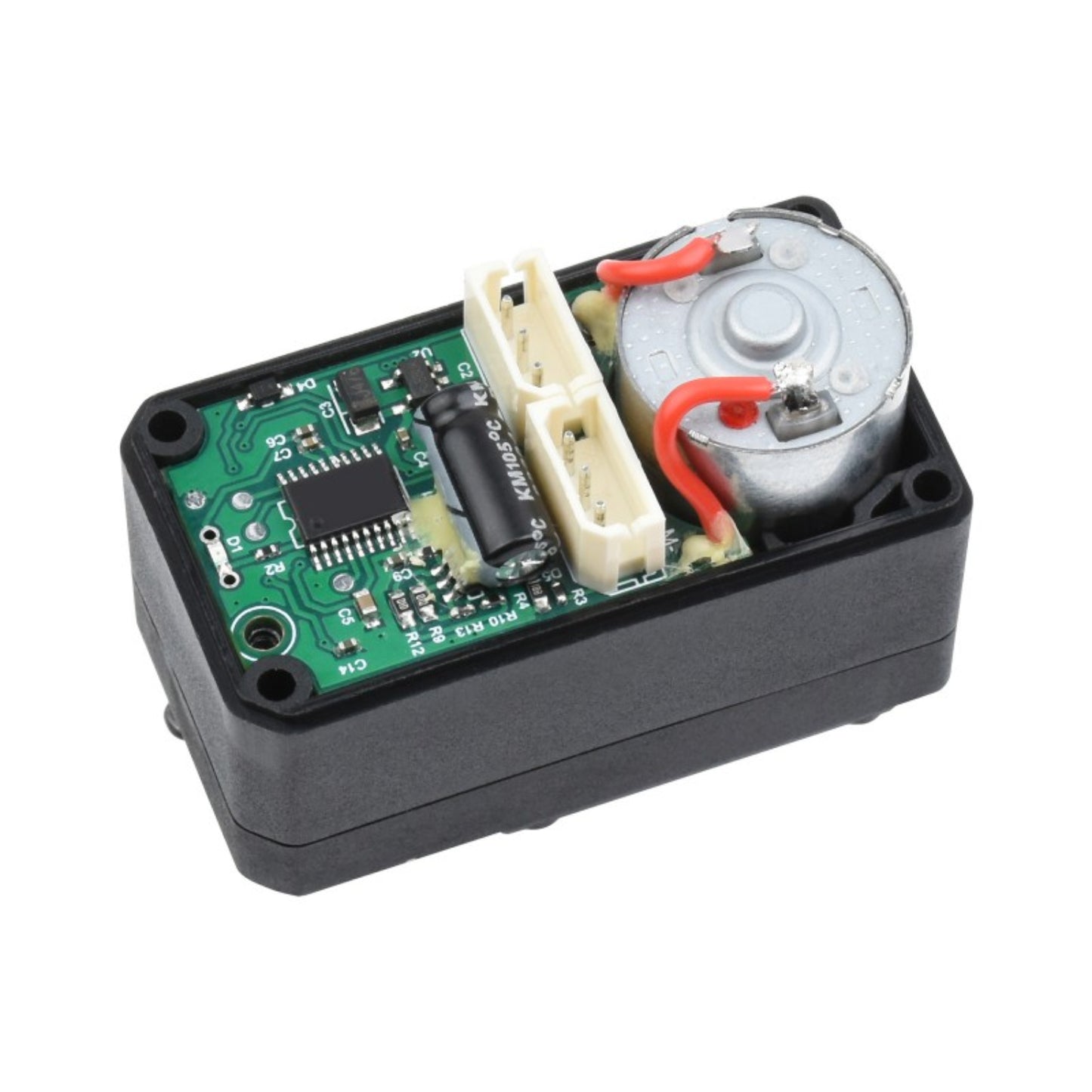

• 360°magnetic encoder, larger angle control range.
• With high precision, the angle control accuracy reaches 360°/4096.
• Any angle can be set as the middle of the position, which is convenient for assembly.
• Acceleration starts and stops function, the movement effect is softer.
• The compact structure design and the product appearance are more beautiful.
• 6-12.6V wide-voltage input, it can directly supply power with the 2s or 3s lithium battery.
• High torque, up to 30kg.cm@12V.
• The working mode can be set by the program: servo angle control/motor model can be rotated continuously.

Applications:

• Quadruped Robots
• Hexapod Walkers
• Robotic Arms
• Other Robotic Projects Requiring Multiple Servos

Useful link:

Waveshare 30KG Serial Bus Servo

Package Included:

1 x ST3215 Servo
