Description;

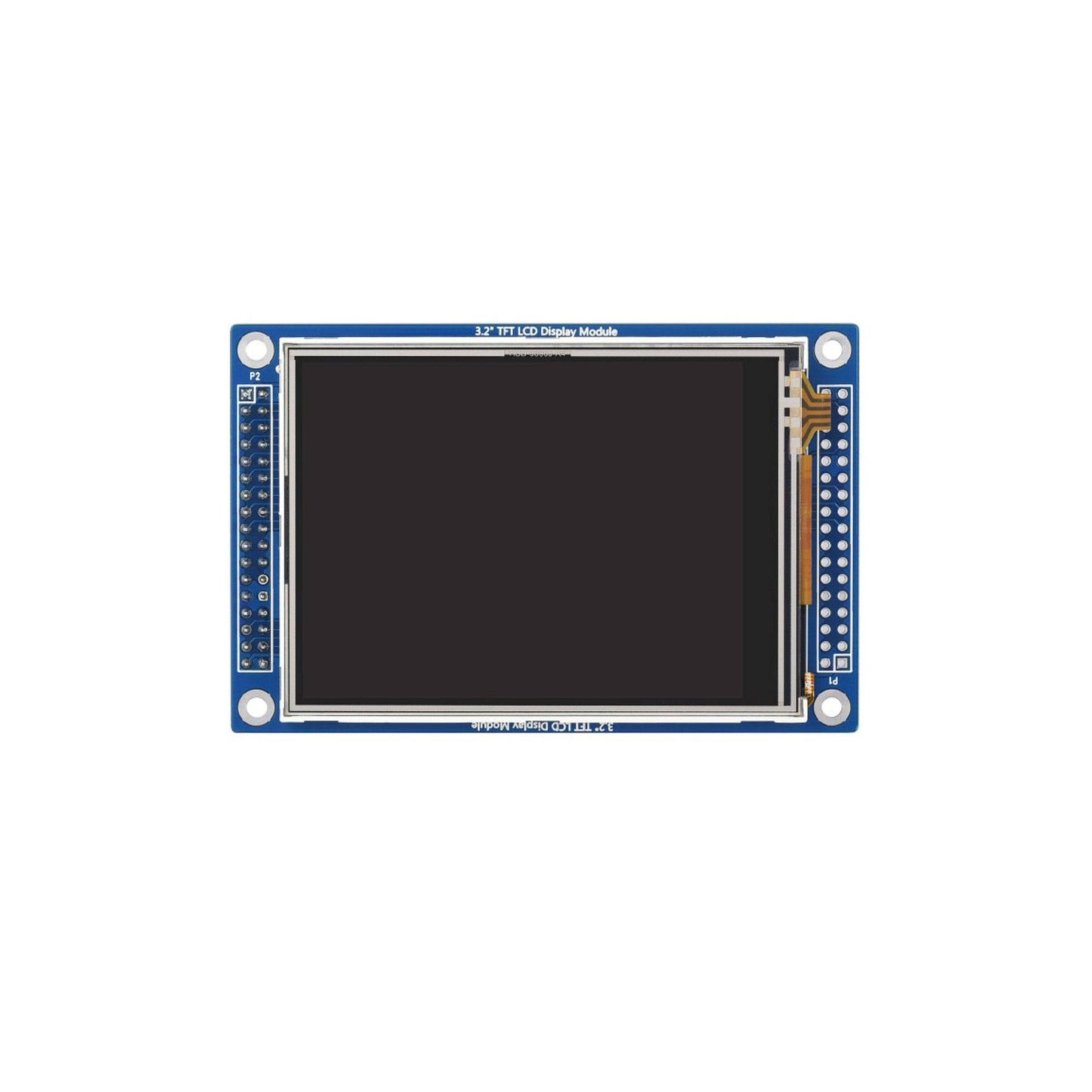

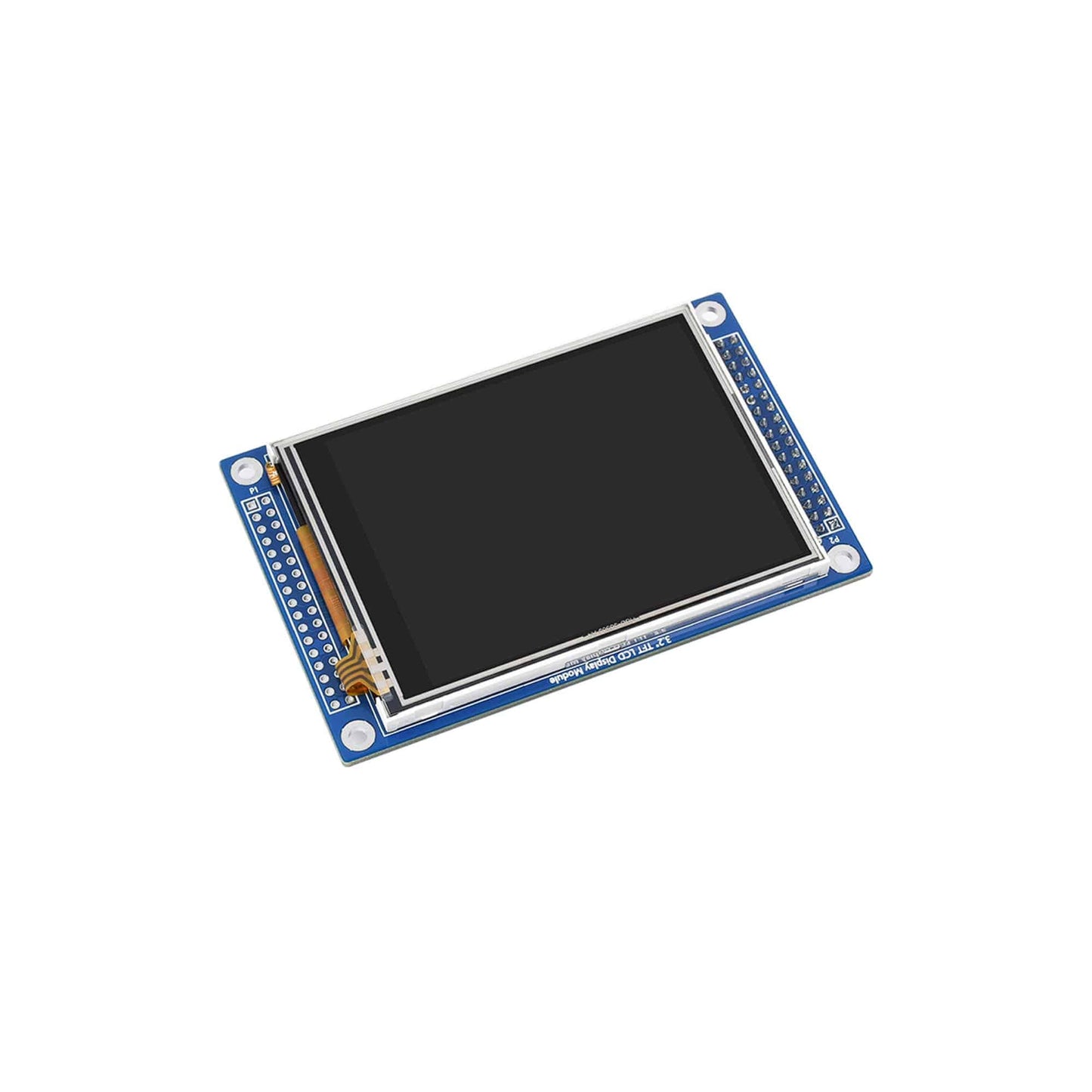

This is a 3.2inch LCD with a resolution of 320x240, equipped with a touch panel and stand-alone controllers. It is identified as the 3.2inch LCD, which utilizes the ILI9341 TFT LCD driver chip capable of displaying 262144 colours. The chip has a resolution of 240x320 (RGB) and a RAM capacity of 172820 bytes (240 x 320x 18/8). Additionally, each pixel can reach a depth of 18 bits.
Specifications:
- Operating Voltage: 3.3V
- Resolution: 320 x 240 Pixels
- Interface: 8080 Parallel+SPI
- Display Size: 48.6 x 64.8mm
- Display Panel: TN
- Pixel Pitch: 0.198 x 0.198mm
- LCD Controller: ILI9341
- Module Size: 94.97 × 62.24mm
Features:
- 320 × 240 resolution LCD, with 262K colour for clear colour picture display
- The onboard touch control chip, has a smoother touch effect than the touch panel controlled by AD pins
- Backlight programmable, more power saving
- 3.2inch LCD comes with development resources and manual (example for STM32)
Package Included:
1 x Waveshare 3.2inch LCD 3.2inch 320x240 Touch LCD (D), With Touch Panel And Stand-Alone Controllers for STM32, ILI9341 LCD Controller, XPT2046 Touch Panel Controller
