Waveshare 3.2 inch Raspberry Pi LCD 320x240 Resistive Touch Screen TFT Display SPI LCD Pi 3 Model B/2 B/B/A - RS416

Waveshare 3.2 inch Raspberry Pi LCD 320x240 Resistive Touch Screen TFT Display SPI LCD Pi 3 Model B/2 B/B/A - RS416

SKU:RS416

Low stock: 8 left

Regular price Rs. 999.00
Regular price Sale price Rs. 999.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • LCD Type: TFT
  • LCD Interface: SPI
  • Touch Screen Type: Resistive











  • Touch Screen Controller: XPT2046
  • Colors: 65536
  • Backlight: LED


Description:

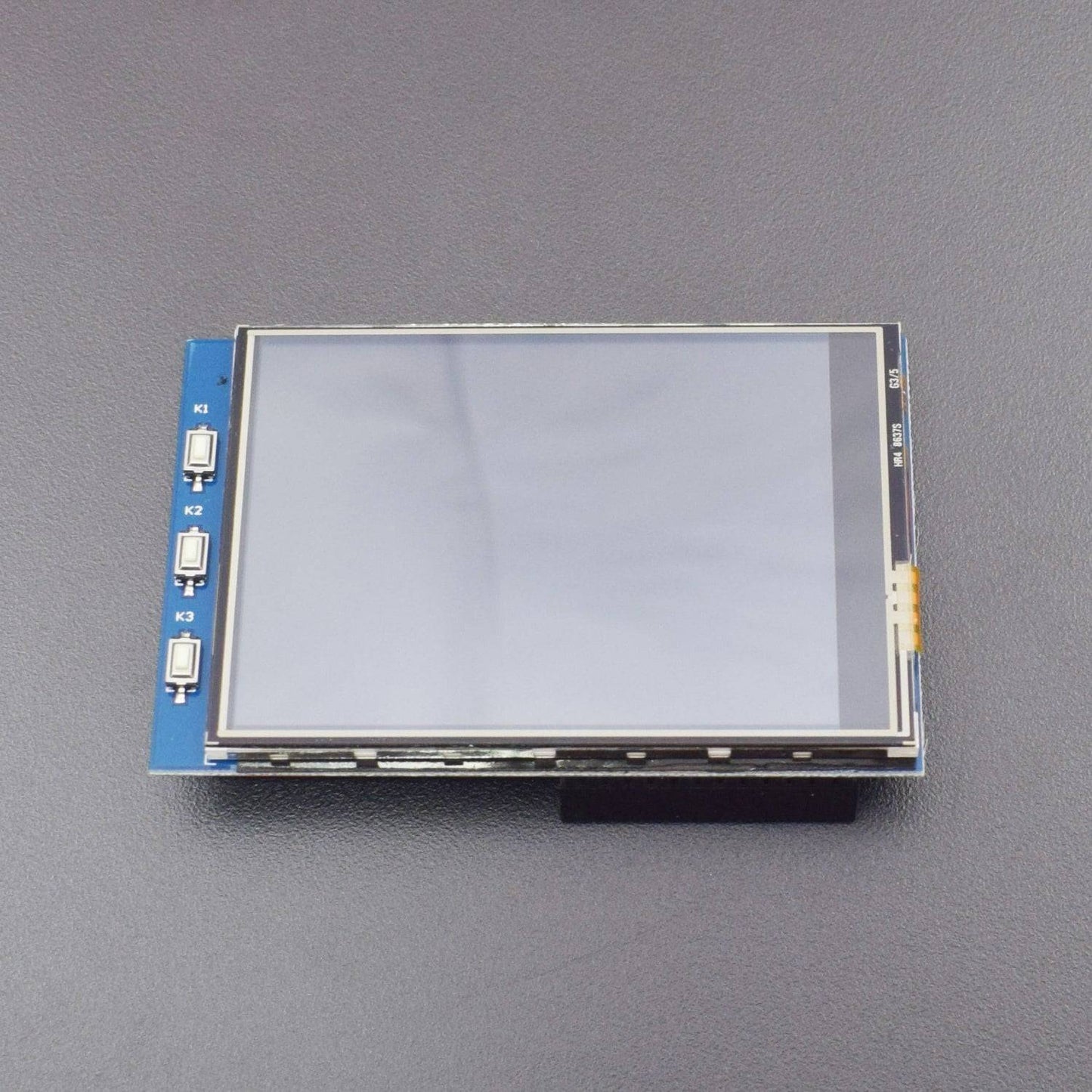

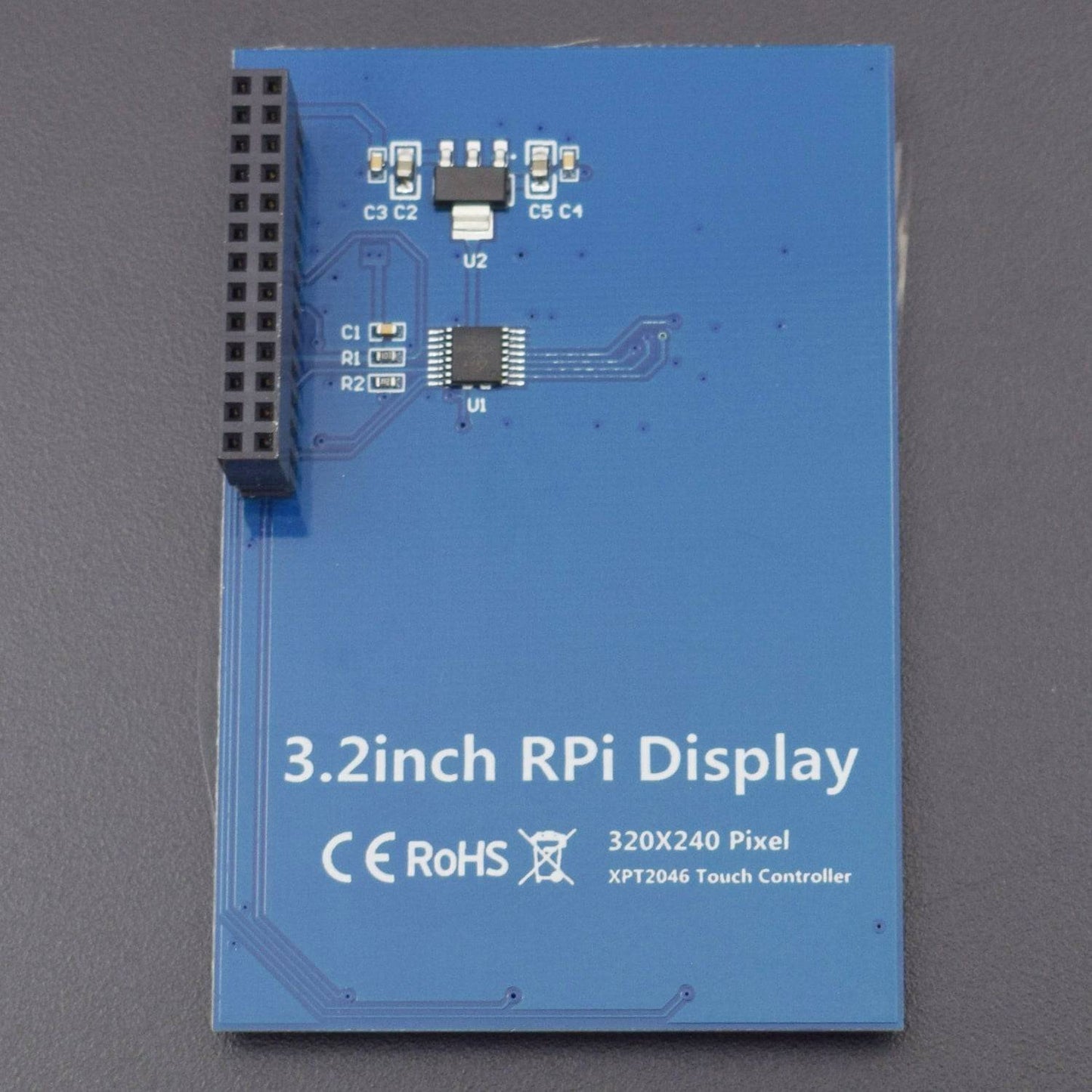

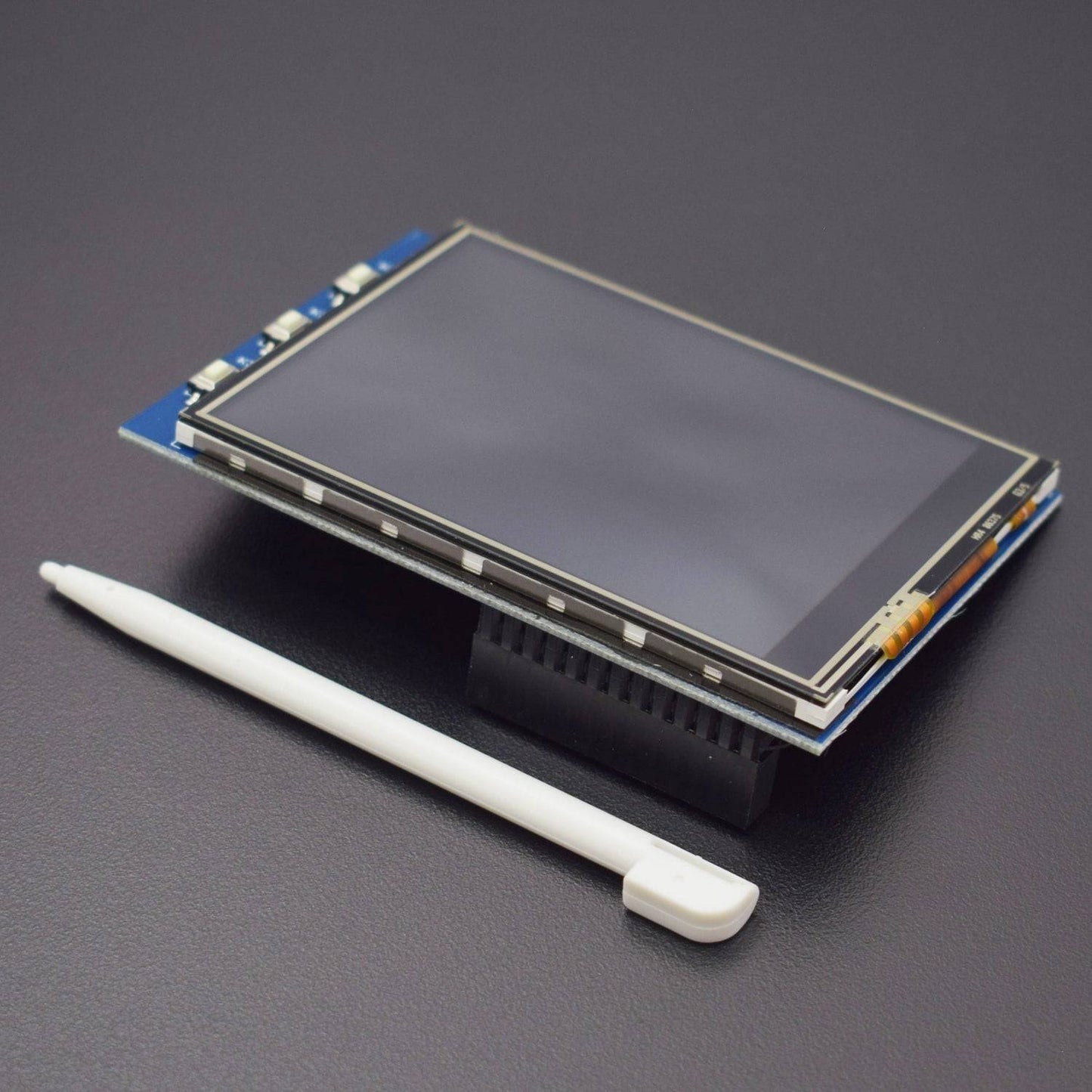

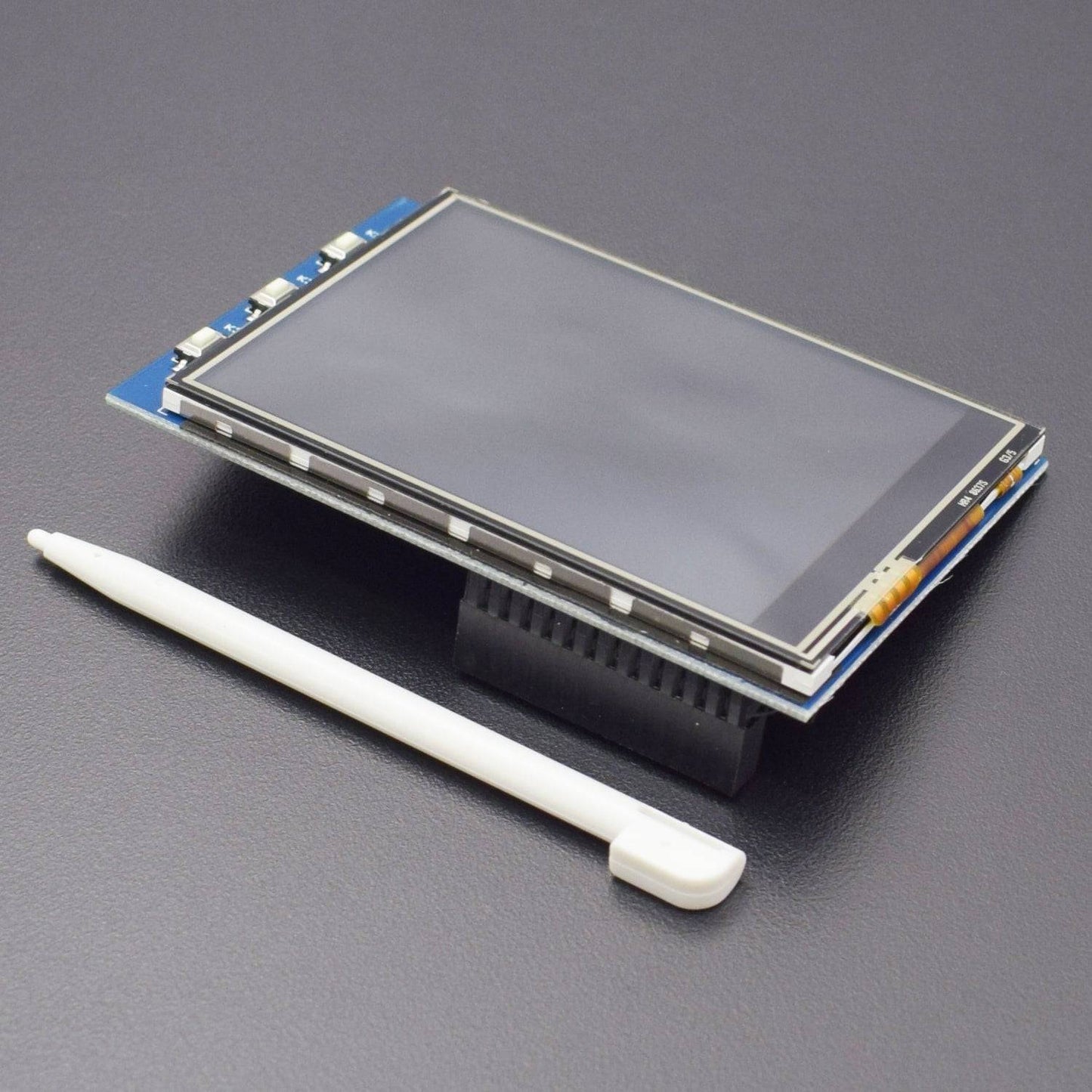

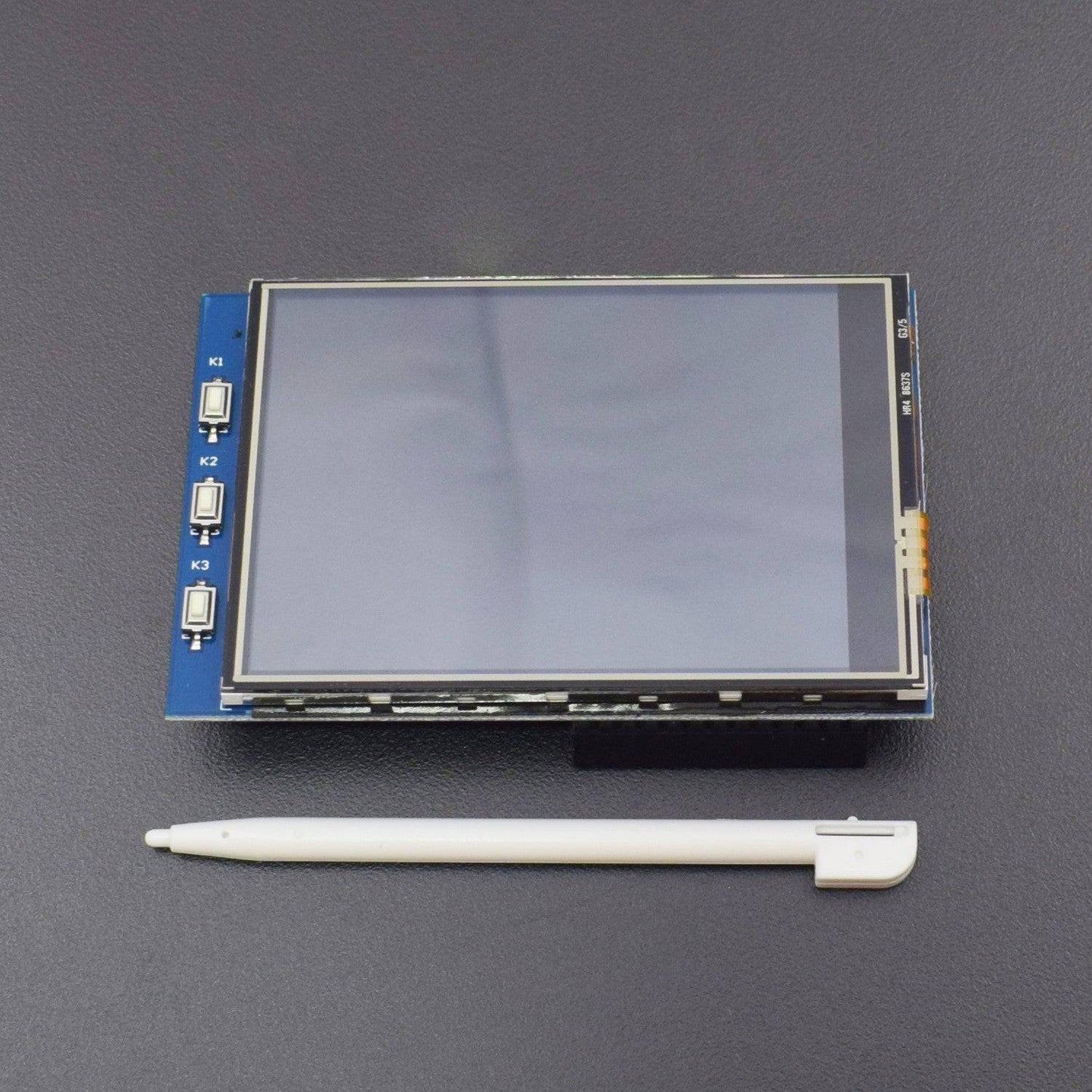

This is a 3.2 inch Raspberry Pi LCD 320x240 Resistive Touch Screen TFT Display SPI LCD. It is commonly compatible with Raspberry Pi 3 Model B/2 B/B/A. This resistive touch screen TFT LCD designed to work directly with Raspberry Pi, Raspbian Image is provided in a DVD with this product. A Touch pen is also included for effective touch interface. It supports on screen key board, it makes a stand alone system, no need of any external keyboard or mouse.

Specification:

  • LCD Type: TFT
  • LCD Interface: SPI
  • Touch Screen Type: Resistive
  • Touch Screen Controller: XPT2046
  • Colors: 65536
  • Backlight: LED
  • Resolution: 320x240 (Pixel)
  • Aspect Ratio: 4:3

Features:

  • Support access raspberry pie, easier to use
  • Support Raspbian system that allows your system:
  • Support for video playback (MP4 and other formats)
  • Support for touch control camera (17 kinds of camera mode)
  • Support soft keyboard (mouse and keyboard can also be controlled from the system)

Pin Description:

Pin No. Symbol Description
1, 17 3.3V Power supply + (3.3V power input)
2, 4 5V Power supply + (5V power input)
3, 5, 7, 8, 10, 22 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
12 KEY1 Button
13 RST Reset
15 LCD_RS LCD command control, command / data register select
16 KEY2 Button
18 KEY3 Button
19 LCD_SI/TP_SCK LCD display / touch panel SPI data input
21 TP_SO Touch panel SPI data input
23 LCD_SCK/TP_SCK LCD display / touch panel SPI clock signal
24 LCD_CS LCD chip select signals, low-level selection LCD
26 TP_CS Touch panel chip select signal, choose low touch panel



Note: Raspberry Pi is not included in the package.

Package Included:

1 x 3.2 inch Raspberry Pi LCD 320x240 Resistive Touch Screen TFT Display SPI LCD for Raspberry Pi 3 Model B/2 B/B/A
