Description:

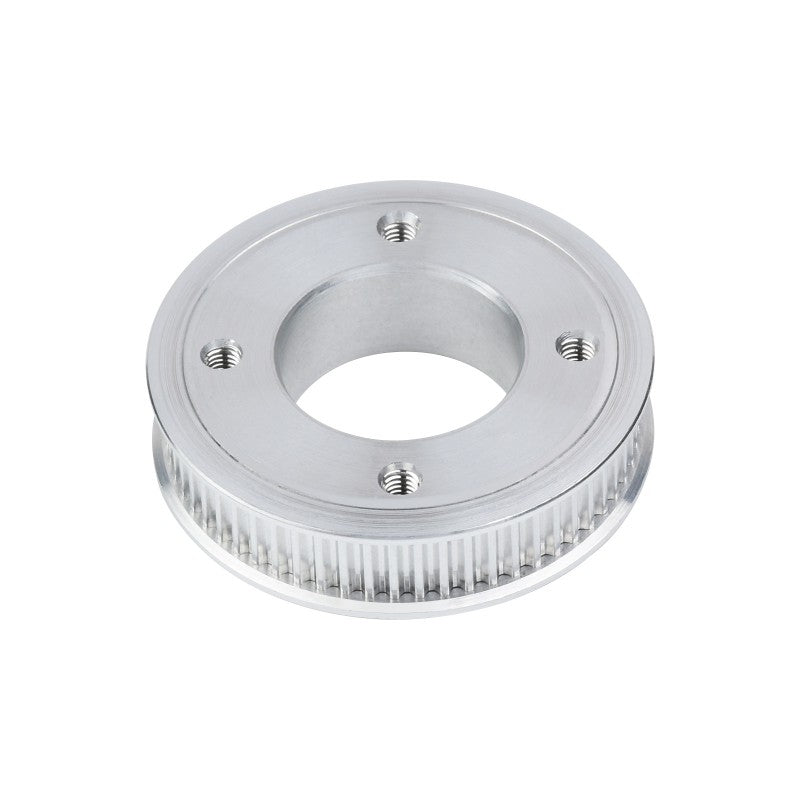

This 2GT Aluminum Timing Pulley is an AF 60-tooth aluminum alloy timing pulley with ribs, which has the advantages of no lubrication, low noise, etc. It has four flat holes with M3 tapping for fixing with other parts, and the center hole can be installed with F6800ZZ flange bearings, which can share radial forces and ensure that the machine can rotate smoothly even under heavy loads.
Specifications:
| Material |
Aluminum Alloy |
|---|---|
| Teeth Type | 2GT |
| Teeth Numbers | 60 |
| Flange Outer Diameter | 40.12mm |
| Teeth Outer Diameter | 37.68mm |
| Timing Pulley Thickness | 10mm |
| Inner Bore Diameter | 19mm |
| Fixed Mode | M3, 28mm diameter, four holes |
Features:
- Adopting aluminum alloy material, it has stronger corrosion-resistant.
- 2GT tooth form, better compatibility.
- The diameter of the center hole is 19mm, and two F6800ZZ flange bearings can be installed to share the radial force.

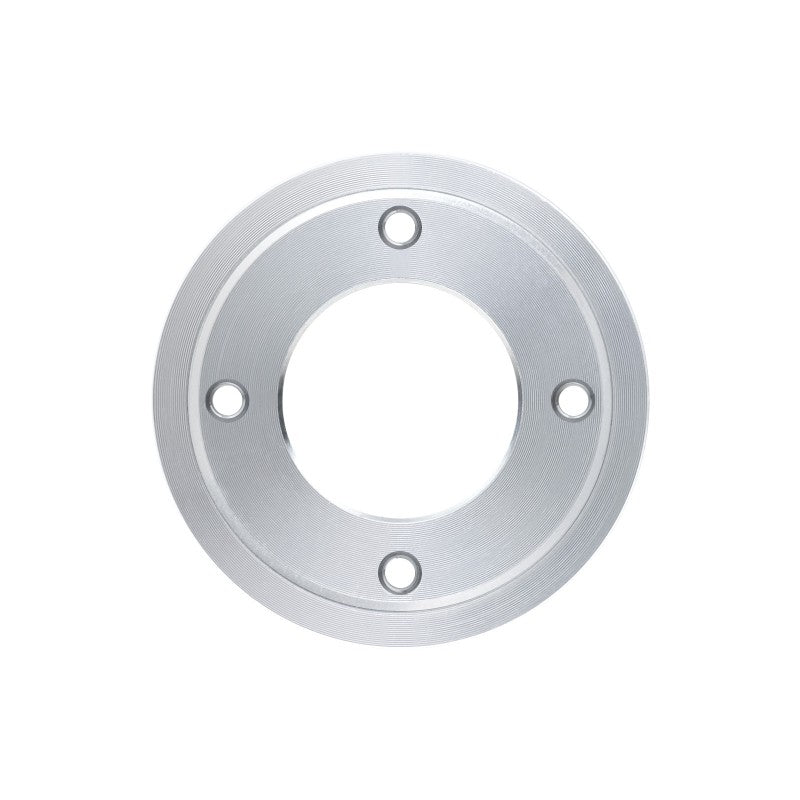

- With four M3 tapping holes for fixing external parts.
- Provides product models and assembly model examples.
Useful Links:
Package Included:

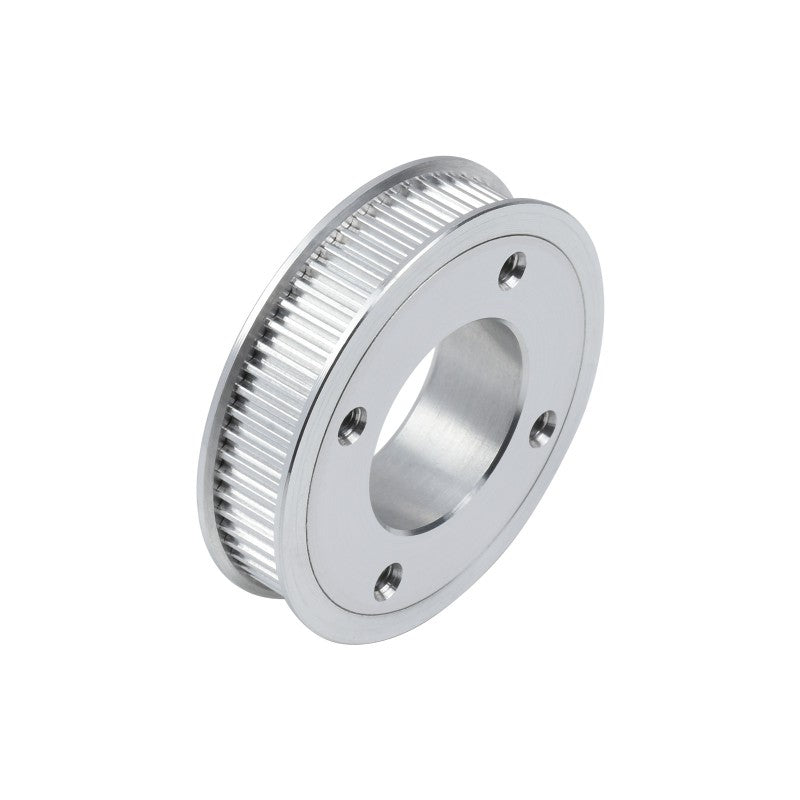

1 x Waveshare 2GT 60T Aluminum Timing Pulley
