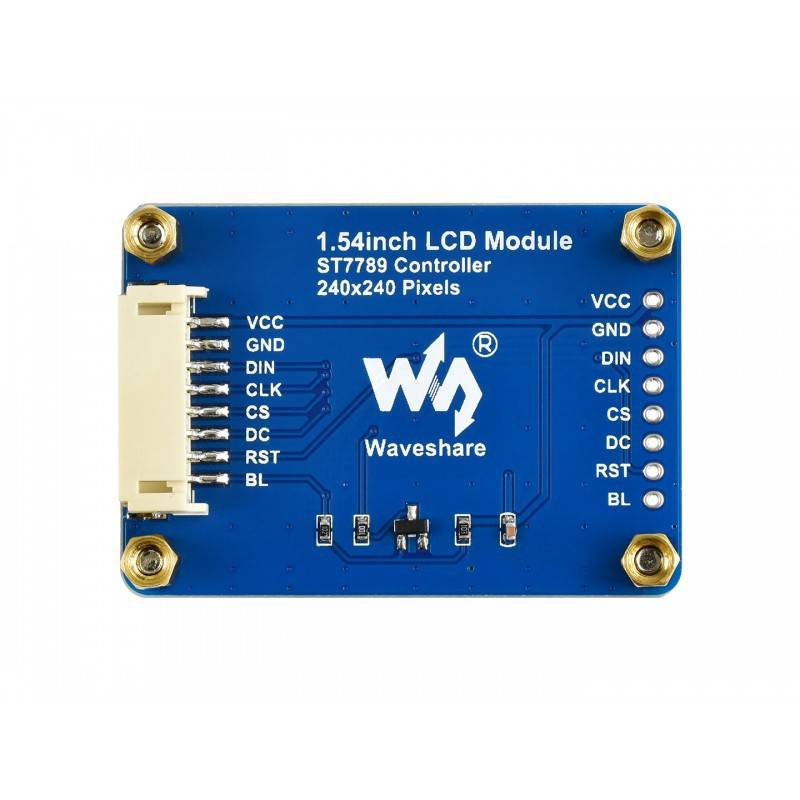

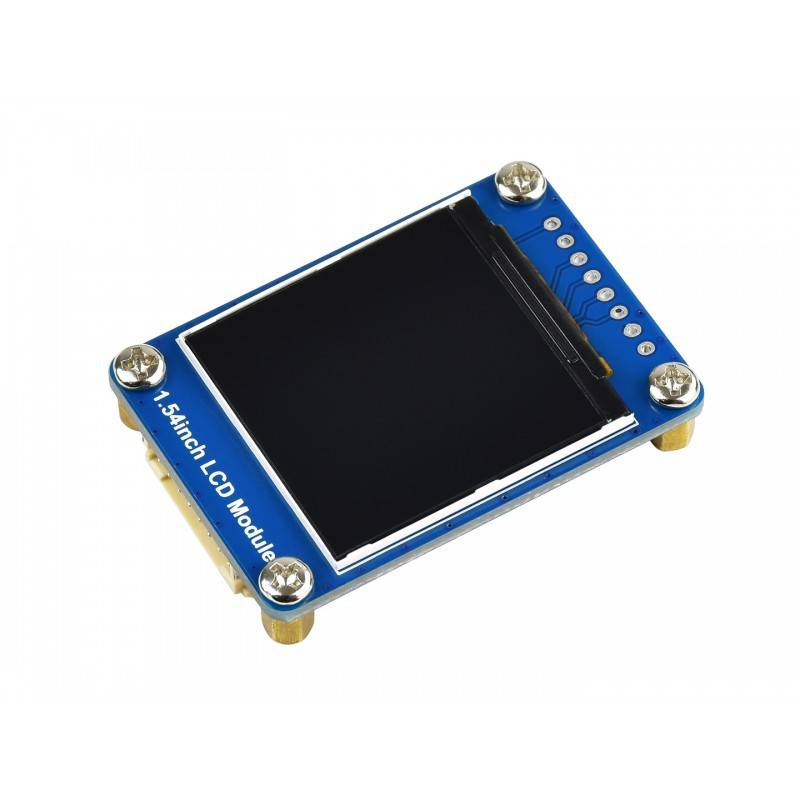

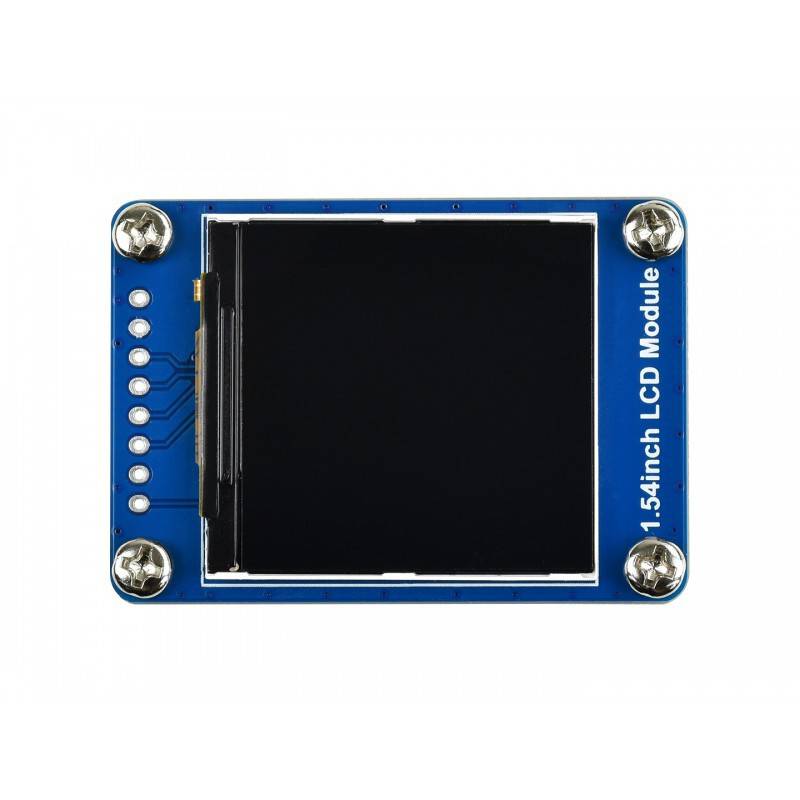

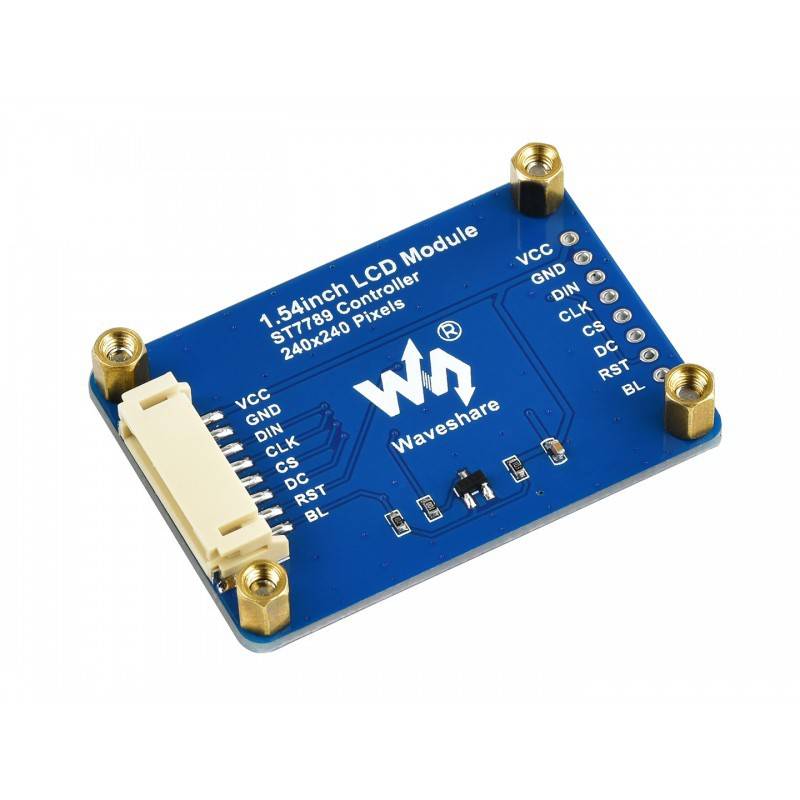

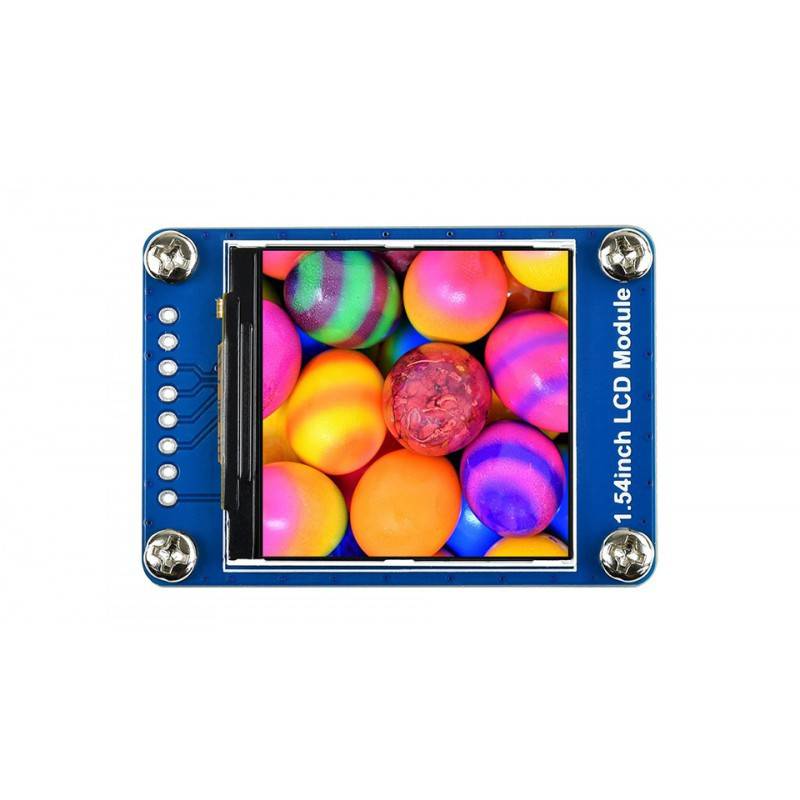

Waveshare 240×240, General 1.54inch LCD Display Module, IPS, 65K RGB - RS1666

Waveshare 240×240, General 1.54inch LCD Display Module, IPS, 65K RGB - RS1666

SKU:RS1666

11 in stock

Regular price Rs. 729.00
Regular price Sale price Rs. 729.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
  • Interface: SPI
  • LCD type: IPS
  • Controller: ST7789
  • Resolution: 240(H)RGB x 240(V)
  • Display area: 27.72(H)x 27.72(V)mm
  • Pixel size: 0.1155(H)x 0.1155(V)mm
  • Dimension: 50 x 35(mm)

Description :

1.54 inch LCD Module, IPS Screen, 65K RGB Colors, 240×240 Resolution, SPI Interface

Features :

  • 240×240 resolution, 65K RGB colors, clear and colorful displaying effect

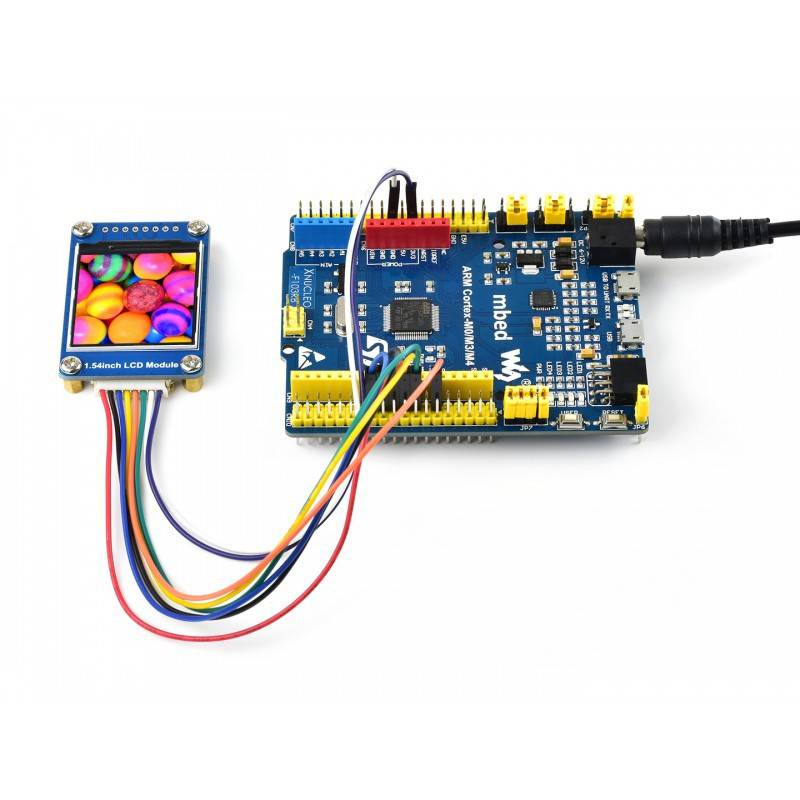

  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Specification:

  • Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
  • Interface: SPI
  • LCD type: IPS
  • Controller: ST7789
  • Resolution: 240(H)RGB x 240(V)
  • Display area: 27.72(H)x 27.72(V)mm
  • Pixel size: 0.1155(H)x 0.1155(V)mm
  • Dimension: 50 x 35(mm)

Package Included :

  • 1.54inch LCD Module x1
  • PH2.0 8PIN 20cm cable x1
