Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044

Waveshare 240x240, General 1.3inch LCD display Module, IPS, HD - RS2044

SKU:RS2044

Regular price Rs. 740.00
Regular price Sale price Rs. 740.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V/5V

Description :

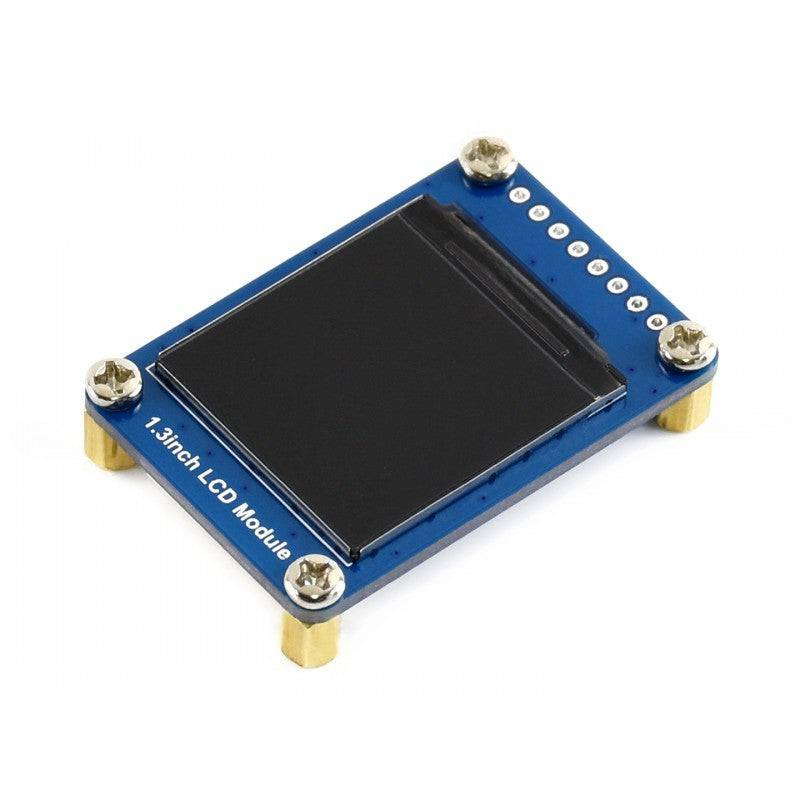

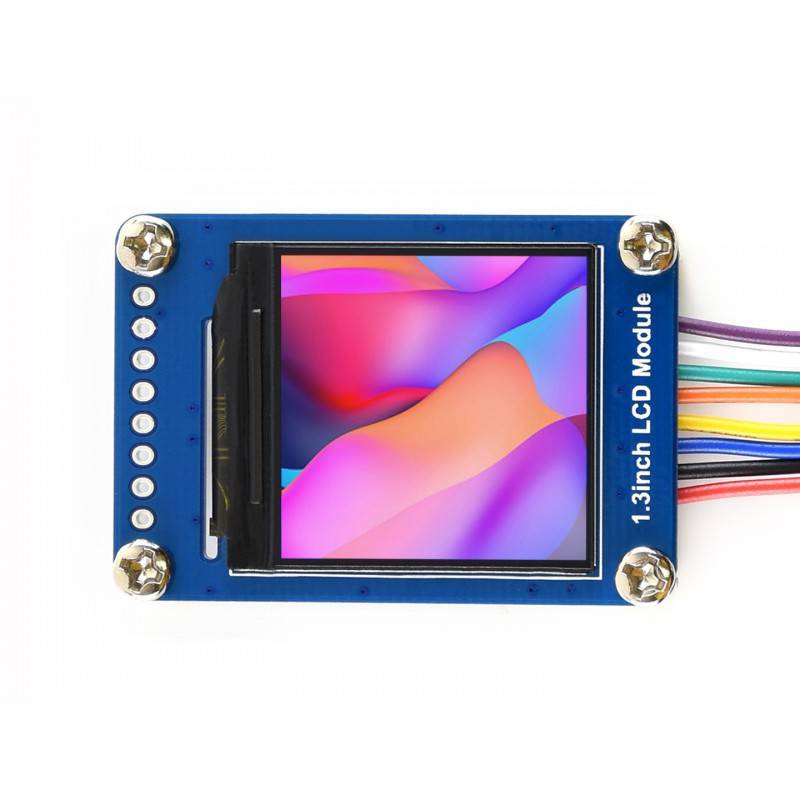

This is a general LCD display Module, IPS screen, 1.3inch diagonal, 240x240 HD resolution, with embedded controller, communicating via SPI interface.

Feature :

  • SPI interface, requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specification :

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V/5V

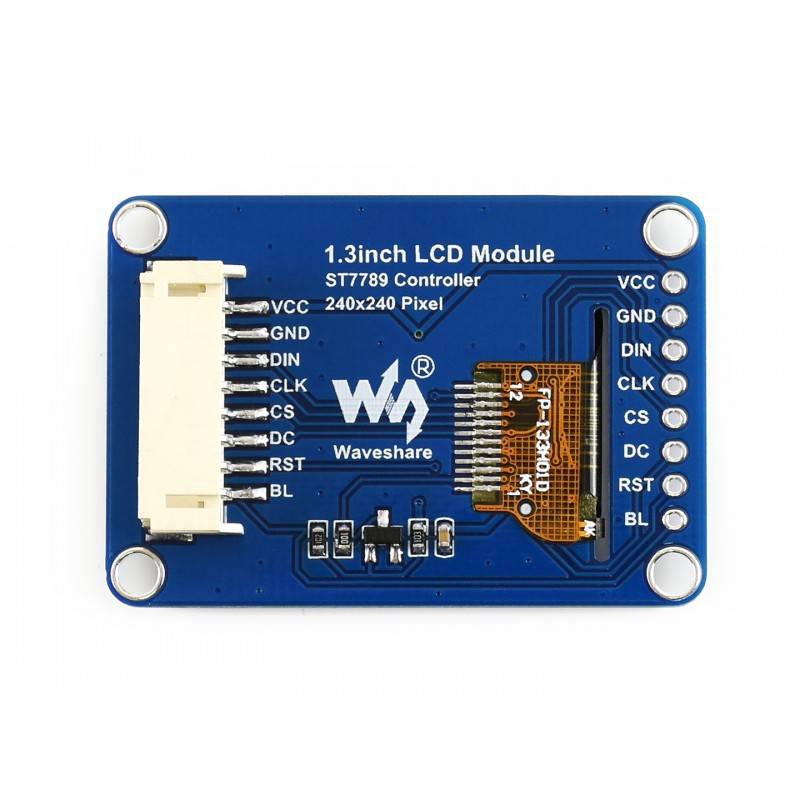

Interface :

  • VCC : Power (3.3V/5V input)
  • GND : Ground
  • DIN : SPI data input
  • CLK : SPI clock input
  • CS : Chip selection, low active
  • DC : Data/Command selection (high for data, low for command)
  • RST : Reset, low active
  • BL : Backlight

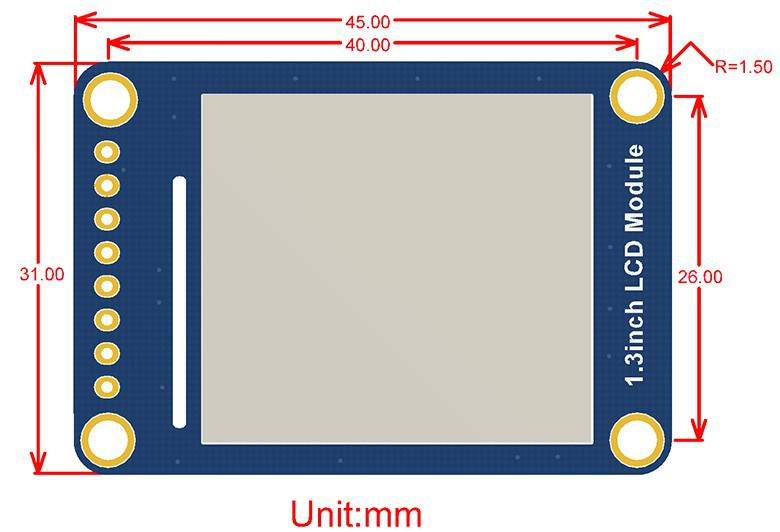

Dimension :

1.3inch LCD Module dimensions

Package Included :

1 X 1.3inch LCD Module
1 X PH2.0 20cm 8Pin
