Description:

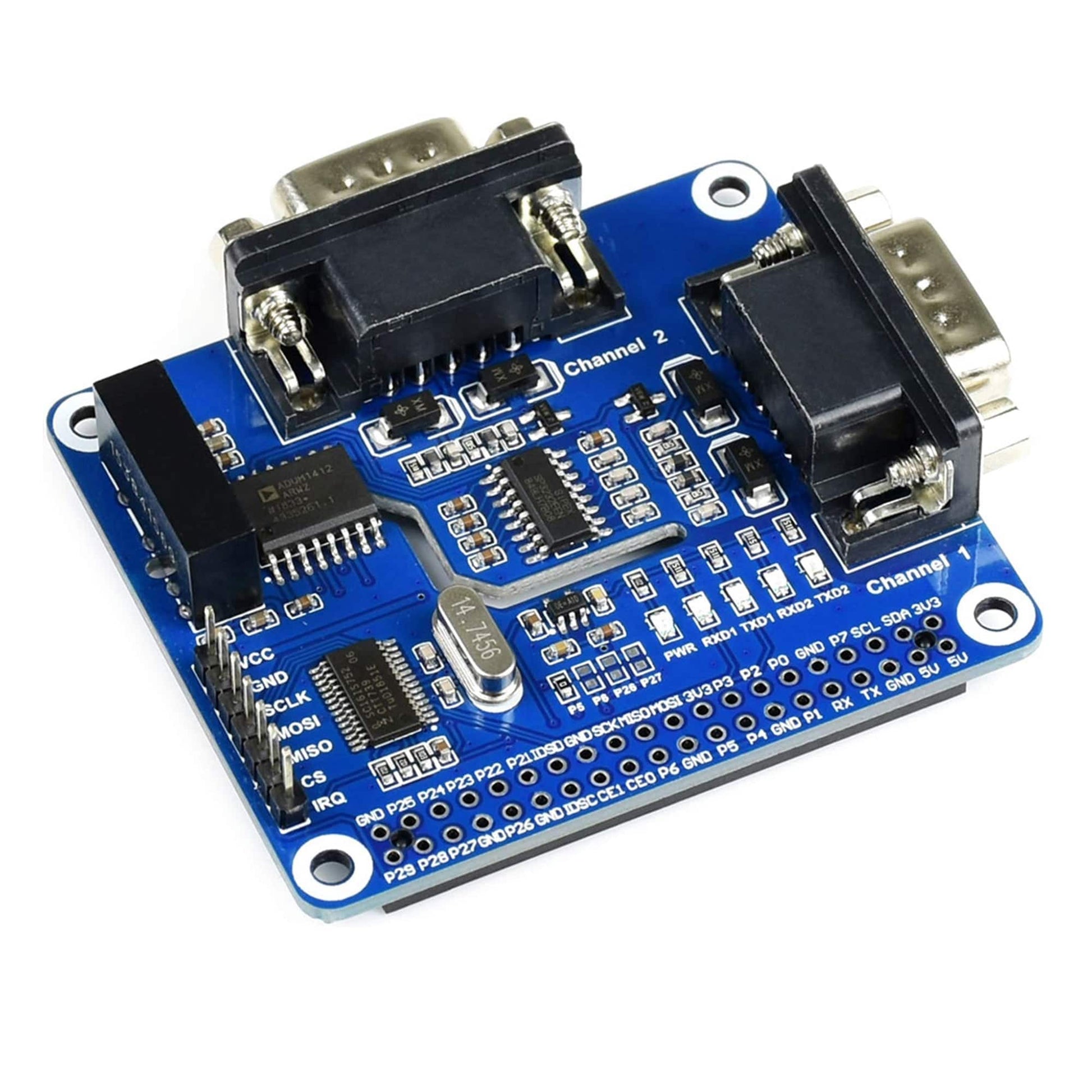

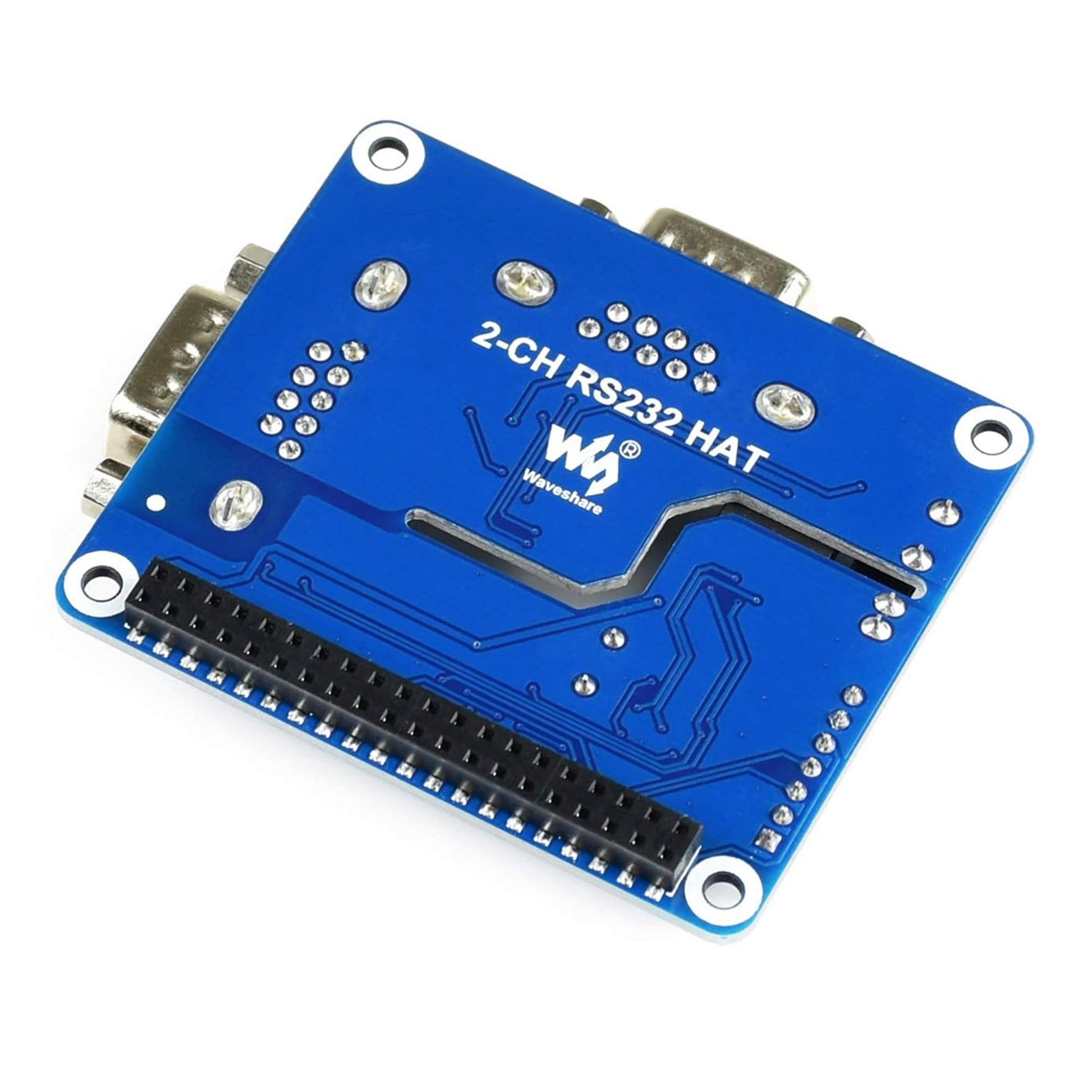

This is a 2-channel isolated RS232 expansion HAT designed for Raspberry Pi, adopts the SC16IS752+SP3232 solution, with embedded protection circuits such as power supply isolation, ADI magnetical isolation, and TVS diode, etc.
It is easy to control the 2-Channel RS232 via the SPI interface. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for fields like industrial automation.
Specifications:
- UART Expansion Chip: SC16IS752
- RS232 Transceiver: SP3232
- Communication Interface: SPI
- Data Rate: 300 ~ 921600 bps
- Operating Voltage: 3.3V / 5V
- Dimensions: 65mm × 56.5mm
- Mounting Hole Size: 3.0mm
Features:

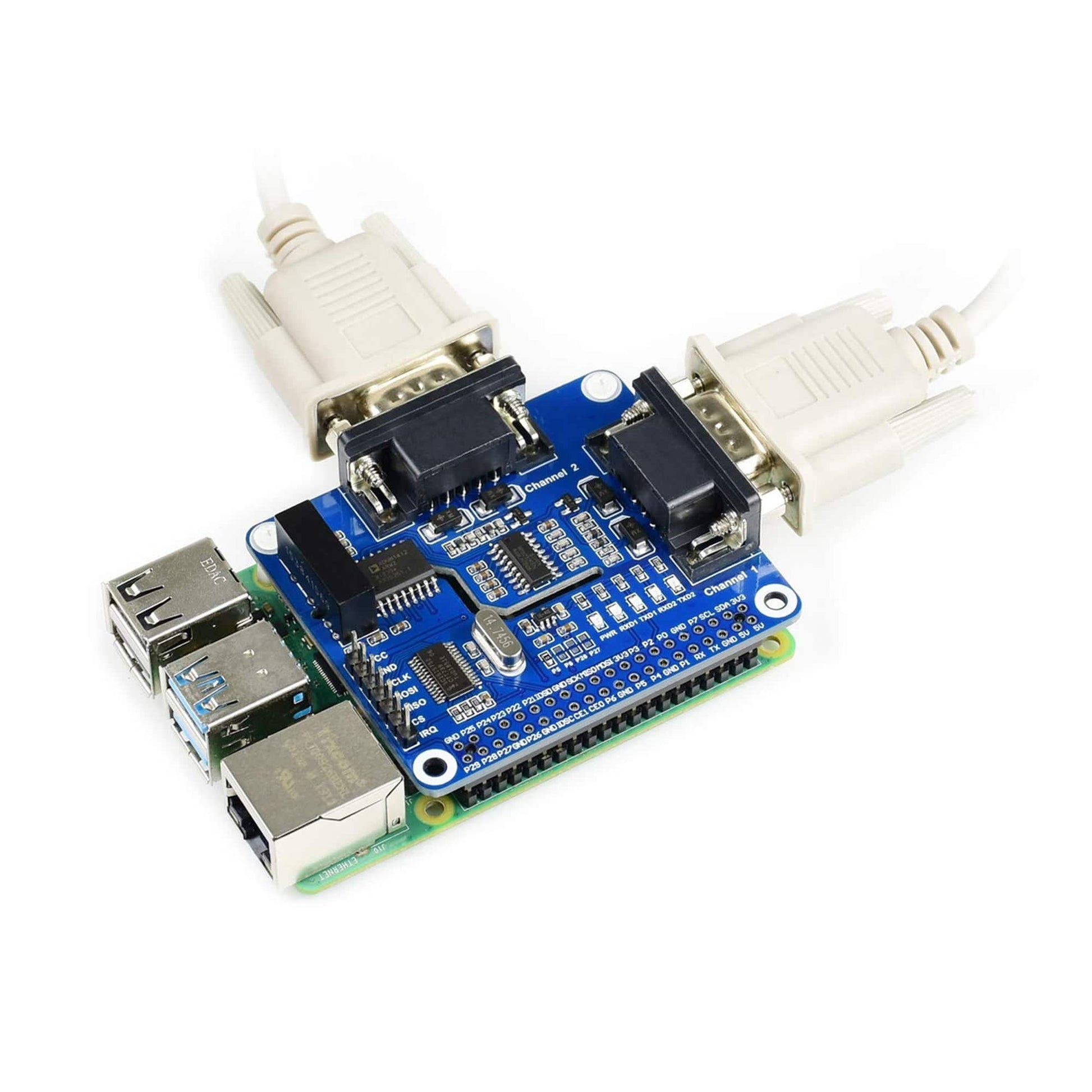

- Standard Raspberry Pi 40PIN GPIO extension header supports Raspberry Pi series boards.
- 2-Channel Isolated RS232 Expansion HAT adopts SC16IS752+SP3232 dual-chip combination, converts SPI to RS232, data rate up to 921600bps.
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, lightning-proof & anti-electrostatic.
- Onboard LEDs for indicating the power and transceiver status.
- Breakout SPI control pins, for connecting with host control boards like Arduino.
- 2-Channel Isolated RS232 Expansion HAT comes with online development resources and a manual (examples in C and Python).
Useful Link:
Waveshare 2-Channel Isolated RS232 Expansion HAT
Package Included:
1 x Waveshare 2-Channel Isolated RS232 Expansion HAT for Raspberry Pi 4B/3B+/3B/2B/B+/A+/Zero/Zero W
