Waveshare 2.9inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 296×128, Black / White, SPI - RS1956

Waveshare 2.9inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 296×128, Black / White, SPI - RS1956

SKU:RS1956

Regular price Rs. 1,481.00
Regular price Sale price Rs. 1,481.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Dimension: 66.89mm × 29.05mm
  • Outline dimensions (raw panel): 79.0mm × 36.7mm × 1.05mm
  • Outline dimension(with driver board): 82.0mm × 38.0mm
  • Display size: 2.9inch
  • Operating voltage: 3.3V/5V
  • Interface: SPI
  • Dot pitch: 0.227 × 0.226
  • Resolution: 296 × 128 pixels
  • Display color: Black, white
  • Greyscale: 2
  • Partial refresh time: 0.3s
  • full refresh time: 2s
  • Refresh power: 26.4mW (typ.)
  • Standby current: <0.01uA (almost none)

Description :

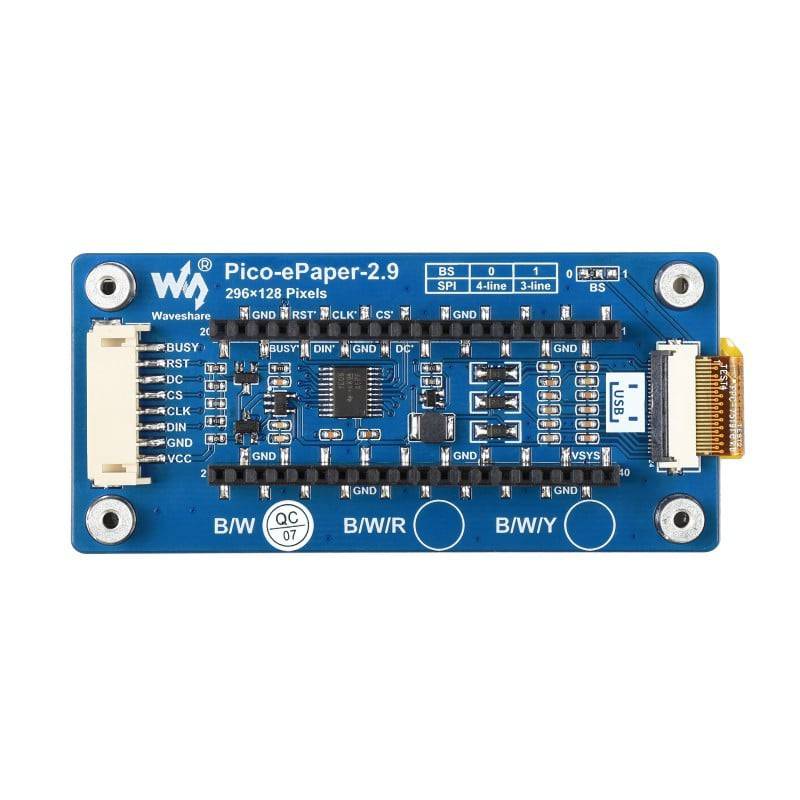

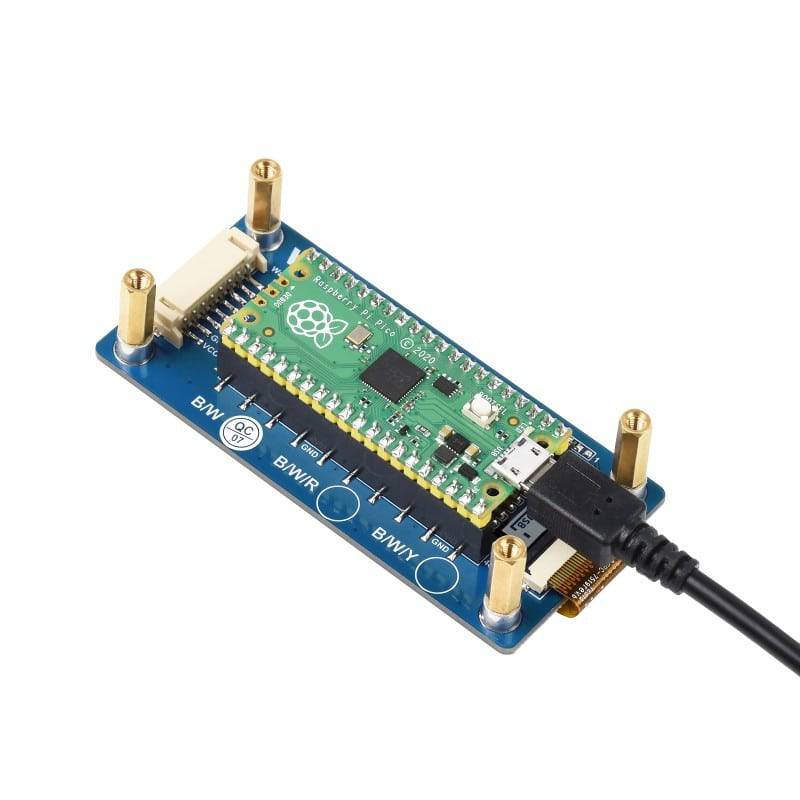

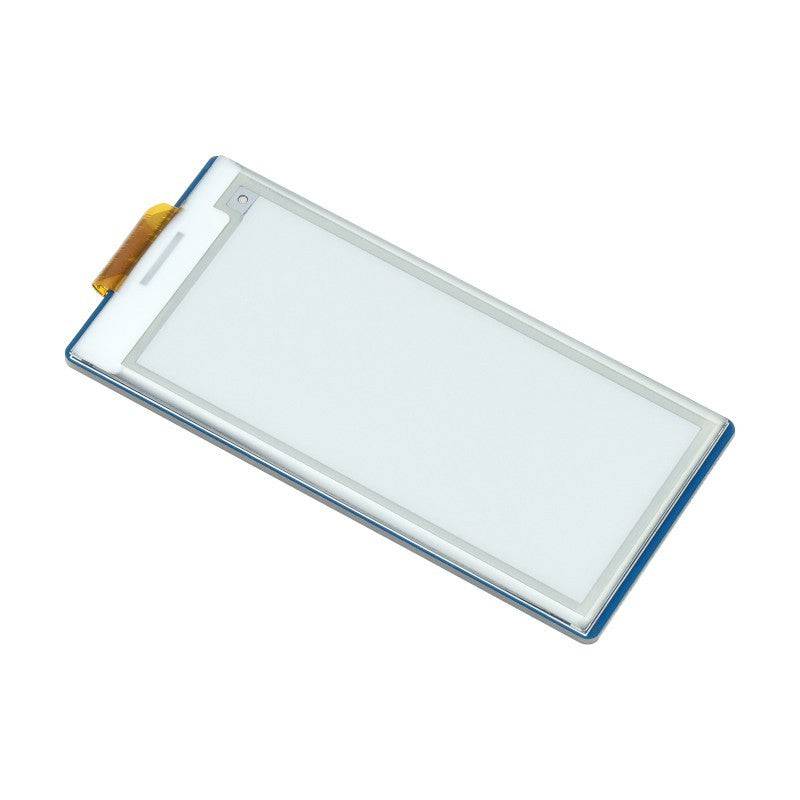

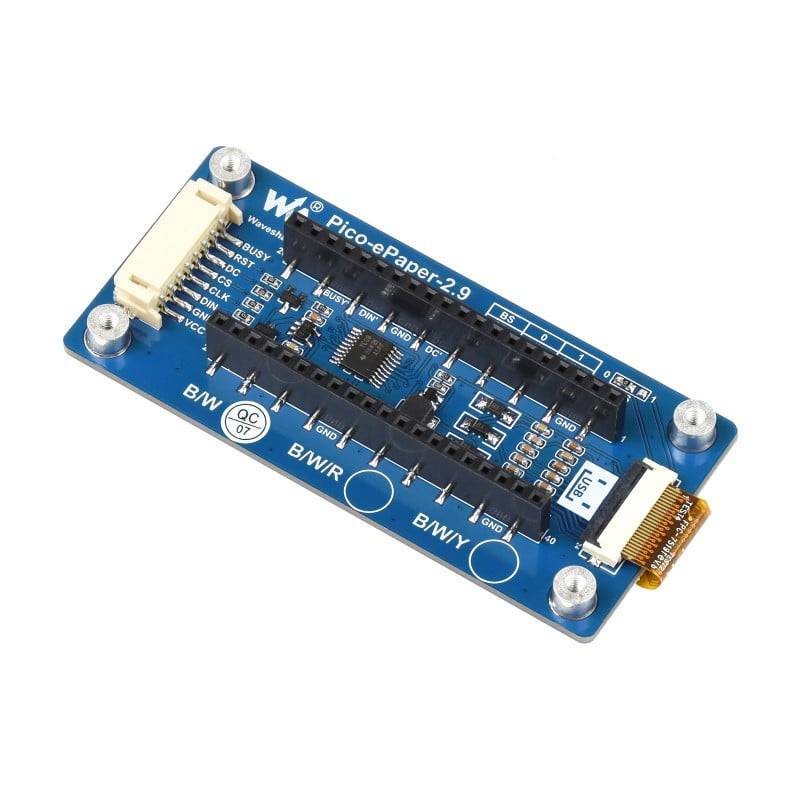

2.9inch EPD (Electronic Paper Display) Module For Raspberry Pi Pico, 296 × 128 Pixels, Black / White, SPI Interface.

Features :

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specification:

  • Dimension: 66.89mm × 29.05mm
  • Outline dimensions (raw panel): 79.0mm × 36.7mm × 1.05mm
  • Outline dimension(with driver board): 82.0mm × 38.0mm
  • Display size: 2.9inch
  • Operating voltage: 3.3V/5V
  • Interface: SPI
  • Dot pitch: 0.227 × 0.226
  • Resolution: 296 × 128 pixels
  • Display color: Black, white
  • Grayscale: 2
  • Partial refresh time: 0.3s
  • full refresh time: 2s
  • Refresh power: 26.4mW (typ.)
  • Standby current: <0.01uA (almost none)



【Note】

  • Refresh time: The refresh time is the experimental results, the actual refresh time will have errors, and the actual effect shall prevail. There will be a flickering effect during the global refresh process, this is a normal phenomenon.
  • Power consumption: The power consumption data is the experimental results. The actual power consumption will have a certain error due to the existence of the driver board and the actual use situation. The actual effect shall prevail.

Package Included :

  • Pico-ePaper-2.9 x1
  • PH2.0 8PIN wire 20cm x1
  • Standoff pack x1
