- Size: 2.9inch
- Outline dimensions(raw panel): 79.0mm × 36.7mm × 1.05mm
- Outline dimension(driver board): 82.0mm × 38.0mm
- Display size: 66.89mm × 29.05mm
- Operating voltage: 3.3V/5V
- Interface: SPI
- Dot pitch: 0.138 × 0.138
- Resolution: 296 × 128
- Display color: Black, White, Red
- Greyscale: 2
- full refresh time: 15s
- Refresh power: 26.4mW (typ.)
- Standby current: <0.01uA (almost none)
Description :

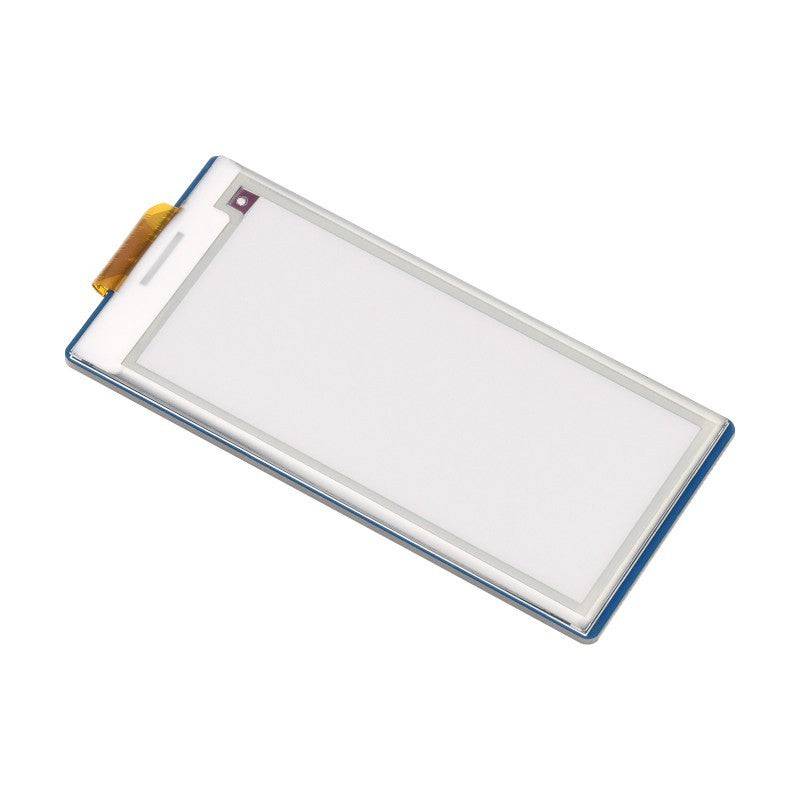

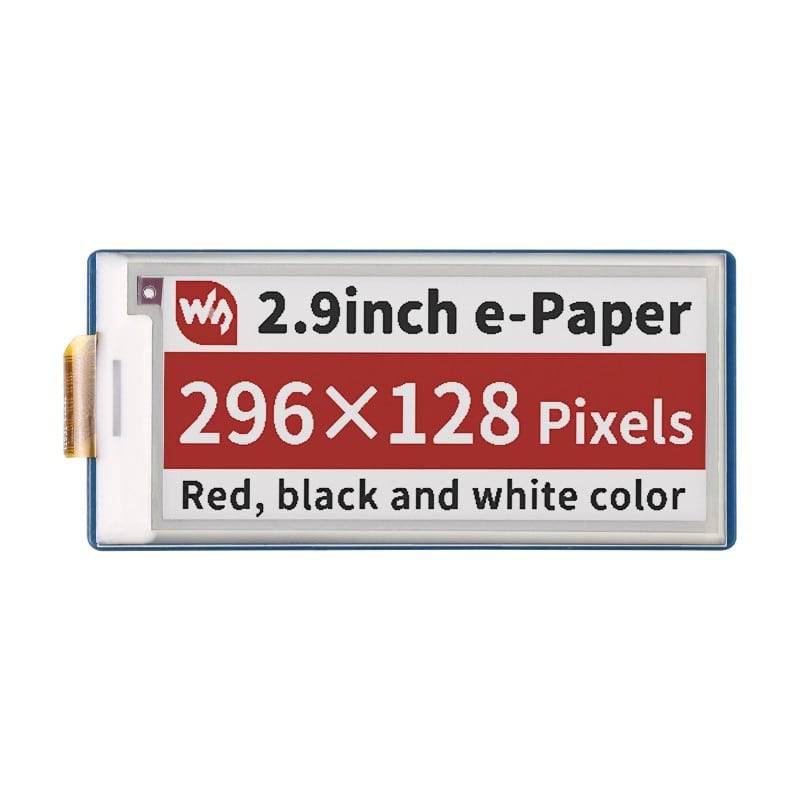

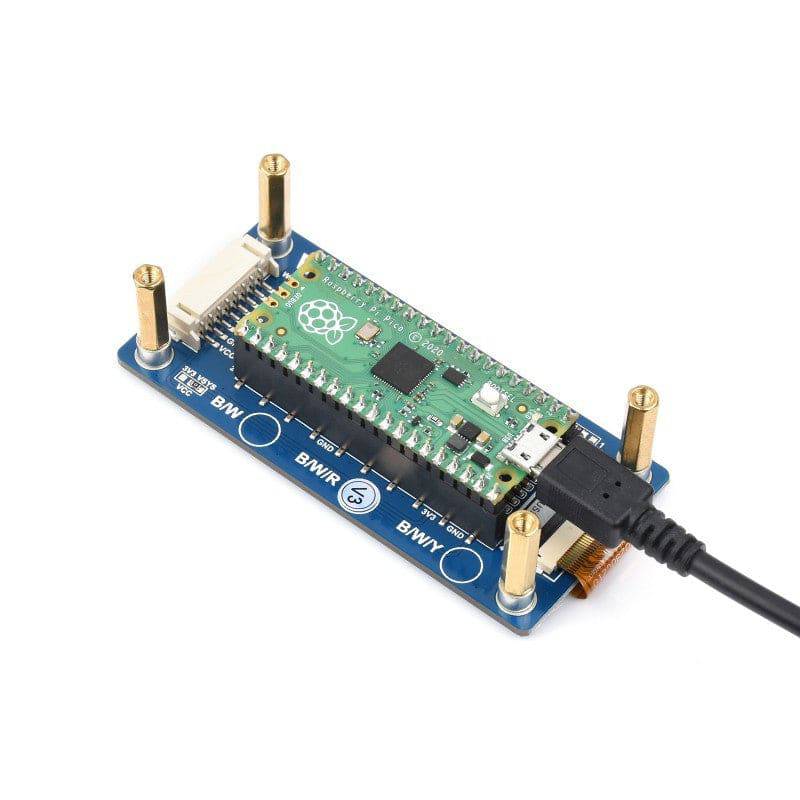

2.9inch EPD (Electronic Paper Display) Module For Raspberry Pi Pico, 296 × 128 Pixels, Black / White / Red, SPI Interface.
Features :
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, requires minimal IO pins

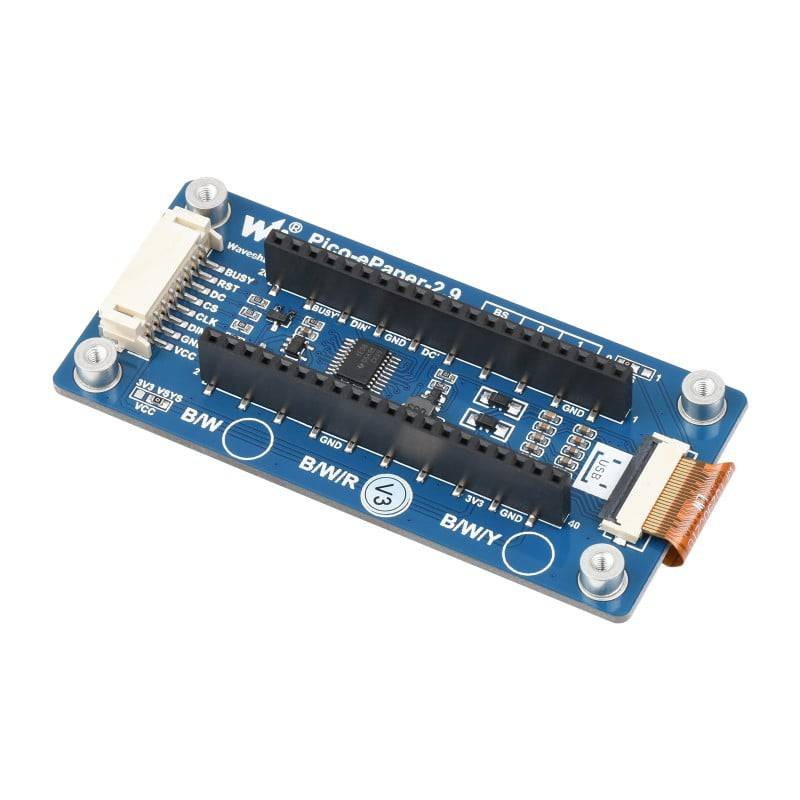

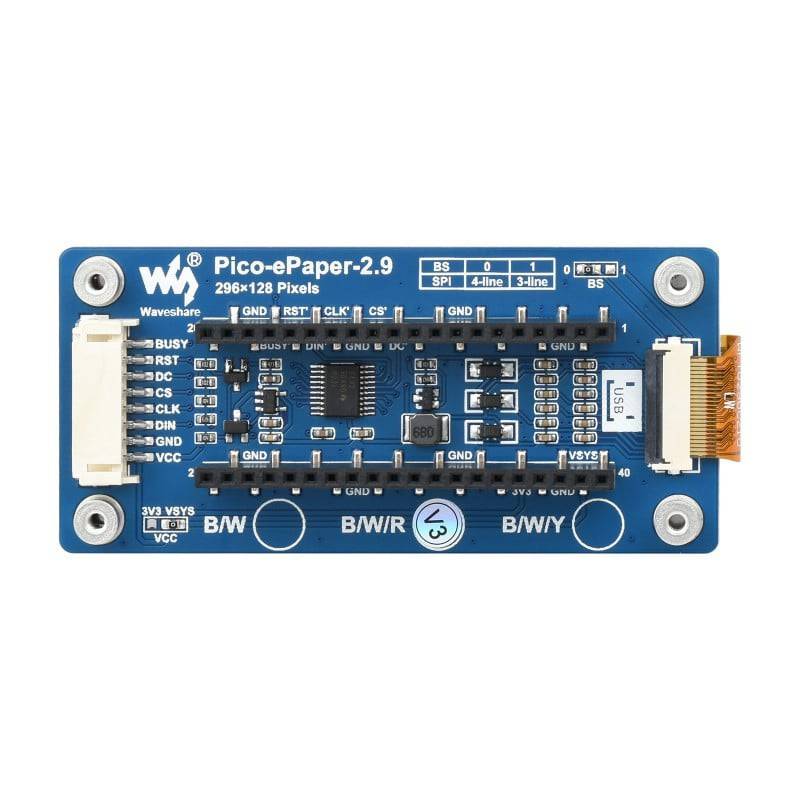

- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
- Size: 2.9inch
- Outline dimensions(raw panel): 79.0mm × 36.7mm × 1.05mm
- Outline dimension(driver board): 82.0mm × 38.0mm
- Display size: 66.89mm × 29.05mm
- Operating voltage: 3.3V/5V
- Interface: SPI
- Dot pitch: 0.138 × 0.138
- Resolution: 296 × 128
- Display color: Black, White, Red
- Greyscale: 2
- full refresh time: 15s
- Refresh power: 26.4mW (typ.)
- Standby current: <0.01uA (almost none)
- Note:
- 1. Refresh time: The refresh time is the experimental results, the actual refresh time will have errors, and the actual effect shall prevail. There will be a flickering effect during the global refresh process, this is a normal phenomenon.
- 2. Power consumption: The power consumption data is the experimental results. The actual power consumption will have a certain error due to the existence of the driver board and the actual use situation. The actual effect shall prevail.
Package Included :
- Pico-ePaper-2.9-B x1
- PH2.0 8PIN wire 20cm x1
- Standoff pack x1
