Waveshare 2.8inch Resistive Touch LCD, 320x240, Raspberry Pi/Arduino - RS3743

Waveshare 2.8inch Resistive Touch LCD, 320x240, Raspberry Pi/Arduino - RS3743

SKU:RS3743

Low stock: 2 left

Regular price Rs. 1,499.00
Regular price Sale price Rs. 1,499.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description :

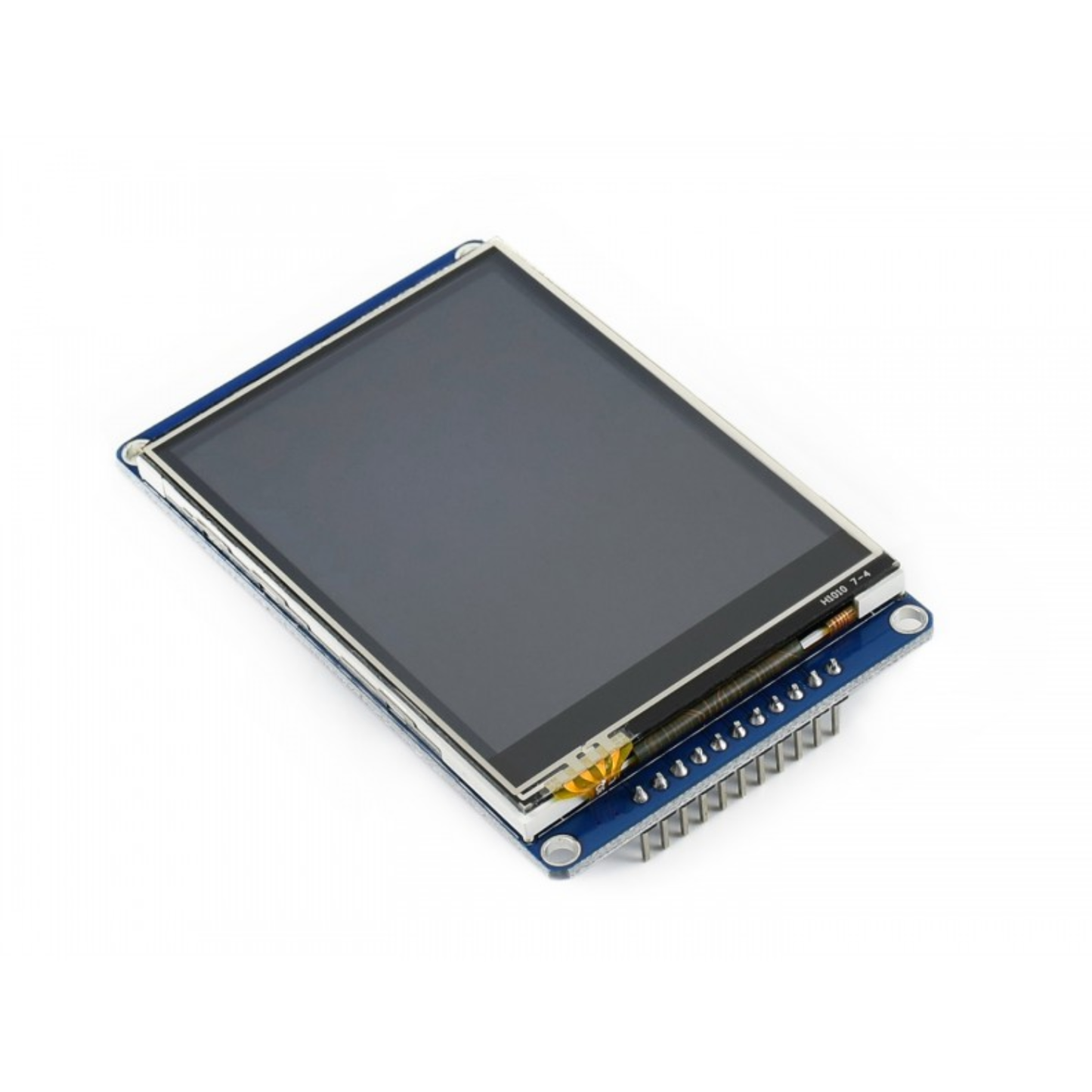

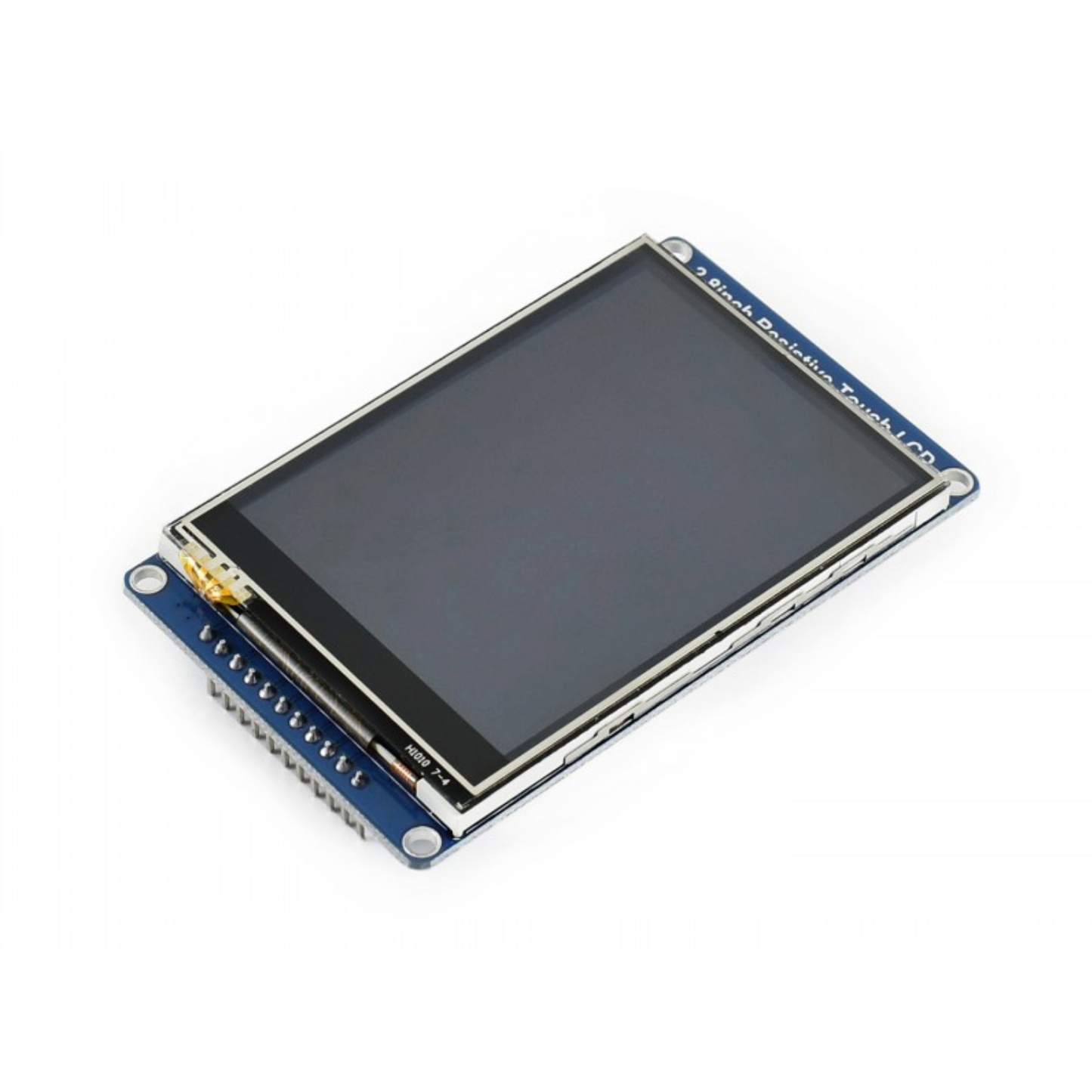

This is a multicolor graphic IPS LCD, 2.8-inch diagonal, 320 × 240 pixels, with a resistive touch screen.

Specifications:

  • Driver: HX8347D
  • Touch Controller: XPT2046
  • LCD Type: IPS
  • Communication Interface: SPI
  • Display Colors: RGB, 65K colors
  • Resolution: 320 × 240
  • Backlight: LED
  • Display Size(mm): 57.6mm × 43.2mm
  • Outline Dimensions: 79.9mm × 50.8mm
  • Touch Type: 4-wire resistive
  • Power Supply Voltage: 5V
  • Logic Level: 3.3V

Features :

  • Onboard touch controller, a smoother touch experience than solutions that directly use AD pins for touching.
  • SPI interface requires a few pins.
  • Programmable backlight control, power saving.
  • Comes with online development resources and manuals (examples for STM32/AVR/PIC)

Useful Link:

Waveshare 2.8inch Resistive Touch LCD

Package Included:

1 x Waveshare 2.8 Inch Resistive Touch LCD Display
