Description:

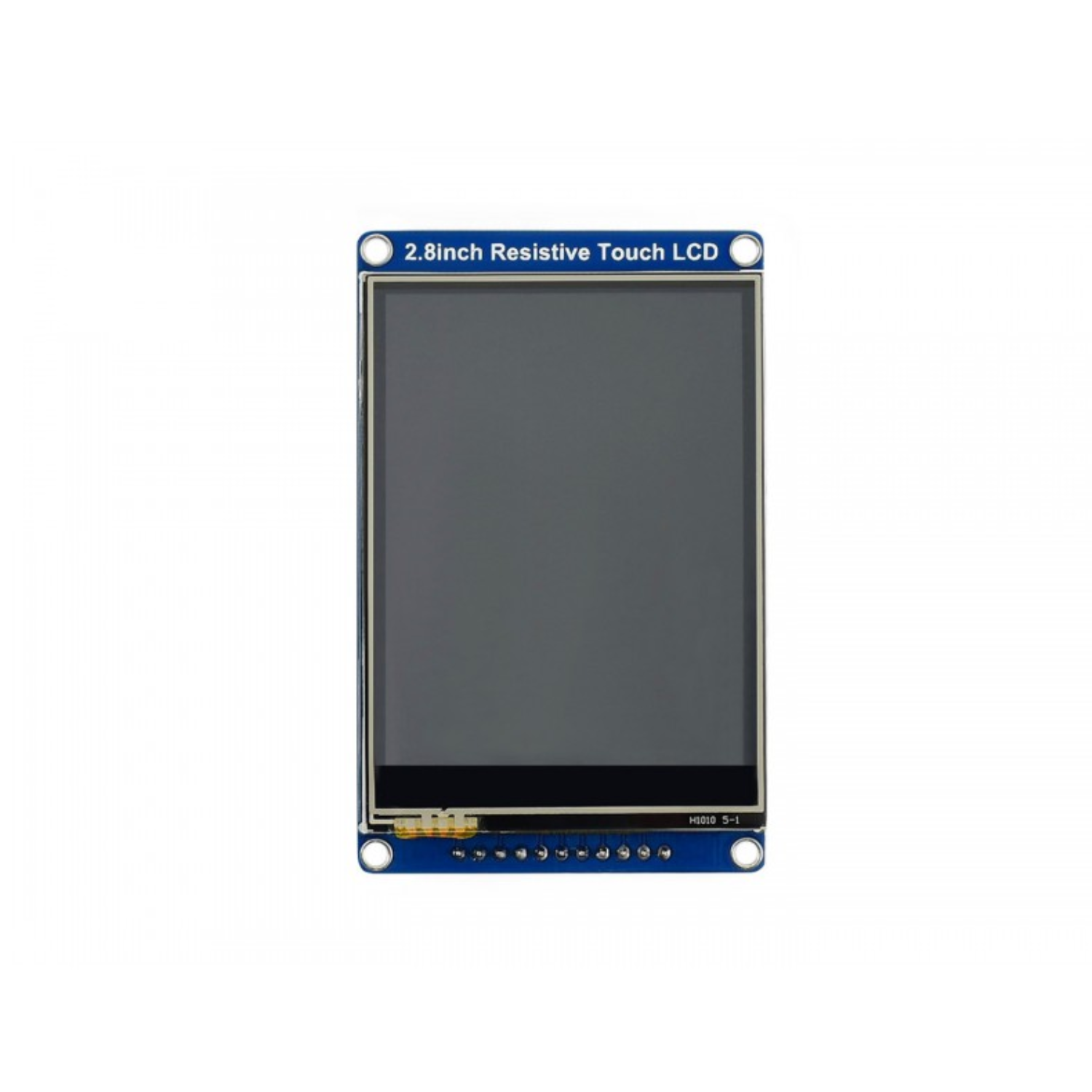

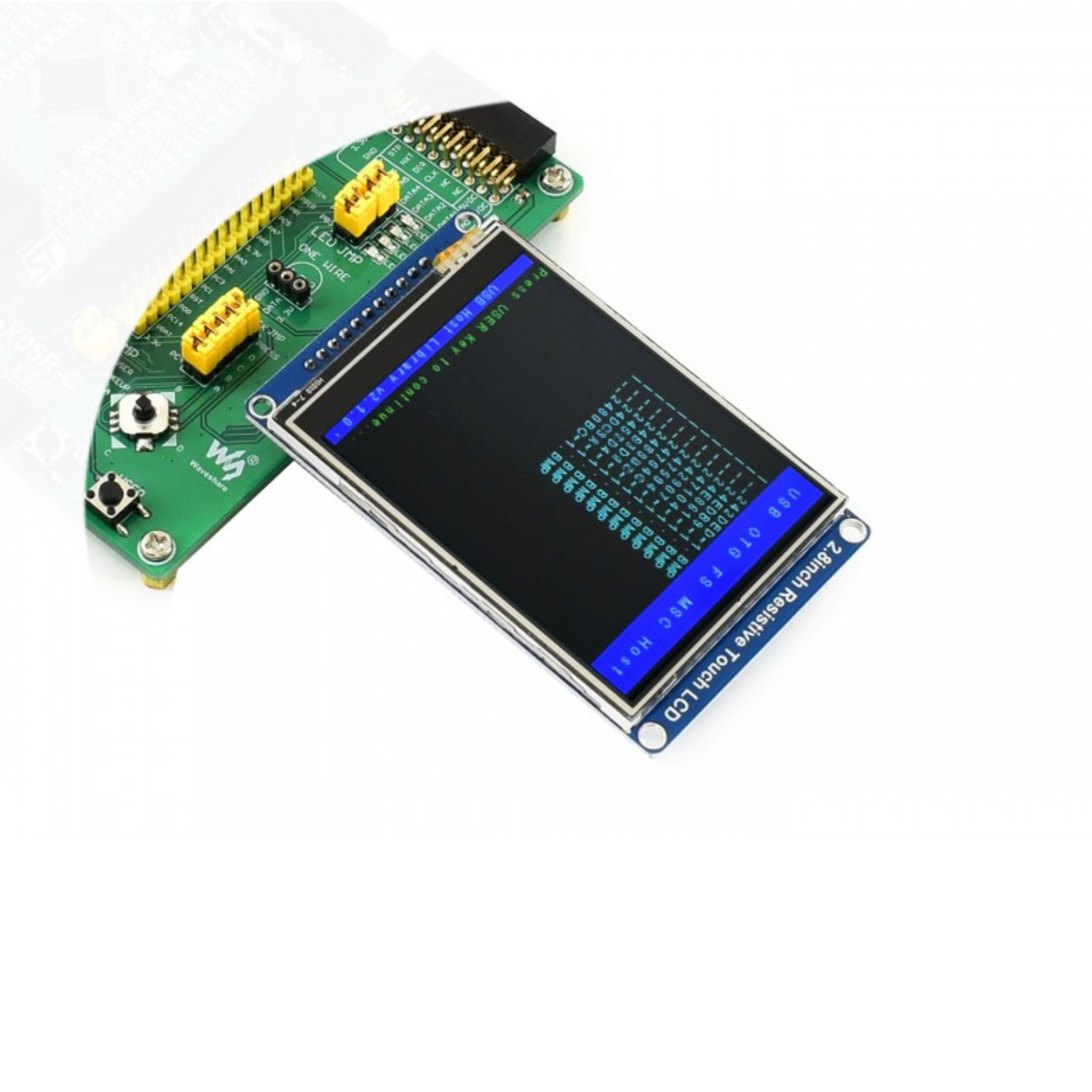

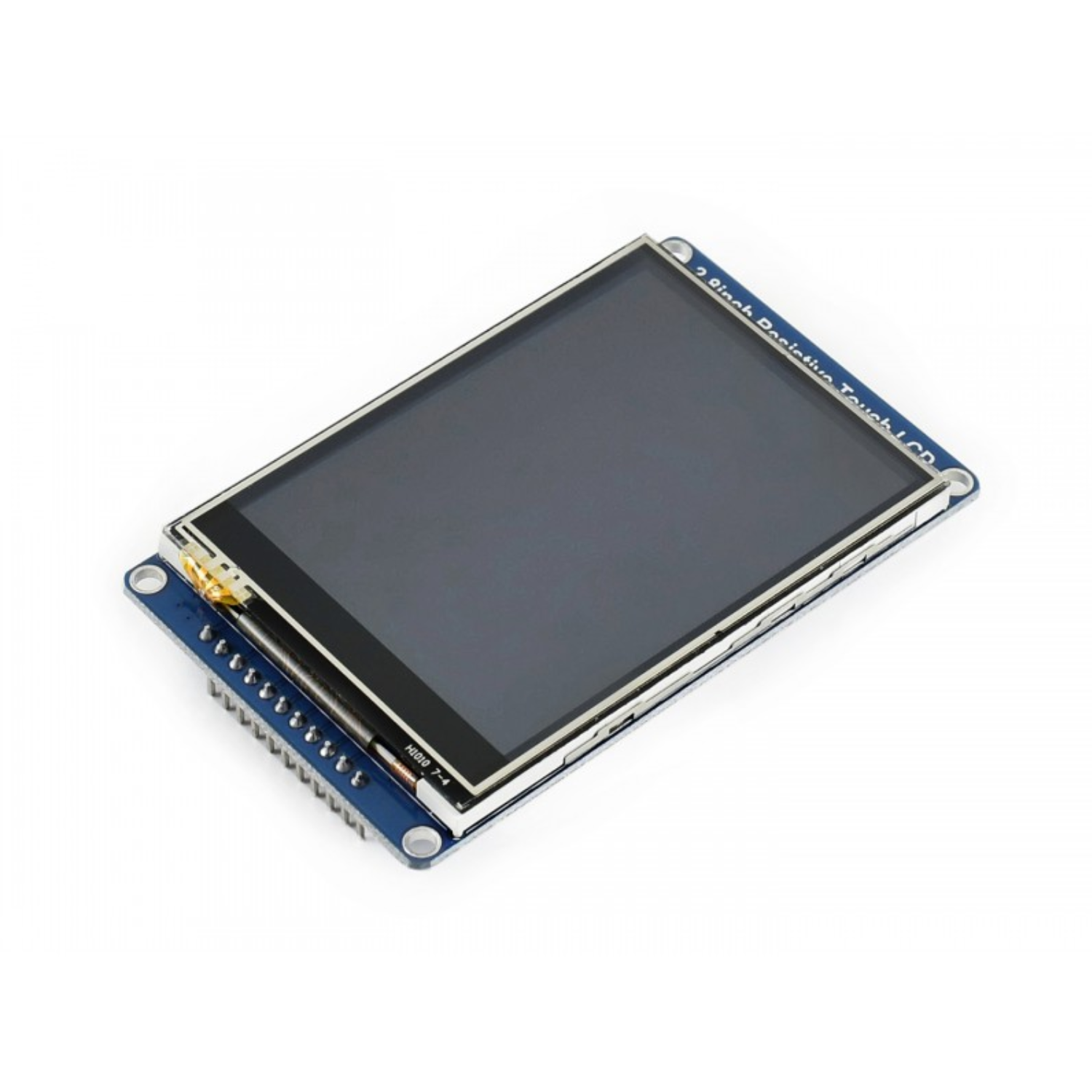

This is a multicolor graphic IPS LCD, 2.8-inch diagonal, 320 × 240 pixels, with a resistive touch screen.

Specifications:

  • Driver: HX8347D
  • Touch Controller: XPT2046
  • LCD Type: IPS
  • Communication Interface: SPI
  • Display Colours: RGB, 65K colours
  • Resolution: 320 × 240
  • Backlight: LED
  • Display Size(mm): 57.6mm × 43.2mm
  • Outline Dimensions: 79.9mm × 50.8mm
  • Touch Type: 4-wire resistive
  • Power Supply Voltage: 5V
  • Logic Level: 3.3V

Features :

  • Onboard touch controller, a smoother touch experience than solutions that directly use AD pins for touching.
  • SPI interface requires a few pins.
  • Programmable backlight control, power saving.
  • Comes with online development resources and manuals (examples for STM32/AVR/PIC)

Useful Link:

Waveshare 2.8inch Resistive Touch LCD

Package Included:

1 x Waveshare 2.8 Inch Resistive Touch LCD Display
