Description:
This is a 2.7inch E-Ink Display HAT for Raspberry Pi, 264x176 resolution, with an embedded controller, communicating via the SPI interface. Due to advantages like ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels, industrial instruments, and so on.
Specifications:
- Operating Voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI
- Outline Dimension: 85mm x 56mm
- Display Size: 57.288mm x 38.192mm
- Dot Pitch: 0.217 x 0.217
- Resolution: 264 x 176
- Display Color: Black, White
- Grey Level: 2
- Full Refresh Time: 15s
- Refresh Power: 26.4mW(typ.)
- Standby Power: <0.017mW
- Viewing Angle: >170°
Features:
- No backlight keeps displaying the latest content for a long time even when powered down
- 2.7inch E-Ink Display HAT has ultra-low power consumption power is only required for refreshing
- Onboard 4x Keys for extended applications
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- E-Ink Display HAT has an SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- 2.7inch E-Ink Display HAT comes with development resources and manual(examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

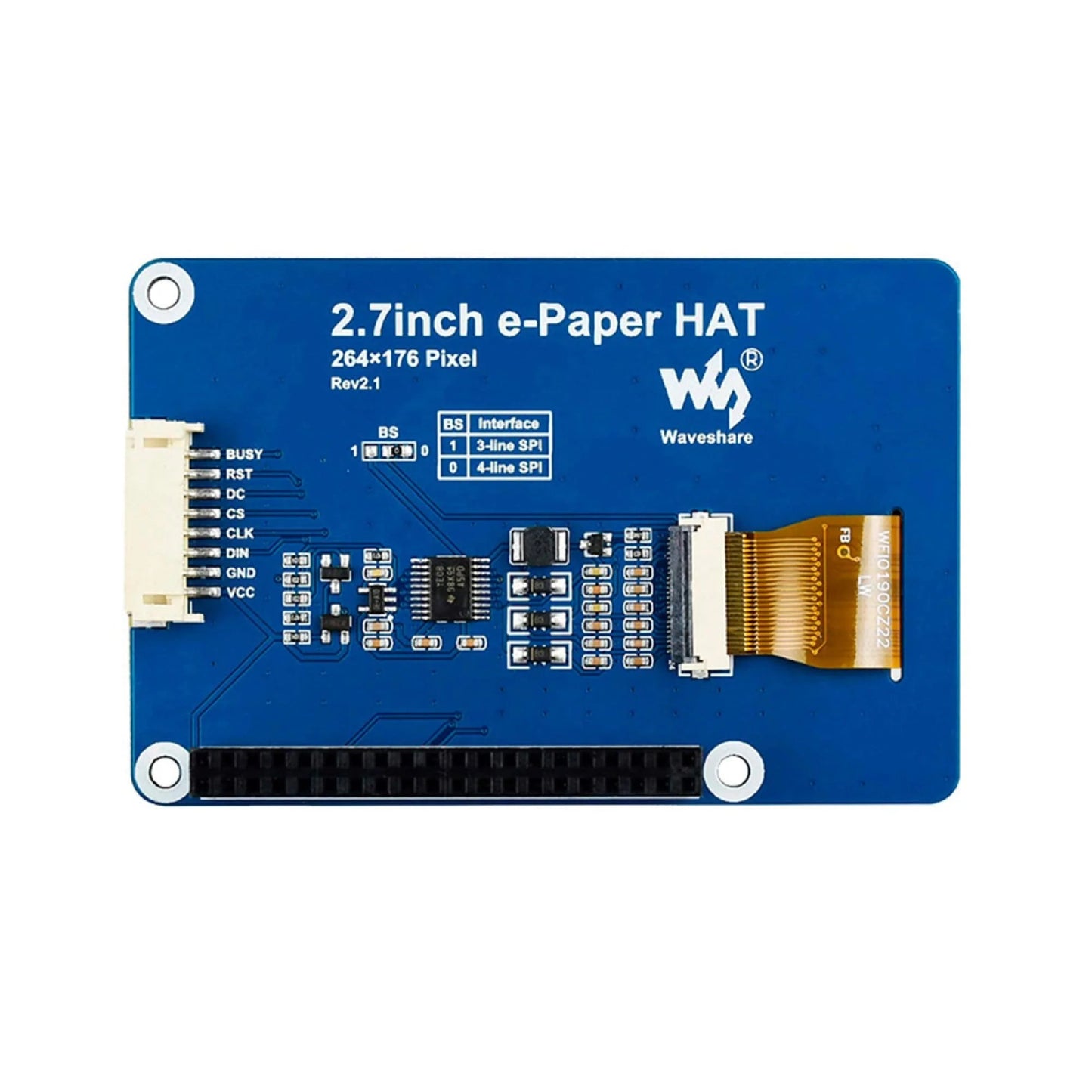

Pin Description:
- VCC: Power (3.3V/5V input)
- GND: Ground
- DIN: SPI MOSI pin
- CLK: SPI SCK pin
- CS: SPI chip selection, low active
- DC: Data/Command selection (high for data, low for command)
- RST: External reset, low active
- TFT: Busy status output pin
Useful Link:
Waveshare 2.7inch E-Ink Display HAT

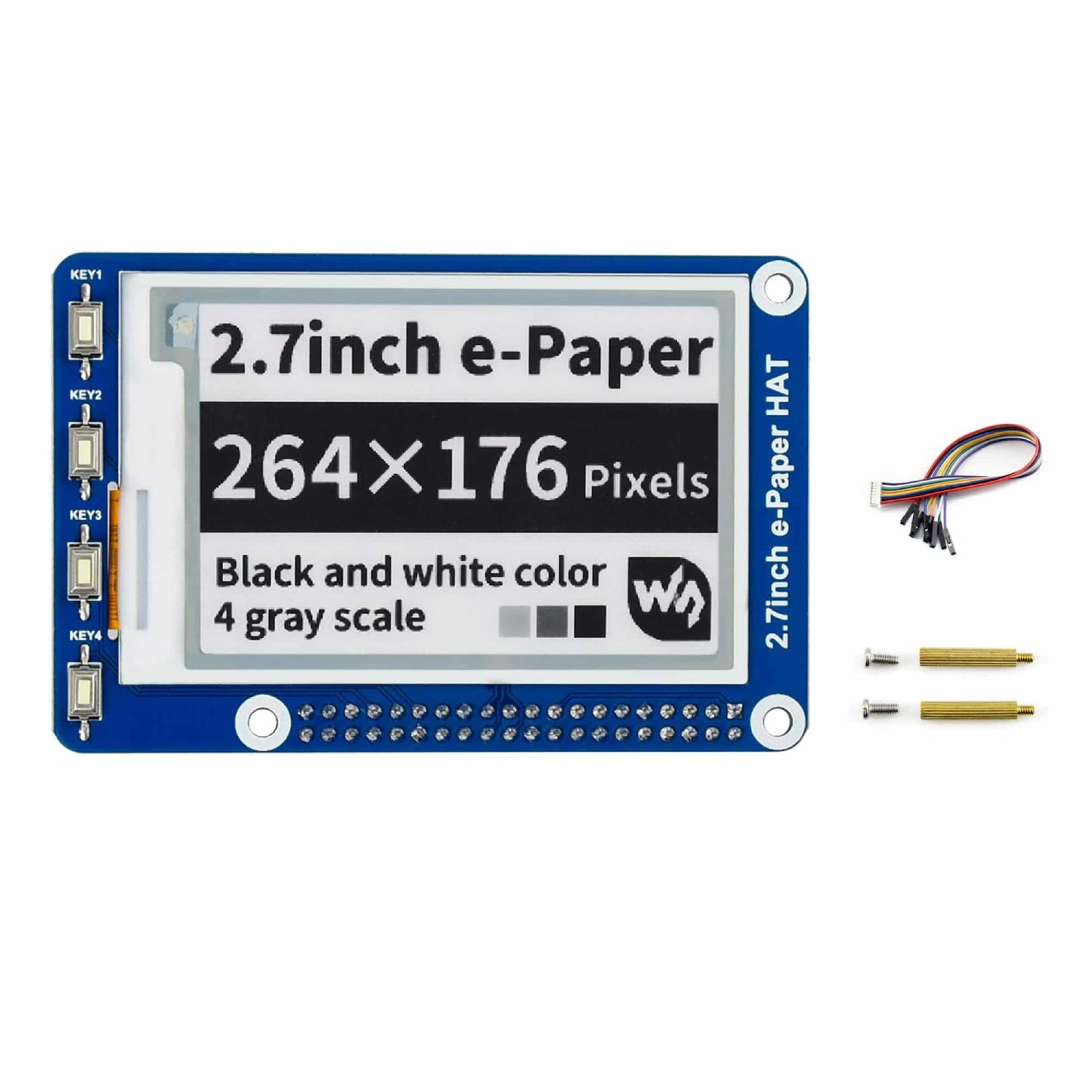

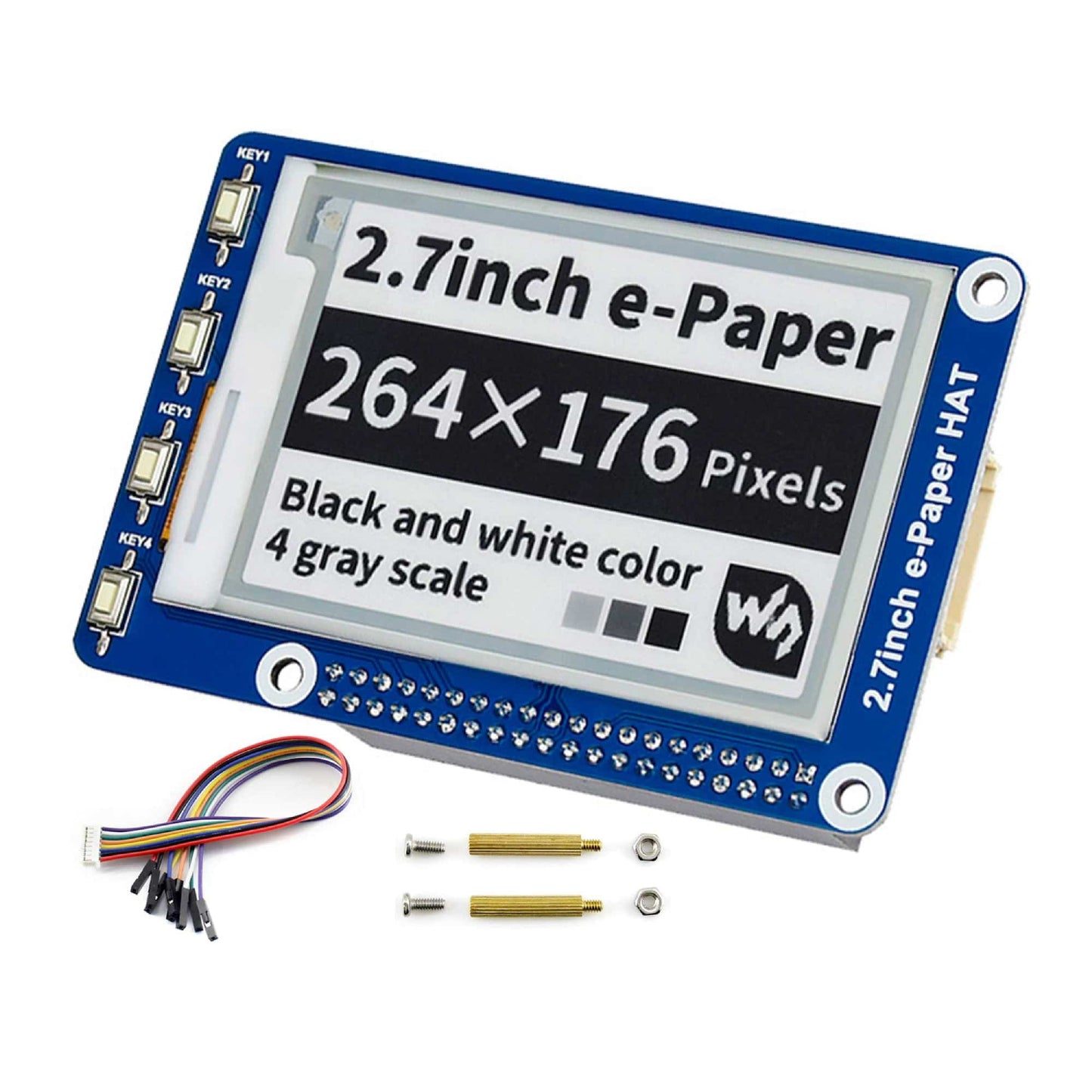

Package Included:
- 1 x Waveshare 2.7inch E-Paper HAT
- 1 x Interfacing Cable
