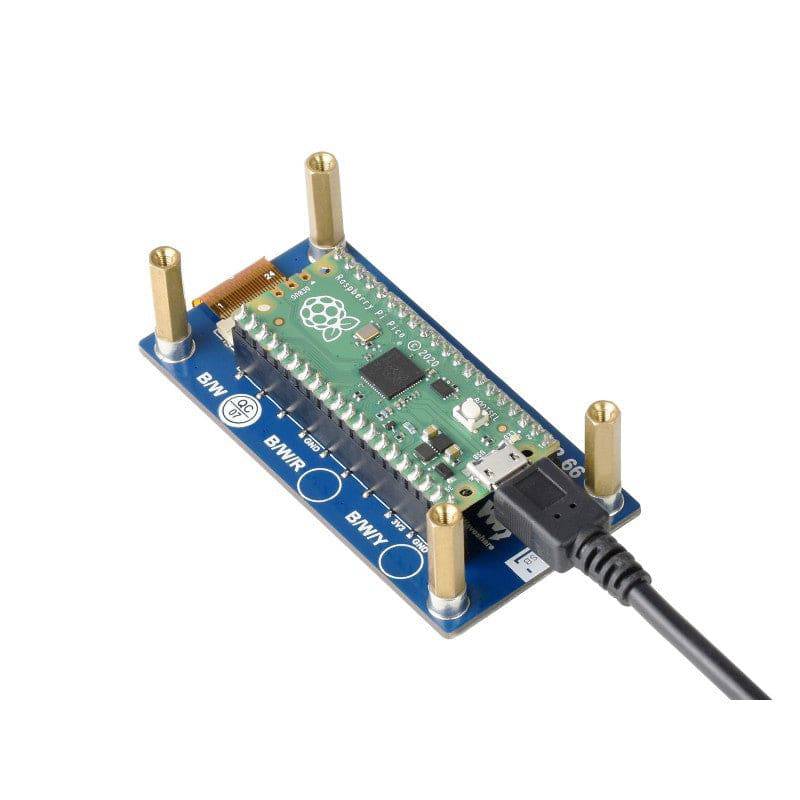

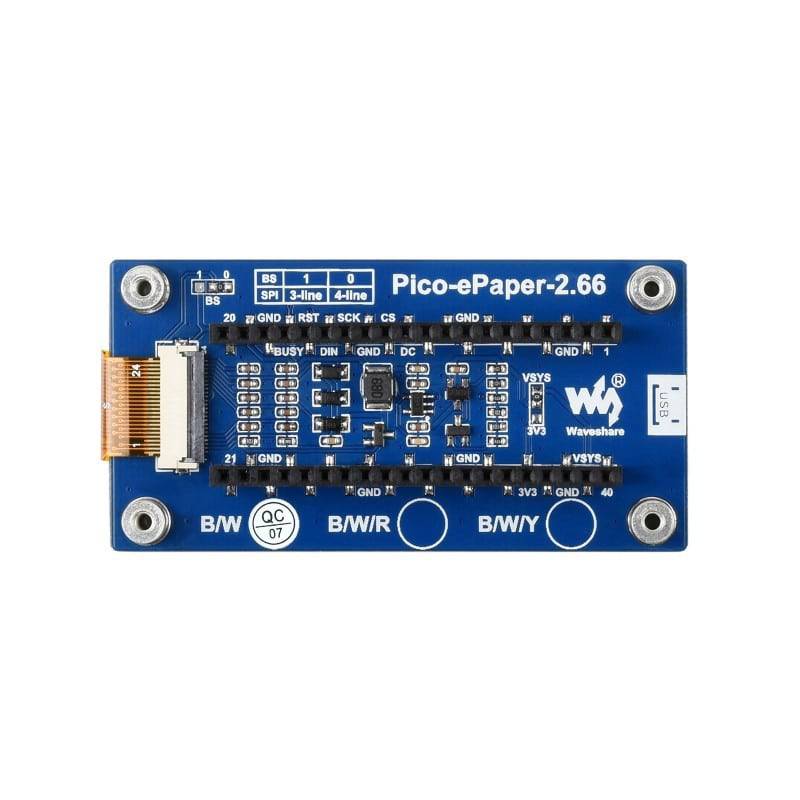

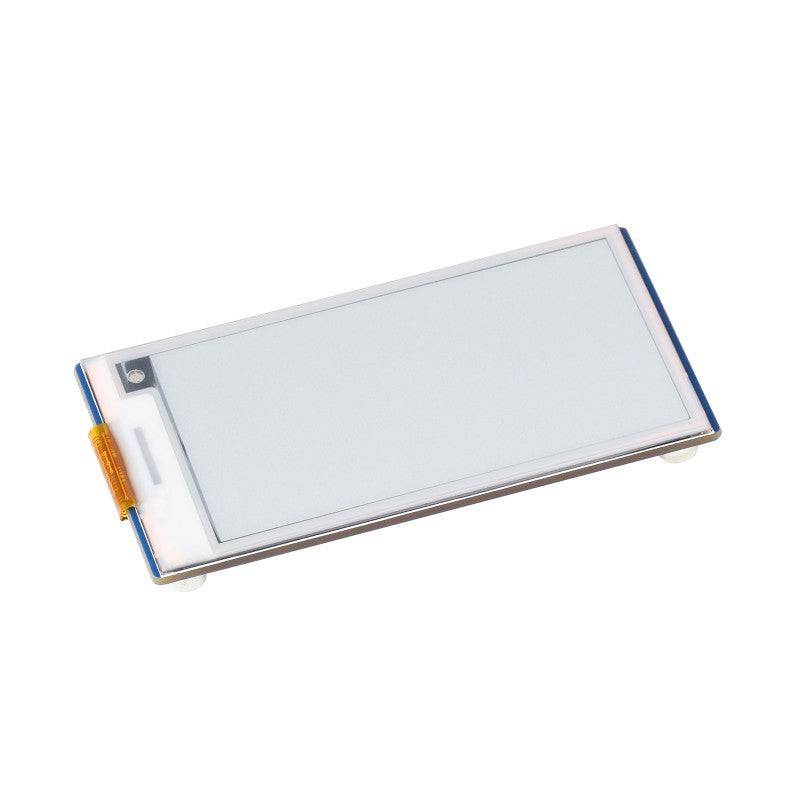

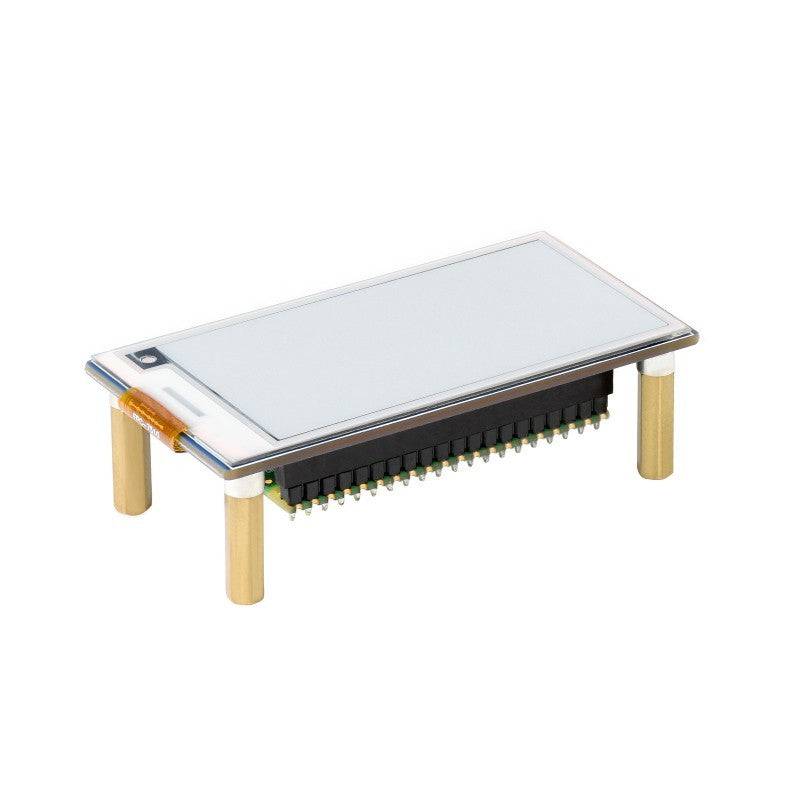

Waveshare 2.66inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 296×152, Black / White, SPI - RS2134

Waveshare 2.66inch E-Paper E-Ink Display Module for Raspberry Pi Pico, 296×152, Black / White, SPI - RS2134

SKU:RS2134

Low stock: 10 left

Regular price Rs. 1,481.00
Regular price Sale price Rs. 1,481.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimensions (Driver board): 74.0mm × 37.5mm
  • Outline dimensions (raw panel): 71.820mm × 36.304mm × 1.05mm
  • Display size: 60.088mm × 30.704mm
  • Dot pitch: 0.202 × 0.203mm
  • Resolution: 296 × 152 pixels
  • Display color: Black, white
  • Grayscale: 2
  • Partial refresh time: 0.3s
  • full refresh time: 6s
  • Refresh power: 26.4mW (typ.)
  • Standby current: <0.01uA (almost 0)
  • Viewing Angle: >170°

Description :

2.66inch EPD (Electronic Paper Display) Module For Raspberry Pi Pico, 296 × 152 Pixels, Black / White, SPI Interface.

Features

No backlight keeps displaying last content for a long time even when power down.
Ultra-low power consumption, basically power is only required for refreshing.
SPI interface requires minimal IO pins.

Specification

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimensions (Driver board): 74.0mm × 37.5mm
  • Outline dimensions (raw panel): 71.820mm × 36.304mm × 1.05mm
  • Display size: 60.088mm × 30.704mm
  • Dot pitch: 0.202 × 0.203mm
  • Resolution: 296 × 152 pixels
  • Display color: Black, white
  • Grayscale: 2
  • Partial refresh time: 0.3s
  • full refresh time: 6s
  • Refresh power: 26.4mW (typ.)
  • Standby current: <0.01uA (almost 0)
  • Viewing Angle: >170°

Package Included :

  • Pico-ePaper-2.66 x1
  • Standoff pack x1
