Waveshare 2.42-Inch OLED Display Module 128×64 Pixels OLED Display with Integrated SPI and I²C Support For Embedded Projects
Waveshare 2.42-Inch OLED Display Module 128×64 Pixels OLED Display with Integrated SPI and I²C Support For Embedded Projects
SKU:RS8484
In stock
Regular price
Rs. 1,154.00
Regular price
Sale price
Rs. 1,154.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The Waveshare 2.42" OLED Display Module provides clear 128×64 resolution and offers flexible SPI/I2C communication. Its compact design ensures efficient graphical interfaces for a wide range of applications.
Specification:
- Operating Voltage: 3.3V / 5V
- Communication Interface: 4-wire SPI (default) / I2C
- Driver Chip: SSD1309
- Resolution: 128 × 64 pixels
- Display Size: 55.01 × 27.49mm
- Pixel Size: 0.4 × 0.4mm
- Module Size: 61.50 × 39.50mm
- Display Color:

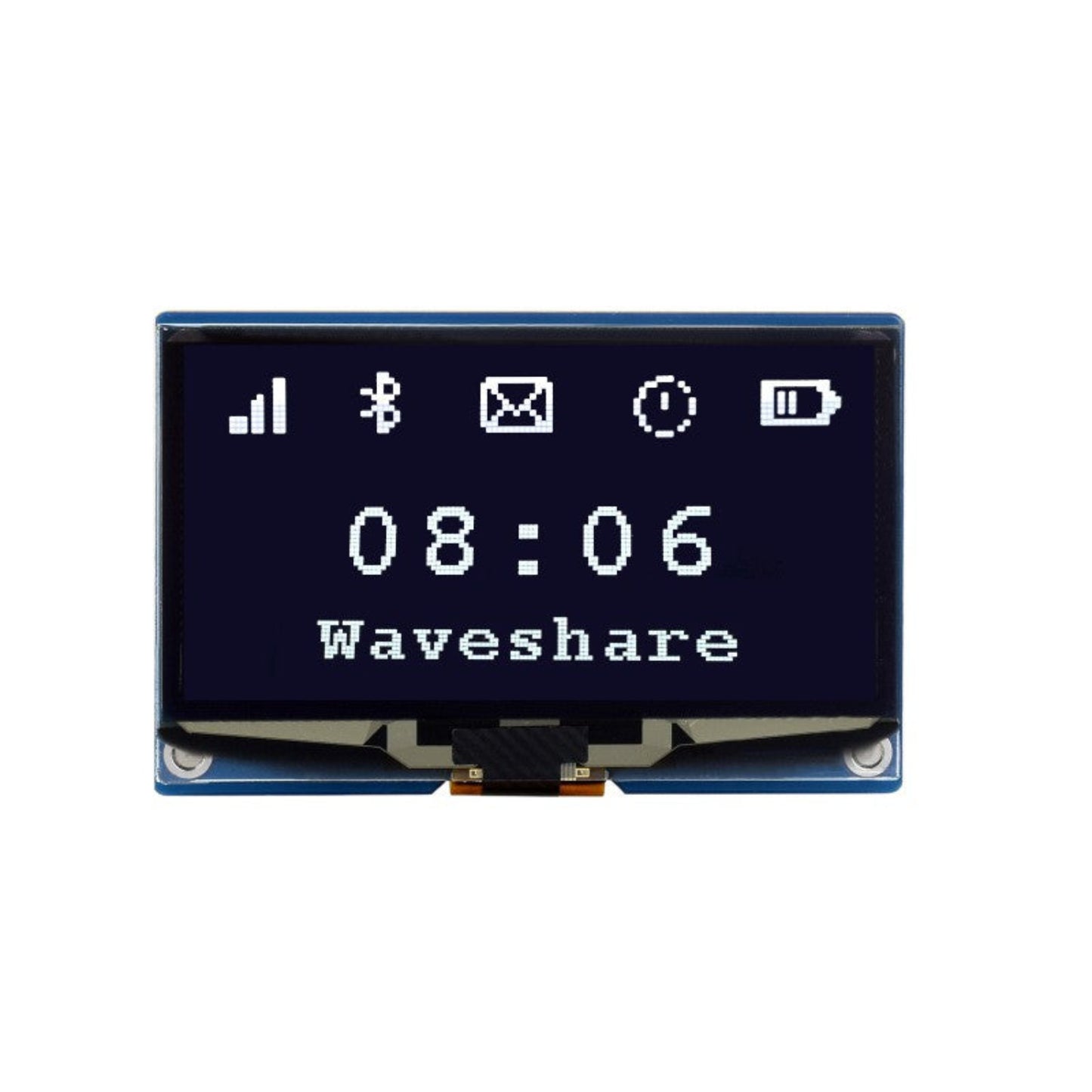

- 2.42inch OLED Module: white

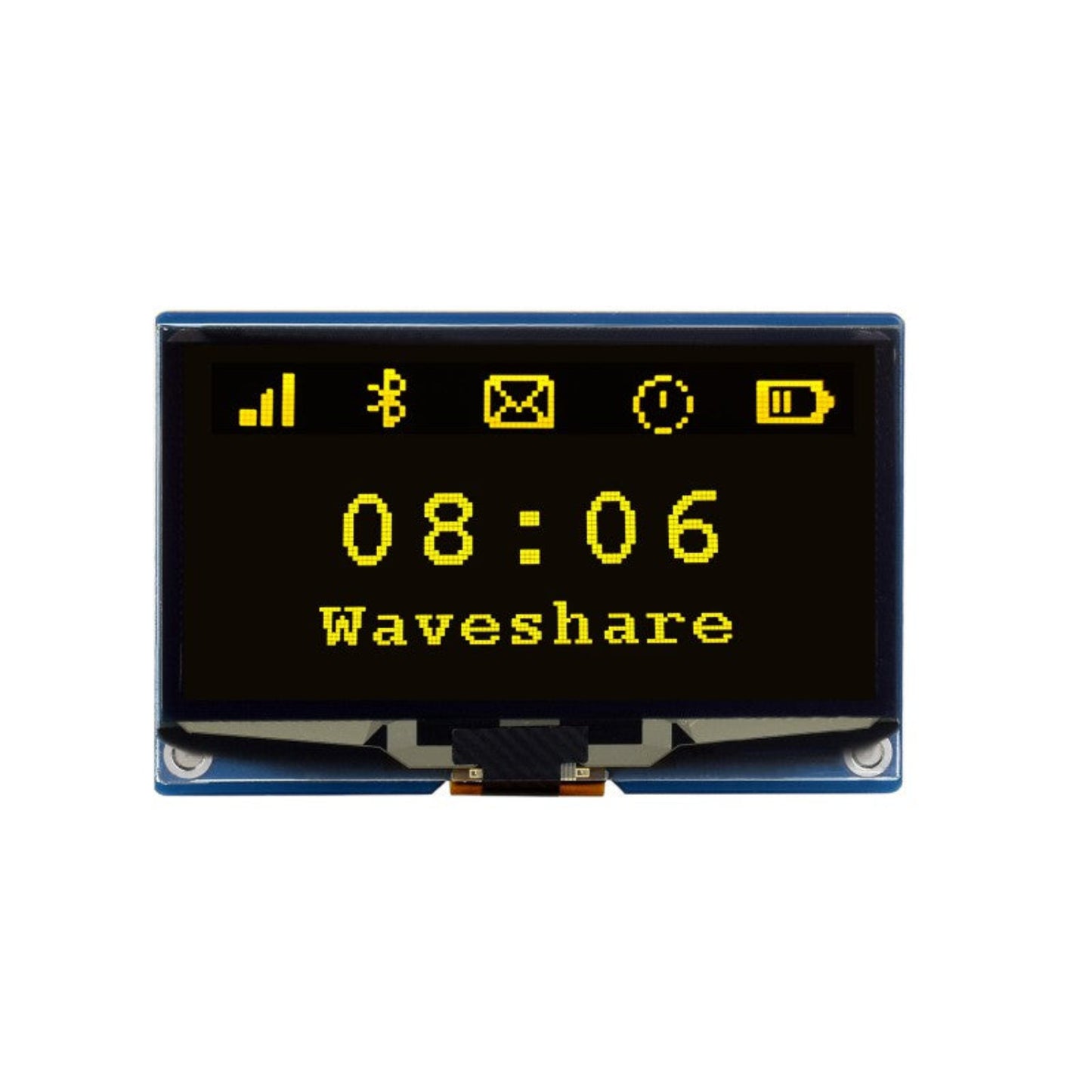

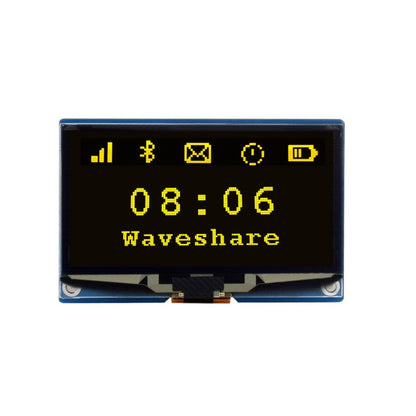

- 2.42inch OLED Module (C): yellow
Features:
- Ultra-narrow bezel, conpact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32/ESP32/Jetson Nano)

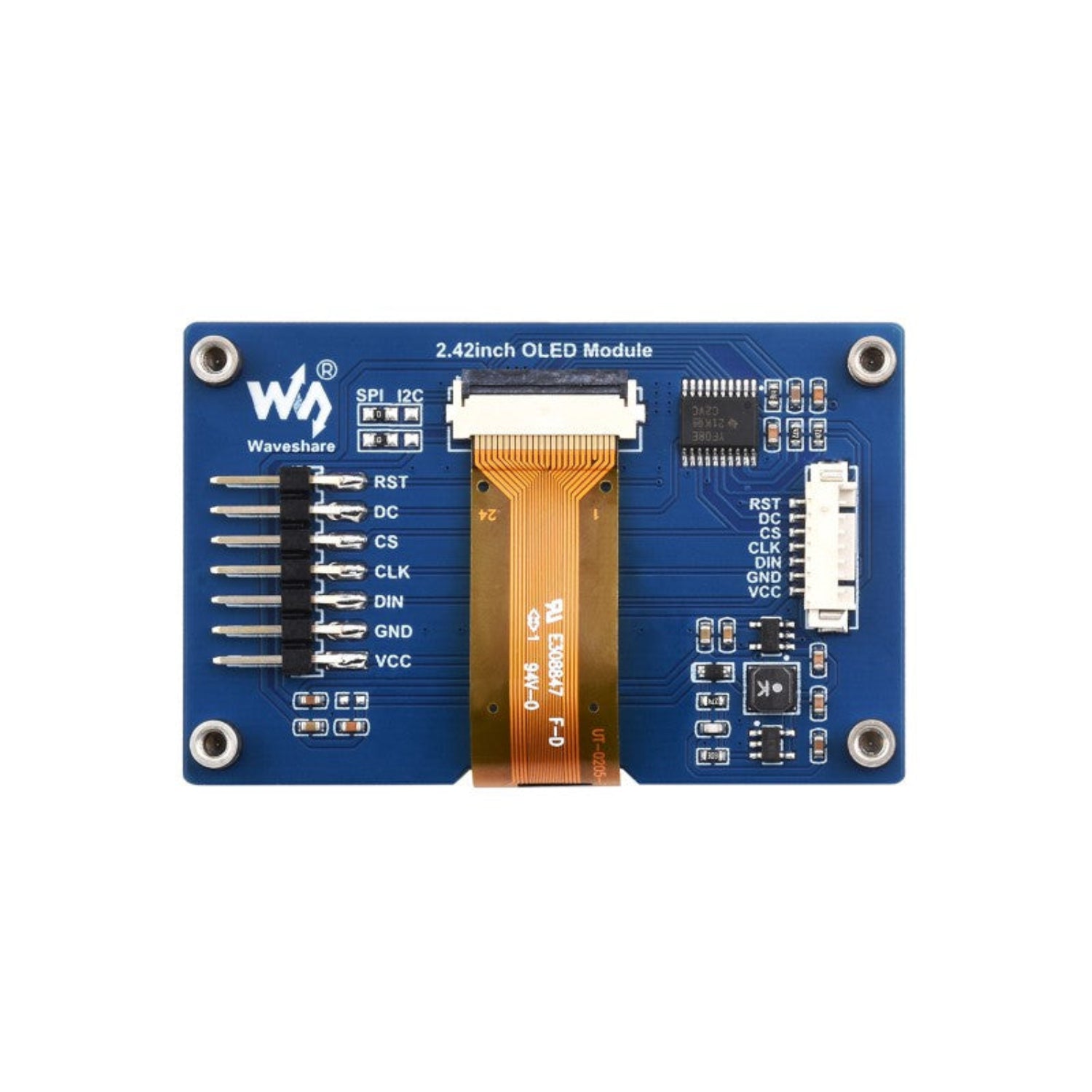

Pin Description:
Useful Link:
Waveshare 2.42-Inch OLED Display Module
Package Included:
- 1 x Waveshare 2.42-Inch OLED Display Module ( Optional )
- 1 x GH1.25 7PIN cable
