Waveshare 2.23-inch 128x32 Pixel OLED Display HAT for Raspberry Pi – High Contrast Screen with SPI/I2C Interface

Waveshare 2.23-inch 128x32 Pixel OLED Display HAT for Raspberry Pi – High Contrast Screen with SPI/I2C Interface

SKU:

In stock

Regular price Rs. 1,226.00
Regular price Sale price Rs. 1,226.00
Sale Sold out
Shipping calculated at checkout.
Quantity

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

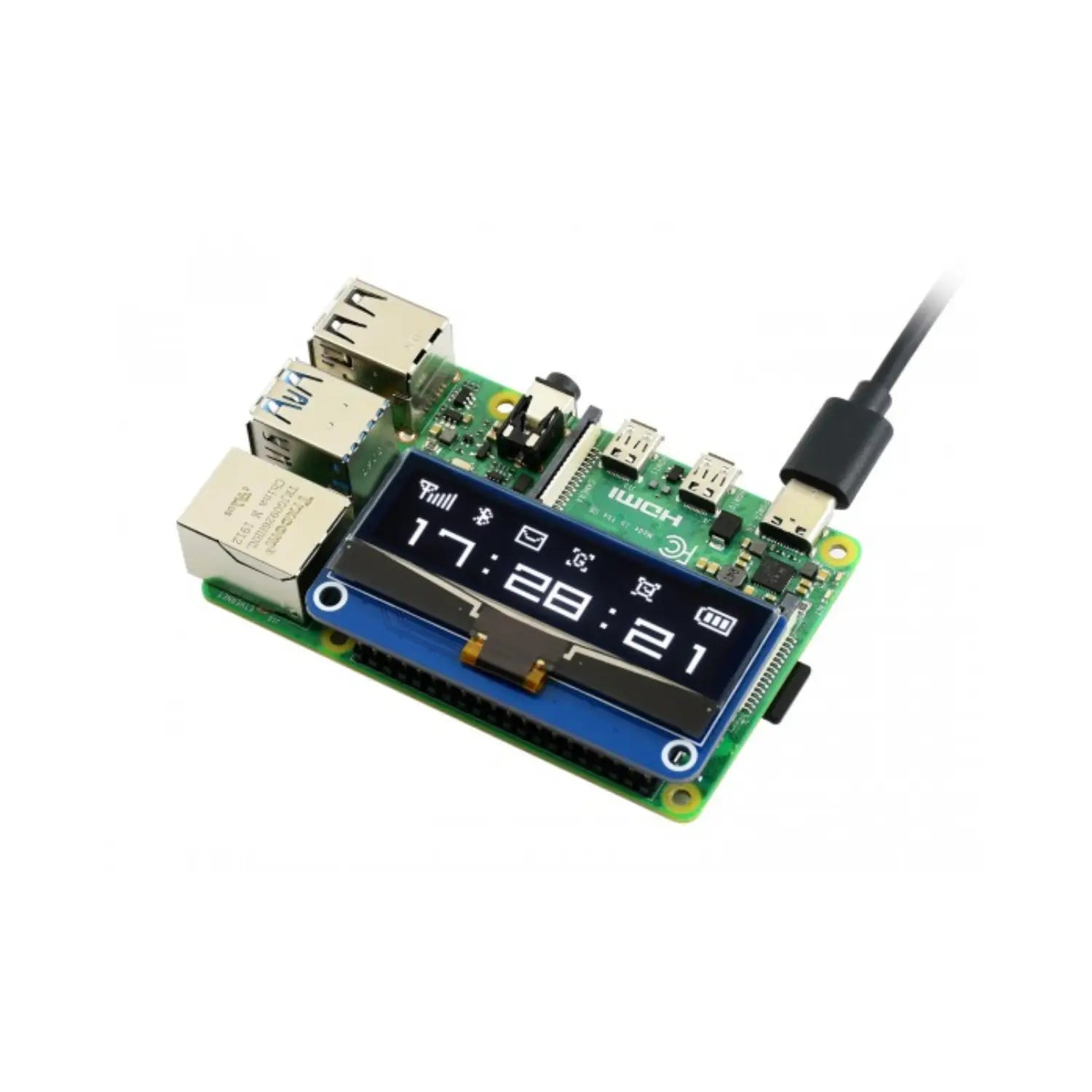

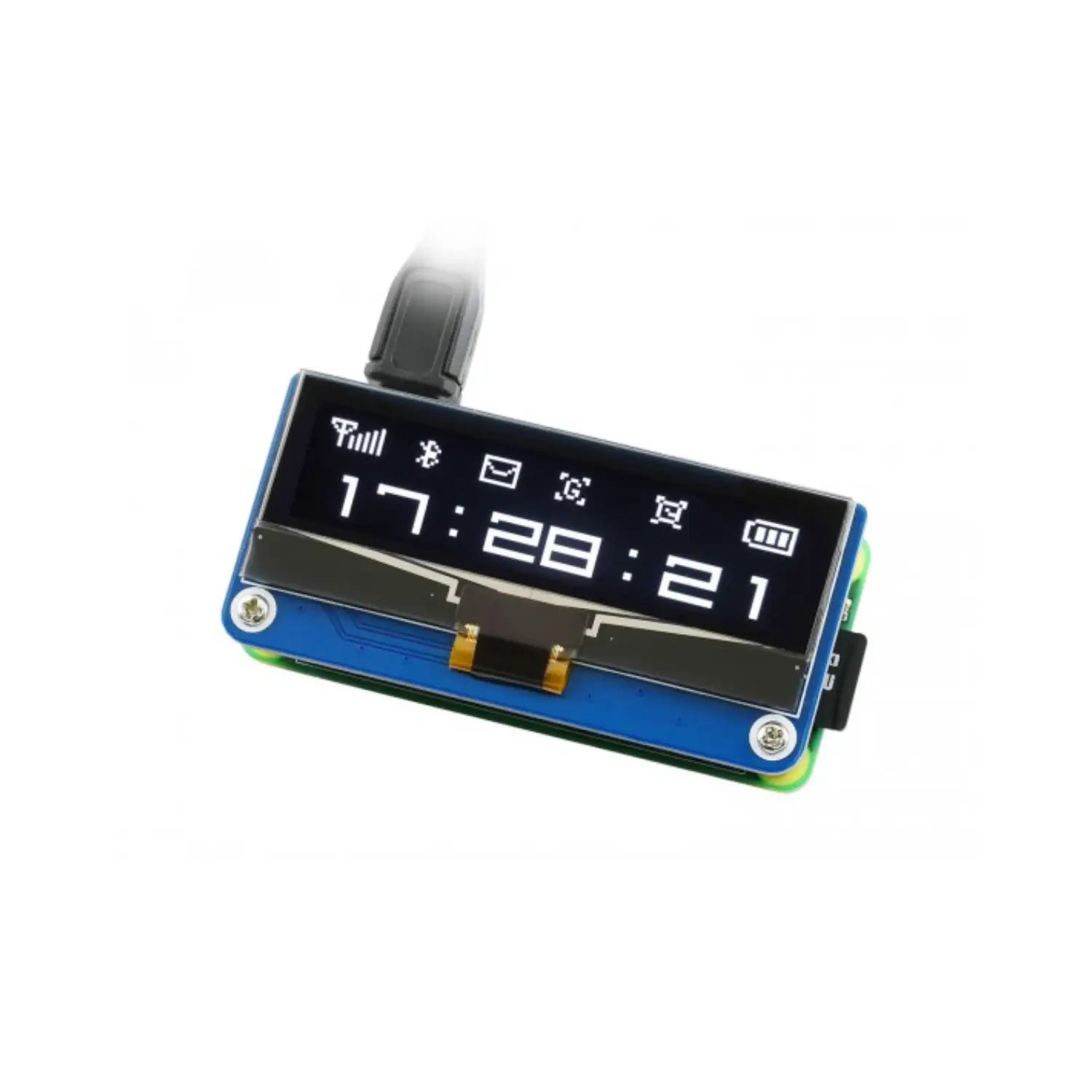

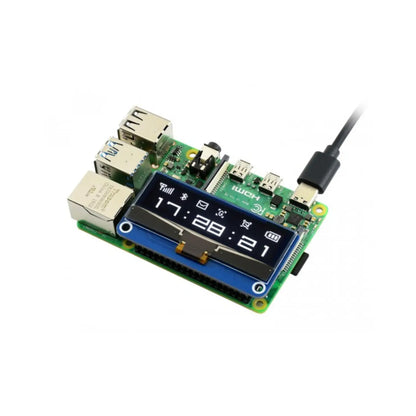

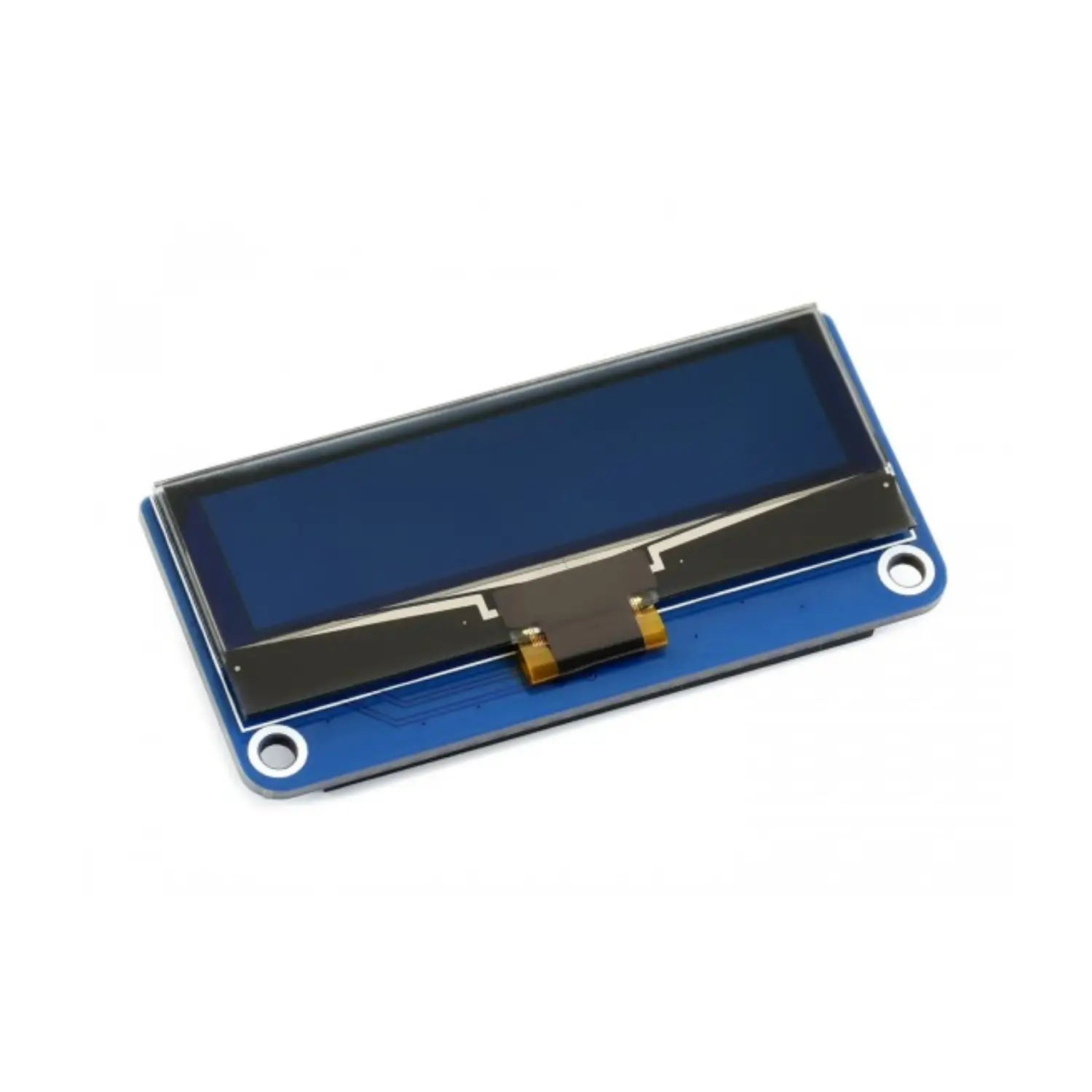

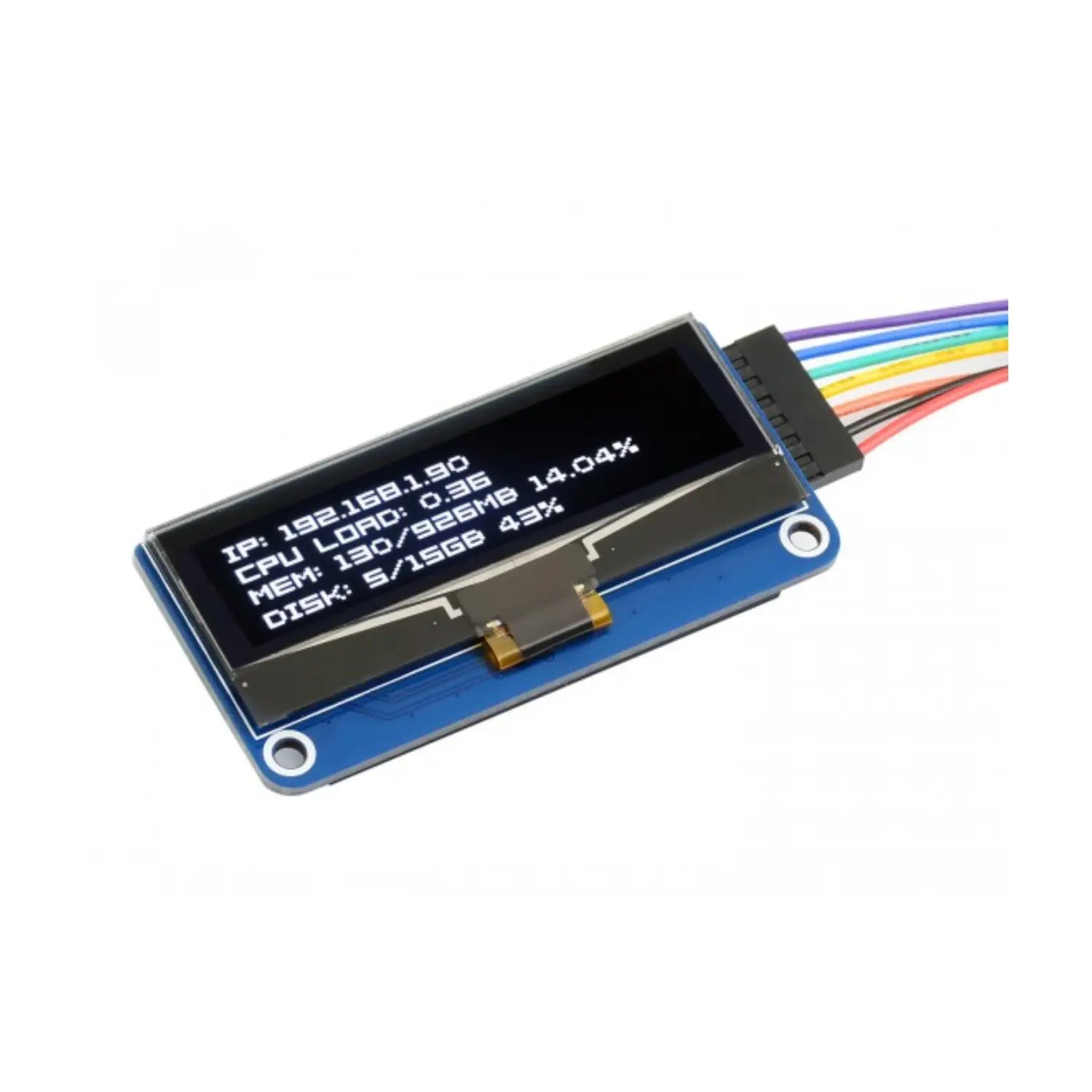

The Waveshare 128x32, 2.23-inch OLED Display HAT for Raspberry Pi. This display utilizes an SSD1305 driver and supports both SPI and I2C interfaces, with SPI as the default (switchable to I2C via soldering). It directly connects to the Raspberry Pi's 40-pin header, making it an excellent, compact solution for adding a display interface.

Specification:

  • Driver: SSD1305
  • Interface: SPI / I2C
  • Display size: 2.23-inch diagonal
  • Display color: white
  • Resolution: 128×32
  • Viewing angle: 160°
  • Power supply voltage: 3.3V/5V
  • Logic level: 3.3V

Features:

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Optional interfaces: SPI (default), or I2C, configured via onboard resistor
  • Brings control pins for host boards like Arduino/STM32
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

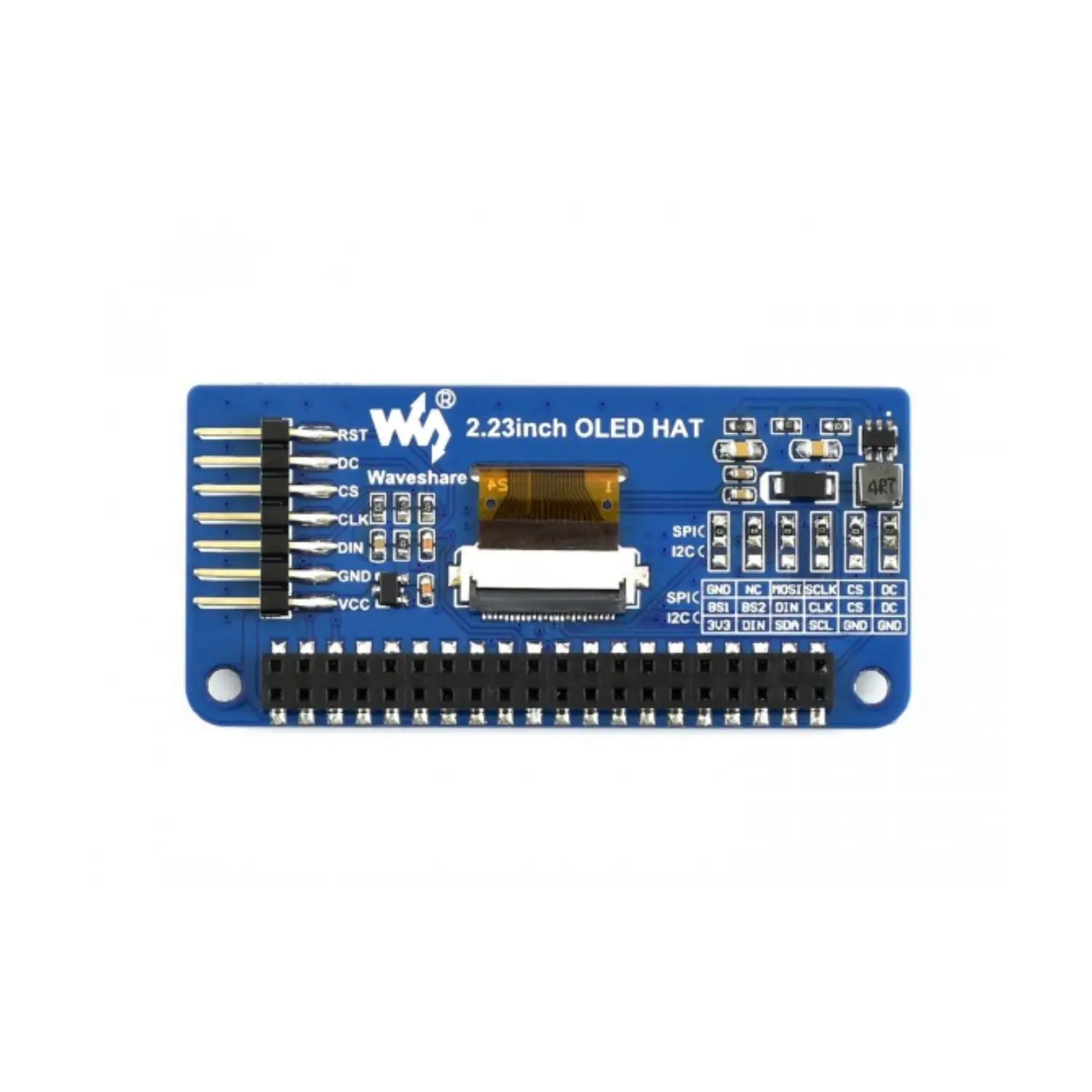

Product Interface:

2.23inch OLED HAT dimensions

SYMBOL Raspberry Pi PIN (BCM) DESCRIPTION
VCC 3V3/5V Power input
GND GND Ground
DIN MOSI SPI data input
CLK SCLK SPI clock input
CS CE0 Chip selection, low active
DC P24 Data/Command selection (high for data, low for command)
RST P25 Reset, low active

Useful Link:

Waveshare 2.23-inch 128x32 Pixel OLED Display HAT

Package Included:

  • 1 x 2.23-inch OLED HAT
  • 1 x RPi screws pack (2pcs)
