Waveshare 2.13inch E-Paper HAT V4 Version, Black/White Two-Color 250x122 Pixel E-Paper Module for Raspberry Pi 4B/3B+/3B/2B/Zero W/WH/Zero 2 W/Jetson Nano SPI Interface, Support Partial Refresh - RS2409

Description:

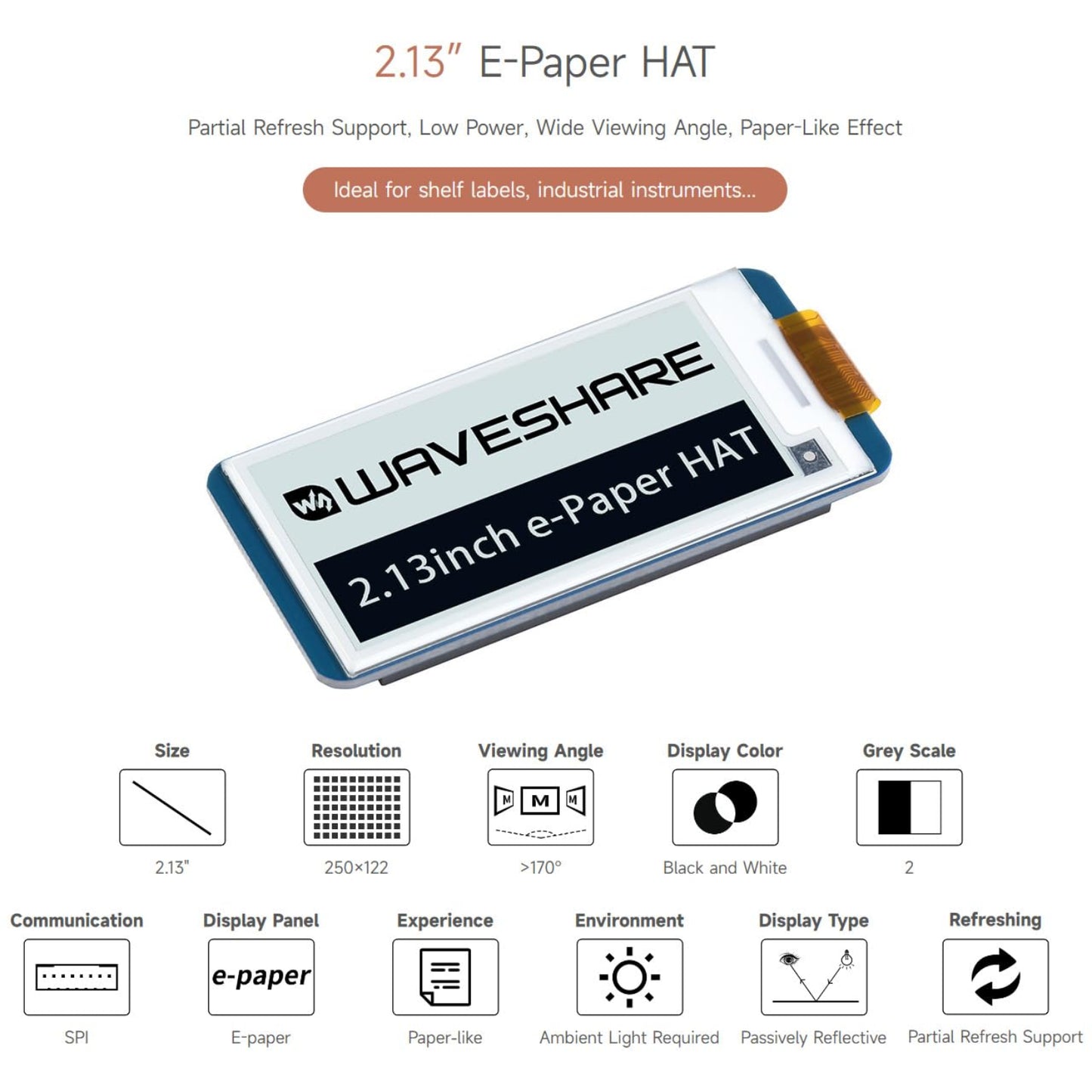

This is a 2.13inch E-Paper HAT for Raspberry Pi series boards, Jetson Nano. 2.13inch 250x122 resolution black and white Two Display colours, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to advantages like ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels, industrial instruments, etc.

Specifications:

• Operating Voltage: 3.3V/5V
• Interface: SPI
• Resolution: 250 x 122
• Display Colour: black, white
• Grey Level: 2
• Full Refresh Time: 2s
• Refresh Power: 26.4mW(typ.)
• Standby Power: <0.017mW
• Viewing Angle: >170°
• Dot Pitch: 0.194 x 0.194
• Outline Dimension: 65mm x 30.2mm
• Display Size: 23.71mm x 48.55mm

Features:

• No backlight keeps displaying last content for a long time even when powered down
• 2.13inch E-Ink Display HAT has ultra-low power consumption power is only required for refreshing
• Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi series boards, Jetson Nano

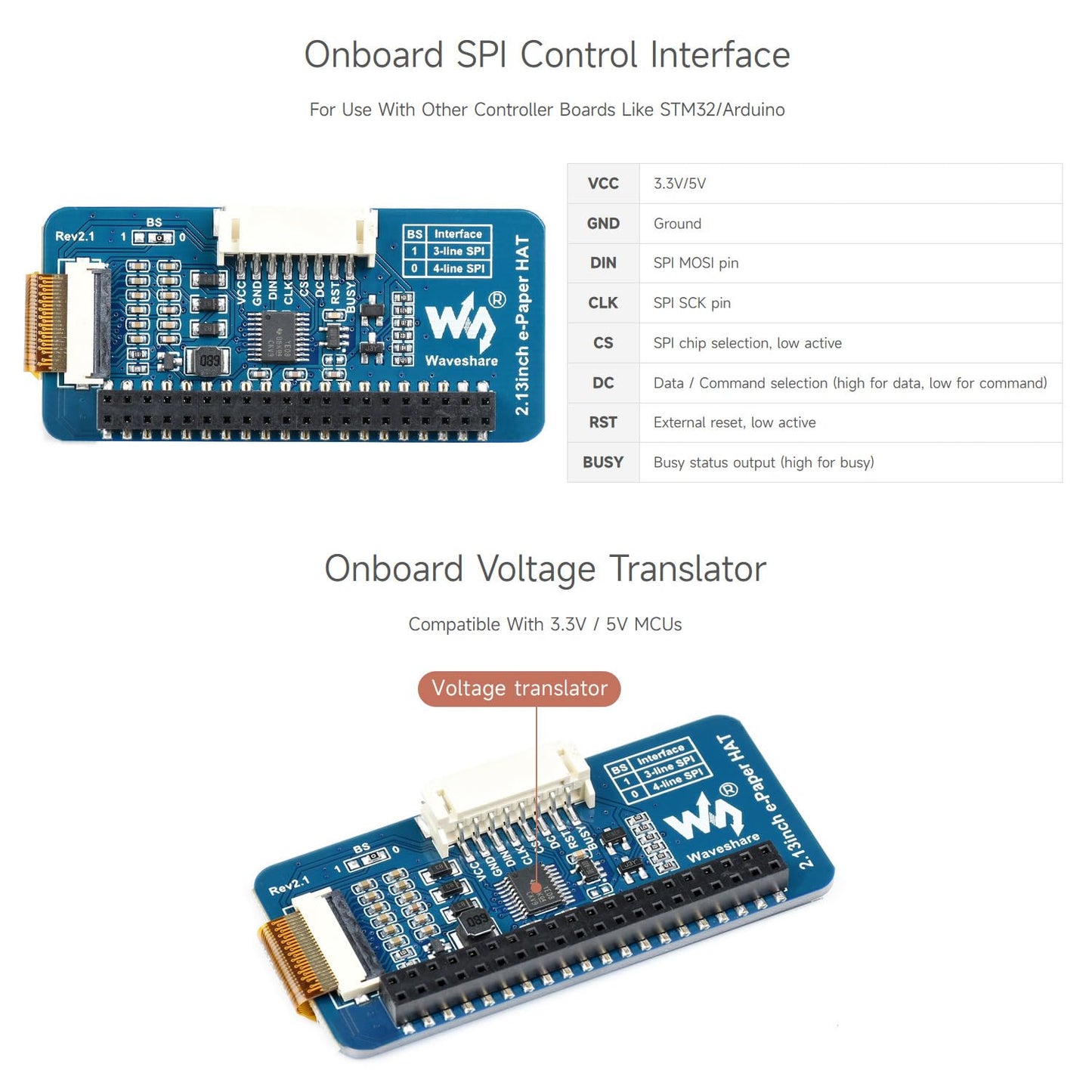

• 2.13inch E-Ink Display HAT has an SPI interface, for connecting with other controller boards, like Arduino/Nucleo, etc.

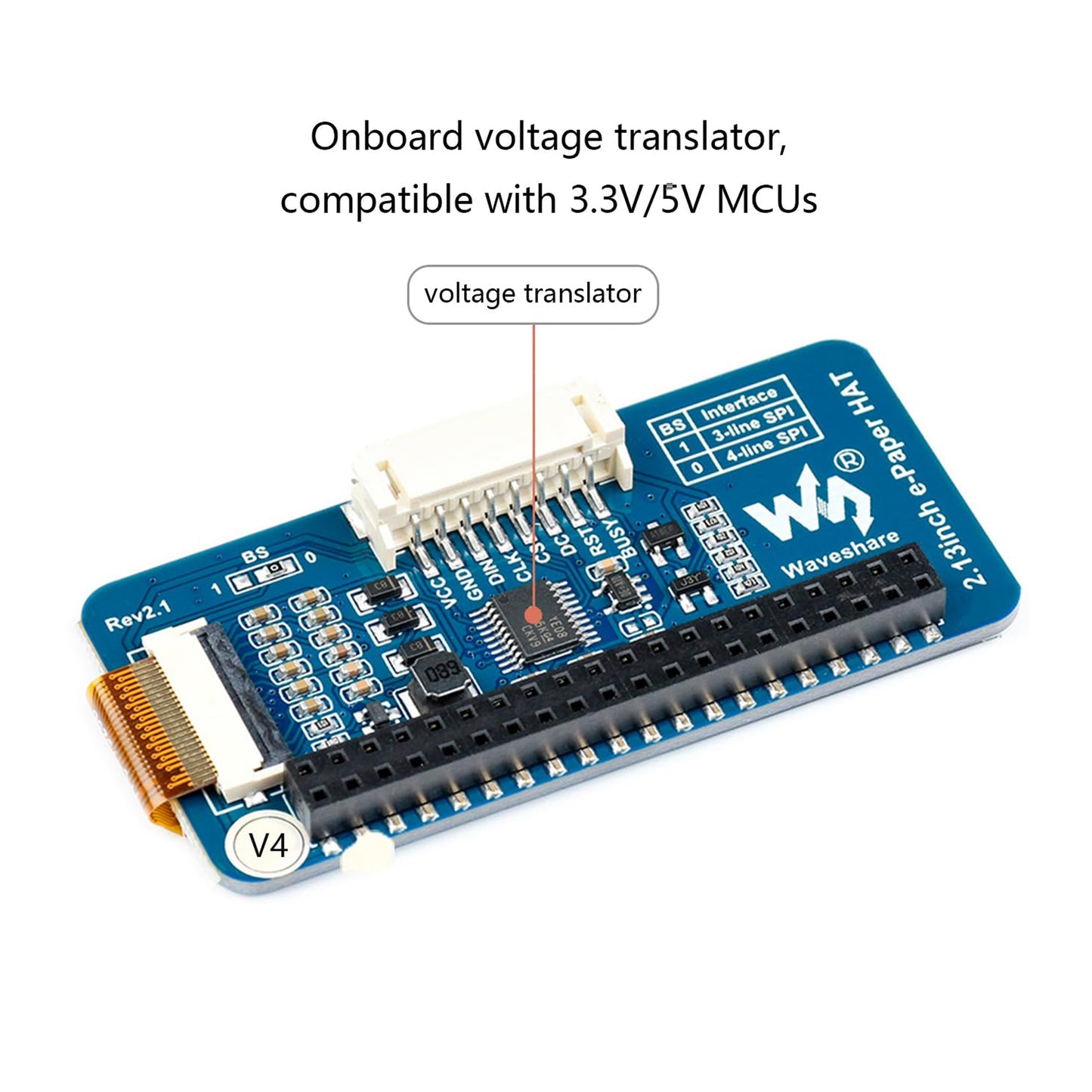

• Onboard voltage translator, compatible with 3.3V/5V MCUs
• 2.13inch E-Ink Display HAT comes with development resources and a manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

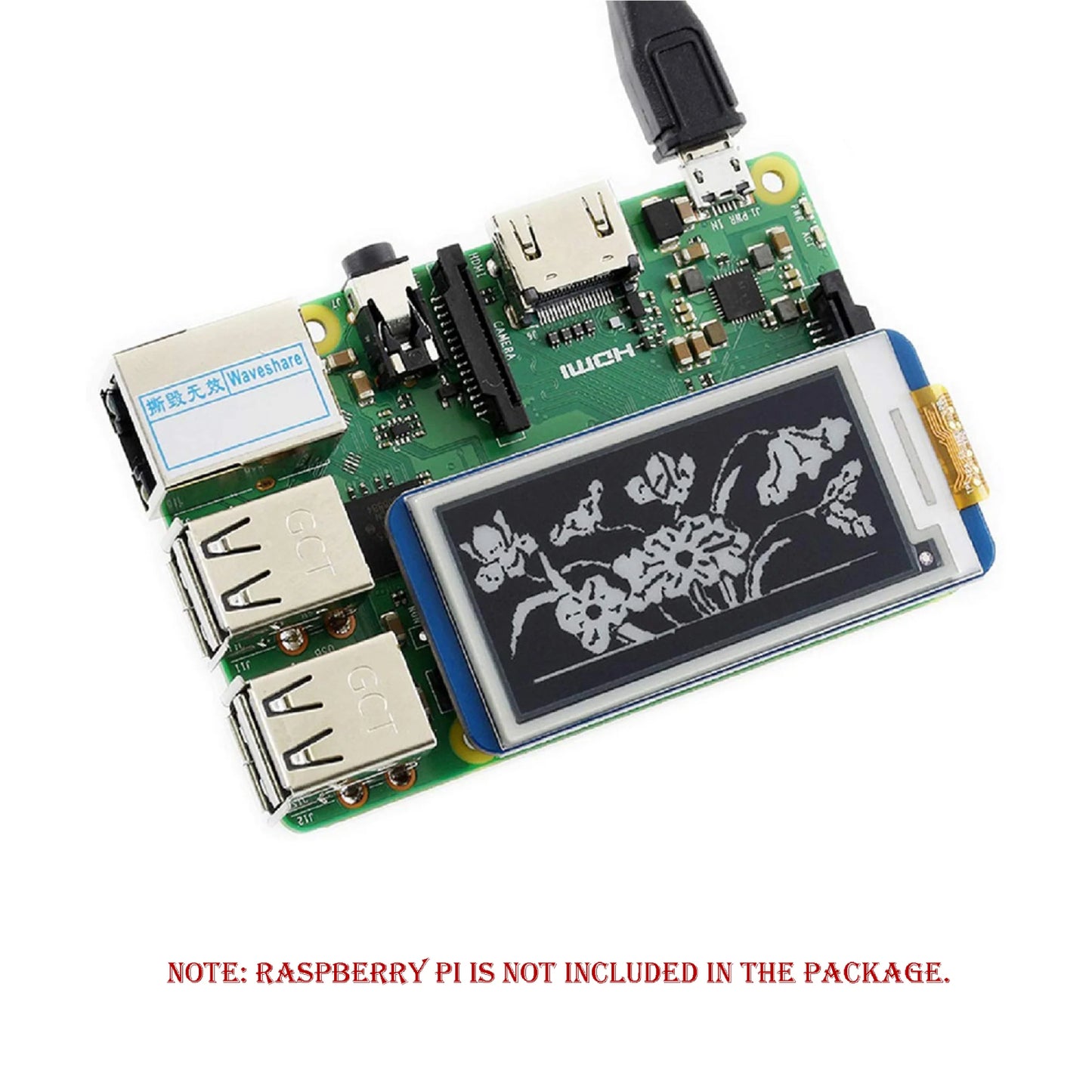

Note: Raspberry Pi is not included in the package.

Useful Link:

Waveshare 2.13inch E-Ink Display HAT

Package Included:

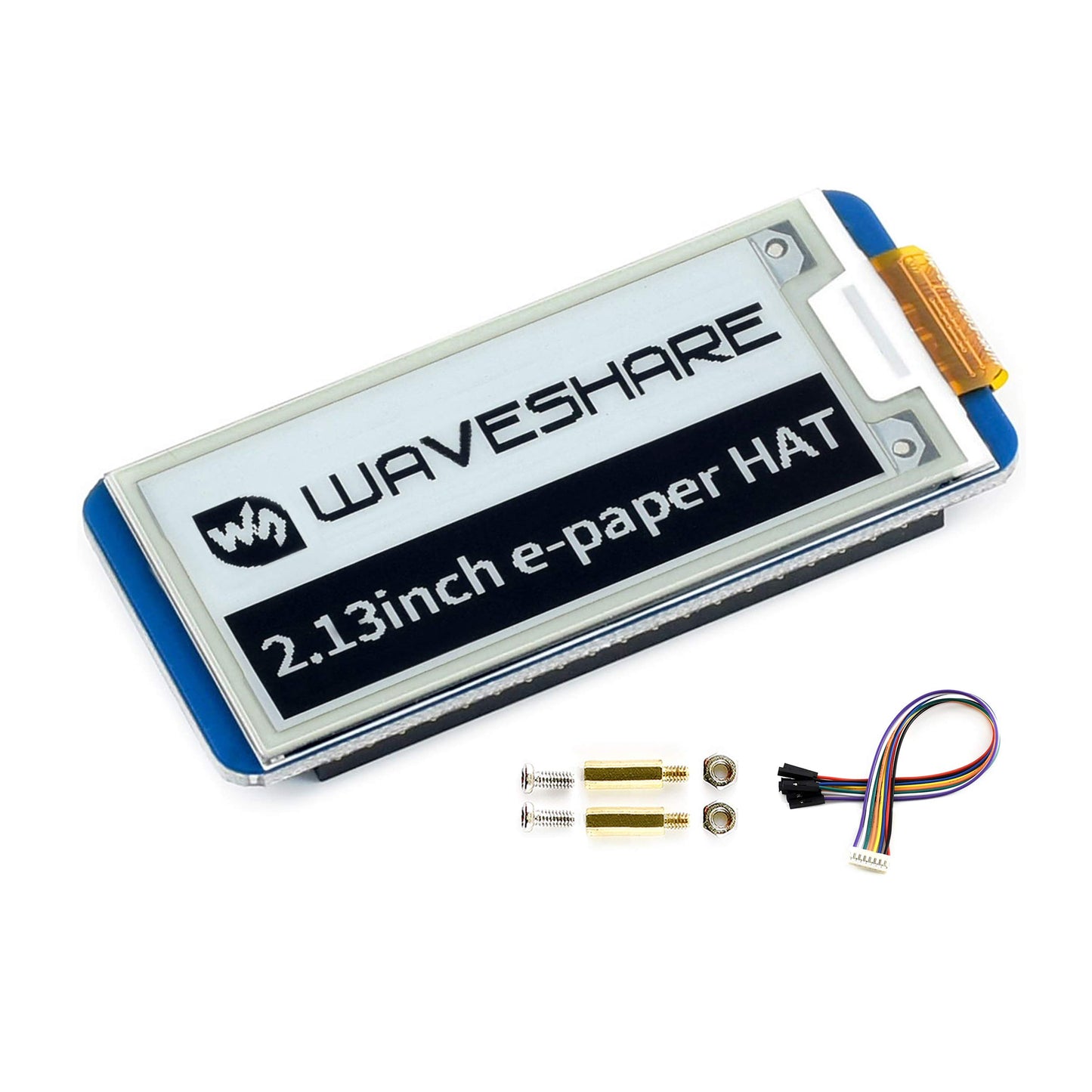

1 x Waveshare 2.13inch E-Paper HAT V4 Version, Black/White Two-Color 250x122 Pixel E-Paper Module for Raspberry Pi 4B/3B+/3B/2B/Zero W/WH/Zero 2 W/Jetson Nano SPI Interface, Support Partial Refresh
