- Dimension:48.55 x 23.71mm
- Operating voltage: 3.3V
- Outline dimensions(raw panel): 59.2mm x 29.2mm x 1.05mm
- Outline dimension: 65.00mm x 30.50mm
- Display size: 2.13inch
- Interface: SPI
- Dot pitch: 0.194 x 0.194mm
- Resolution: 250 x 122 pixels
- Display color: Black, white
- Grayscale: 2
- Partial refresh time: 0.3s
- full refresh time: 2s
- Refresh power: 26.4mW (typ.)
- Standby current: <0.01uA (almost none)
Description :

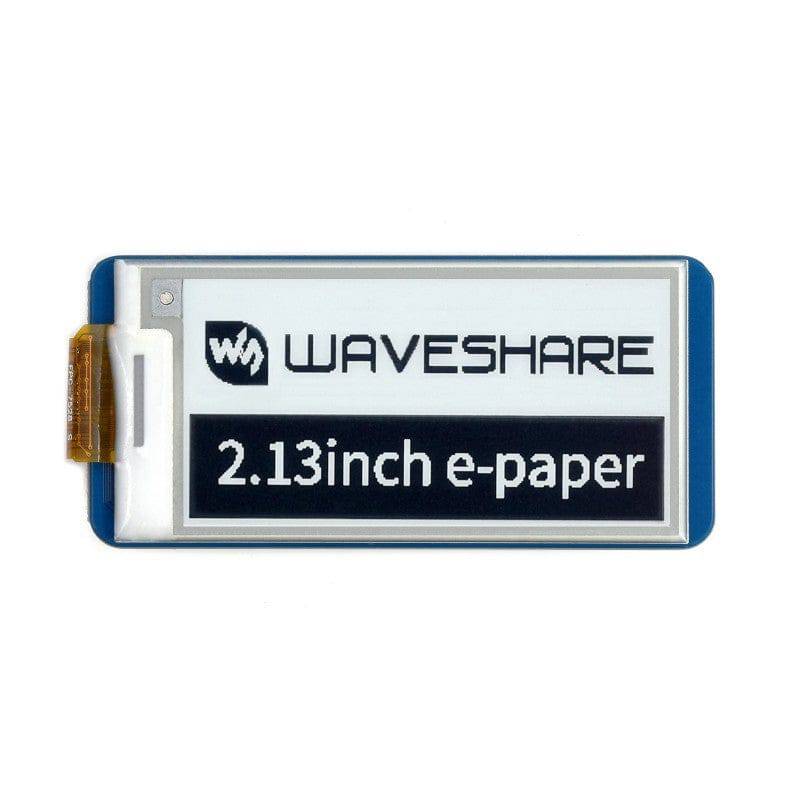

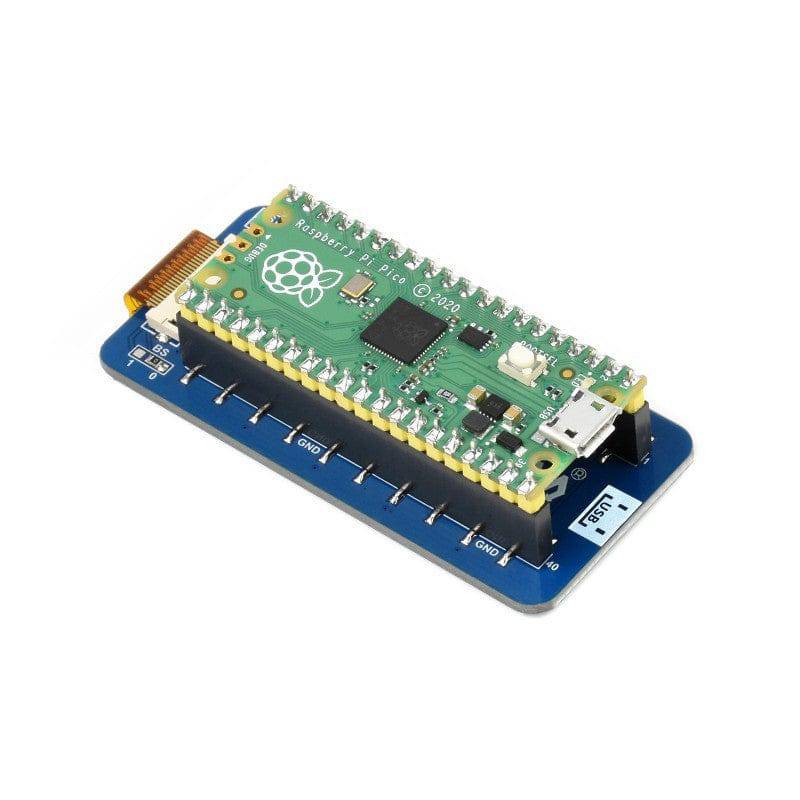

2.13inch EPD (Electronic Paper Display) Module For Raspberry Pi Pico, 250 × 122 Pixels, Black / White, SPI Interface.
Feature
- Dimension:48.55 x 23.71mm
- Operating voltage: 3.3V
- Outline dimensions(raw panel): 59.2mm x 29.2mm x 1.05mm
- Outline dimension: 65.00mm x 30.50mm
- Display size: 2.13inch
- Interface: SPI
- Dot pitch: 0.194 x 0.194mm
- Resolution: 250 x 122 pixels
- Display color: Black, white
- Grayscale: 2
- Partial refresh time: 0.3s
- full refresh time: 2s
- Refresh power: 26.4mW (typ.)
- Standby current: <0.01uA (almost none)
Note:
Refresh time: The refresh time is the experimental results, the actual refresh time will have errors, and the actual effect shall prevail. There will be a flickering effect during the global refresh process, this is a normal phenomenon.
Power consumption: The power consumption data is the experimental results. The actual power consumption will have a certain error due to the existence of the driver board and the actual use situation. The actual effect shall prevail.
Package Included :

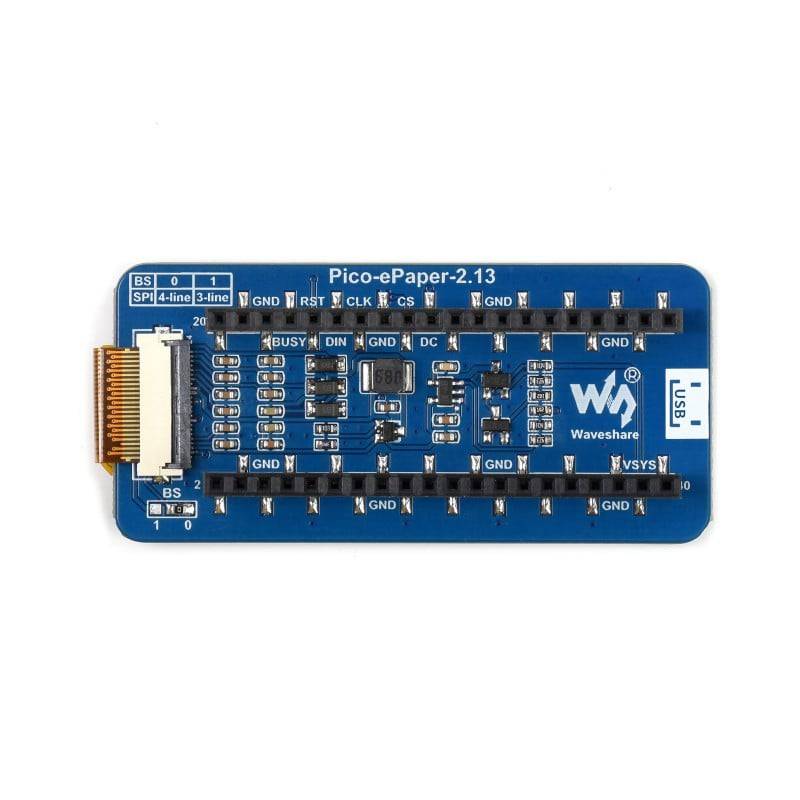

Pico-ePaper-2.13 x1
