Waveshare 2.13-inch E-Paper HAT V4 Version E-Paper HAT For Raspberry Pi - RS2409

Waveshare 2.13-inch E-Paper HAT V4 Version E-Paper HAT For Raspberry Pi - RS2409

RS2409

33 in stock

Rs. 1,125.00
Rs. 1,125.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This 2.13-inch E-Ink display HAT for Raspberry Pi (250x122 resolution) offers a stunning black and white color display. Its ultra-low power consumption and ability to retain content without power make it ideal for always-on applications. Communicate easily via SPI interface with Raspberry Pi, Arduino, Nucleo, and more. Enjoy wide viewing angles and excellent visibility, even in direct sunlight.

Specifications:

  • Operating Voltage: 3.3V/5V
  • Interface: SPI
  • Resolution: 250 x 122
  • Display Colour: black, white
  • Grey Level: 2
  • Full Refresh Time: 2s
  • Refresh Power: 26.4mW(typ.)
  • Standby Power: <0.017mW
  • Viewing Angle: >170°
  • Dot Pitch: 0.194 x 0.194
  • Outline Dimension: 65mm x 30.2mm
  • Display Size: 23.71mm x 48.55mm

Features:

  • No backlight, keeps displaying the last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with controller boards like Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

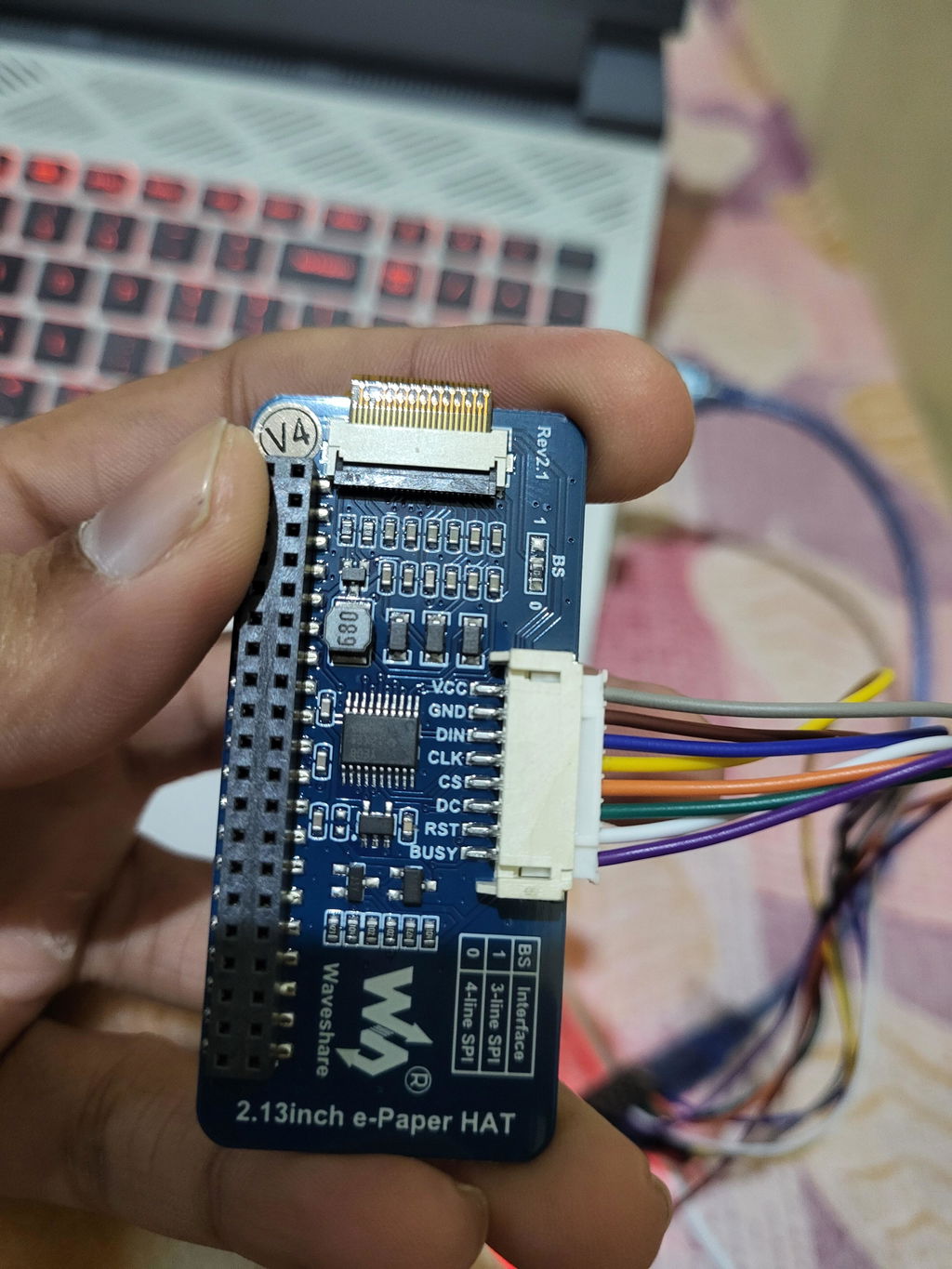

Pin Description:

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output (high for busy)

Useful Link:

Waveshare 2.13-inch E-Paper HAT

Package Included:

1 x Waveshare 2.13inch E-Paper HAT
