Waveshare 128x160, General 1.8inch LCD display Module - RS681

Waveshare 128x160, General 1.8inch LCD display Module - RS681

SKU:RS681

Regular price Rs. 701.22
Regular price Sale price Rs. 701.22
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Driver: ST7735S
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 128x160
  • Backlight: LED
  • Operating voltage: 3.3V/5V

Description :

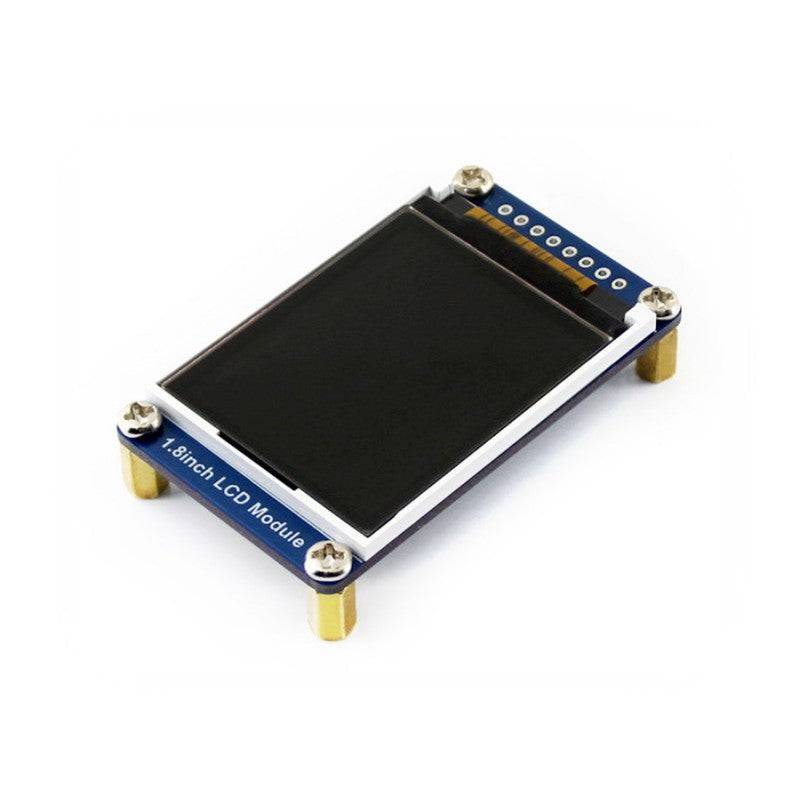

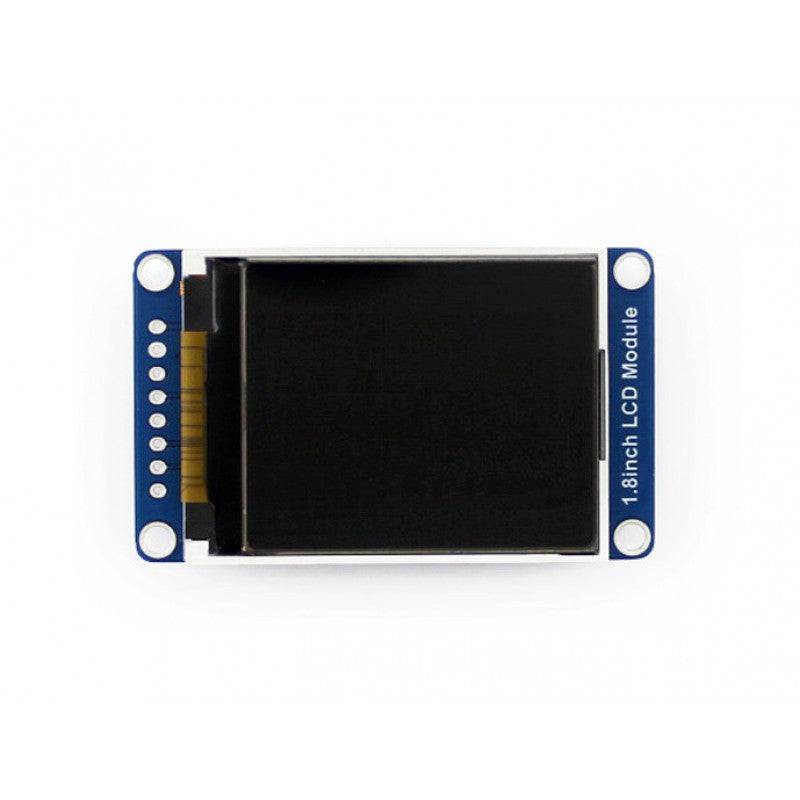

This is a general LCD display Module, 1.8inch diagonal, 128x160 pixels, with embedded controller, communicating via SPI interface.

Features

  • SPI interface, requires minimum GPIO for controlling
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Driver: ST7735S
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 128x160
  • Backlight: LED
  • Operating voltage: 3.3V/5V

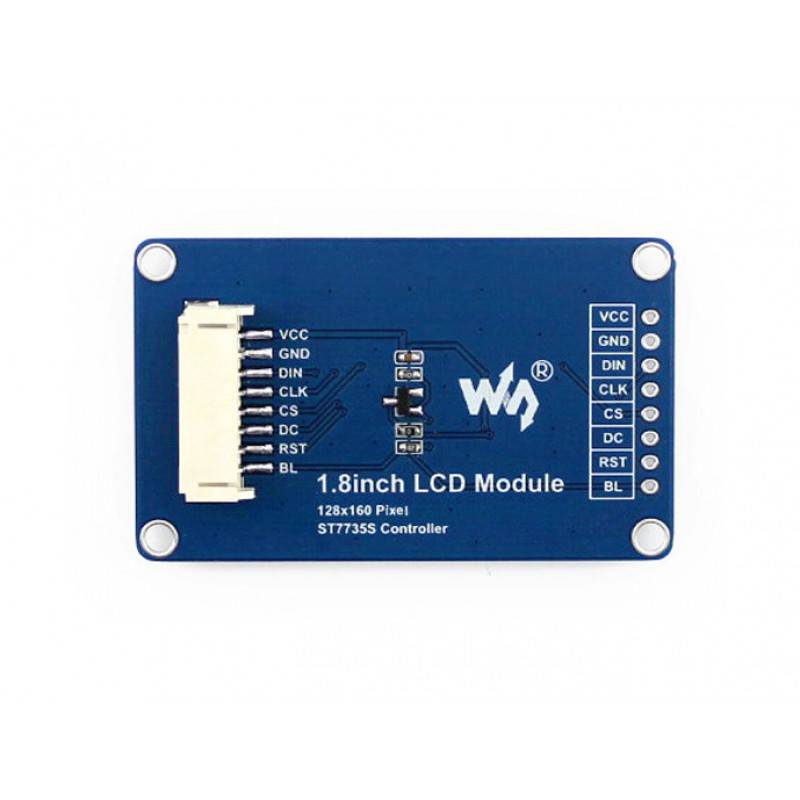

Interface

SYMBOL DESCRIPTION
VCC Power (3.3V/5V input)
GND Ground
DIN SPI data input
CLK SPI clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active
BL Backlight

Package Included :

  • 1.8inch LCD Module x1
  • PH2.0 20cm 8Pin x1
