Description:

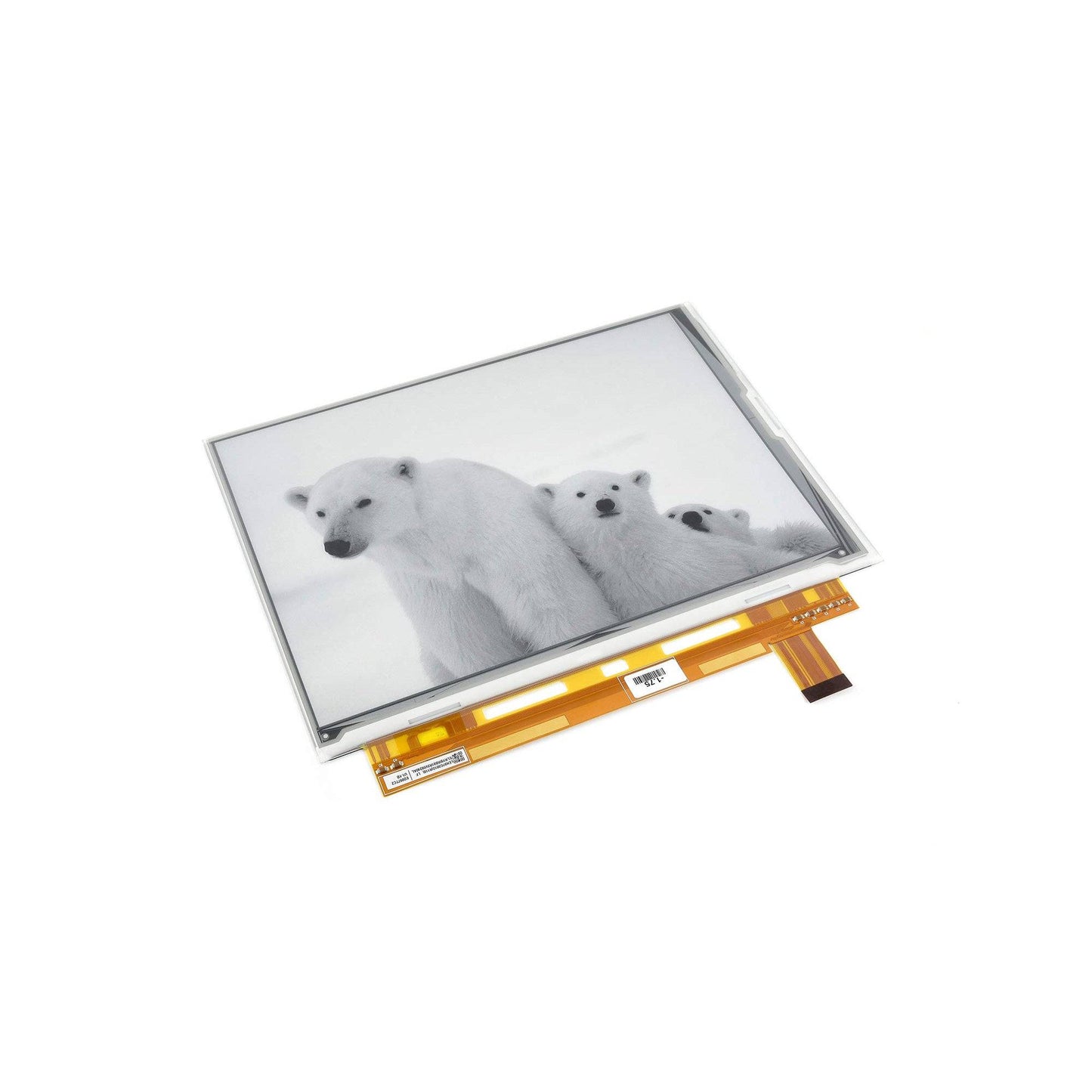

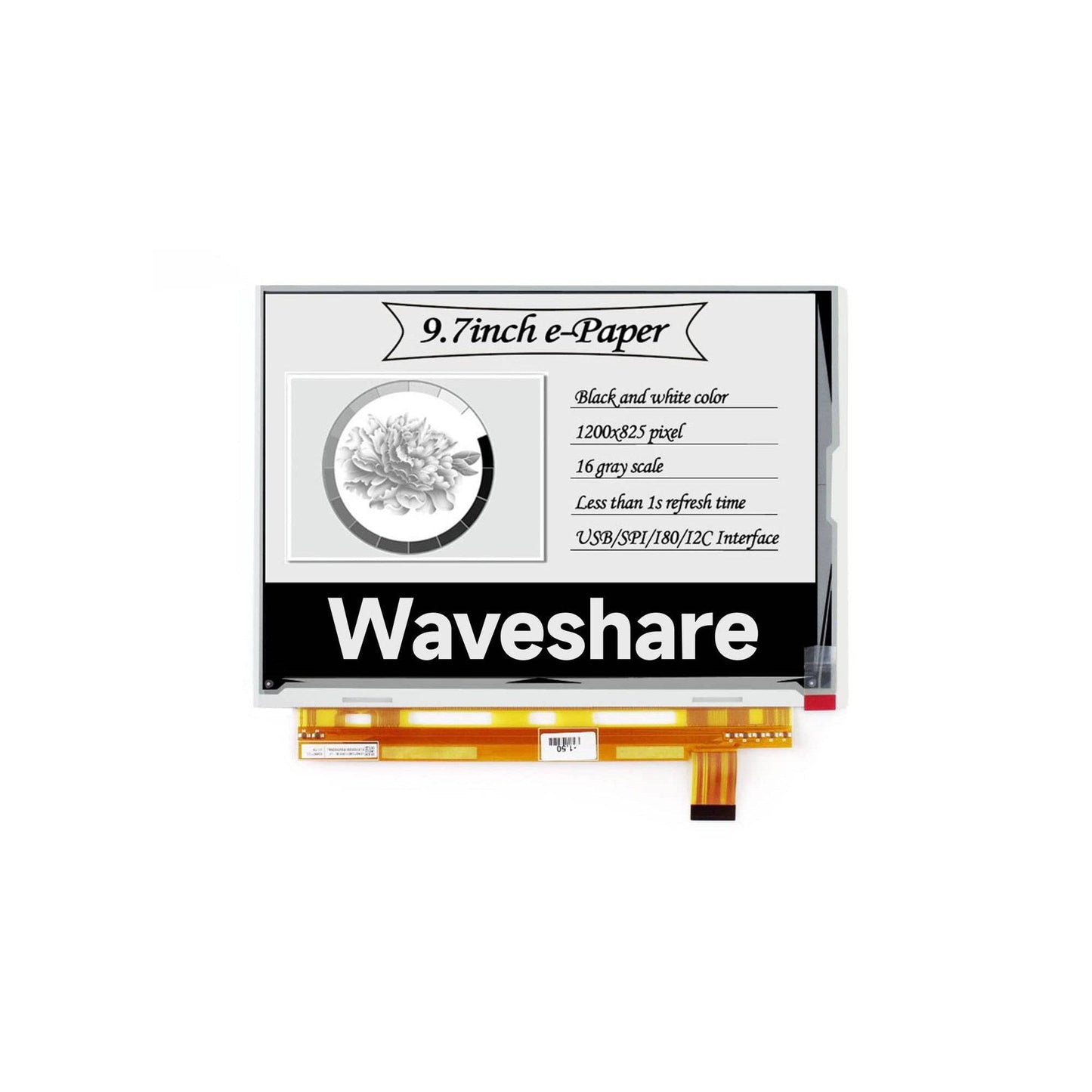

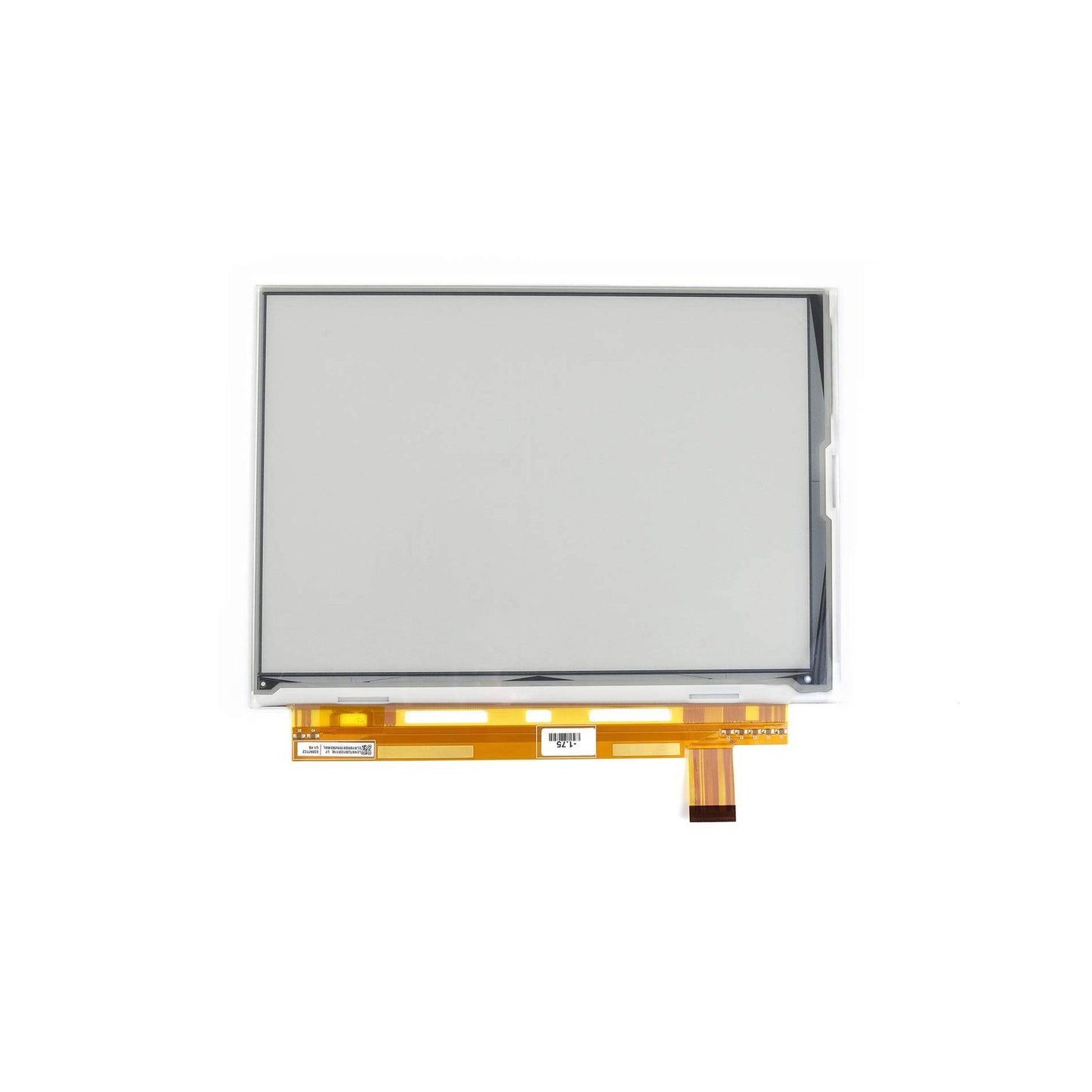

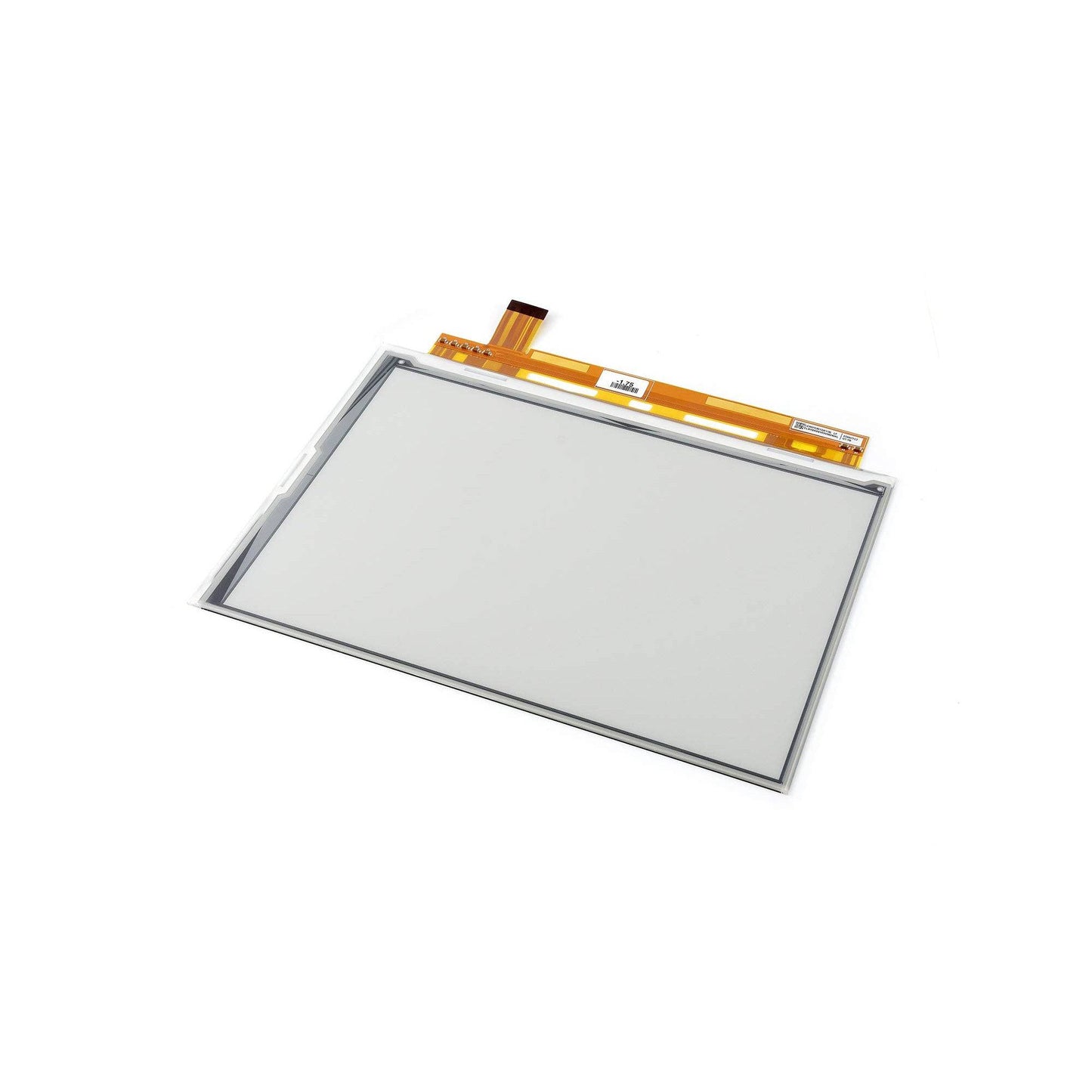

This is an 9.7inch E-Ink Raw Display, 1200x825 resolution, communicating via parallel port, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, 9.7inch E-Ink Raw Display is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Specifications:
- Operating Voltage: 5V
- Interface: parallel port
- Outline Dimension: 218.8mm × 156.425mm × 1.15mm
- Display Size: 202.8mm × 139.425mm
- Dot Pitch: 0.169 × 0.169
- Resolution: 1200 × 825
- Display Color: black, white
- Gray Scale: 2-16 (1-4 bit)
- Full Refresh Time: <1s
- Viewing Angle: >170°
Features:
- No backlight, keeps displaying last content for a long time even when power down
- 9.7inch E-Ink Raw Display has low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/STM32)
Package Included:
1 x Waveshare 1200x825, 9.7inch E-Ink Raw Display with Parallel Port Without PCB Supports Partial Refresh Compatible with Raspberry Pi
