Description:

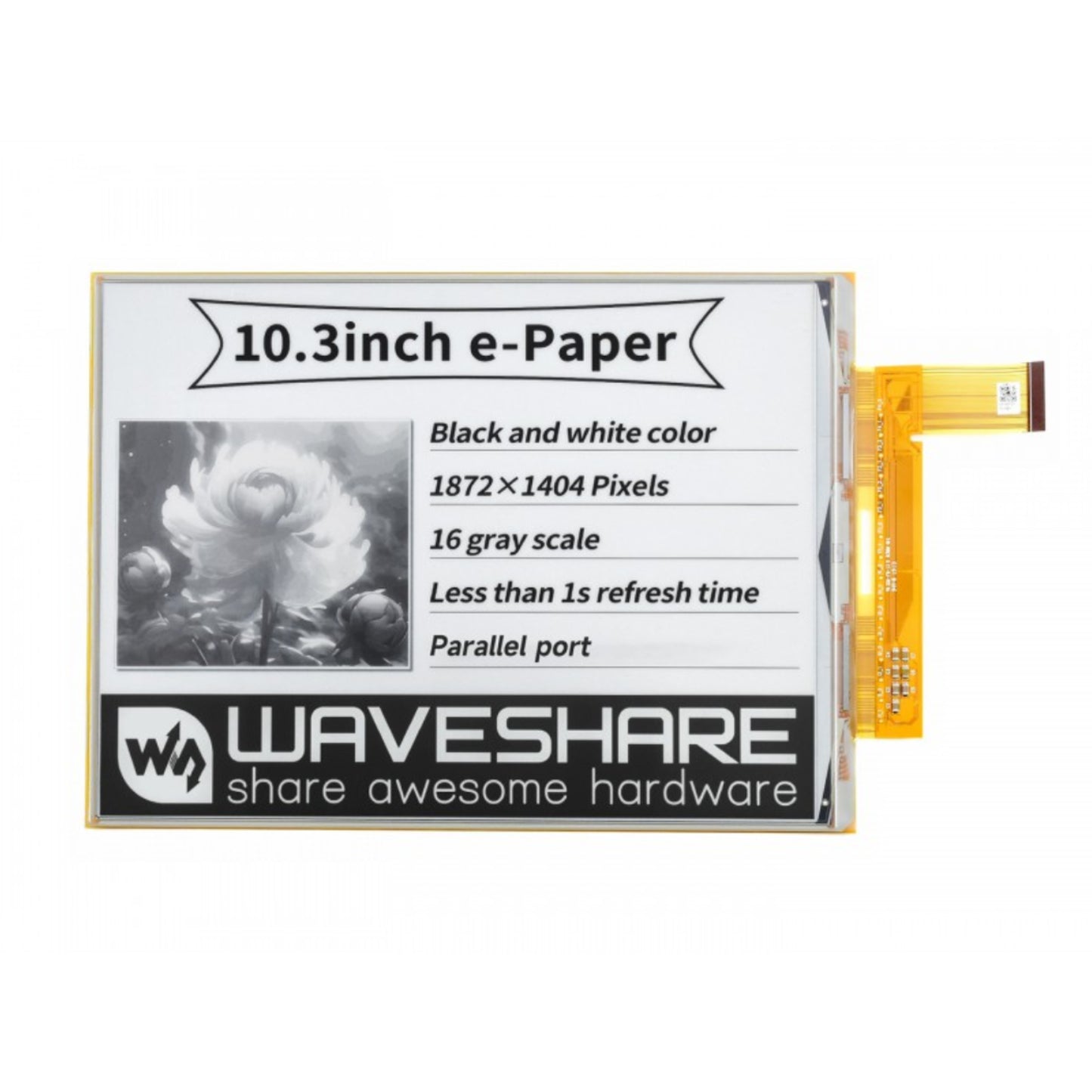

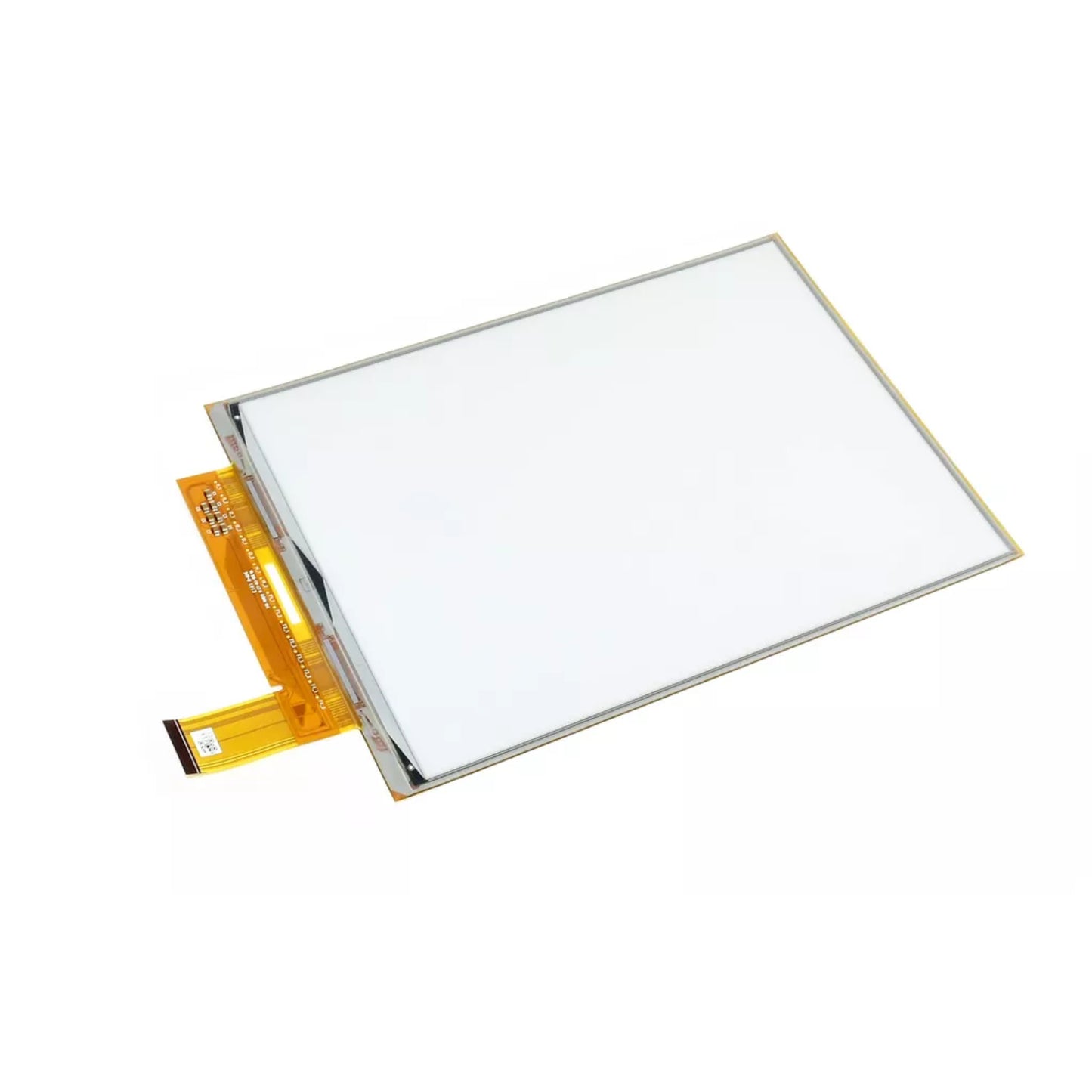

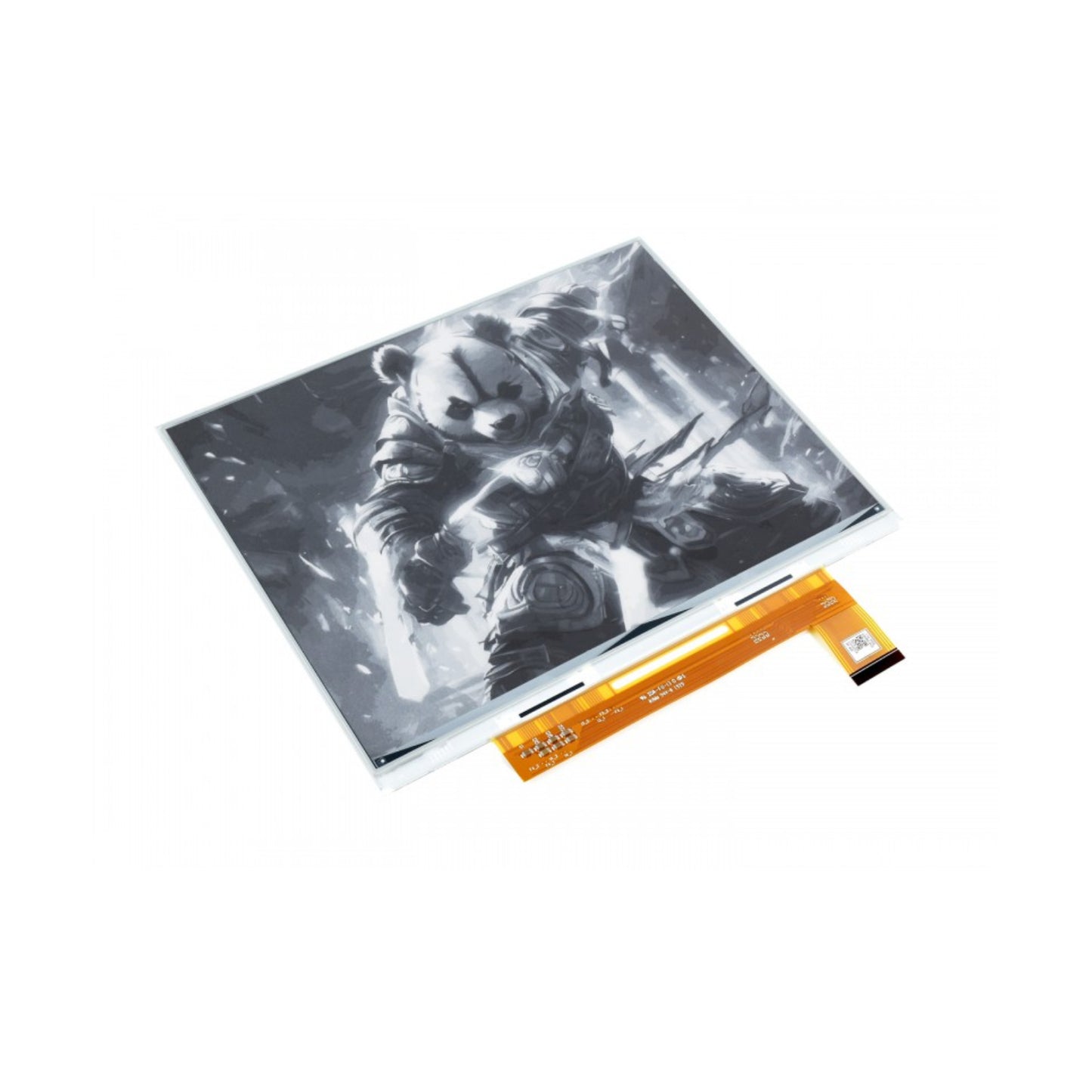

This is a flexible E-Ink raw display, 10.3inch, 1872×1404 resolution, communicating via parallel port, and supports partial refresh. Compared with normal e-Paper panels, this is a flexible panel and it's thinner and lighter.
Due to advantages like low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as ebook readers, e-ink displays, industrial instruments, and so on.
Note: This is a raw display, for easy testing and comparing, please consider the one with a driver board
Specifications:
- Operating Voltage: 5V
- Interface: Parallel Port
- Outline Dimension: 227.7mm × 165.8mm × 0.647mm
- Display Size: 209.664mm × 157.248mm
- Dot Pitch: 0.112mm × 0.112mm
- Resolution: 1872 × 1404
- Display Colour: Black, White
- Grayscale: 2-16 (1-4 bit)
- Full Refresh Time: 450ms
- Viewing Angle: 170°
Features:
- Flexible e-Paper
- No backlight keeps displaying the latest content for a long time even when powered down
- Low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/STM32)
Useful Link:
Package Included:
1 x Waveshare 10.3" Flexible e-Ink Display 1872x1404 Flexible e-Paper Display 10.3" Raw Parallel Interface Display 16 Grayscale High-Resolution Display - Black & White
