Description:

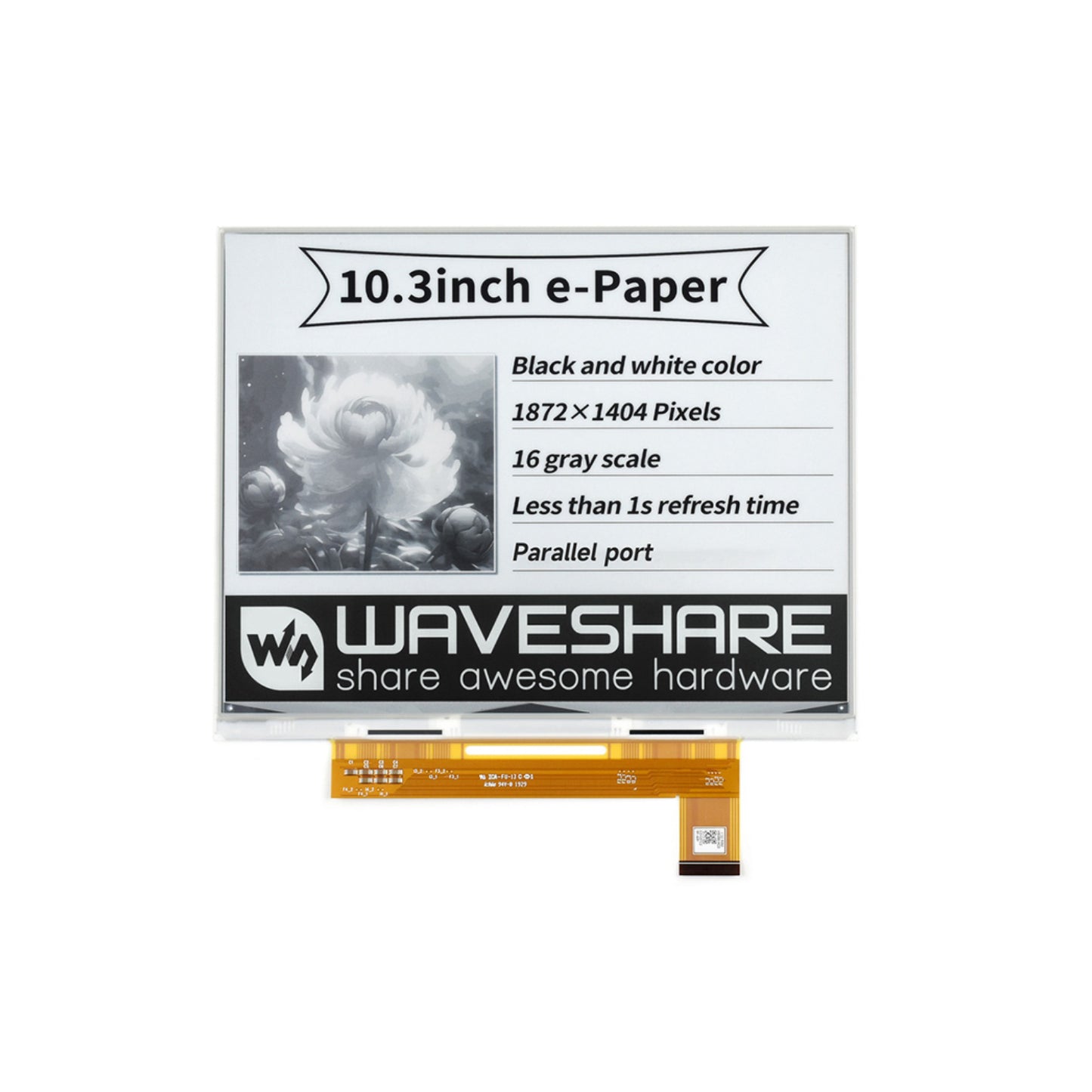

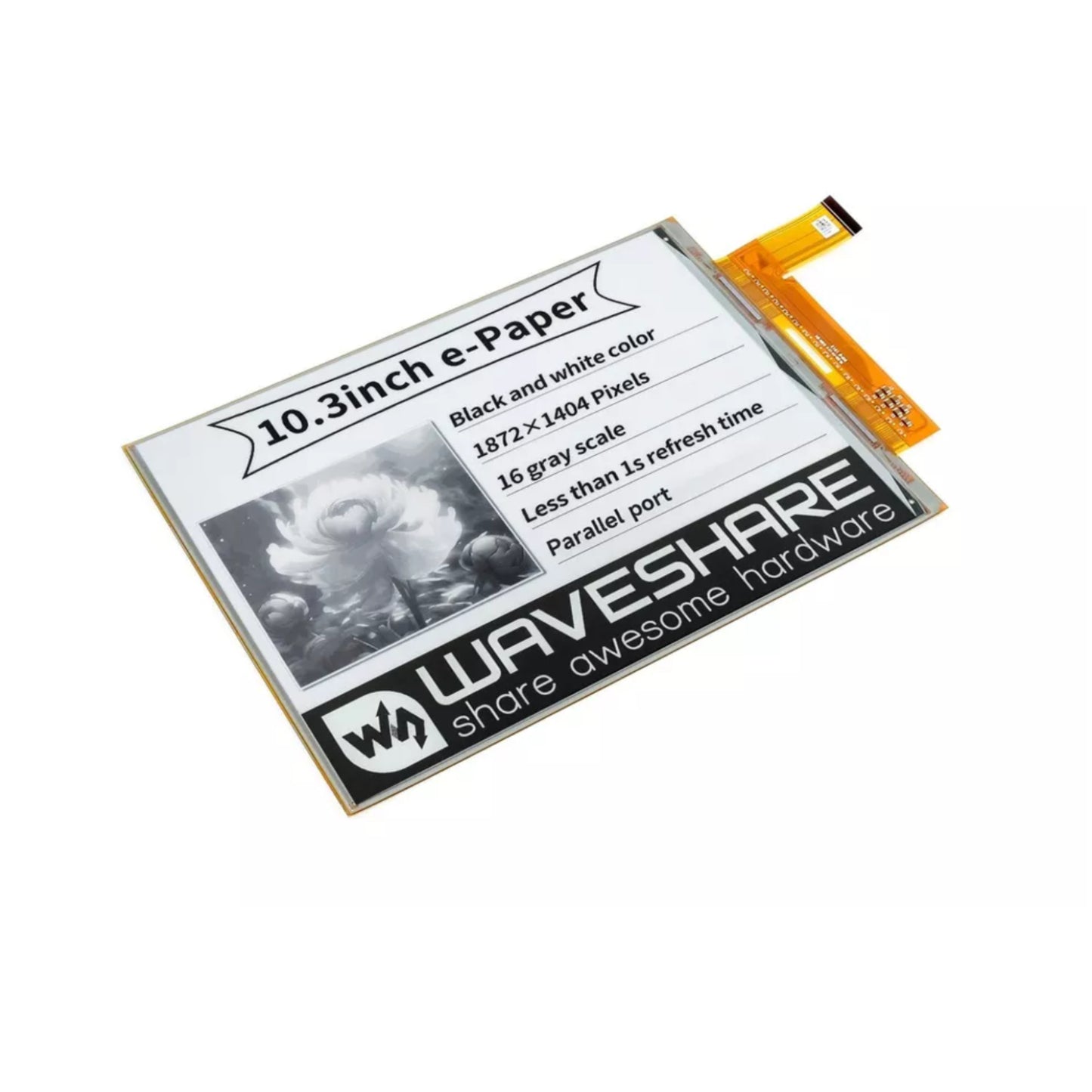

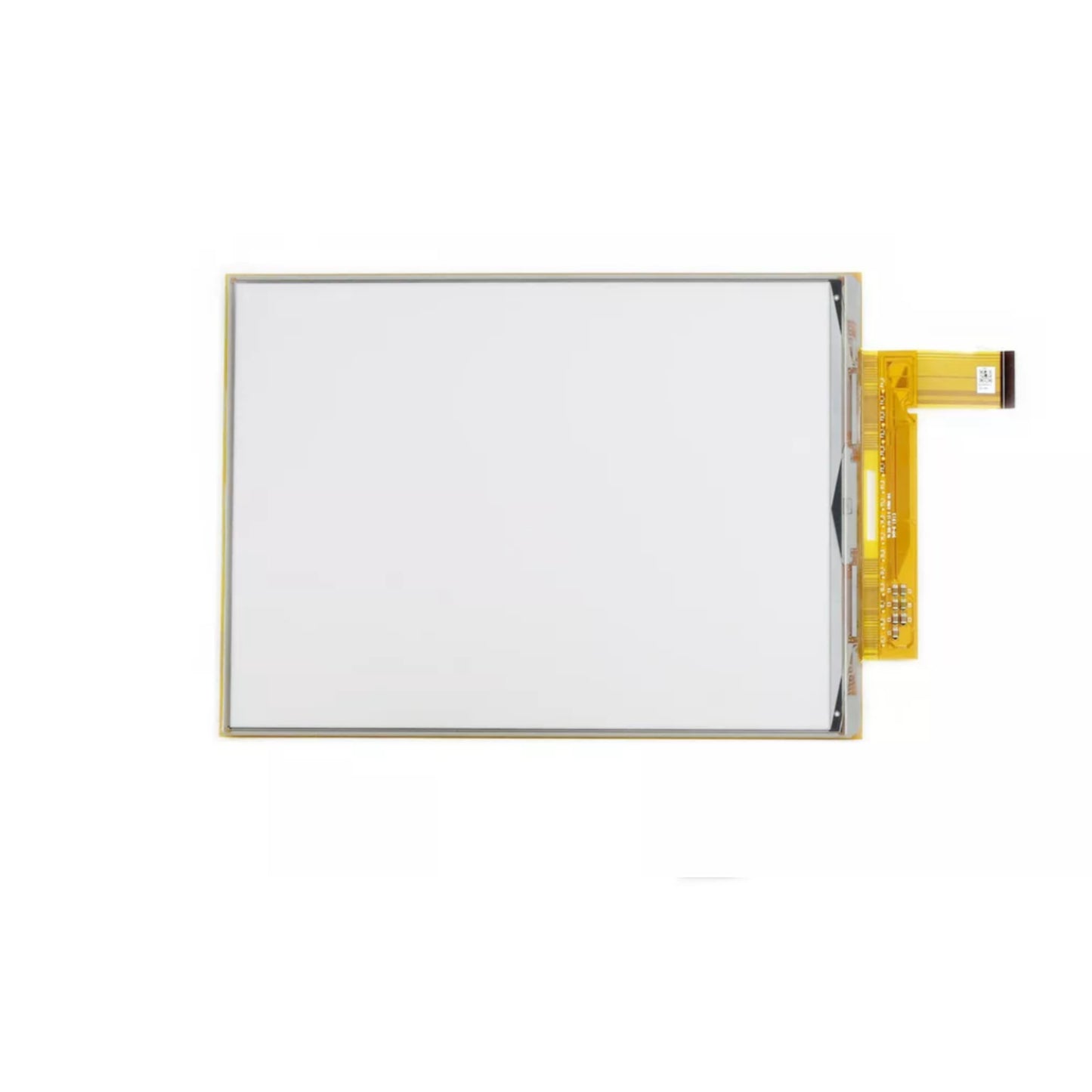

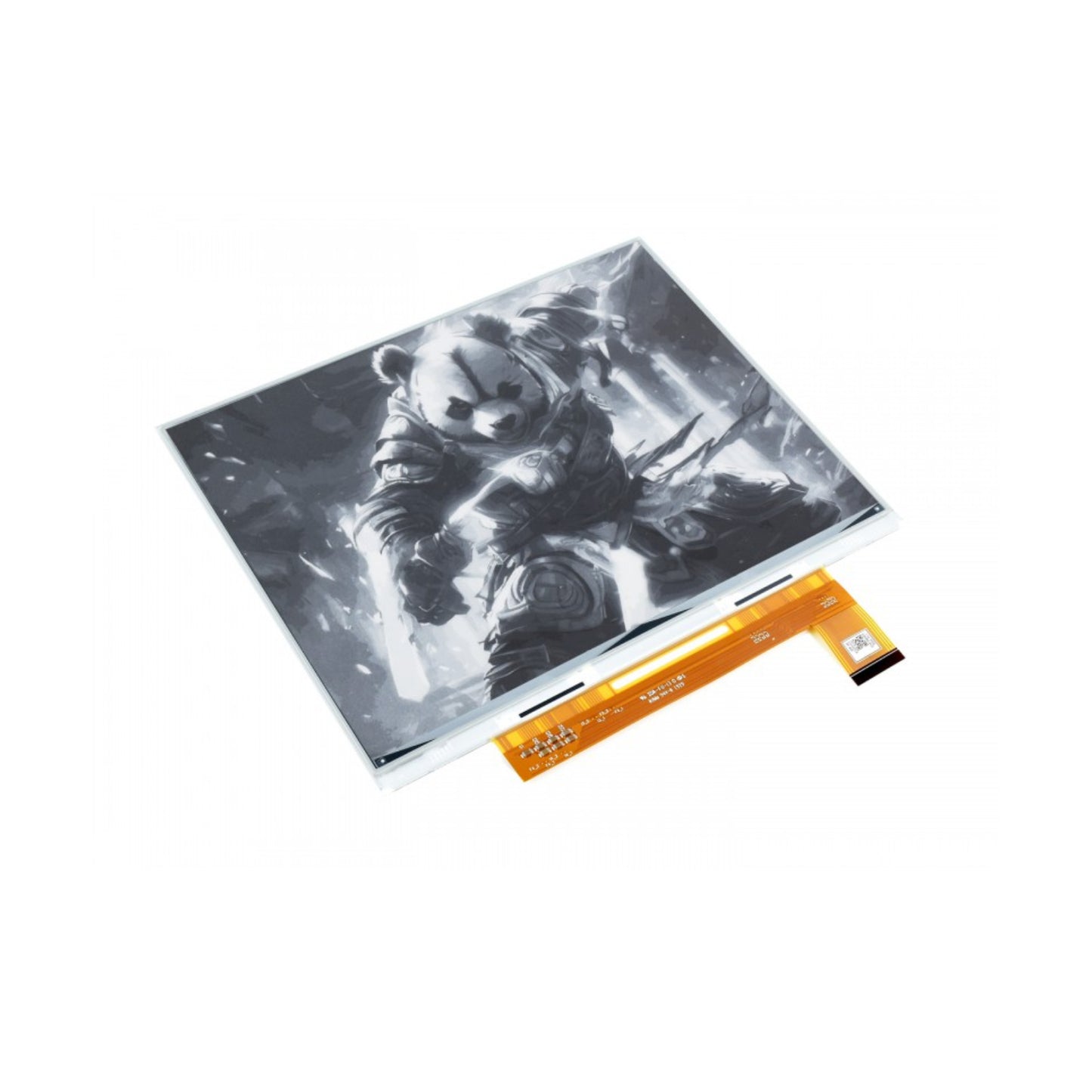

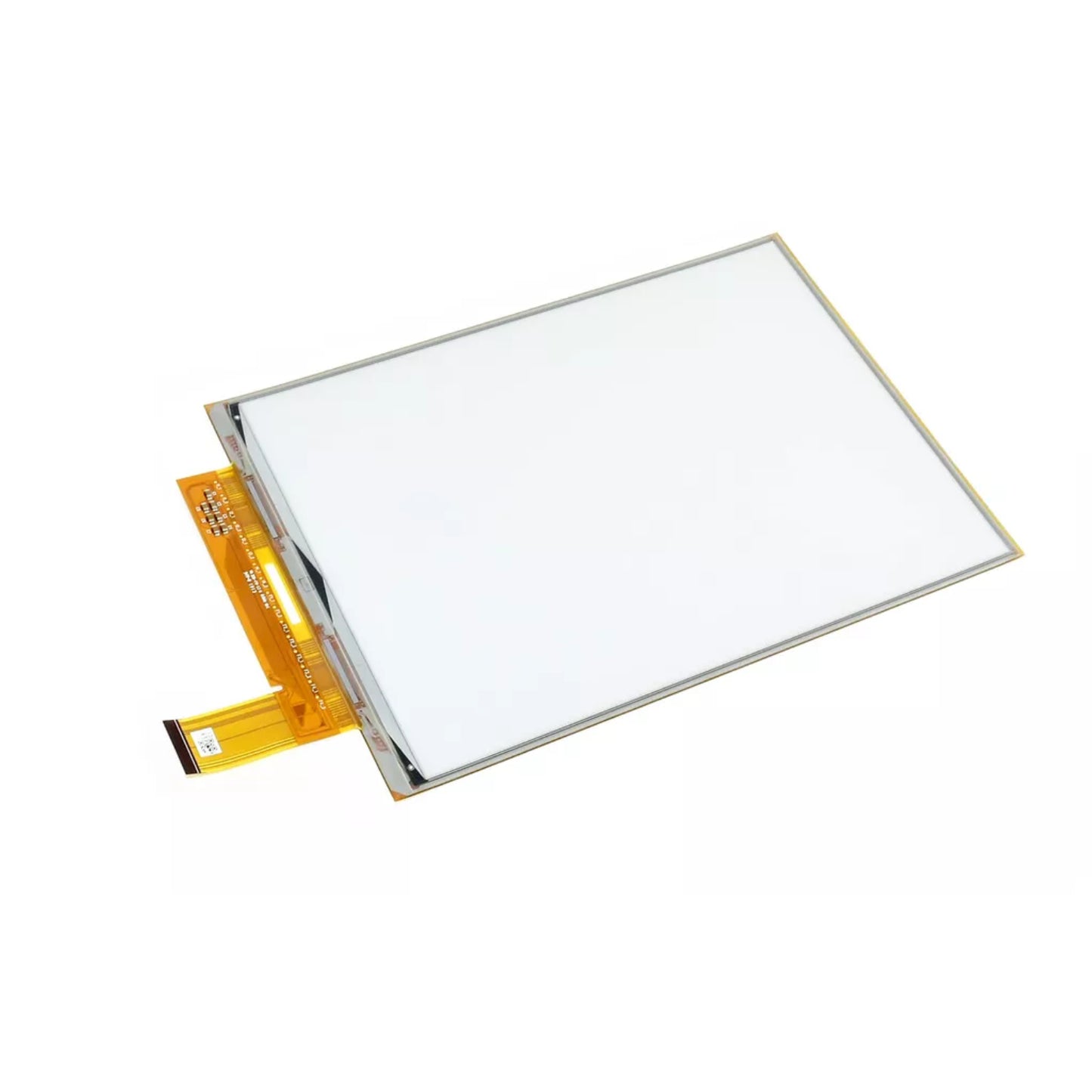

This is a flexible E-Ink raw display, 10.3inch, 1872×1404 resolution, communicating via parallel port, and supports partial refresh. Compared with normal e-paper panels, this flexible panel allows bending without being damaged, and it's thinner and lighter.
Due to advantages like low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as ebook readers, e-ink displays, industrial instruments, and so on.
Specifications:
- Operating voltage: 5V
- Interface: parallel port
- Outline dimension: 216.70 × 174.40 × 0.78mm
- Display size: 209.66 × 157.25mm
- Dot pitch: 0.112mm × 0.112mm
- Resolution: 1872 × 1404
- Display colour: black, white
- Grayscale: 2-16 (1-4 bit)
- Full refresh time: 1s
- Viewing angle: 170°
Features:
- No backlight keeps displaying the latest content for a long time even when powered down
- Ultra-low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/STM32)
Advantages Of E-Ink:
- E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: that charged particles suspended in clear fluid will move to sides of the microcapsule when an electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
- E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as an e-reader due to its paper-like effect.
Useful Link:
Package Included:
1 x Waveshare 10.3" ePaper Display Module 1872x1404 e-Ink Raw Display 10.3" Raw Parallel Interface Display 16 Grayscale High-Resolution Display Without PCB - Black & White
