Waveshare 1.9-Inch SPI LCD Display Module 170×320 IPS Screen with 262K Colors for Microcontrollers and DIY Electronics

Waveshare 1.9-Inch SPI LCD Display Module 170×320 IPS Screen with 262K Colors for Microcontrollers and DIY Electronics

SKU:

In stock

Regular price Rs. 1,044.00
Regular price Sale price Rs. 1,044.00
Sale Sold out
Shipping calculated at checkout.
Quantity

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

 Description:

The Waveshare 1.9-inch IPS LCD Display Module is a compact, high-quality display designed for embedded applications and DIY electronics. Featuring a 170×320 pixel resolution, 262K vivid color output, and wide viewing angles, this module delivers crisp, vibrant visuals ideal for user interfaces, IoT dashboards, and portable devices.

Built around the ST7789V2 controller, the display supports RGB input formats of 12-bit (RGB444), 16-bit (RGB565), and 18-bit (RGB666), offering flexibility in color depth. The SPI interface (4-wire) ensures fast communication with minimal GPIO usage, making it perfect for microcontrollers like Arduino, Raspberry Pi, STM32, and ESP32-based projects.

The display can be initialized in both portrait and landscape orientations, and although the internal controller supports 240×320 resolution, the actual active area is 170×320, allowing efficient use of memory and resources. The commonly used RGB565 format is featured in the demo for optimal performance and compatibility.

This module is an excellent choice for developers seeking a reliable, energy-efficient, and visually rich LCD for compact embedded systems.

Specification:

  • Operating voltage: 3.3V / 5V
  • Resolution: 170 × 320 pixels
  • Communication Interface: 4-wire SPI
  • Display size: 22.70 × 42.72 mm
  • DISPLAY PANEL: IPS
  • PIXEL SIZE: 0.1335 × 0.1335 mm
  • Driver: ST7789V2
  • Module size: 27.3 × 51.2mm

Features:

  • 170×320 resolution, 262K colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

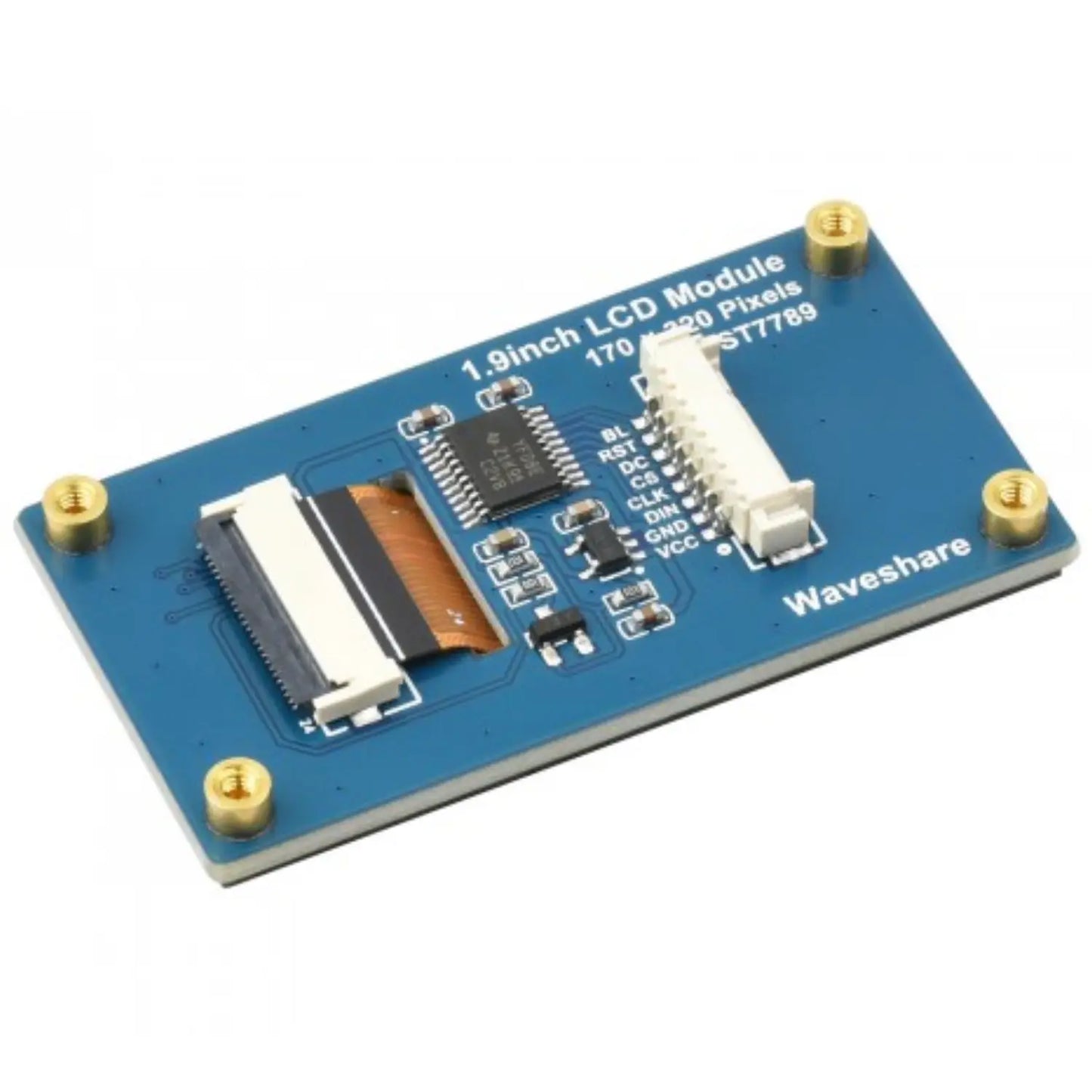

 Product Interface:

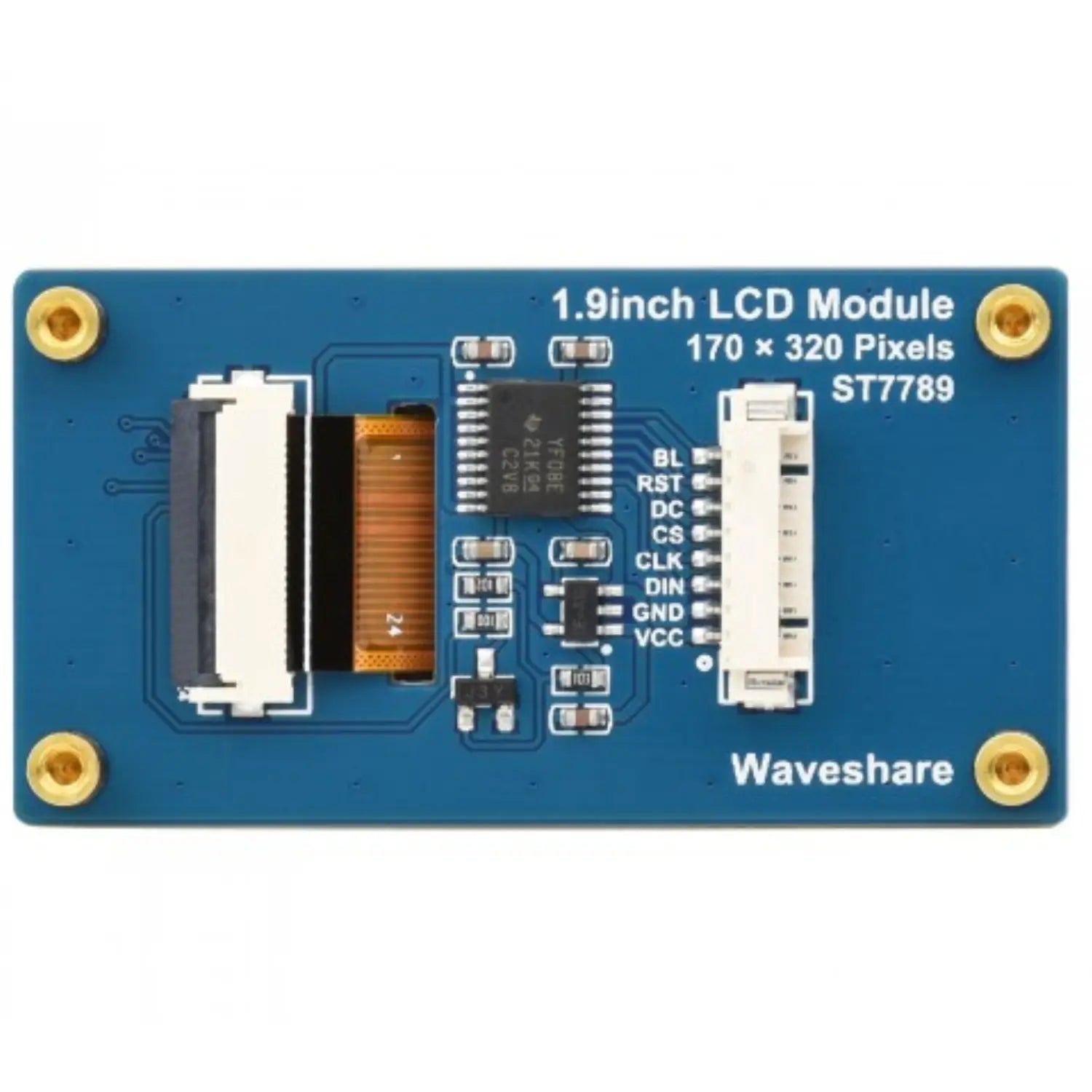

 Pin Description:

  • BL: Backlight
  • RST: Reset, low active
  • DC: Data/Command selection (high for data, low for command)
  • CS: Chip selection, low active
  • CLK: SPI clock input
  • DIN: SPI data input
  • GND: Ground
  • VCC: Power (3.3V / 5V input)

Connecting with Raspberry Pi

Connecting with Arduino board

Connecting with STM32

 Useful Link:

Waveshare 1.9-Inch SPI LCD Display Module

 Package Included:

  • 1 x 1.9-inch LCD Module
  • 1 x MX1.25 8PIN cable
