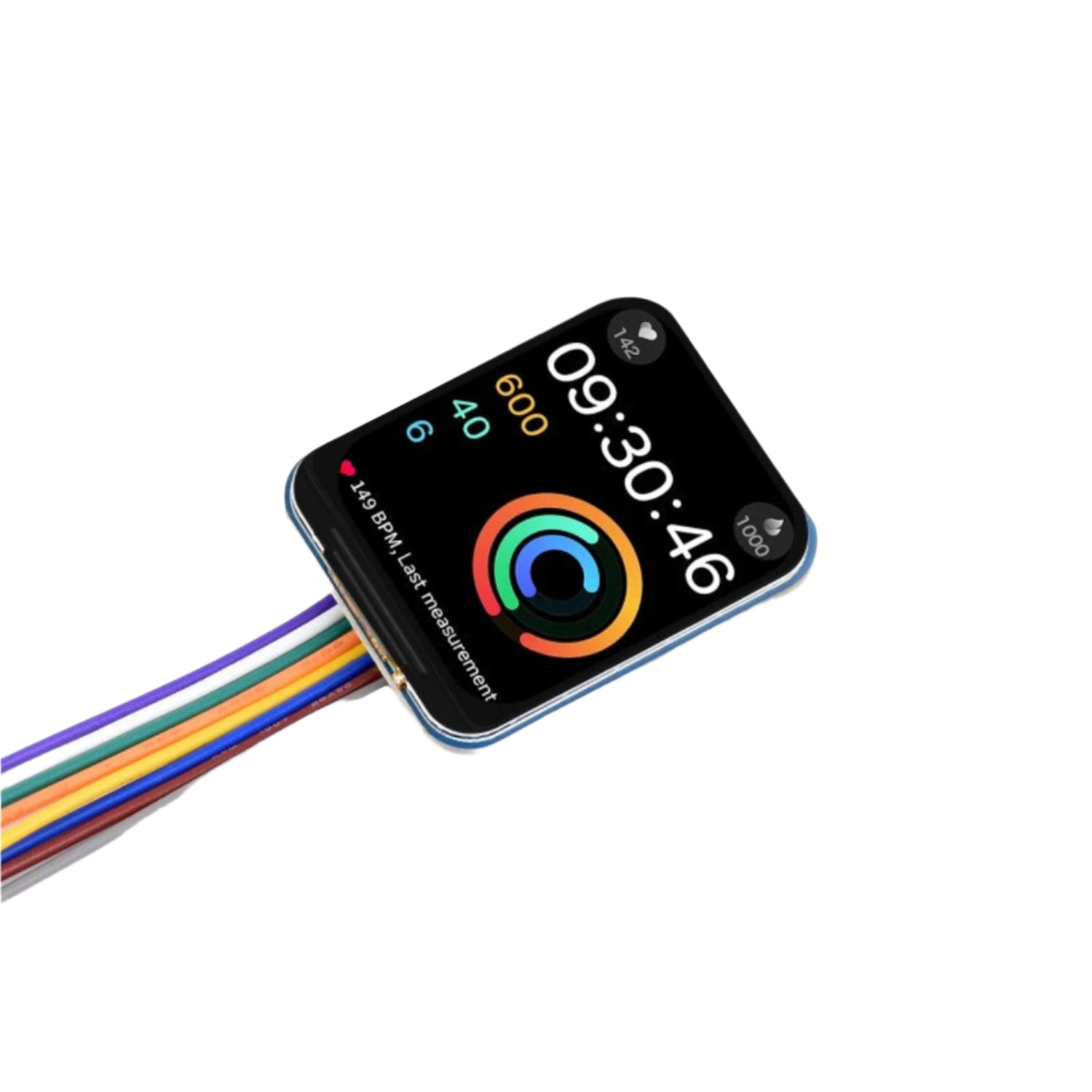

Description:
The Waveshare 1.69-inch LCD Display Module offers a 240x280 pixel resolution and utilizes a rapid SPI interface for seamless integration with microcontrollers. Its miniature form factor makes it an excellent choice for space-limited embedded systems and portable electronics, including Arduino and Raspberry Pi projects.
Specifications:
- Display Size: 1.69 Inch
- Display Resolution: 240 × 280
- Model Type: LCD Display Module
- Communication Mode: 4-wire SPI
- Driver IC: ST7789v2
- Operating Voltage: 3.3V / 5V
- Pixel Size: 0.11655 × 0.11655mm
- Display Panel: IPS
- Module: 31.50 × 39.00mm
Features:
- 240×280 resolution, 262K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

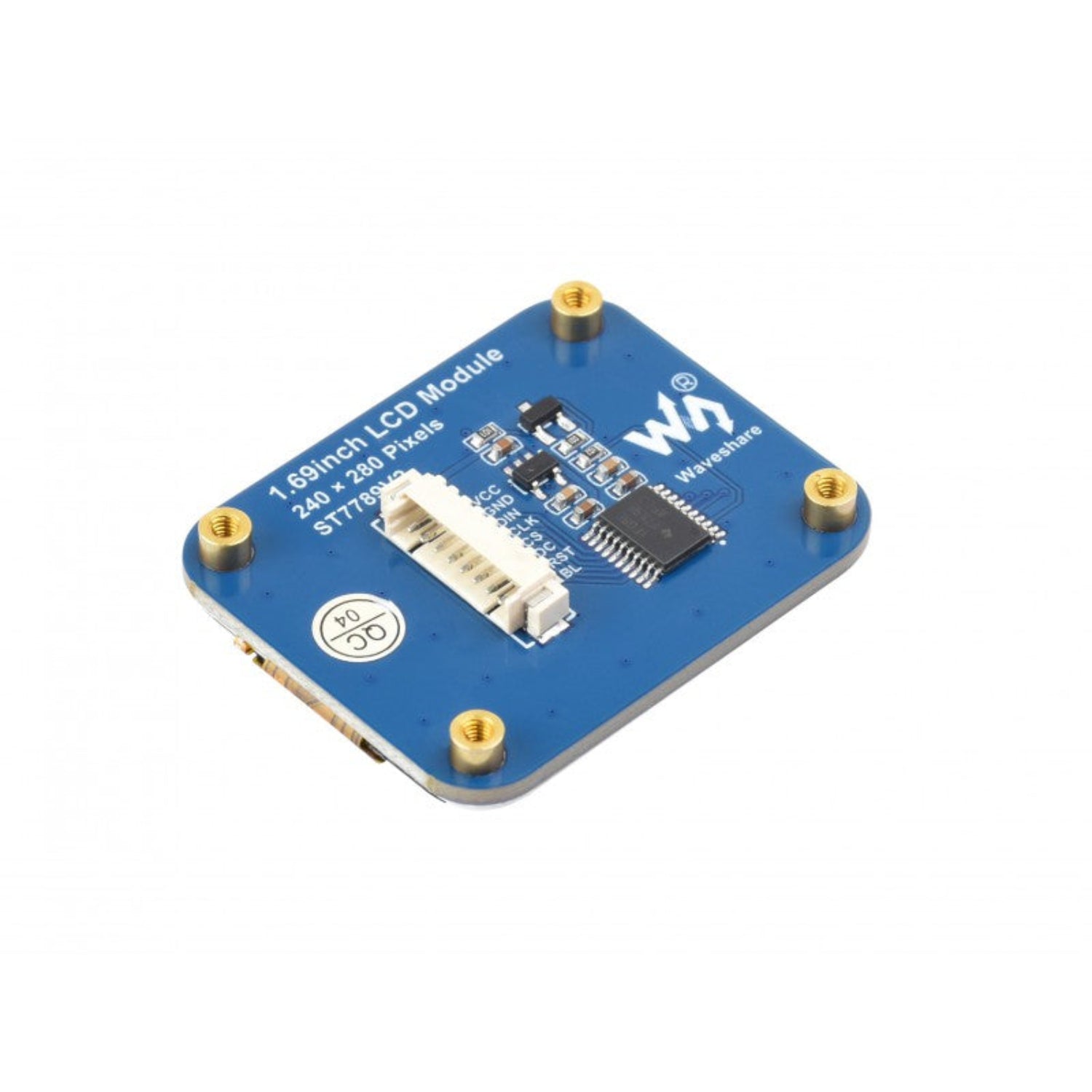

Pin Description:

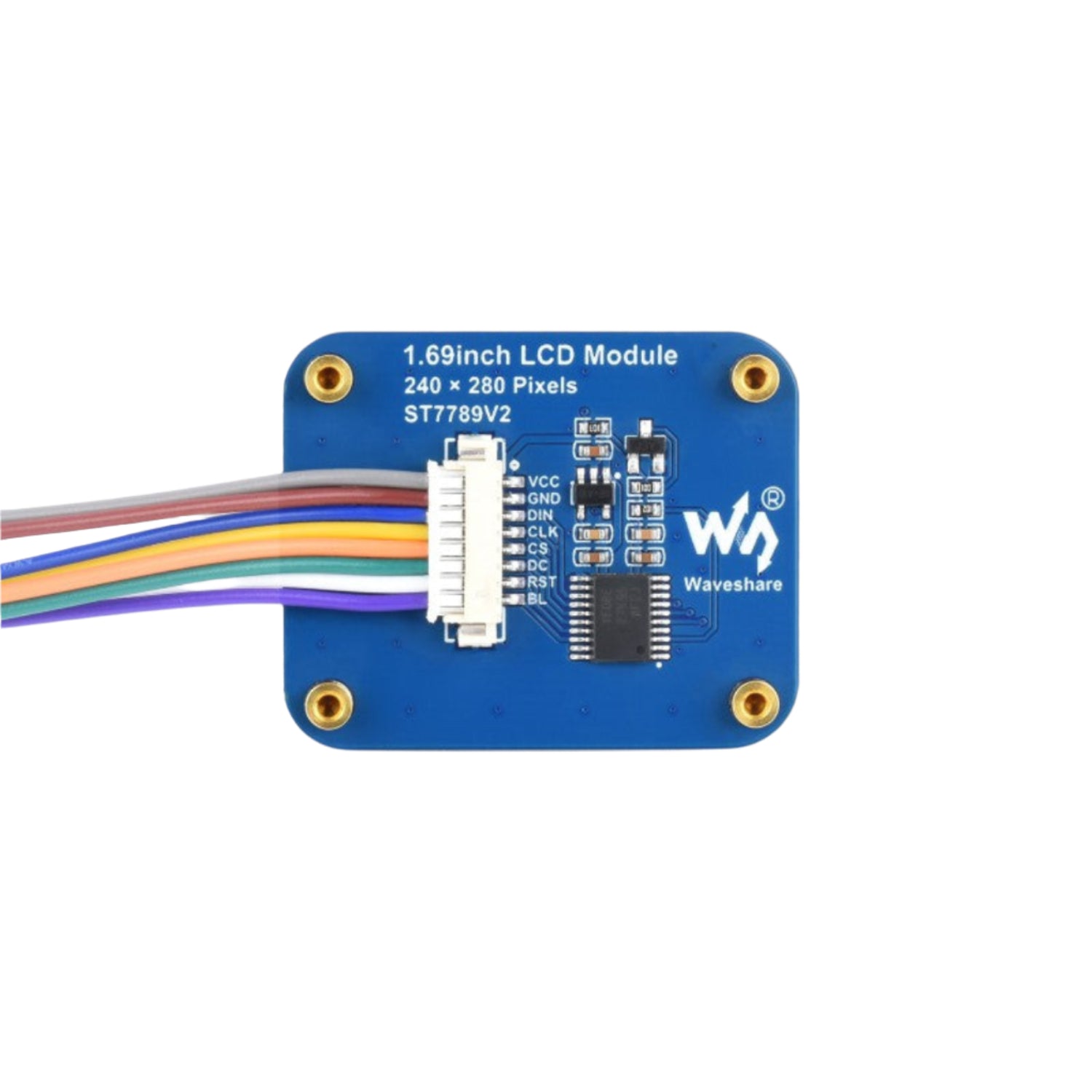

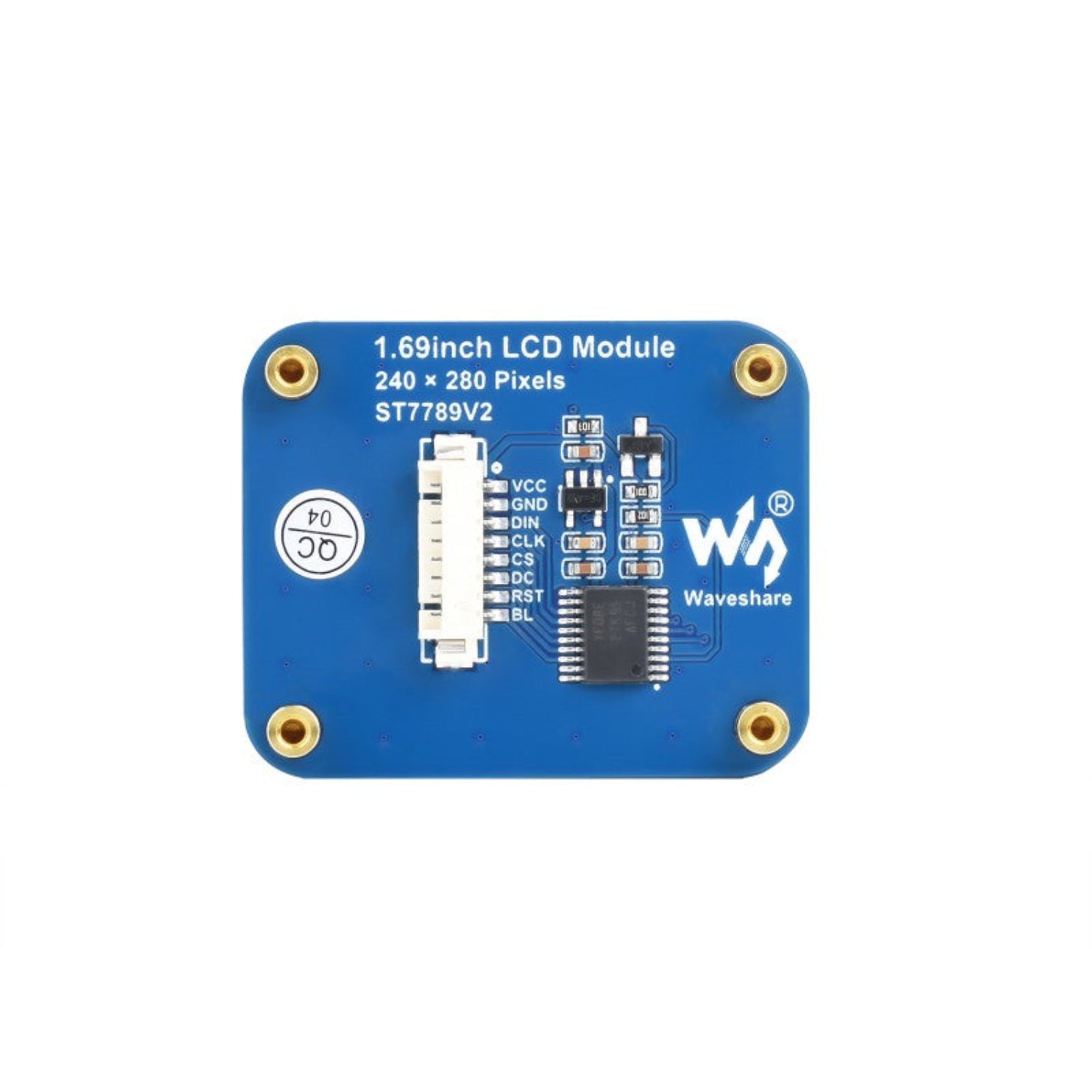

| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Useful Link:
Waveshare 1.69 Inch IPS LCD Display Module
Package Included:
- 1 x 1.69inch LCD Module
- 1 x MX1.25 8PIN cable
