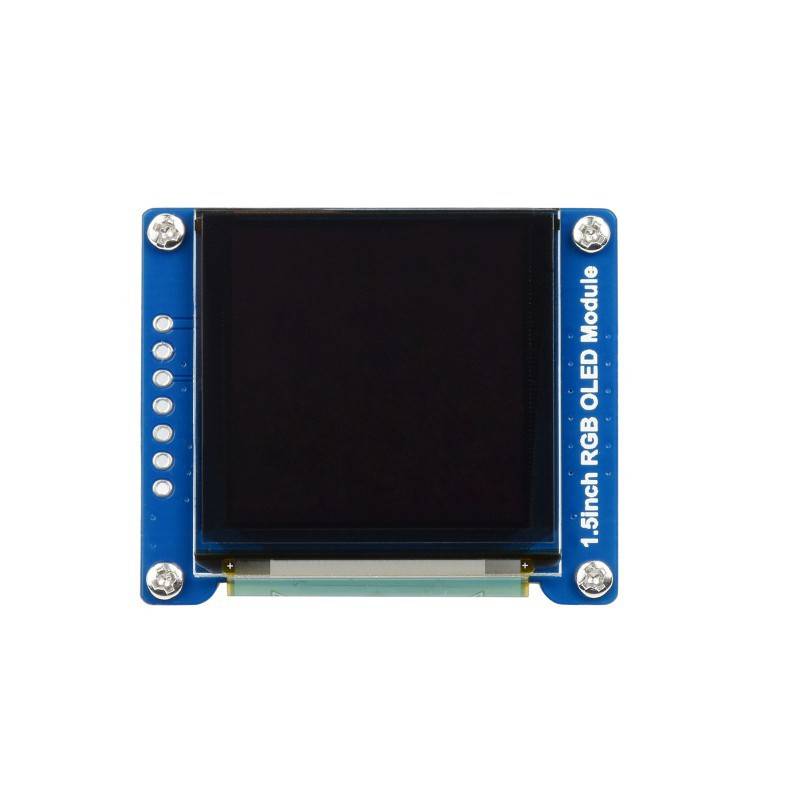

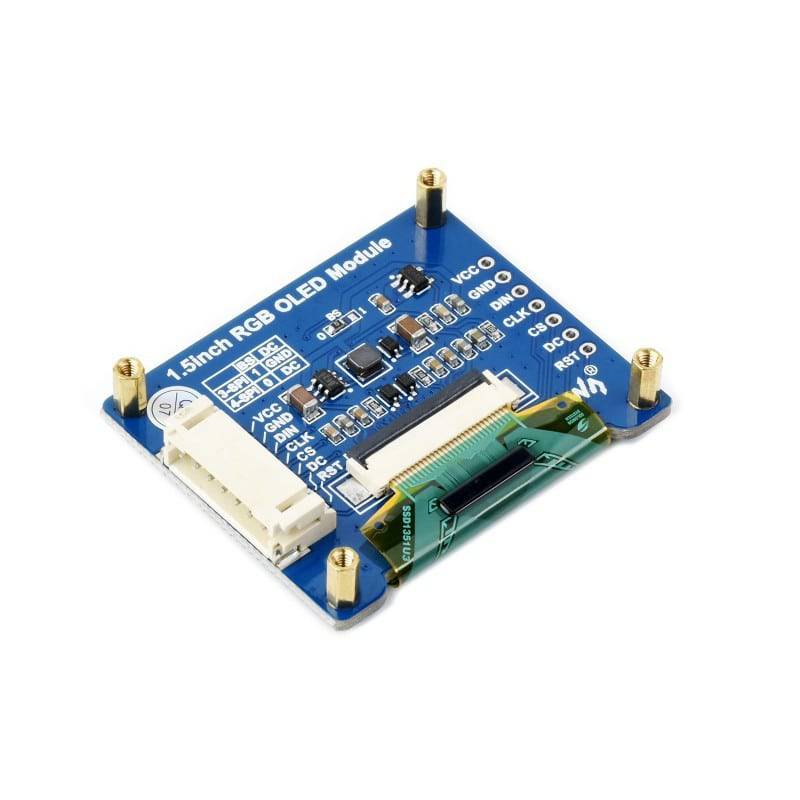

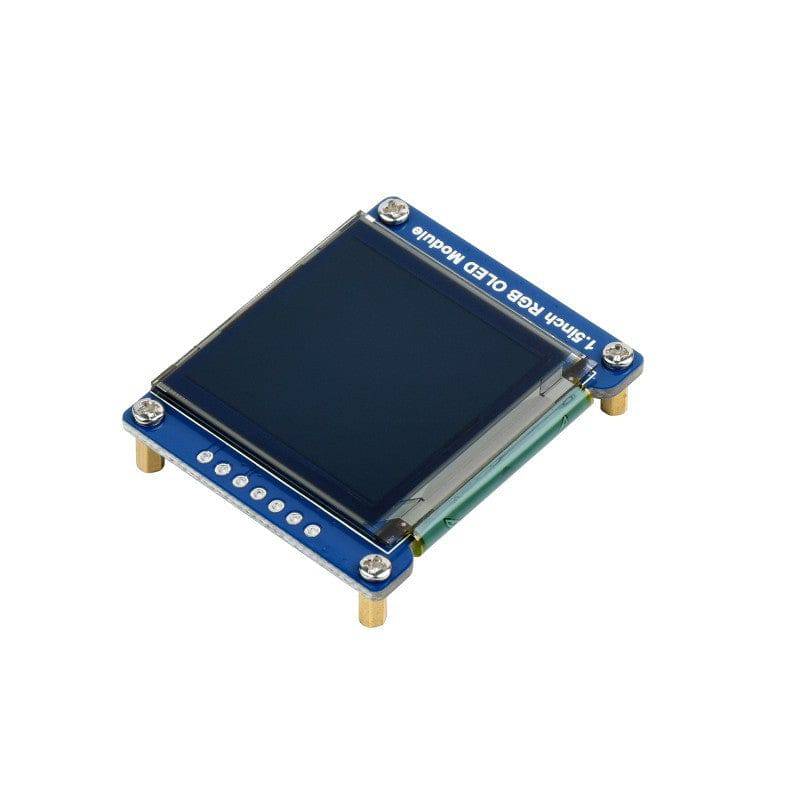

Waveshare 1.5inch RGB OLED Display Module, 65K RGB Colors, 128×128, SPI - RS2411

Waveshare 1.5inch RGB OLED Display Module, 65K RGB Colors, 128×128, SPI - RS2411

SKU:RS2411

Low stock: 9 left

Regular price Rs. 1,294.00
Regular price Sale price Rs. 1,294.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
  • Support interface: 4-wire SPI, 3-wire SPI
  • Controller: SSD1351
  • Resolution: 128(H)RGB x 128(V)
  • Dimension: 26.855(H)x 26.855(V)mm
  • Pixel size: 0.045(H) x 0.194(V) mm
  • Display color: 65K color

Description :

1.5inch RGB OLED Module provides Raspberry Pi, STM32, and Arduino demos.

Specification

  • Operating voltage: 3.3V/5V(Please ensure that the power supply voltage and logic voltage are consistent, otherwise it will not work properly)
  • Support interface: 4-wire SPI, 3-wire SPI
  • Controller: SSD1351
  • Resolution: 128(H)RGB x 128(V)
  • Dimension: 26.855(H)x 26.855(V)mm
  • Pixel size: 0.045(H) x 0.194(V) mm
  • Display color: 65K color

Features :

  • 128×128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

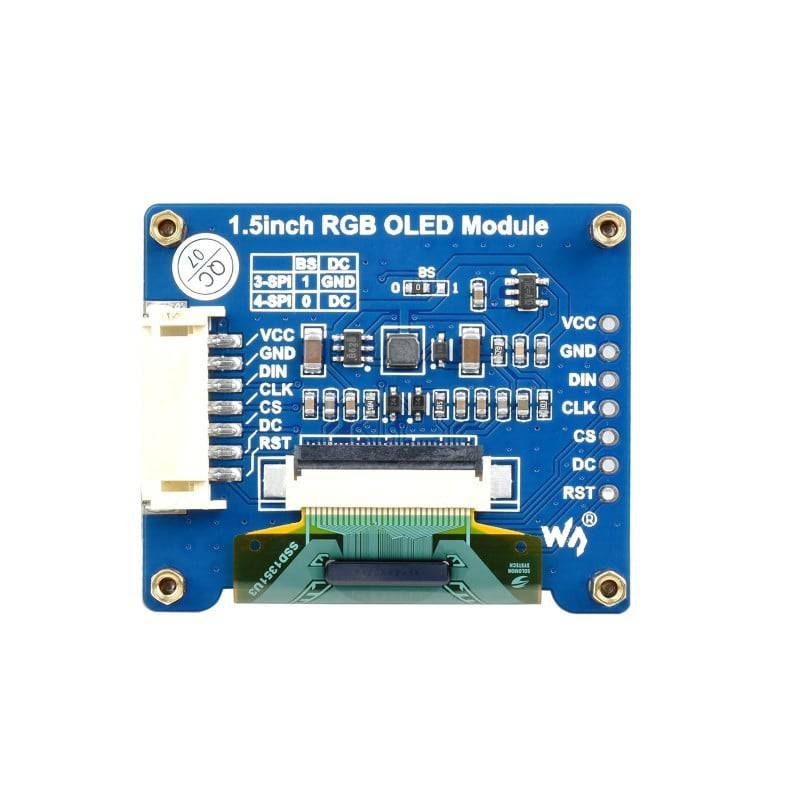

Pinout :

PIN Description
VCC 3.3V/5V Power input
GND Ground
DIN Data input
SCL Clock input
CS Chip select, active low
DC Data/command signal selection, low level indicates command, high level indicates data
RST Reset signal, active low

Package Included :

  • 1.5inch RGB OLED Module x1
  • PH2.0 7PIN cable x1
