- Working Voltage: 5V/3.3V
- Communication Interface: SPI/I2C
- Controller: SSD1309
- Resolution: 128 × 64
- Display Size: 35.05 × 15.32 (mm)
- Pixel Size: 0.254 × 0.254 (mm)

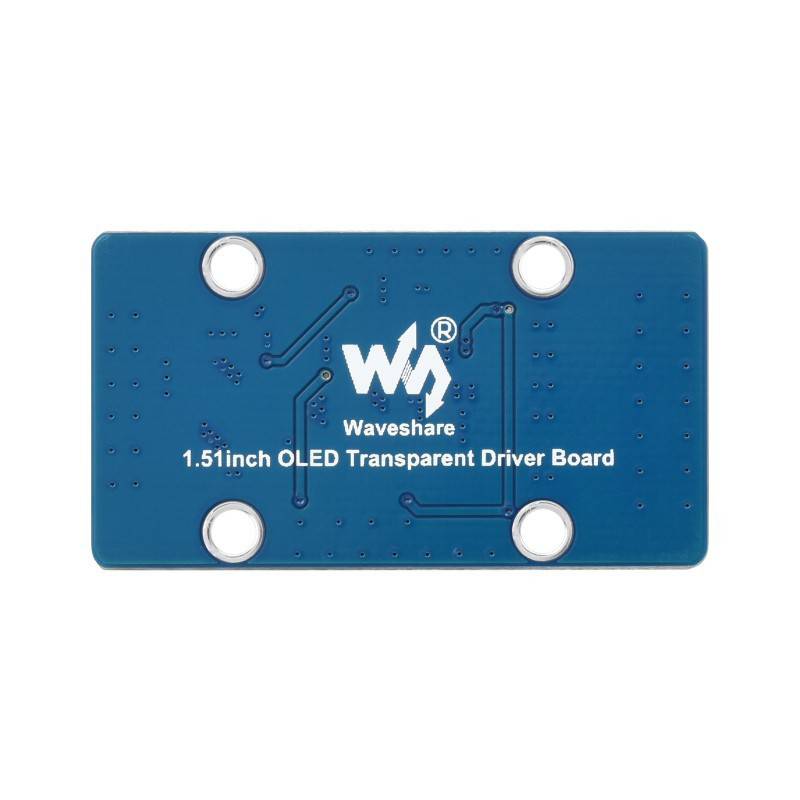

- Board Size: 41 × 22.5 (mm)
- Display Color: Light Blue
Description :

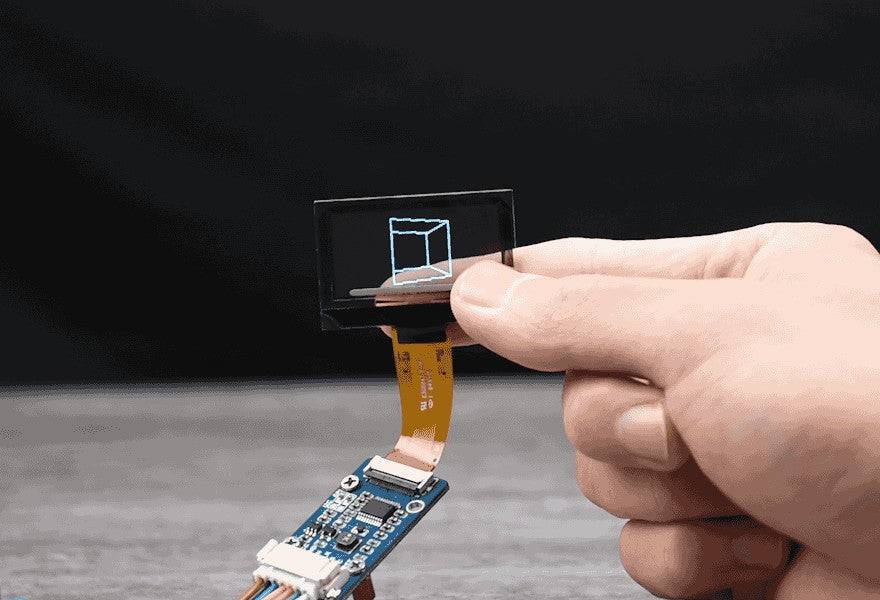

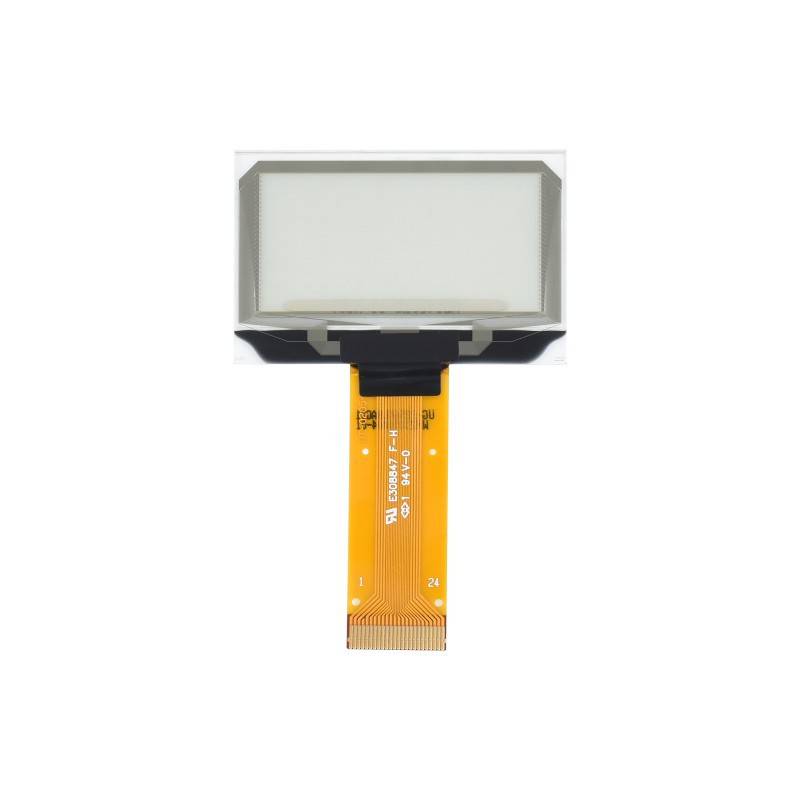

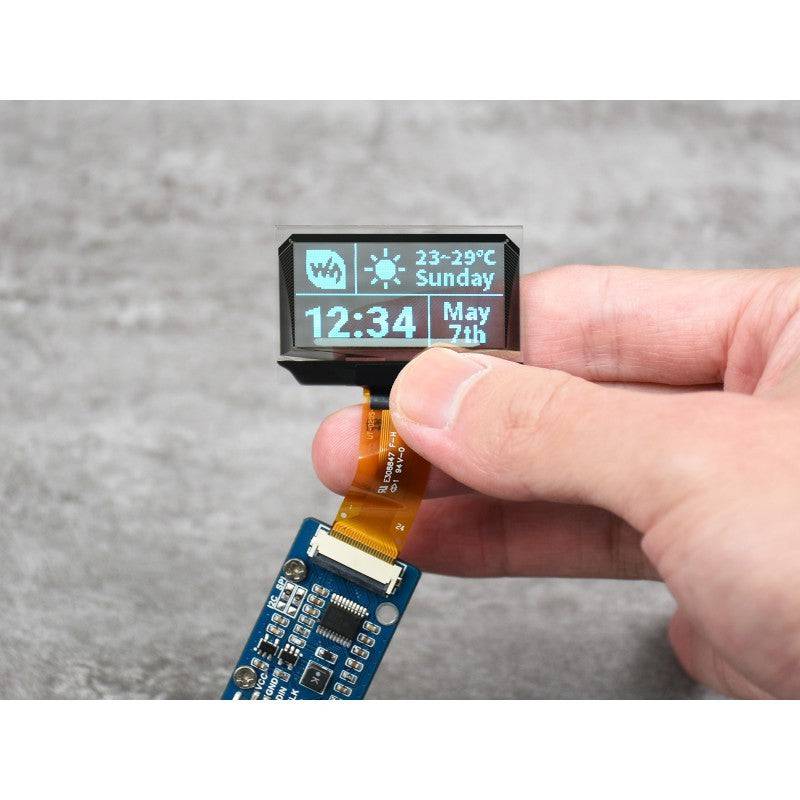

1.51inch Transparent OLED, 128×64 Resolution, SPI/I2C Interfaces, Light Blue Color Display
Specification :
- Working Voltage: 5V/3.3V
- Communication Interface: SPI/I2C
- Controller: SSD1309
- Resolution: 128 × 64
- Display Size: 35.05 × 15.32 (mm)
- Pixel Size: 0.254 × 0.254 (mm)
- Board Size: 41 × 22.5 (mm)
- Display Color: Light Blue
OLED & Controller
The integrated built-in controller used by this OLED is SSD1309, which has 128 × 64 bits SRAM, supports up to 128 × 64 pixel screen, supports SPI/I2C/ 6800 parallel port/8080 parallel port, 256-level brightness settings, this screen is 128 × 64 pixels, so the internal SRAM is not fully used.
This module adopts four-wire SPI and IIC interfaces, with good compatibility and high transmission speed.
Install Libraries
- Install BCM2835 libraries
wget http://www.airspayce.com/mikem/bcm2835/bcm2835-1.71.tar.gz
tar zxvf bcm2835-1.71.tar.gz
cd bcm2835-1.71/
sudo ./configure && sudo make && sudo make check && sudo make install
#For more details, please refer to http://www.airspayce.com/mikem/bcm2835/
- Install wiringPi libraries
#Open the Raspberry Pi terminal and run the following command
sudo apt-get install wiringpi
#For Raspberry Pi systems after May 2019 (earlier than before, you may not need to execute), you may need to upgrade:
wget https://project-downloads.drogon.net/wiringpi-latest.deb
sudo dpkg -i wiringpi-latest.deb
gpio -v
# Run gpio -v and version 2.52 will appear. If it does not appear, it means that there is an installation error
#Bullseye branch system use the following command:
git clone https://github.com/WiringPi/WiringPi
cd WiringPi
./build
gpio -v
# Run gpio -v and version 2.60 will appear. If it does not appear, it means that there is an installation error
- Install Python libraries
#python2
sudo apt-get update
sudo apt-get install python-pip
sudo apt-get install python-pil
sudo apt-get install python-numpy
sudo pip install RPi.GPIO
sudo pip install spidev
#python3
sudo apt-get update
sudo apt-get install python3-pip
sudo apt-get install python3-pil
sudo apt-get install python3-numpy
sudo pip3 install RPi.GPIO
sudo pip3 install spidev
Package Included:
- 1.51inch Transparent OLED x1
- PH2.0 7PIN cable x1
- Screws pack
