Description:

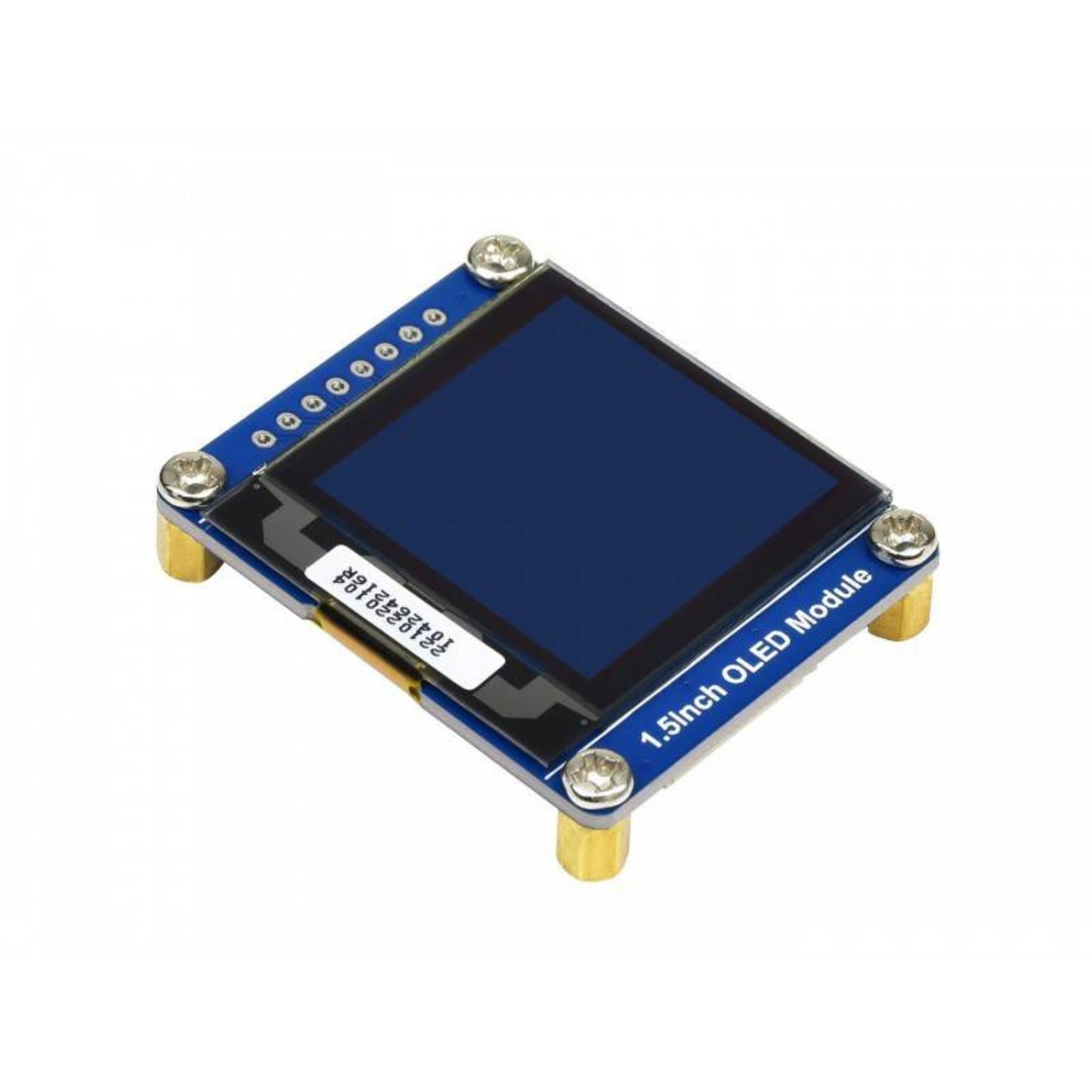

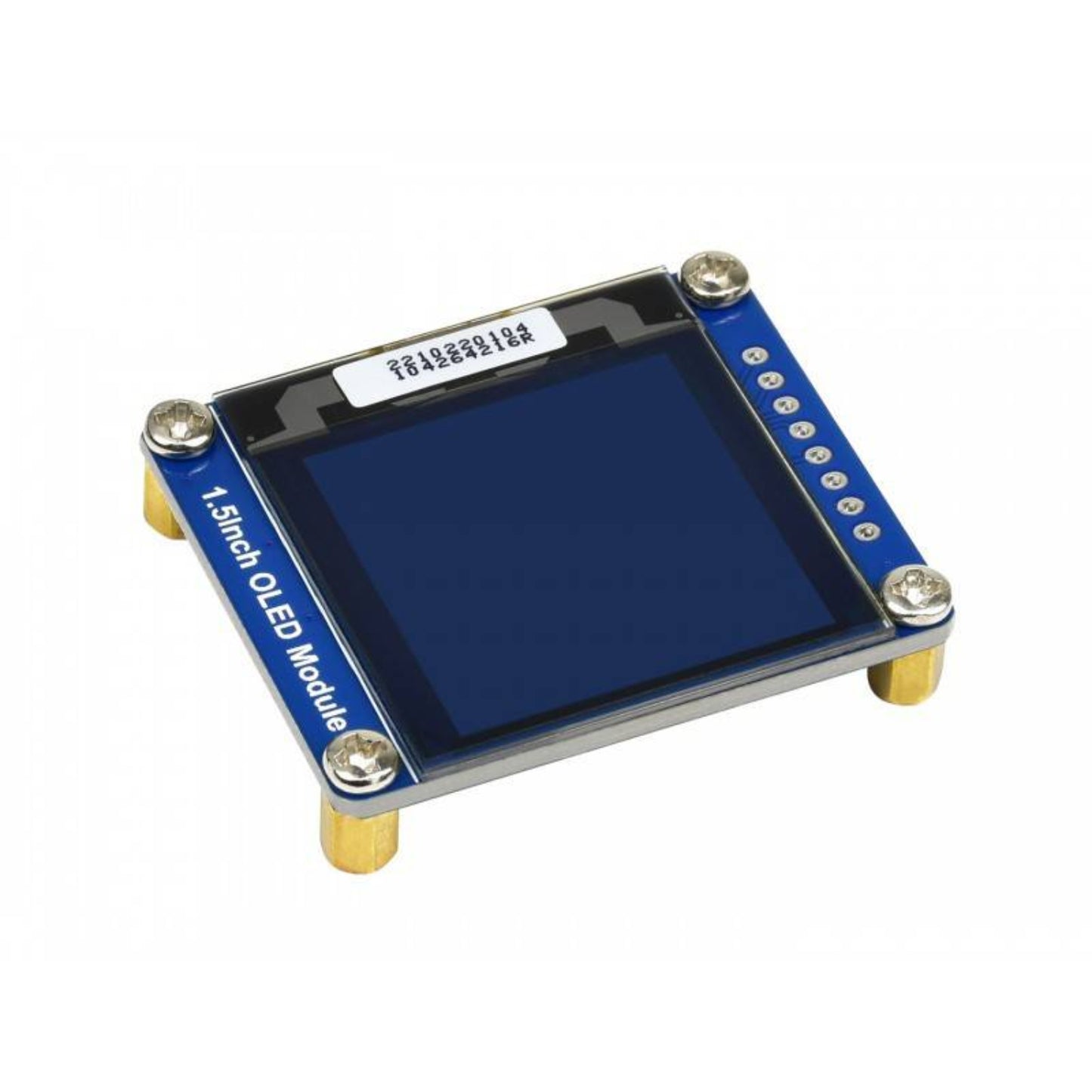

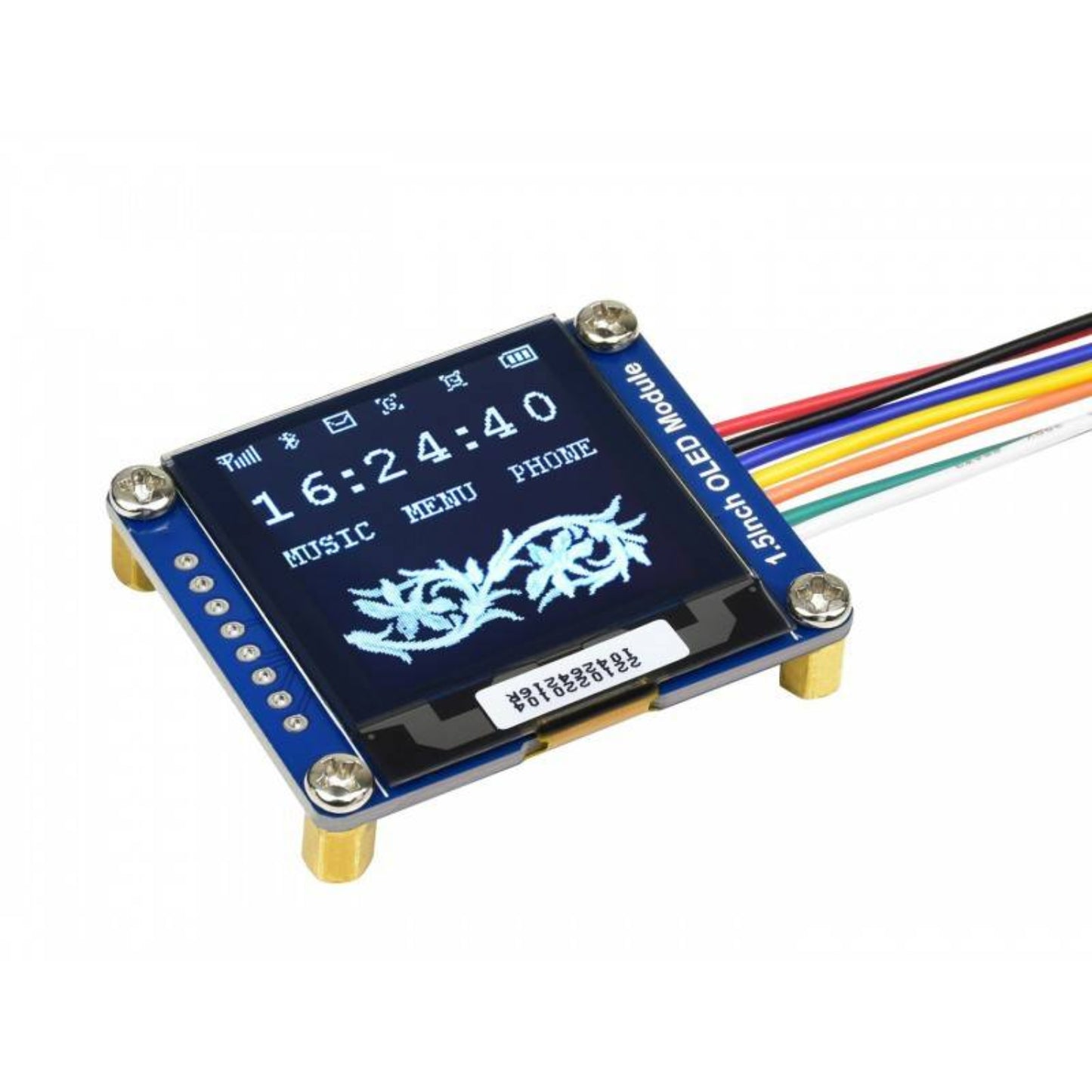

This is a general 1.5inch diagonal OLED display Module from Waveshare, 128×128 pixels monochrome dot matrix display module with 16 grayscales, and an embedded controller communicating via SPI or I2C interface. It is perfect when you need an ultra-small display.
Compared to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.
Specification:
| Operating voltage | 3.3V / 5V | DISPLAY PANEL | OLED |
|---|---|---|---|
| Resolution | 128 × 128 pixels | PIXEL SIZE | 0.185 × 0.185mm |
| Communication Interface | 4-wire SPI / I2C | Driver | SSD1327 |
Features:
- 128×128 high resolution.
- 16 grayscale, the better display effect.
- Supports SPI or I2C interface, configured via an onboard resistor.
- Comes with development resources and a manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32).

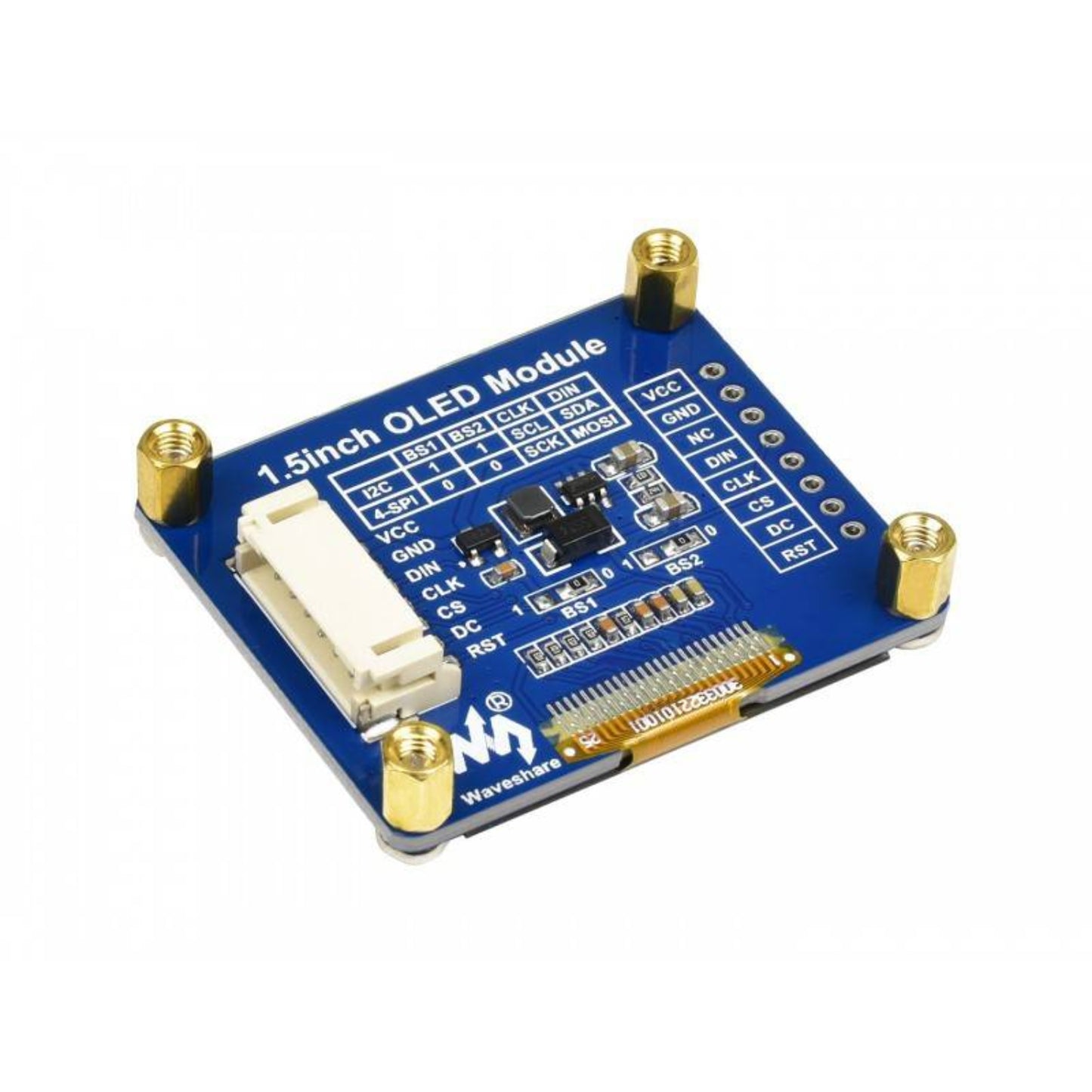

Pin Description:
| VCC | Power (3.3V / 5V input) |
|---|---|
| GND | Ground |
| DIN | Data input |
| CLK | Clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
Useful Link:
Waveshare 1.5" OLED Display Module Datahsheet
Package Included:
- 1 x Waveshare 1.5" OLED Display Module
- 1 x PH2.0 7Pin
