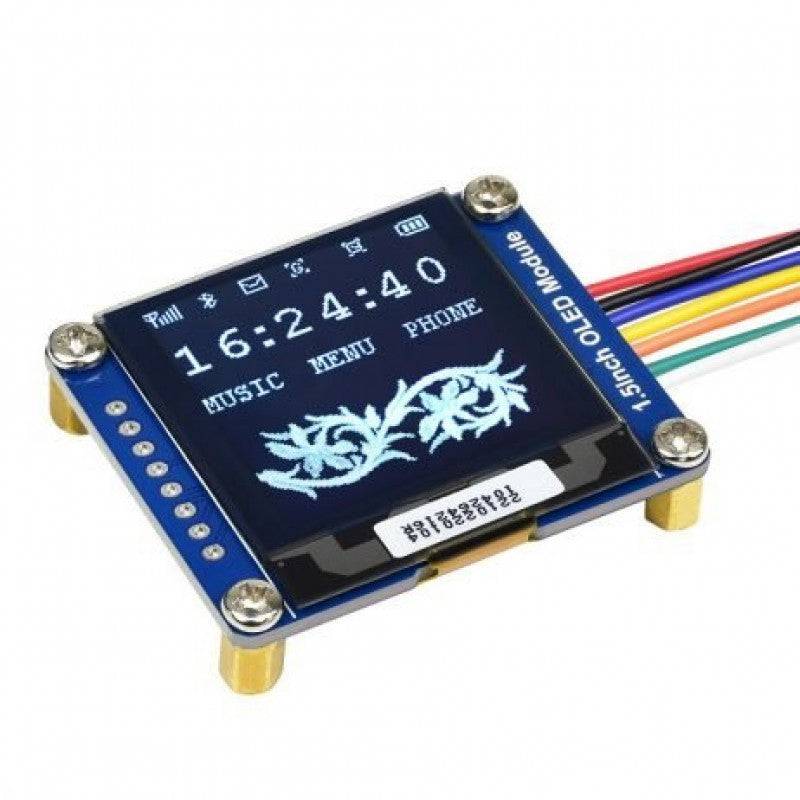

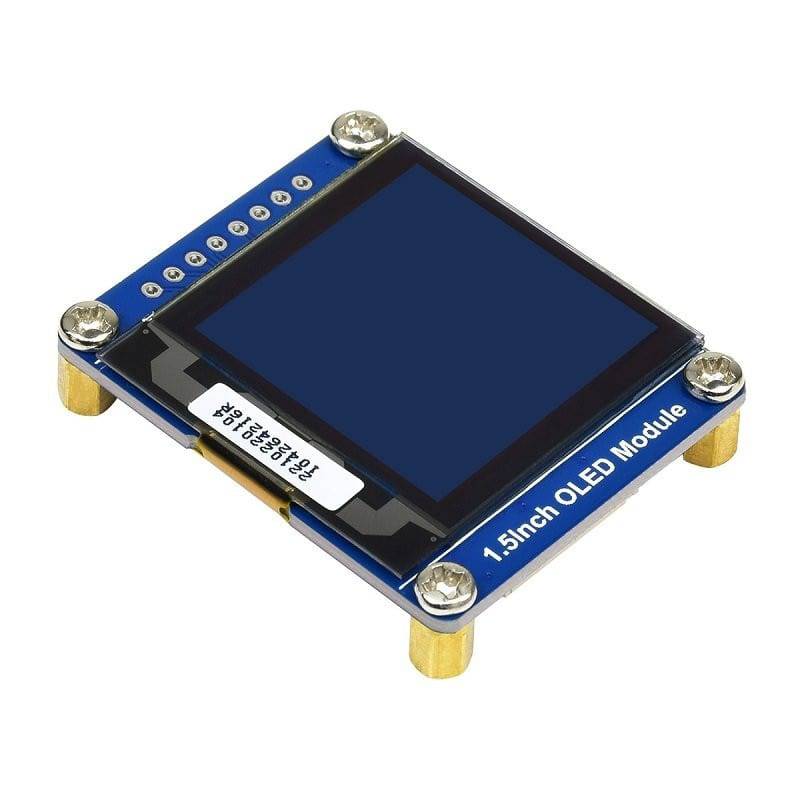

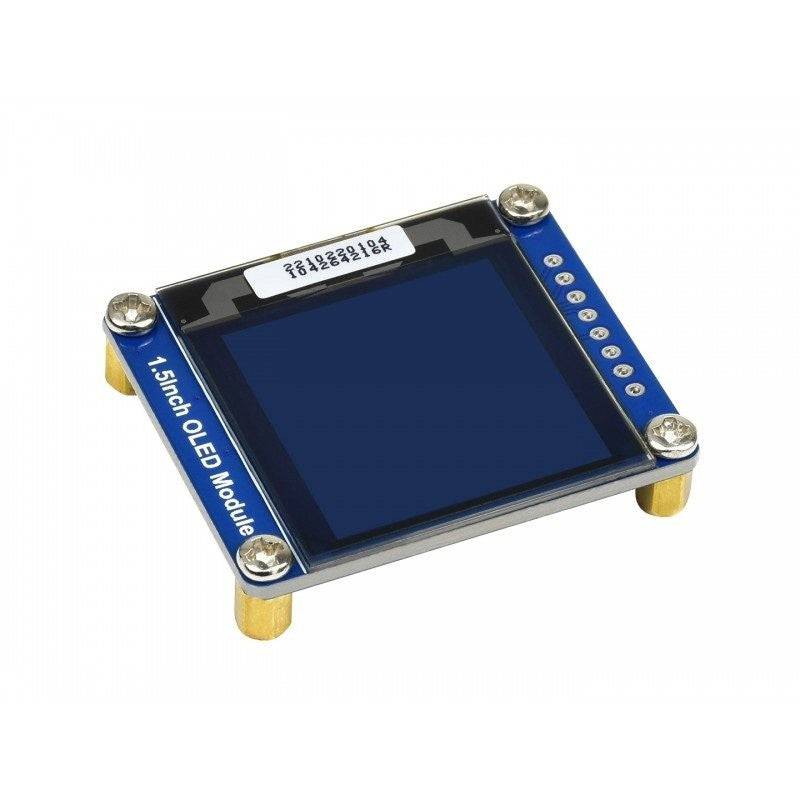

Waveshare 1.5 inch 128x128 General OLED Display Module - RS3711

Waveshare 1.5 inch 128x128 General OLED Display Module - RS3711

SKU:RS3711

Low stock: 4 left

Regular price Rs. 1,291.00
Regular price Sale price Rs. 1,291.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Driver : SSD1327
  • Display Size (inch) : 1.5
  • Display Color : White
  • Pixel Resolution : 128 x 128
  • Grayscale : 16
  • Interface Type : I2C, SPI
  • Viewing angle : >160
  • Input Voltage (V) : 3.3 to 5

Description :

This is a general 1.5inch diagonal OLED display Module from Waveshare, 128x128 pixels monochrome dot matrix display module with 16 grayscales, and embedded controller communicating via SPI or I2C interface.

It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as ARDUIN0.

The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption.

Features:

  • 128x128 high resolution.
  • 16 grayscale, the better display effect.

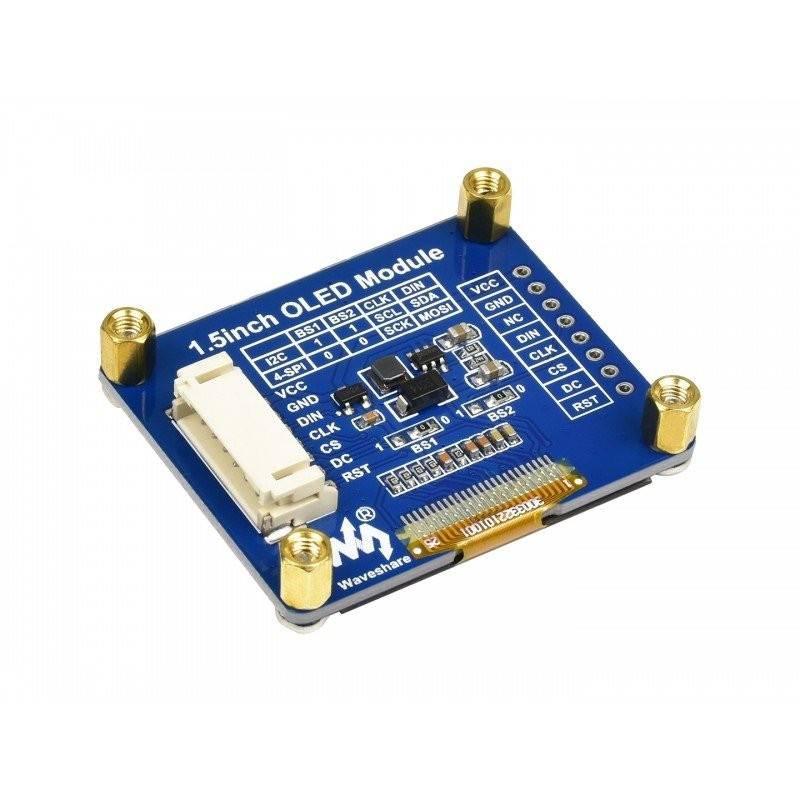

  • Supports SPI or I2C interface, configured via an onboard resistor.
  • Comes with development resources and a manual (examples for Raspberry Pi/Jetson Nano/ARDUIN0/STM32).

Specifications:

  • Driver : SSD1327
  • Display Size (inch) : 1.5
  • Display Color : White
  • Pixel Resolution : 128 x 128
  • Grayscale : 16
  • Interface Type : I2C, SPI
  • Viewing angle : >160
  • Input Voltage (V) : 3.3 to 5

Package Includes:

1 x 1.5inch OLED Module

1 x PH2.0 7Pin
