Waveshare 1.47inch LCD Module 172×320 Resolution SPI Interface Display Rounded Corners,LCD Display For Wearable Devices - RS262

Waveshare 1.47inch LCD Module 172×320 Resolution SPI Interface Display Rounded Corners,LCD Display For Wearable Devices - RS262

RS262

Low stock: 4 left

Rs. 1,150.00
Rs. 1,150.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

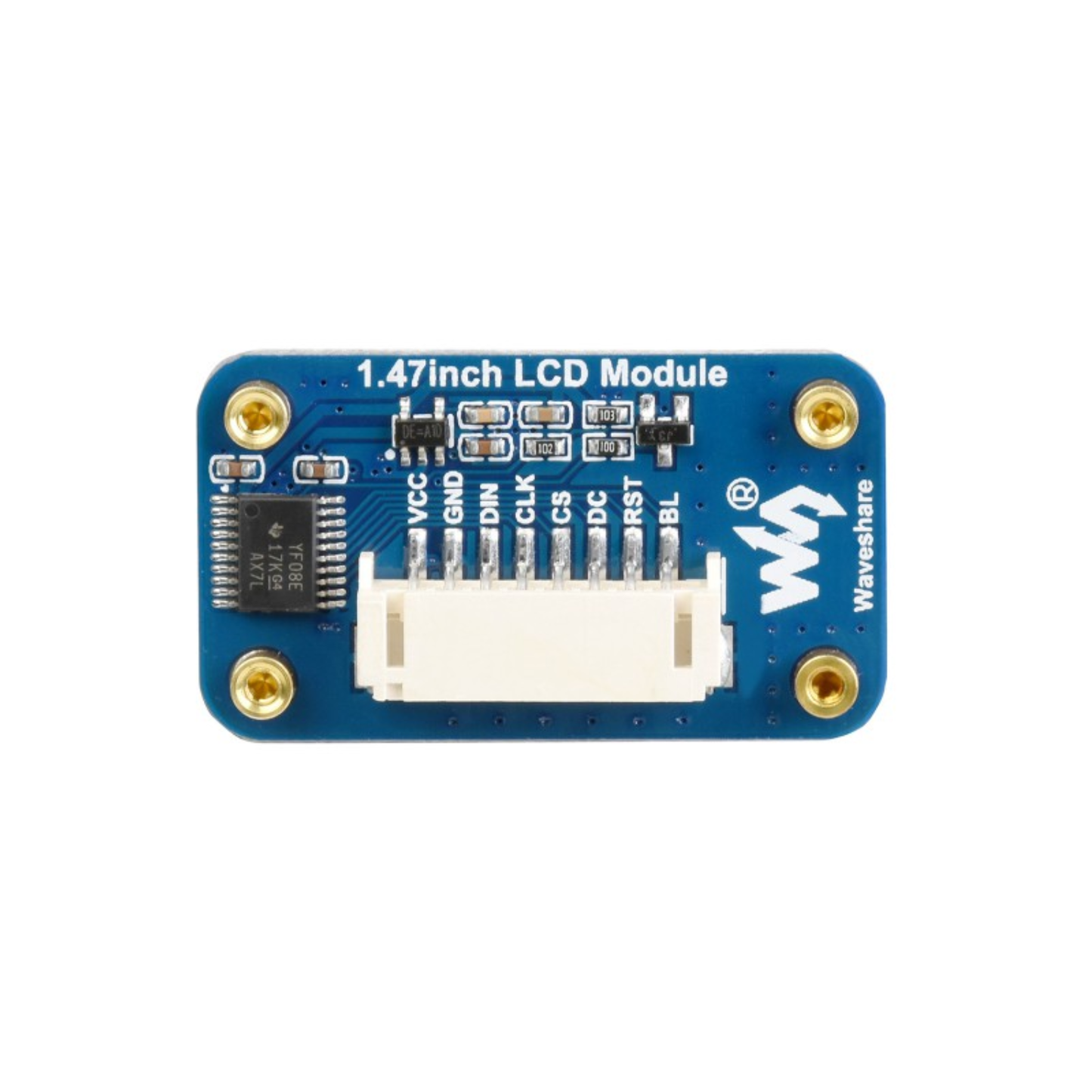

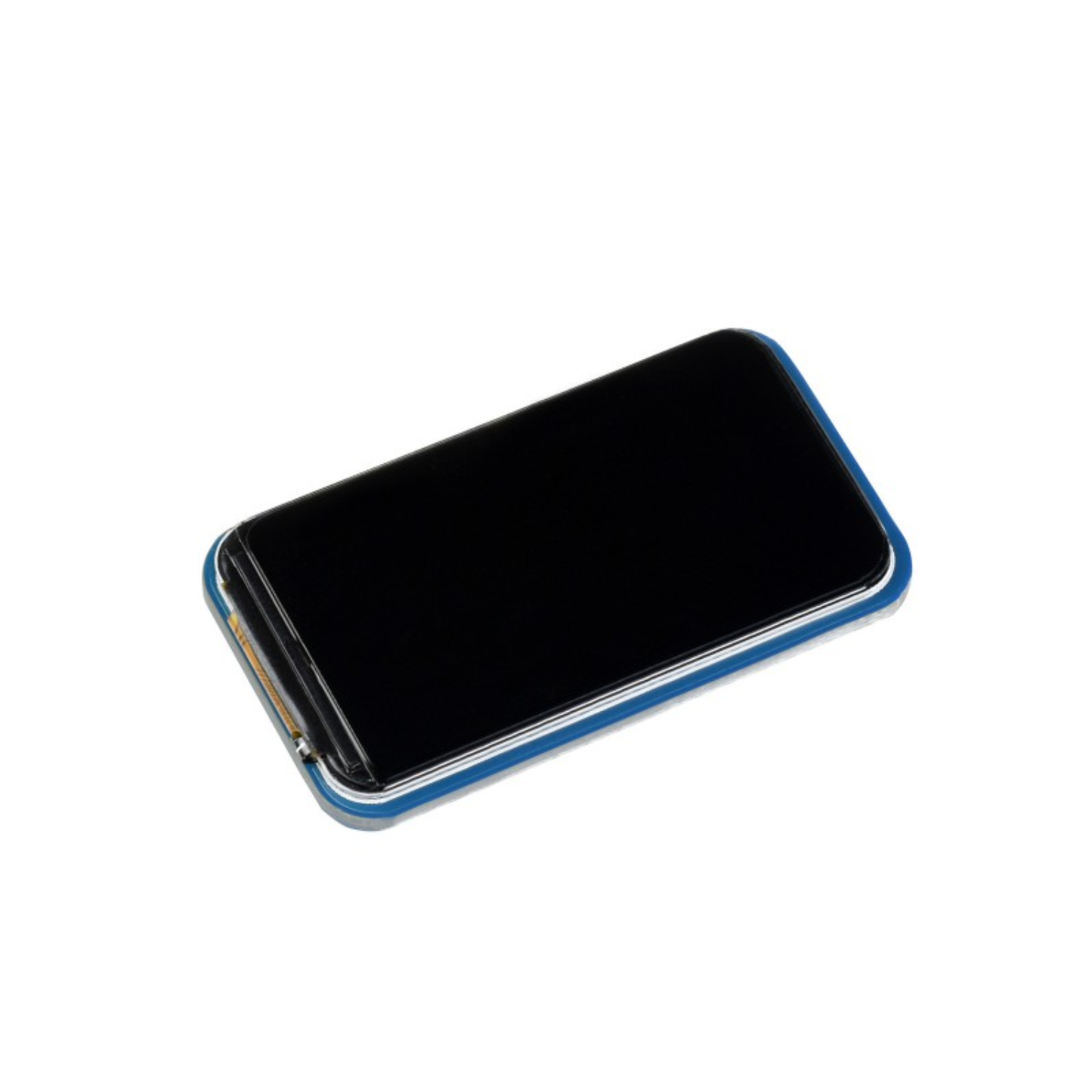

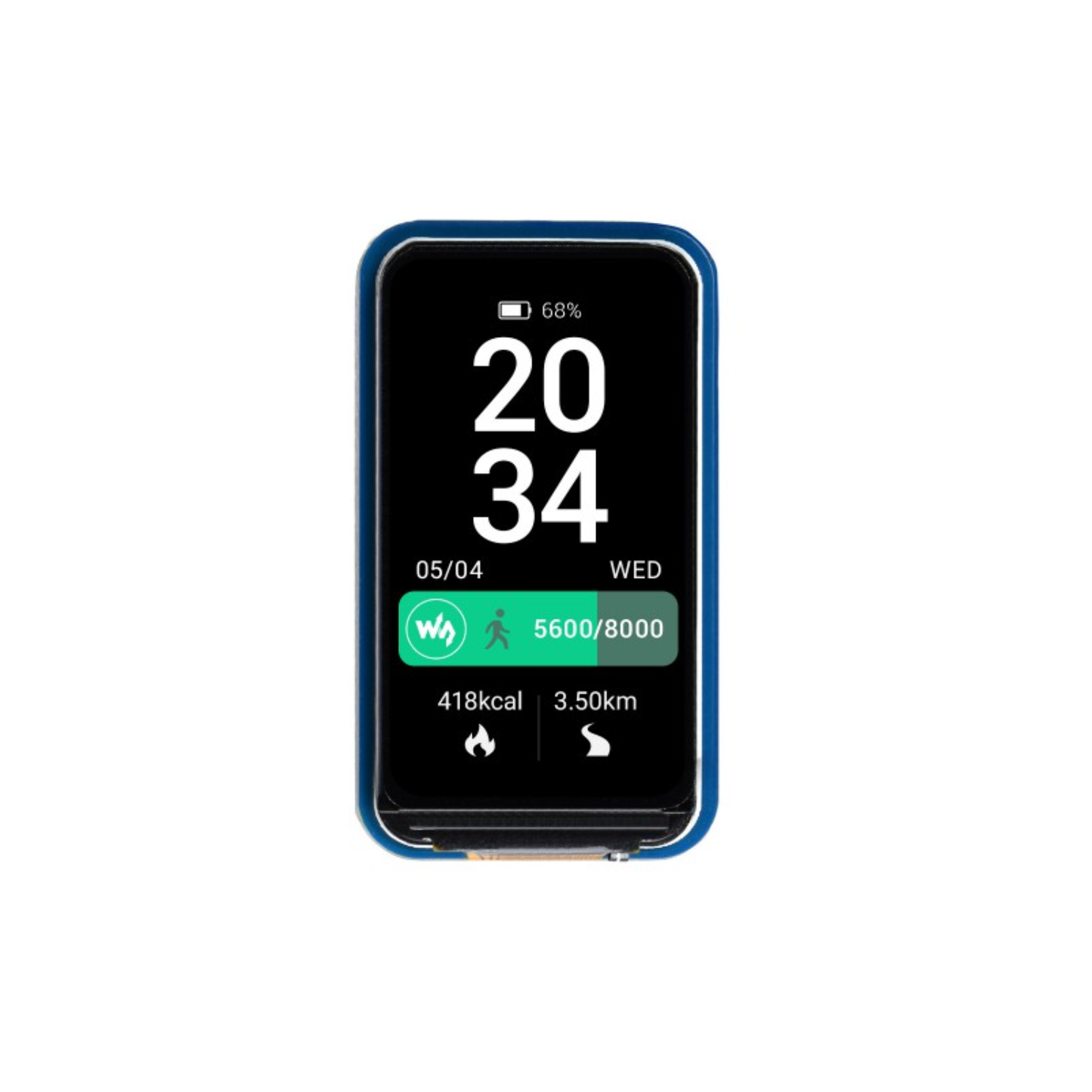

The Waveshare 1.47-inch LCD Display Module. Featuring a crisp 172x320 resolution, rounded corners, and SPI interface. Driven by the ST7789V3 controller, it supports RGB444, RGB565, and RGB666 color formats. Perfect for space-saving applications.

Specification:

  • Model Type: LCD Display Module
  • Display Size (Inch): 1.47
  • Display Resolution: 172 × 320
  • Operating Voltage (V): 3.3V/5V
  • Communication Mode: 4-wire SPI
  • Display Panel: IPS
  • Pixel Pitch: 0.0337 × 0.1011mm
  • Driver IC: ST7789V3

Features:

  • 172×320 resolution, 262K RGB colors, clear and colorful displaying effect
  • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32)

Package Included:

1 x Waveshare 1.47inch LCD Module
