Waveshare 1.3inch LCD Display Module For Raspberry Pi Pico Display 240×240, 65K Colors,RGB Colors LCD IPS Screen,SPI Interface - RS3245

Waveshare 1.3inch LCD Display Module For Raspberry Pi Pico Display 240×240, 65K Colors,RGB Colors LCD IPS Screen,SPI Interface - RS3245

RS3245

Low stock: 5 left

Rs. 590.00
Rs. 590.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description :

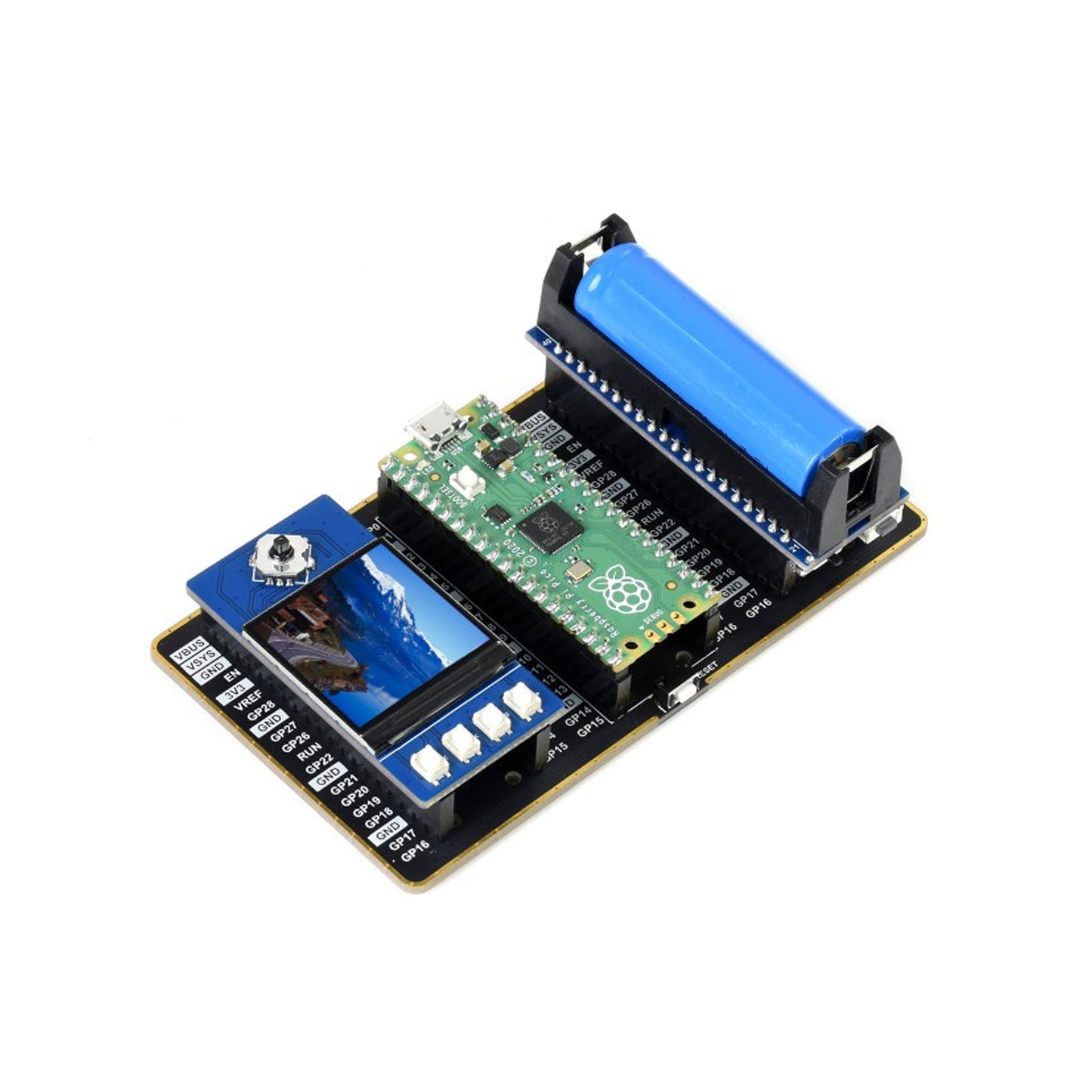

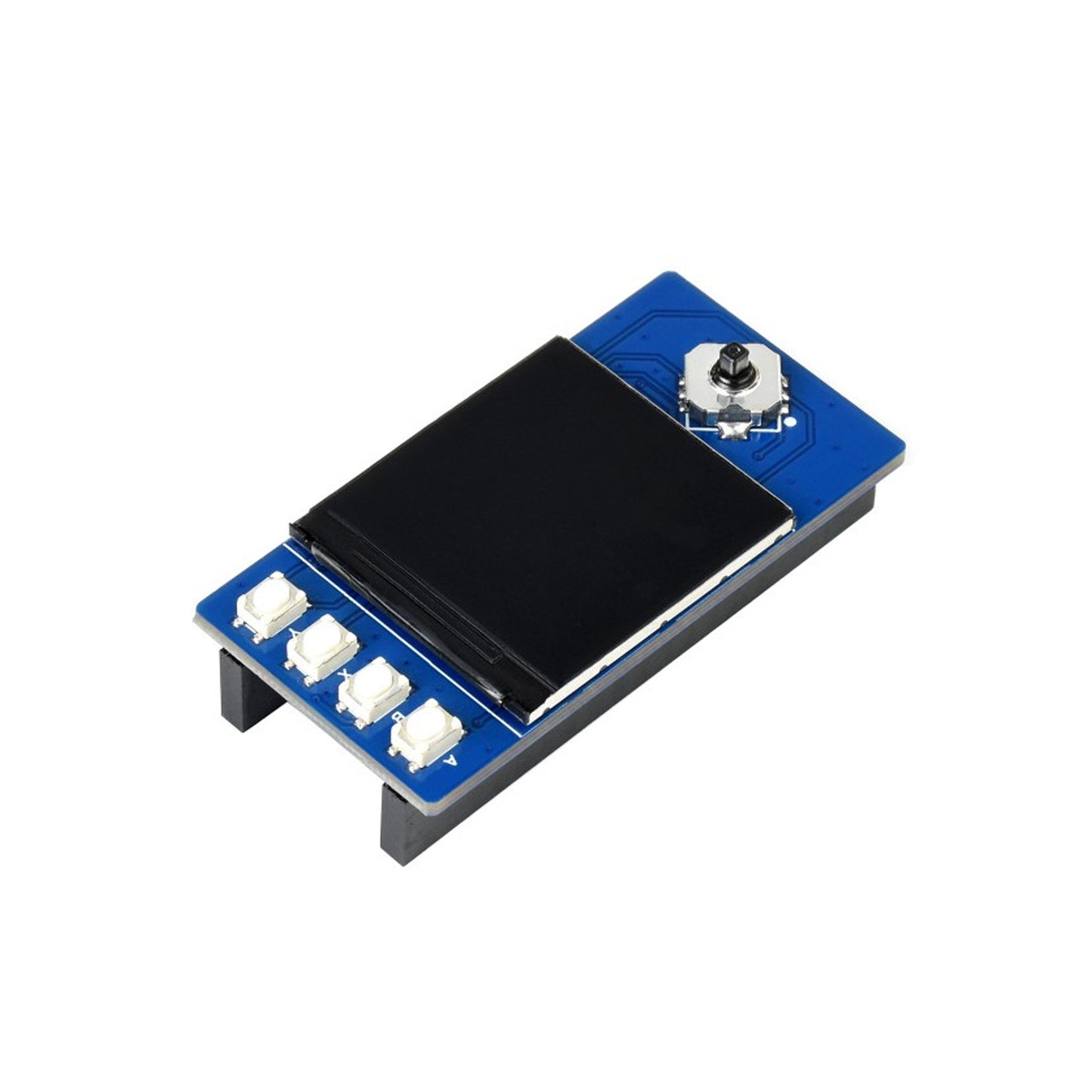

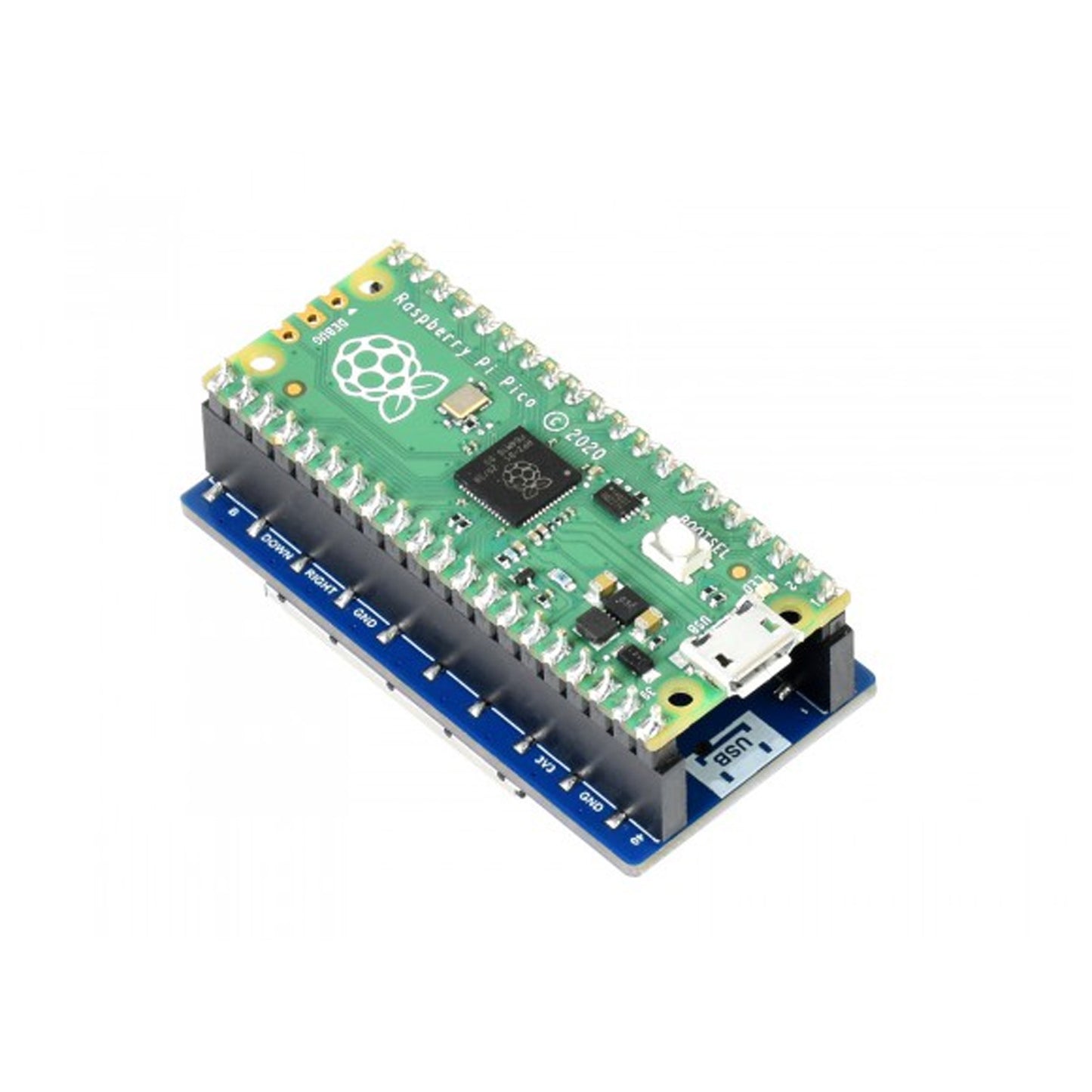

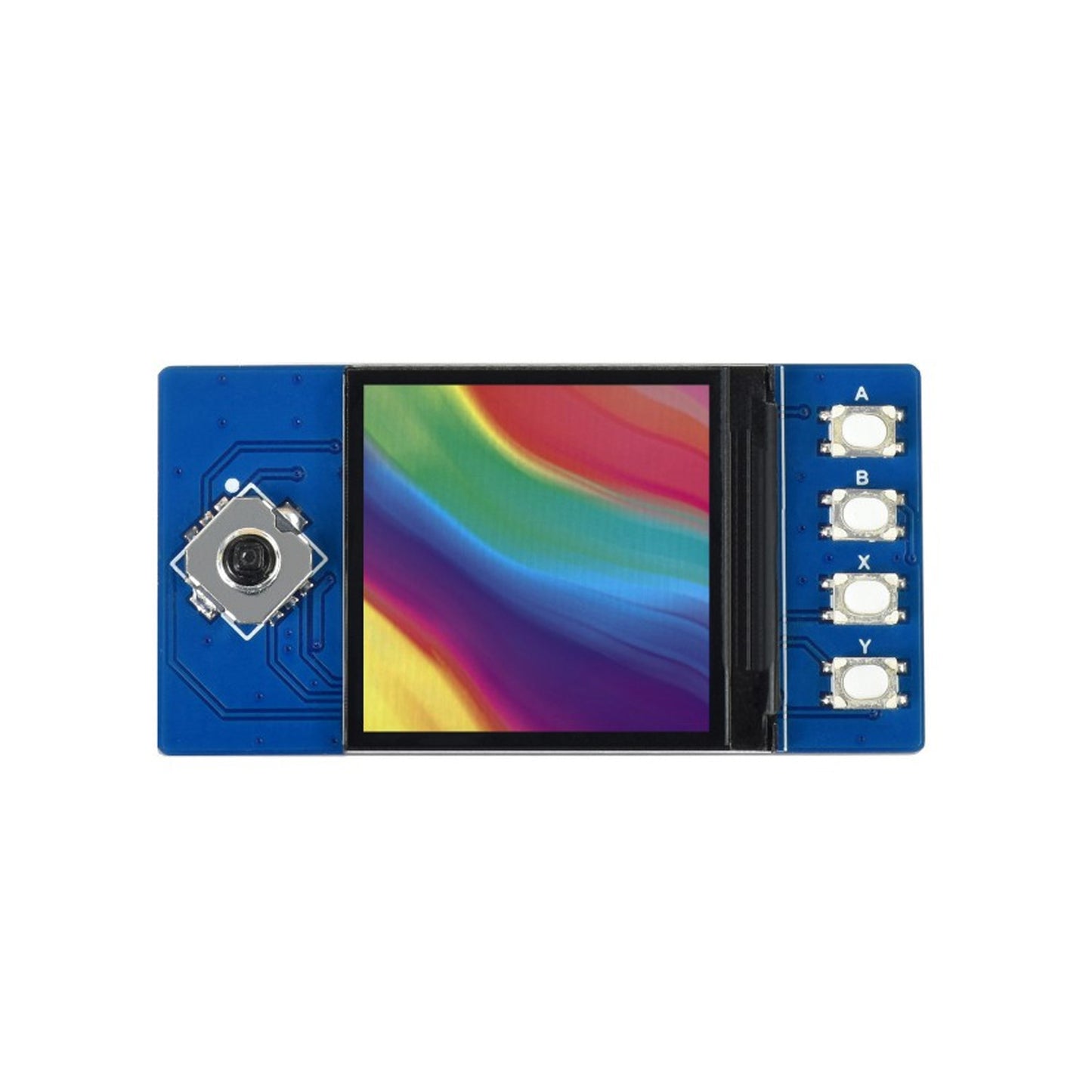

1.3inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 240×240, SPI is the newly launch 1.3 inches high-Quality LCD display from waveshare. The module comes with an Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico 1x Joystick And 4x User Buttons For Easy Interacting.

Specifications:

  • Operating voltage: 2.6 ~ 5.5V
  • Communication Interface: 4-wire SPI
  • Display Panel: IPS
  • Driver: ST7789
  • Resolution: 240×240 pixels
  • Display size: 23.40 × 23.40mm
1.3 inch LCD Display

Features:

  • 240×240 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
  • SPI interface requires minimal IO pins
  • 1x joystick and 4x user buttons for easy interacting
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
waveshare 1.3 inch LCD Display

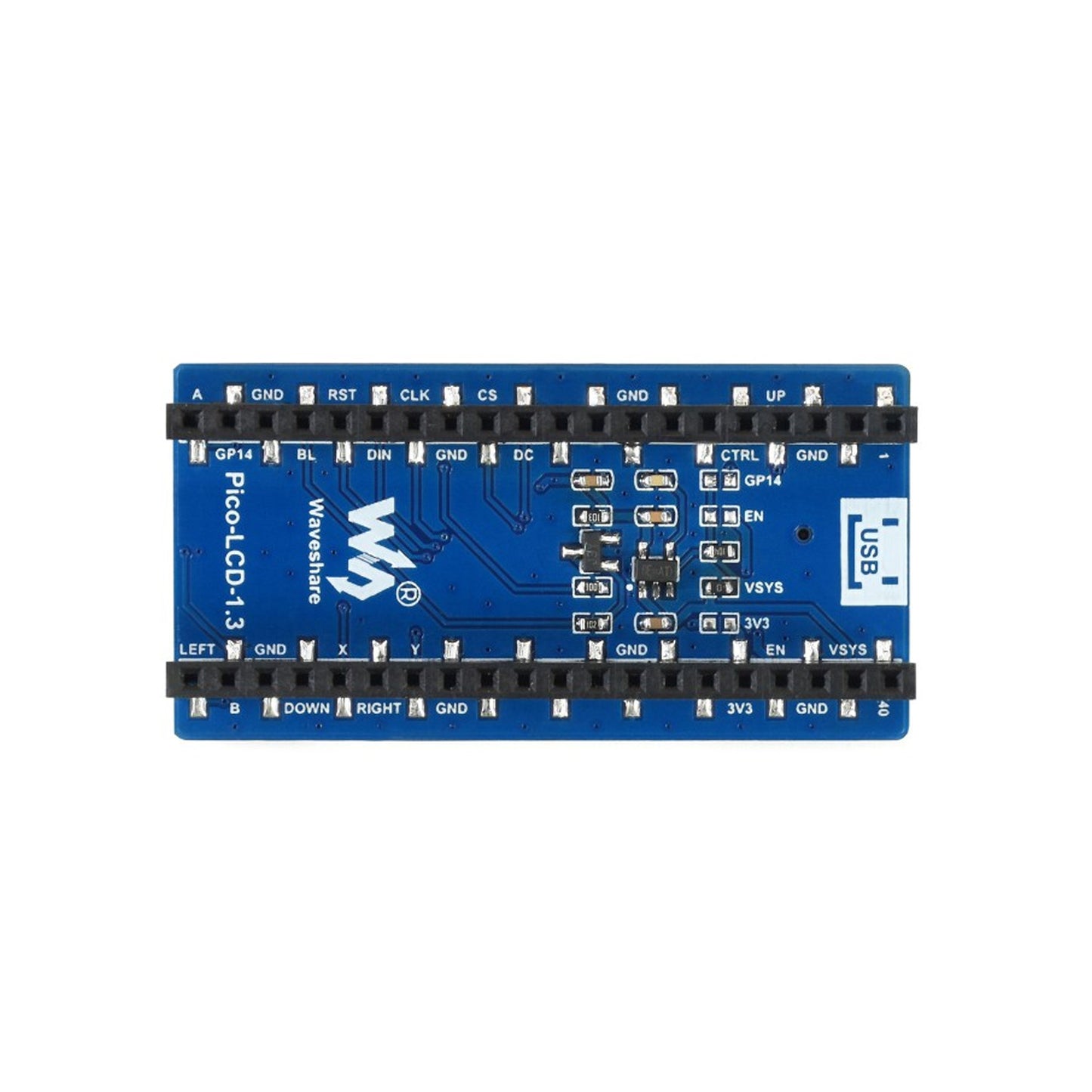

Pin Description:

waveshare 1.3 inch LCD Display

Useful Link:

1.3inch LCD Display Module

Package Included:

1 x Waveshare 1.3inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 240×240, SPI
