- Driver Chip: SH1106
- Interface: 3-wire SPI, 4-wire SPI, I2C
- Resolution: 128 x 64
- Display Size: 1.3 Inch
Description:

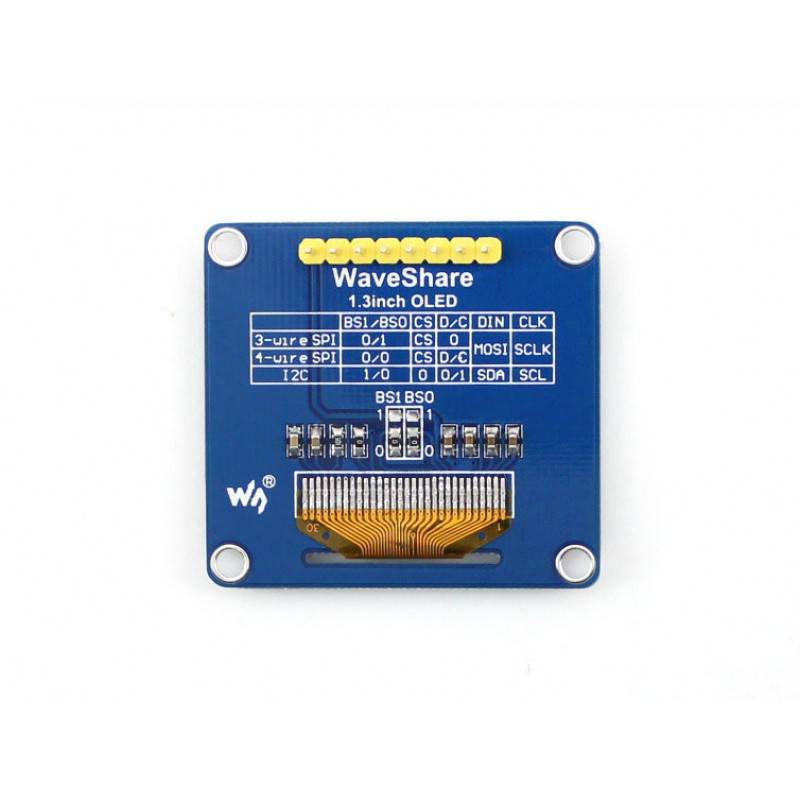

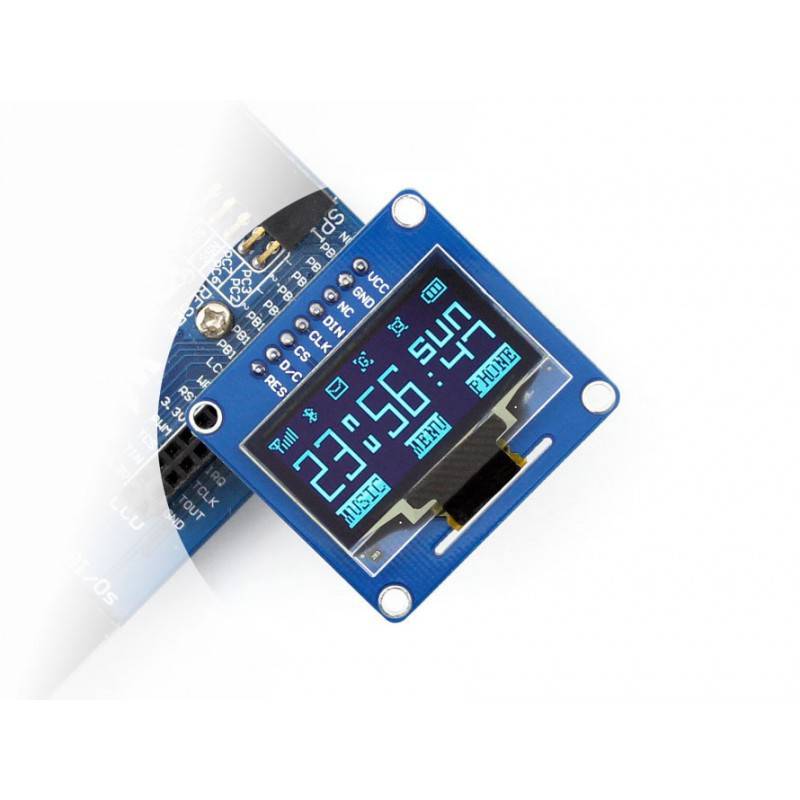

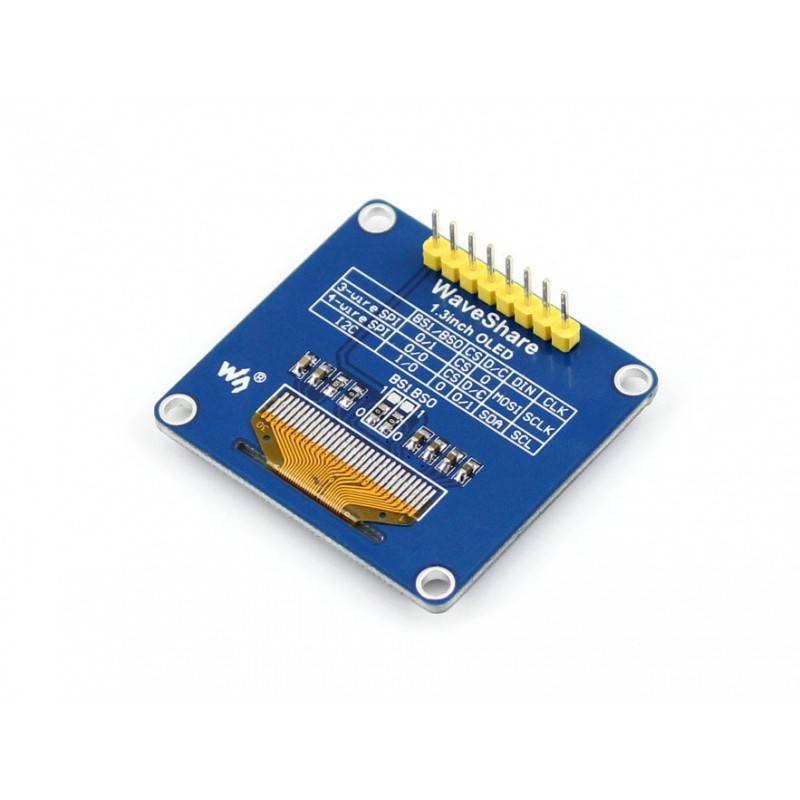

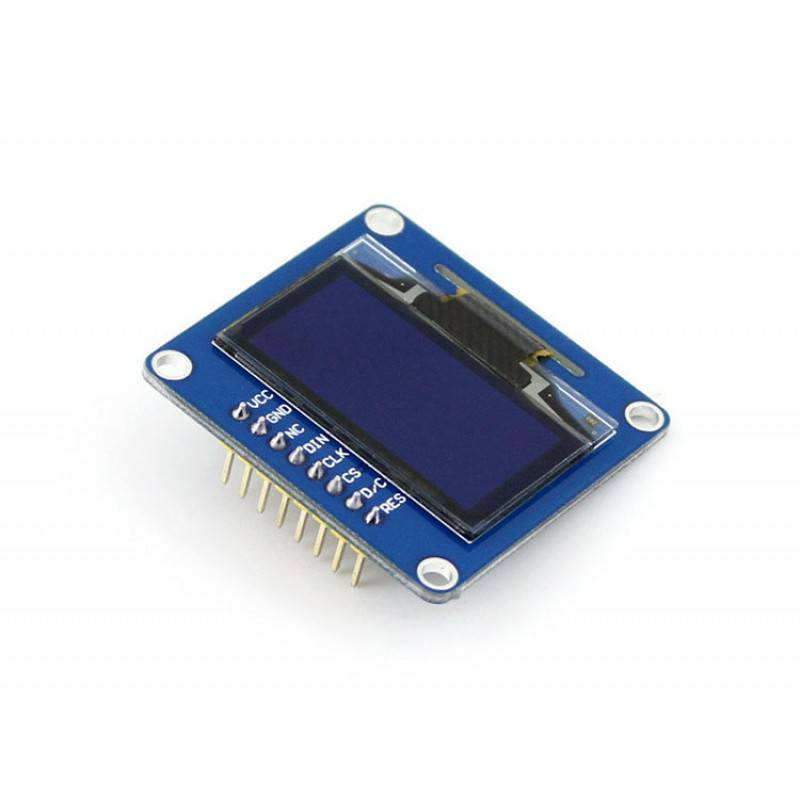

This is a Waveshare 1.3 Inch OLED Display (B) module. It is a very high-contrast display with no backlight. It is perfect when you need an ultra-small display. This module supports SPI/I2C communication interfaces. It supports various hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32. Compared to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. This module provides 3 kinds of driver interfaces; they are 3-wire SPI, 4-wire SPI, and I2C interface.
Specification:
- Driver Chip: SH1106
- Interface: 3-wire SPI, 4-wire SPI, I2C
- Resolution: 128 x 64
- Display Size: 1.3 Inch
- Colors: Blue
- Visible Angle: >160
- Operating Temperature: -30~70C
- Storage Temperature: -30~80C
- Operating Voltage: 3.3V / 5V
Pin Definition:
- GND: Power ground
- VCC: Power positive
- SCL: Serial Clock Line
- SDA: Serial Data wire
Package Included:
1 x Waveshare 1.3 Inch OLED Display (B) Module
