Waveshare 1.28" Round LCD Display Module with Touch Panel, IPS, 240x240 Resolution, and Versatile SPI/I2C Communication

Waveshare 1.28" Round LCD Display Module with Touch Panel, IPS, 240x240 Resolution, and Versatile SPI/I2C Communication

SKU:

In stock

Regular price Rs. 1,417.00
Regular price Sale price Rs. 1,417.00
Sale Sold out
Shipping calculated at checkout.
Quantity

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This 1.28-inch Round LCD Display Module offers a vibrant visual and interactive experience. It features an embedded GC9A01 driver for its 240x240 resolution and 65K colors, ensuring a clear and colorful display. The integrated CST816S capacitive touch control chip provides responsive and durable touch functionality with high transmittance.

Designed for versatility, this module uses SPI communication for the display and I2C communication for the touch panel, minimizing the number of required I/O pins. It supports a wide range of popular controller boards, including Raspberry Pi, Raspberry Pi Pico, Arduino, and STM32. To help you get started quickly, the module comes with online development resources and a comprehensive manual, including example code for all supported platforms.

Specification:

  • Model Type: LCD Display Module
  • Touch Type: Capacitive
  • Display Size: 1.28 Size
  • DisplayResolution: 240 x 240
  • LCD Controller: GC9A01
  • Touch Controller: CST816S
  • Display Panel: IPS
  • Display Interfaces: 4-wire SPI
  • Interface: 12C

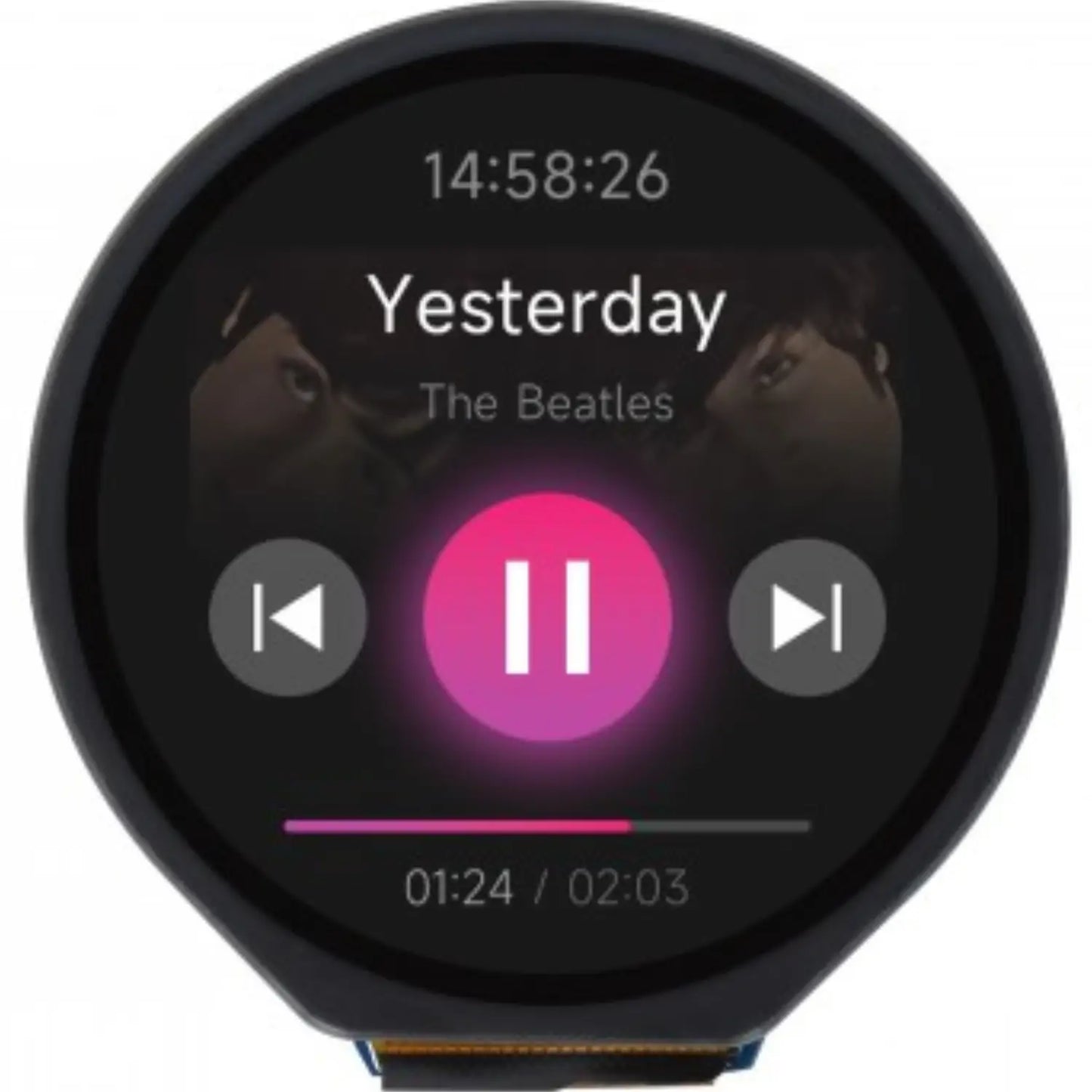

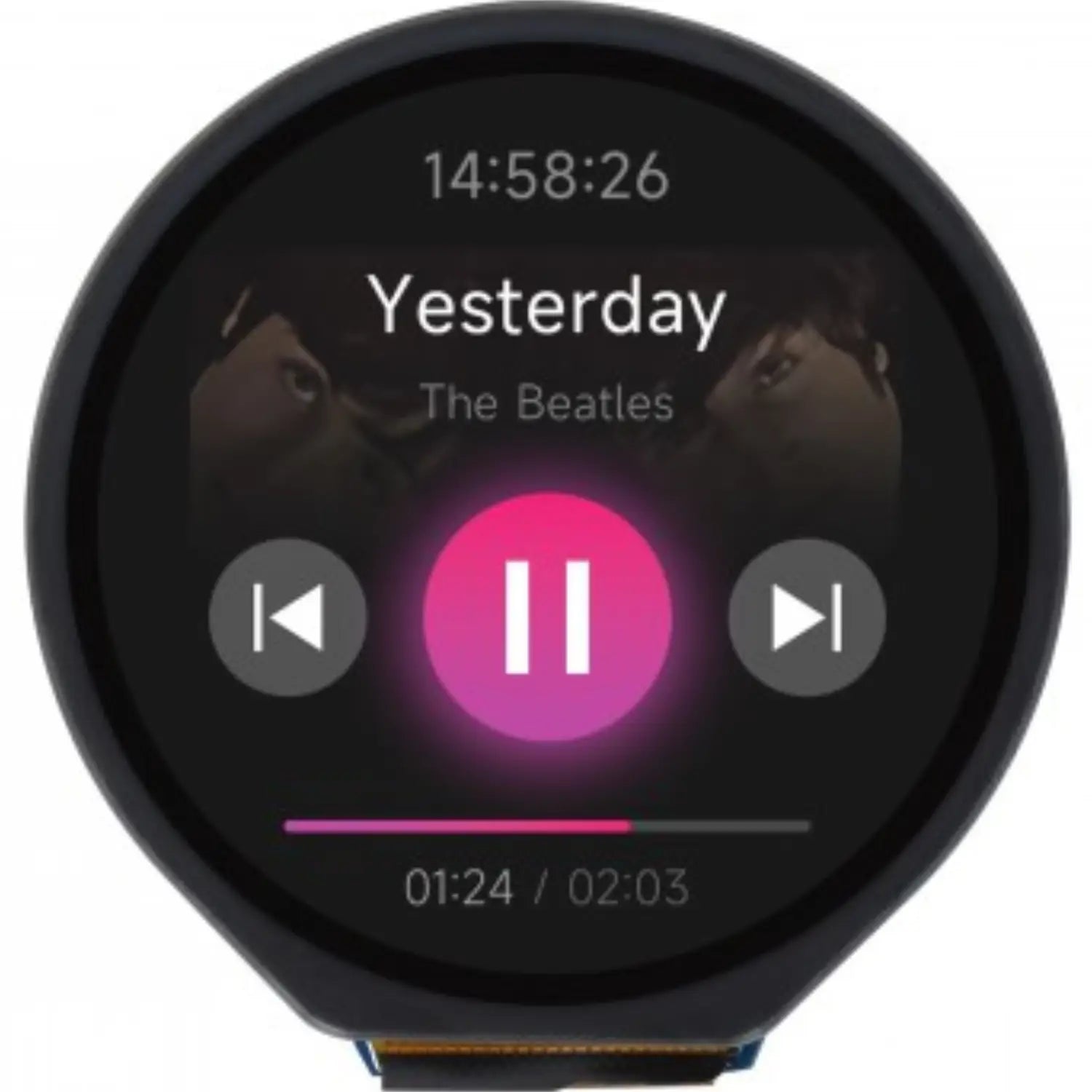

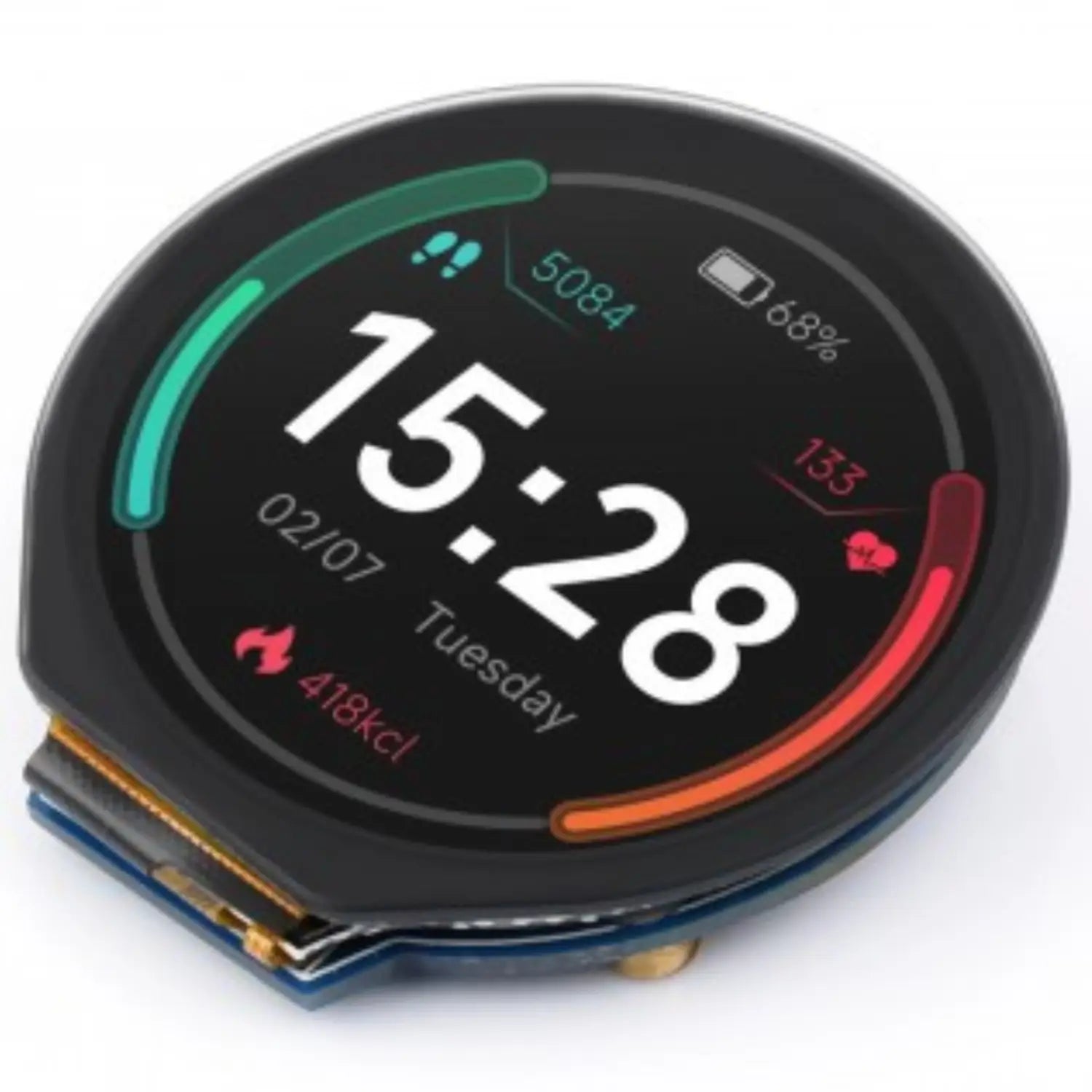

Usage Example:

Features:

  • 240×240 resolution, 65K colors, clear and colorful display effect
  • High touch screen transmittance, fast response, and long lifetime
  • Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimize required IO pins, support controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32
  • Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)

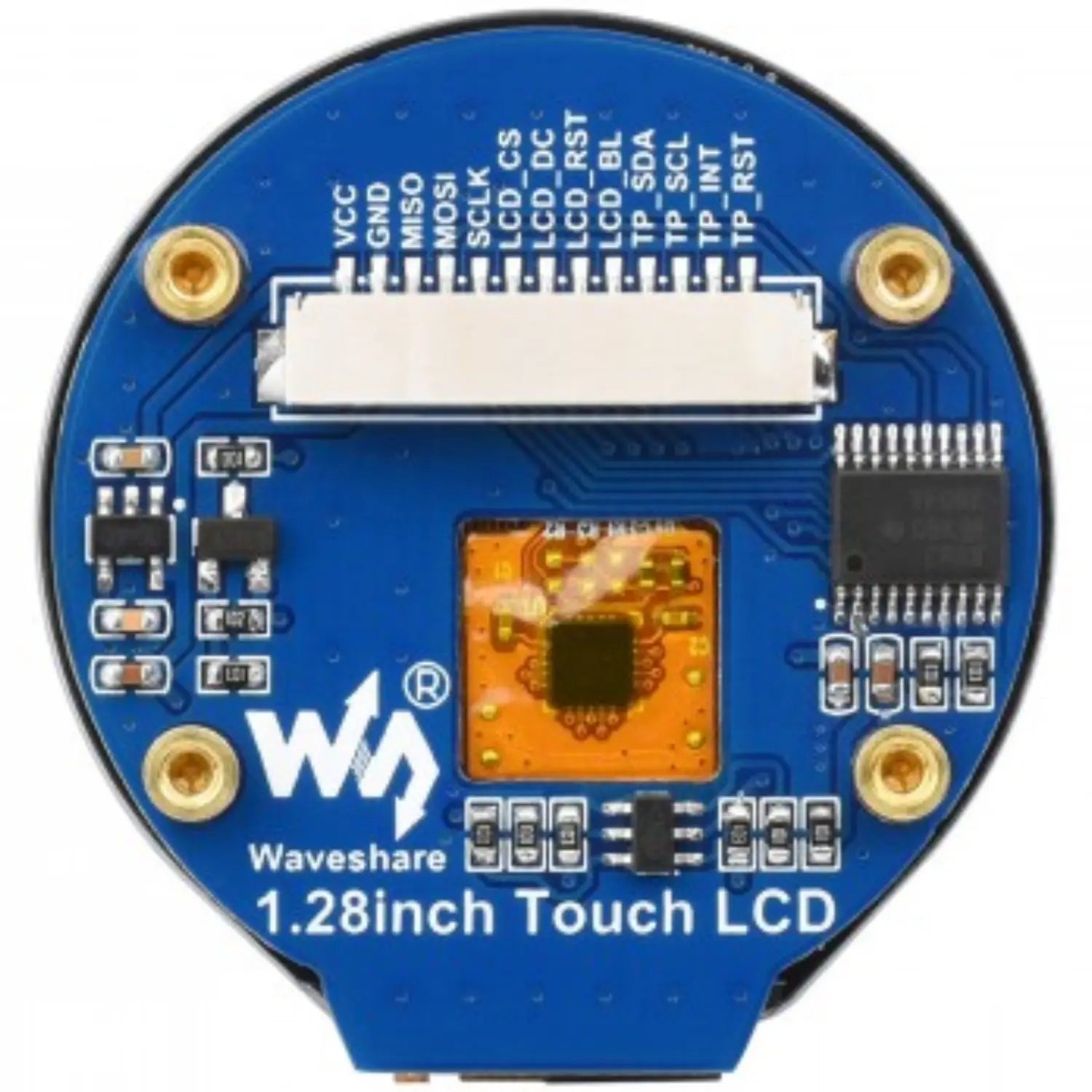

Product Interface:

  1. VCC: Power (3.3V / 5V input)
  2. GND: Ground
  3. MISO: SPI MISO pin
  4. MOSI: SPI MOSI pin
  5. SCLK: SPI Clock pin
  6. LCD_CS: LCD Chip Selection, low active
  7. LCD_DC: LCD Data/Command selection (high for data, low for command)
  8. LCD_RST: LCD Reset, low active
  9. LCD_BL: LCD Backlight
  10. TP_SDA: TPData pin
  11. TP_SCL: TP Clock pin
  12. TP_INT: Interrupt pin
  13. TP_RST: TP Reset, low active

Useful Link:

Waveshare 1.28" Round LCD Display Module with Touch Panel

 Package Included:

  • 1 x 1.28-inch Touch LCD
  • 1 x GH1.25 13Pin cable
