Description:

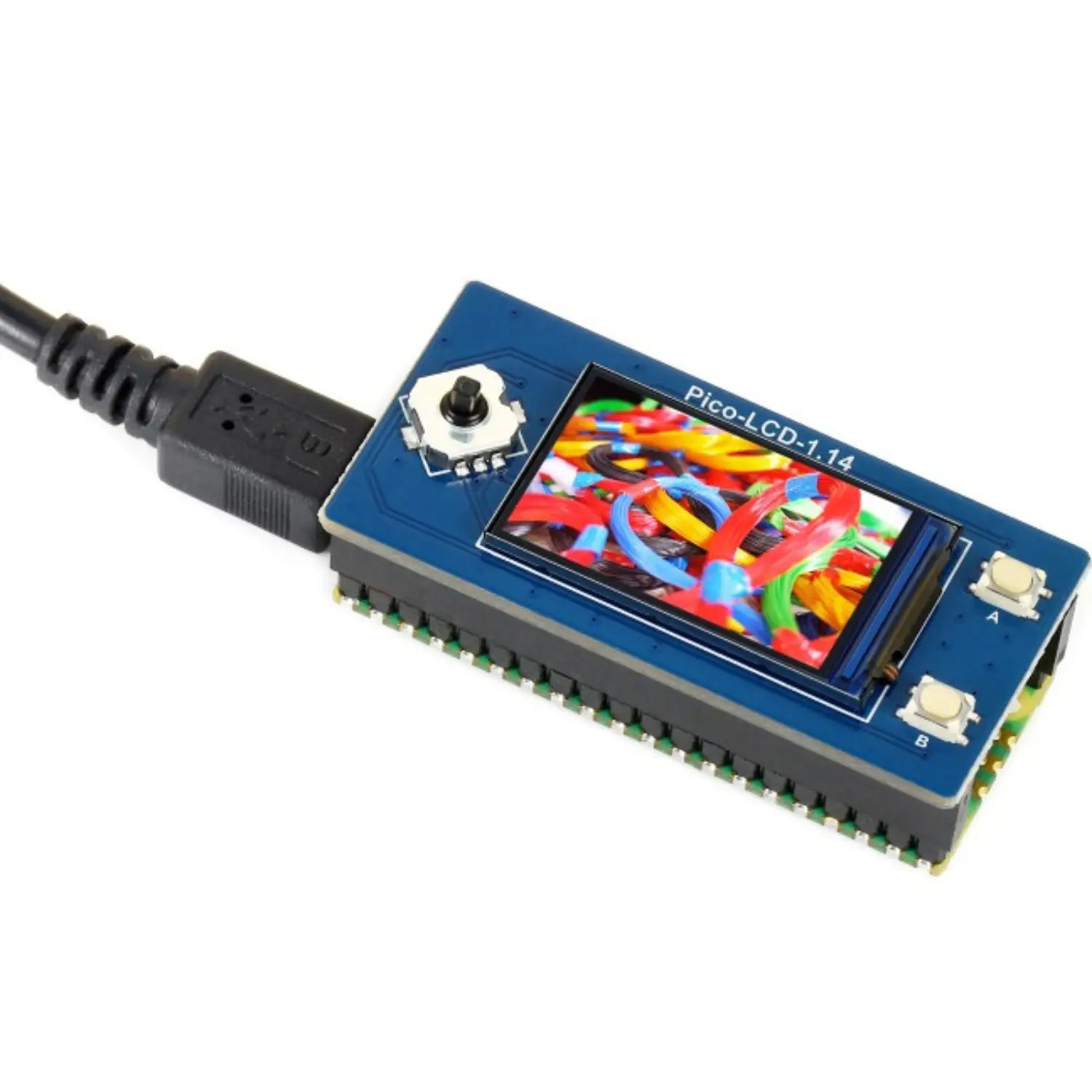

Experience vibrant visuals and seamless integration with the Waveshare 1.14-inch LCD Display Module, designed specifically for the Raspberry Pi Pico. This compact and reliable display features a crisp 240×135 resolution, supports 65K rich RGB colors, and utilizes a high-speed SPI interface for quick and efficient communication. Powered by the ST7789 driver, this IPS screen offers wide viewing angles and excellent color reproduction, making it an ideal choice for DIY electronics, embedded systems, and compact graphical interfaces. Whether you're developing a portable project, creating a data visualizer, or enhancing your Raspberry Pi Pico setup, this display module offers a perfect balance of clarity, performance, and compatibility.
Specification:
- Operating voltage: 2.6 ~ 5.5V
- Resolution: 240×135 pixels
- Communication Interface: 4-wire SPI
- Display size: 24.91 × 14.86mm
- Display Panel: IPS
- Pixel size: 0.1101 × 0.1035mm
- Driver: ST7789
- Dimensions: 52.00 × 25.00mm
Features:

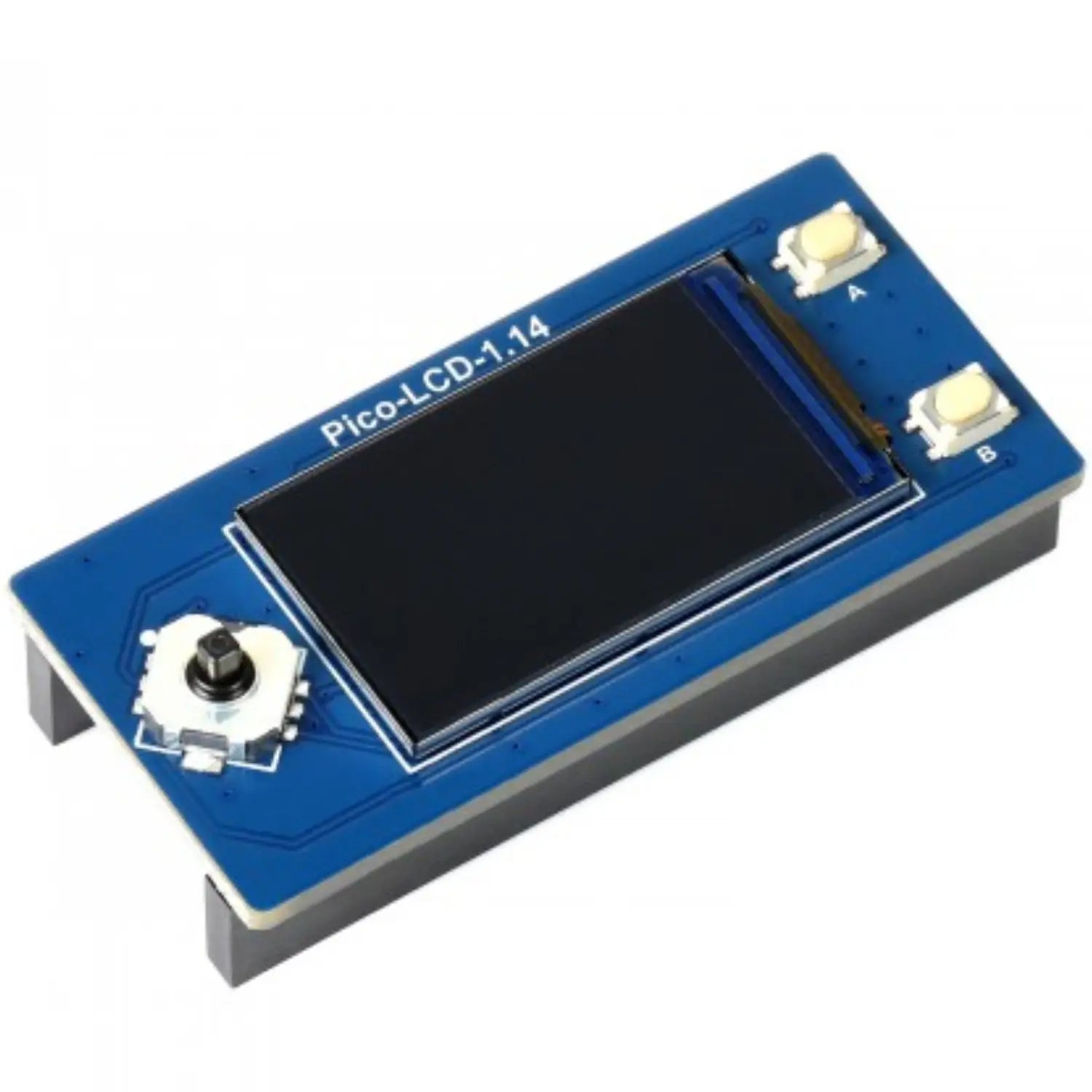

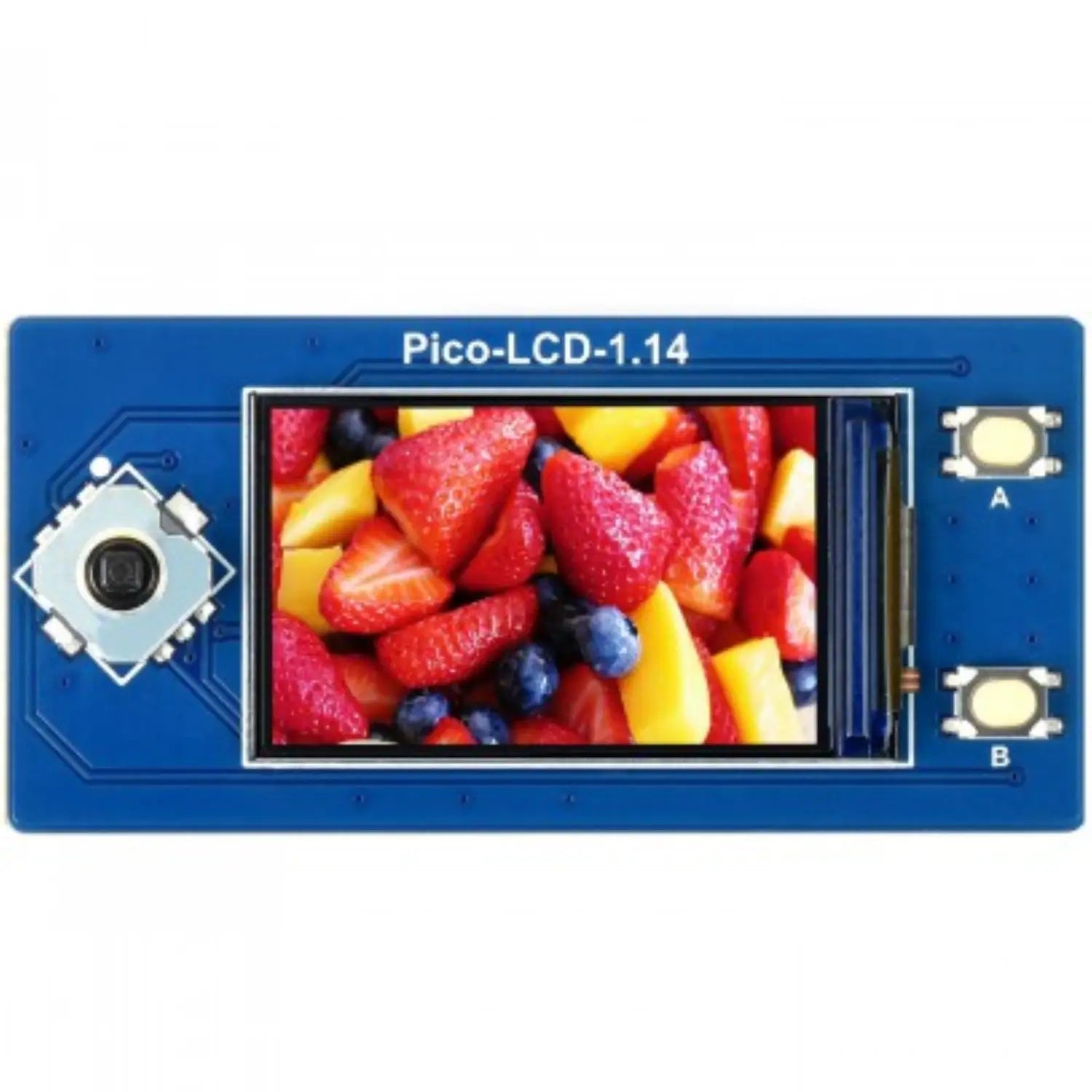

- 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful display effect
- The SPI interface requires minimal IO pins

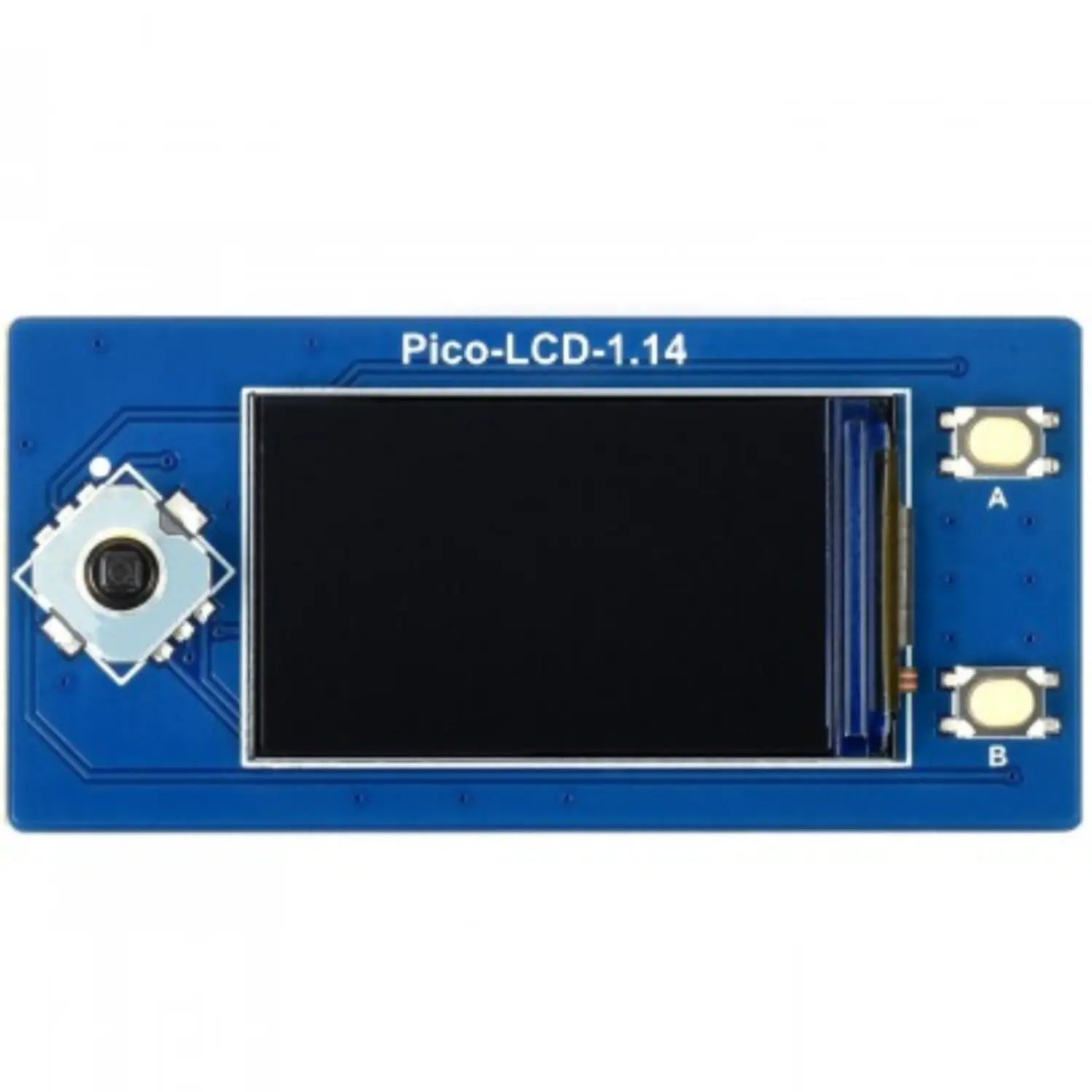

- 1x joystick and 2x user buttons for easy interaction
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

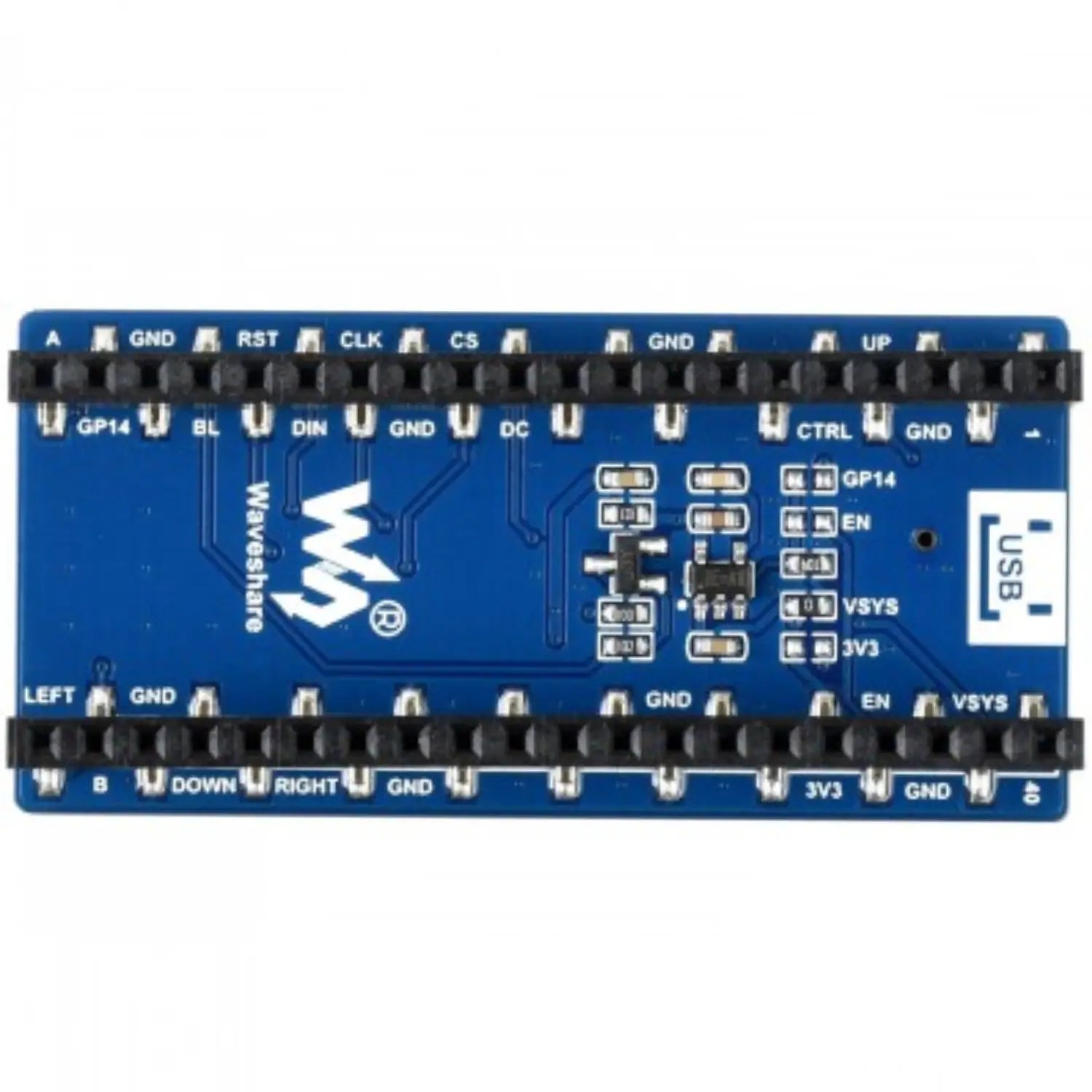

Pin Description:

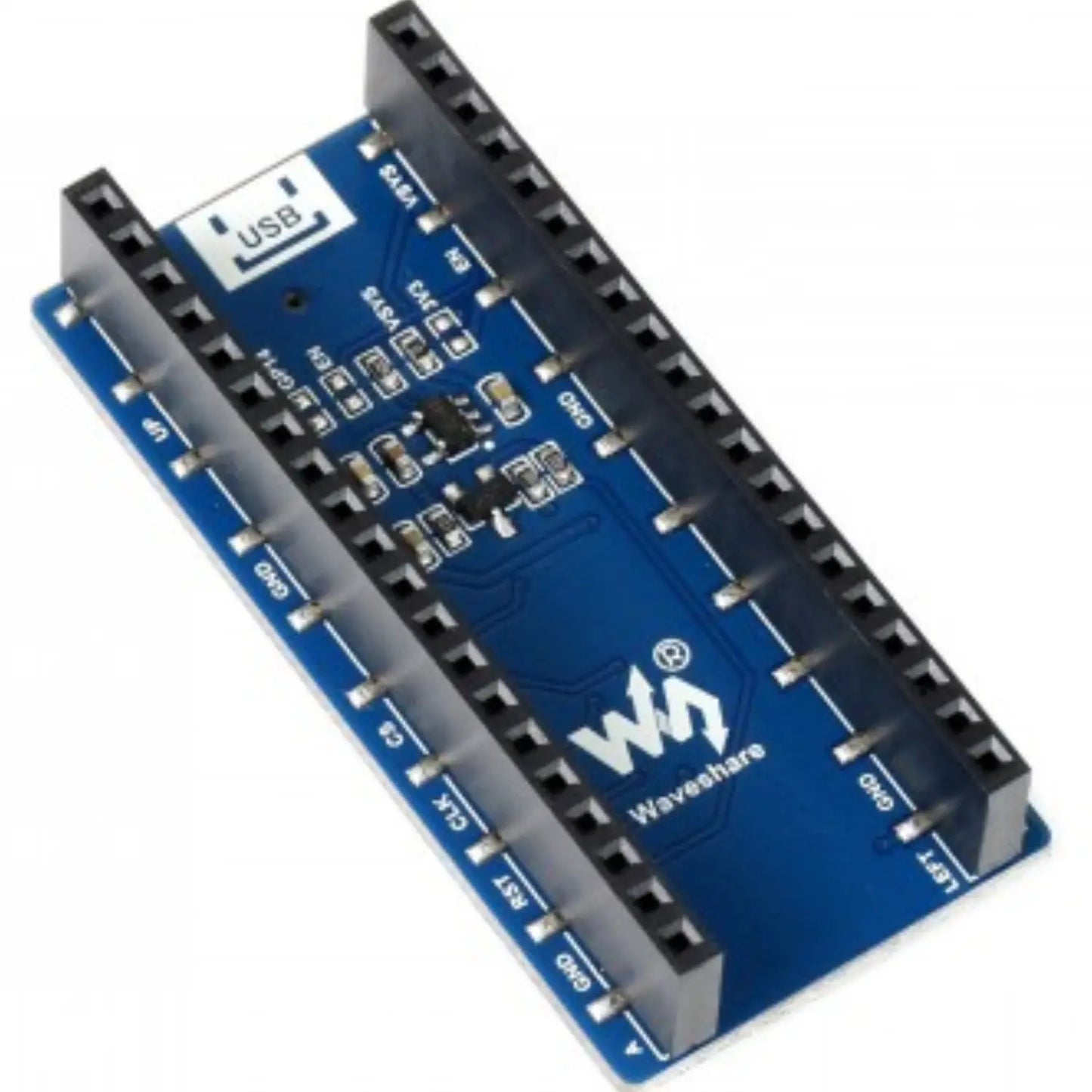

Raspberry Pi Pico header compatibility
Note: Raspberry Pi Pico is not included.
Useful Link:
Waveshare 1.14-inch SPI LCD screen Mini color display
Package Included:
1 x Waveshare 1.14-inch SPI LCD screen, Mini color display, Raspberry Pi Pico
