Waveshare 0.96inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 160×80, SPI - RS3246

Waveshare 0.96inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 160×80, SPI - RS3246

SKU:RS3246

Regular price Rs. 1,005.00
Regular price Sale price Rs. 1,005.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating voltage: 2.6~5.5V
  • Resolution: 160×80 pixels
  • Communication interface: 4-wire SPI
  • Display size: 21.70 × 10.80mm
  • Display panel: IPS
  • Pixel size: 0.1356 × 0.135mm
  • Driver: ST7735S
  • Dimension : 52.00 × 25.00mm

Description :

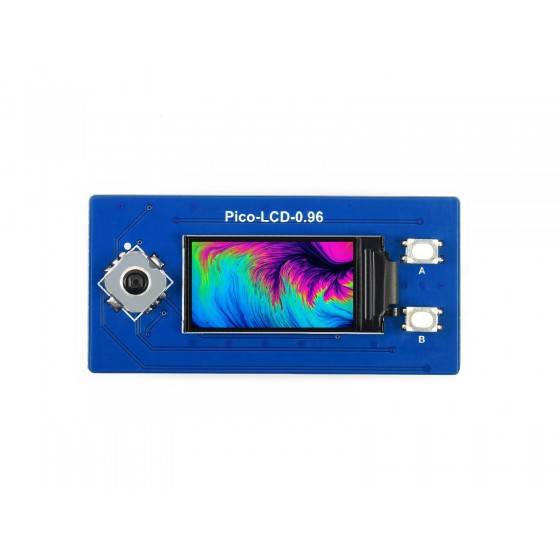

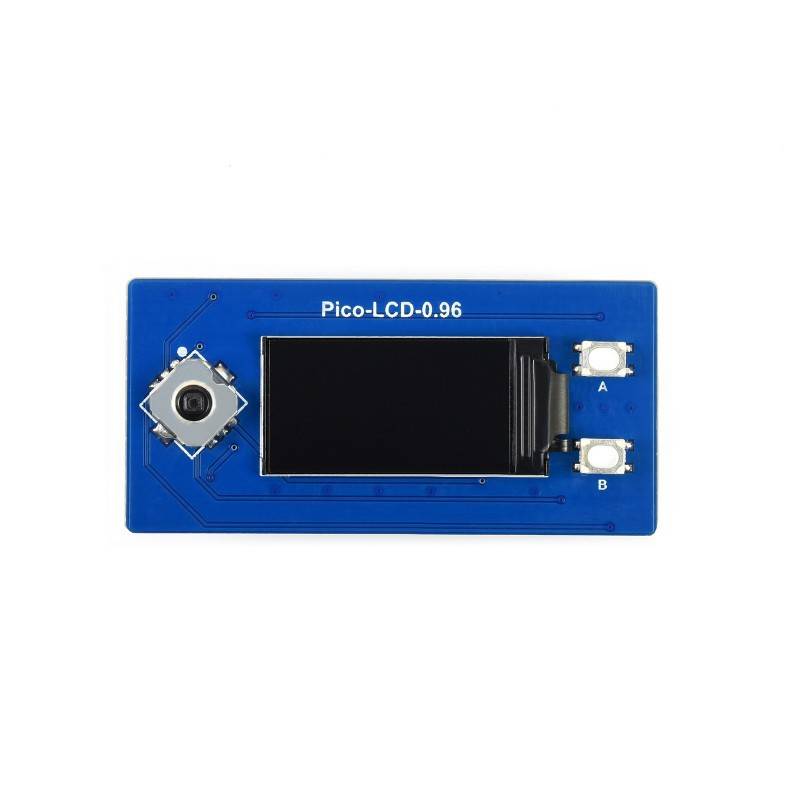

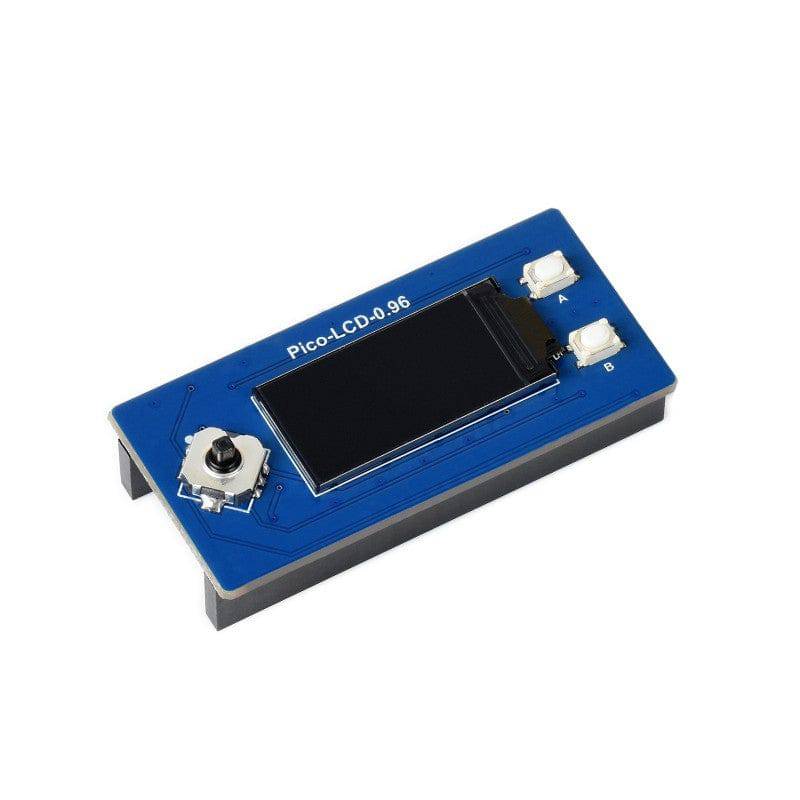

0.96inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 160×80 Pixels, SPI Interface

Specifications

  • Operating voltage: 2.6~5.5V
  • Resolution: 160×80 pixels
  • Communication interface: 4-wire SPI
  • Display size: 21.70 × 10.80mm
  • Display panel: IPS
  • Pixel size: 0.1356 × 0.135mm
  • Driver: ST7735S
  • Dimension : 52.00 × 25.00mm

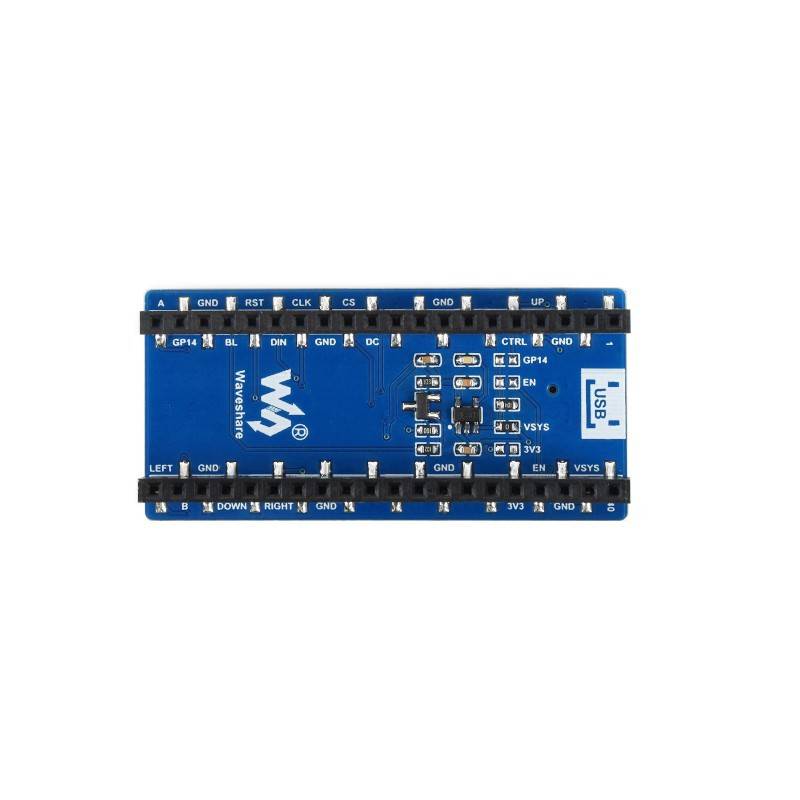

Hardware connection :

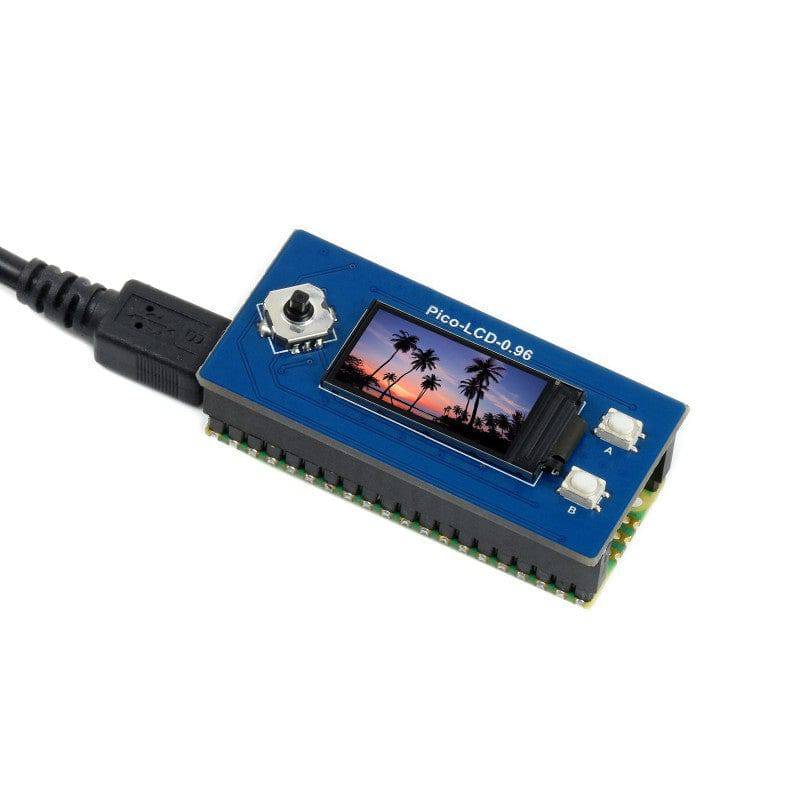

Please take care of the direction when you connect Pico, an USB port is printed to indicate . You can also check the pin of Pico and the LCD board when connecting.
You can connect display according to the table.

  • e-Paper--Pico--Description
  • VCC---VSYS---Power Input
  • GND---GND---GND
  • DIN---GP11---MOSI pin of SPI, data transmitted from Master t Slave
  • CLK---GP10---SCK pin of SPI, clock pin
  • CS---GP9---Chip selection of SPI, low active
  • DC---GP8---Data/Command control pin (High:data; Low: command)
  • RST---GP12---Reset pin, low active
  • BL---GP13---Backlight control

Package Content :

1 x Pico-LCD-0.96
