Description:

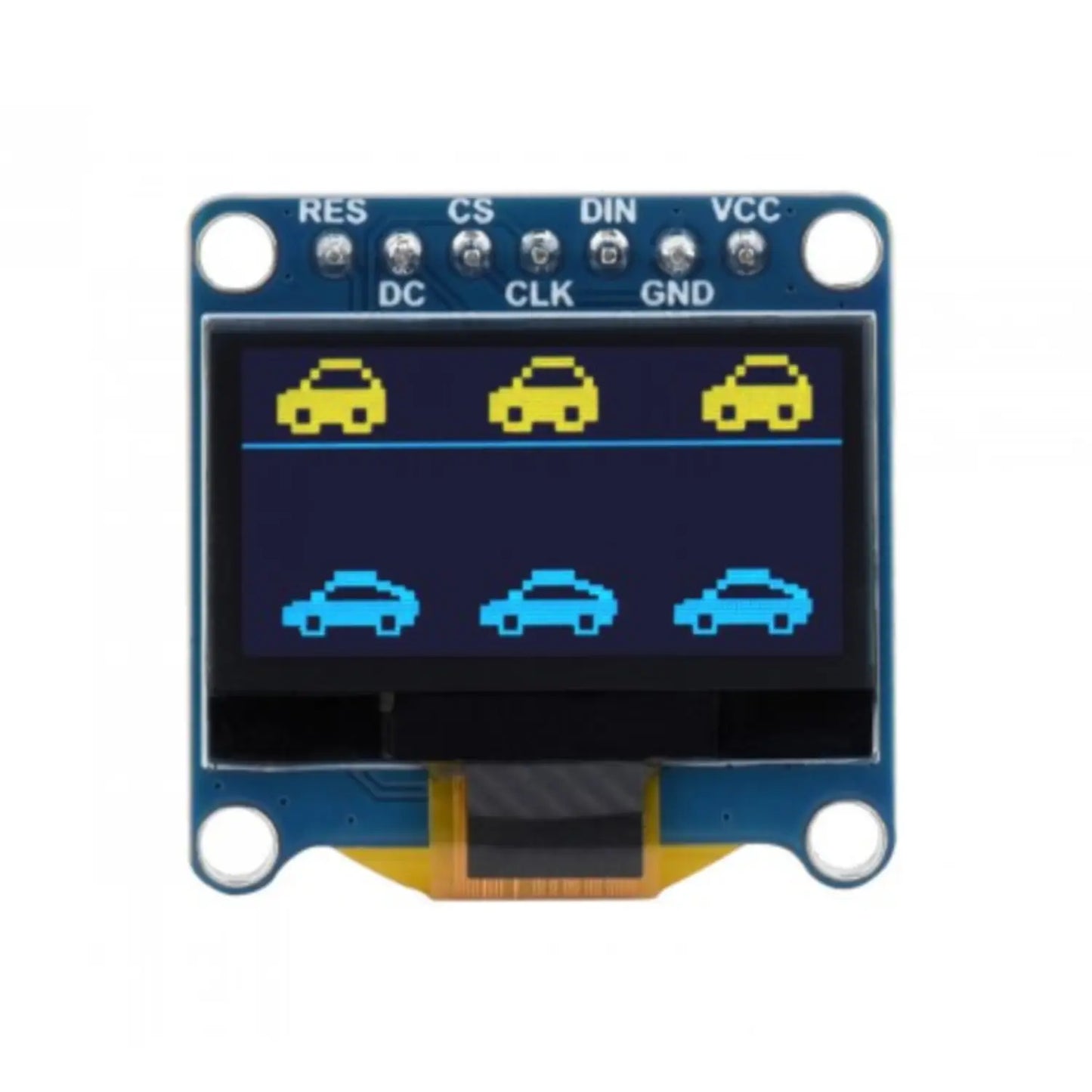

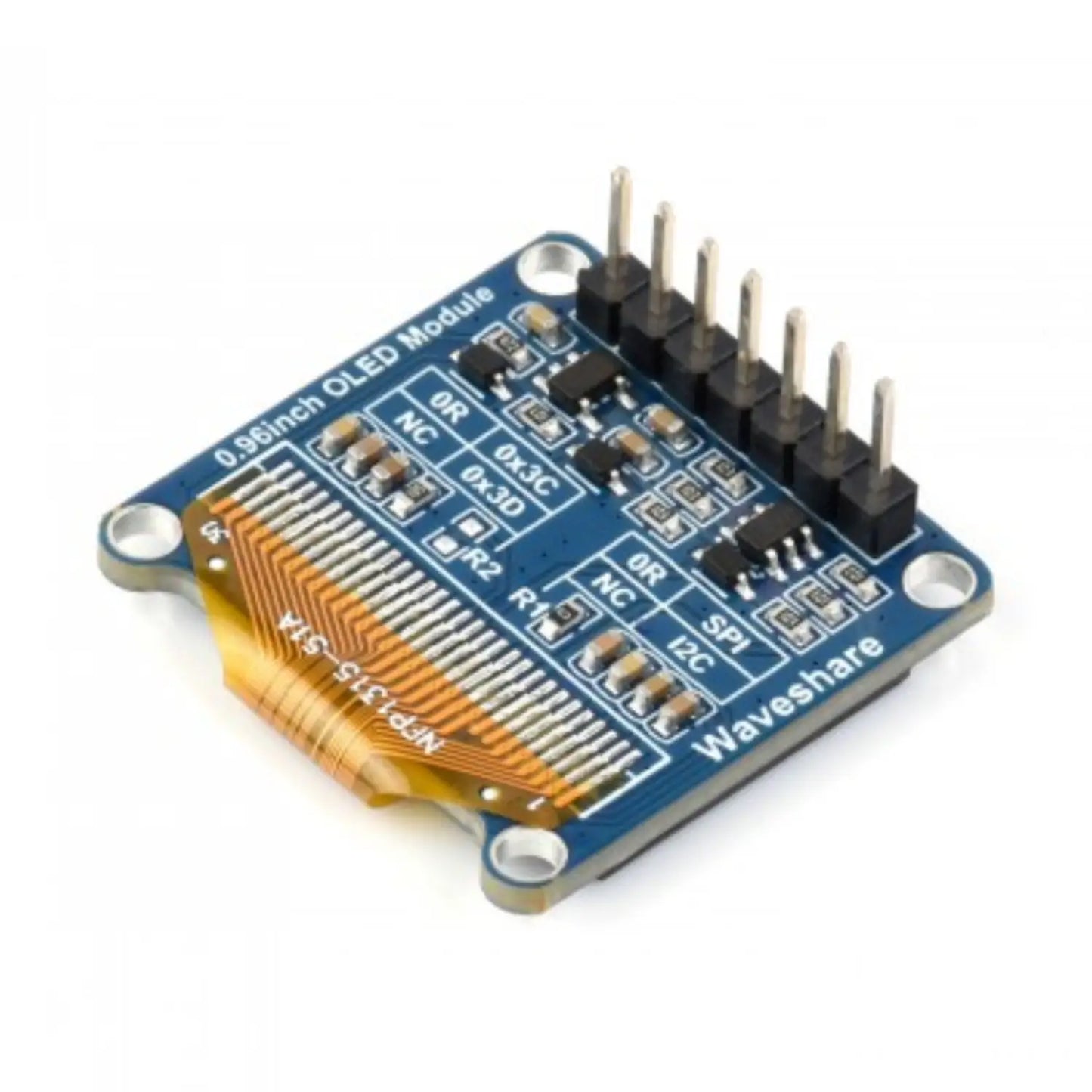

The Waveshare 0.96-inch OLED Display Module (Version C) is a compact and highly versatile display designed for embedded systems, DIY electronics, and small-scale projects. With a 128×64 resolution high-contrast OLED panel, it delivers crisp, sharp, and easily readable output even in low-light environments. This version features a unique dual-color layout, with the upper portion of the screen in yellow and the lower portion in blue, allowing for a visually distinct presentation of data. Its design makes it perfect for displaying text, icons, charts, and graphical information, making it a reliable choice for hobbyists, developers, and product prototyping.
Specification:
| Operating voltage | 3.3V / 5V | DISPLAY PANEL | OLED |
|---|---|---|---|
| Resolution | 128 × 64 pixels | PIXEL SIZE | 0.15 × 0.15 mm |
| Communication Interface | 4-wire SPI / I2C | Driver | SSD1315 |
| Display size | 21.74 × 11.18 mm | Module size | 26.00 × 26.00mm |
| Display color | (C): upper yellow & lower blue; (D): white; (E): blue | ||
Features:

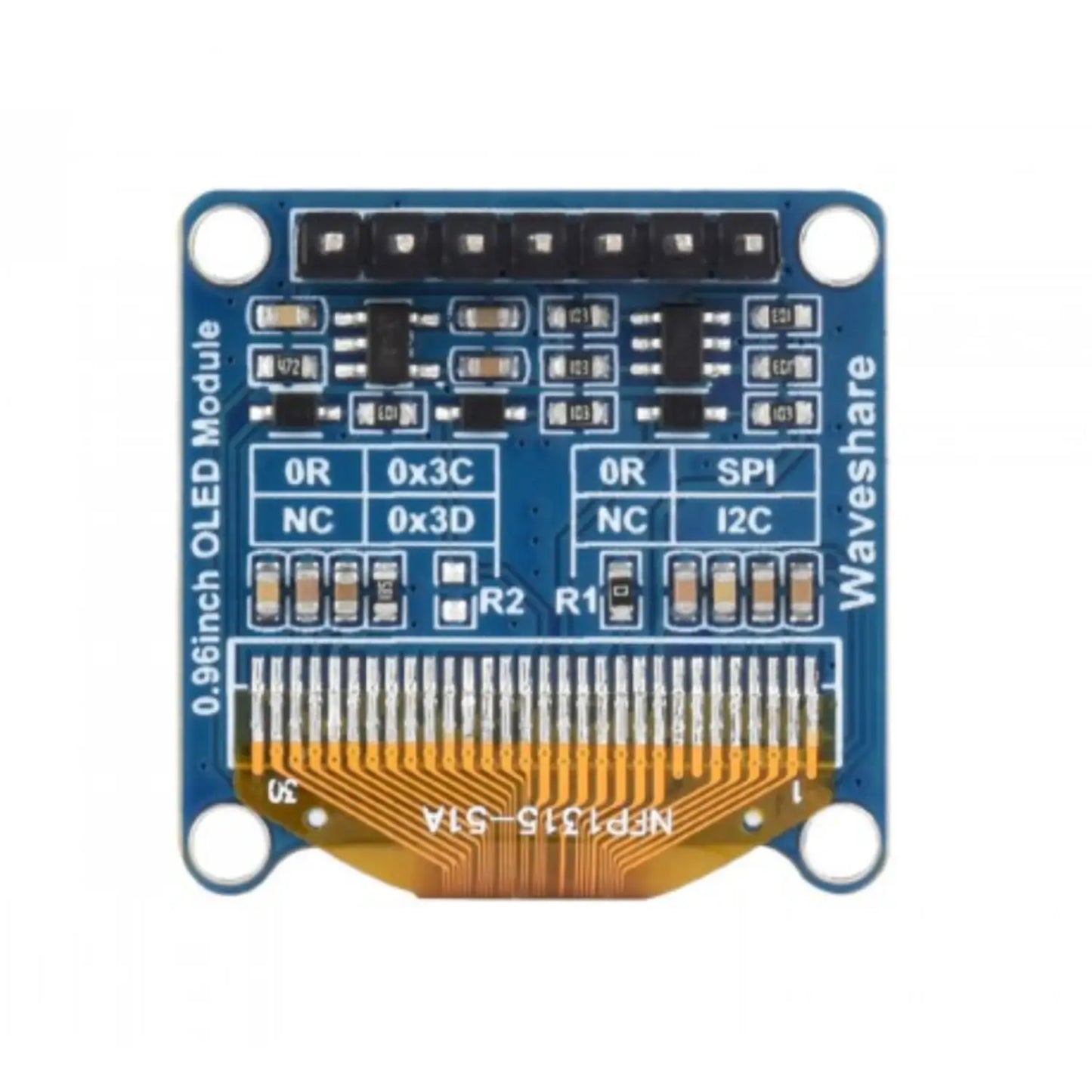

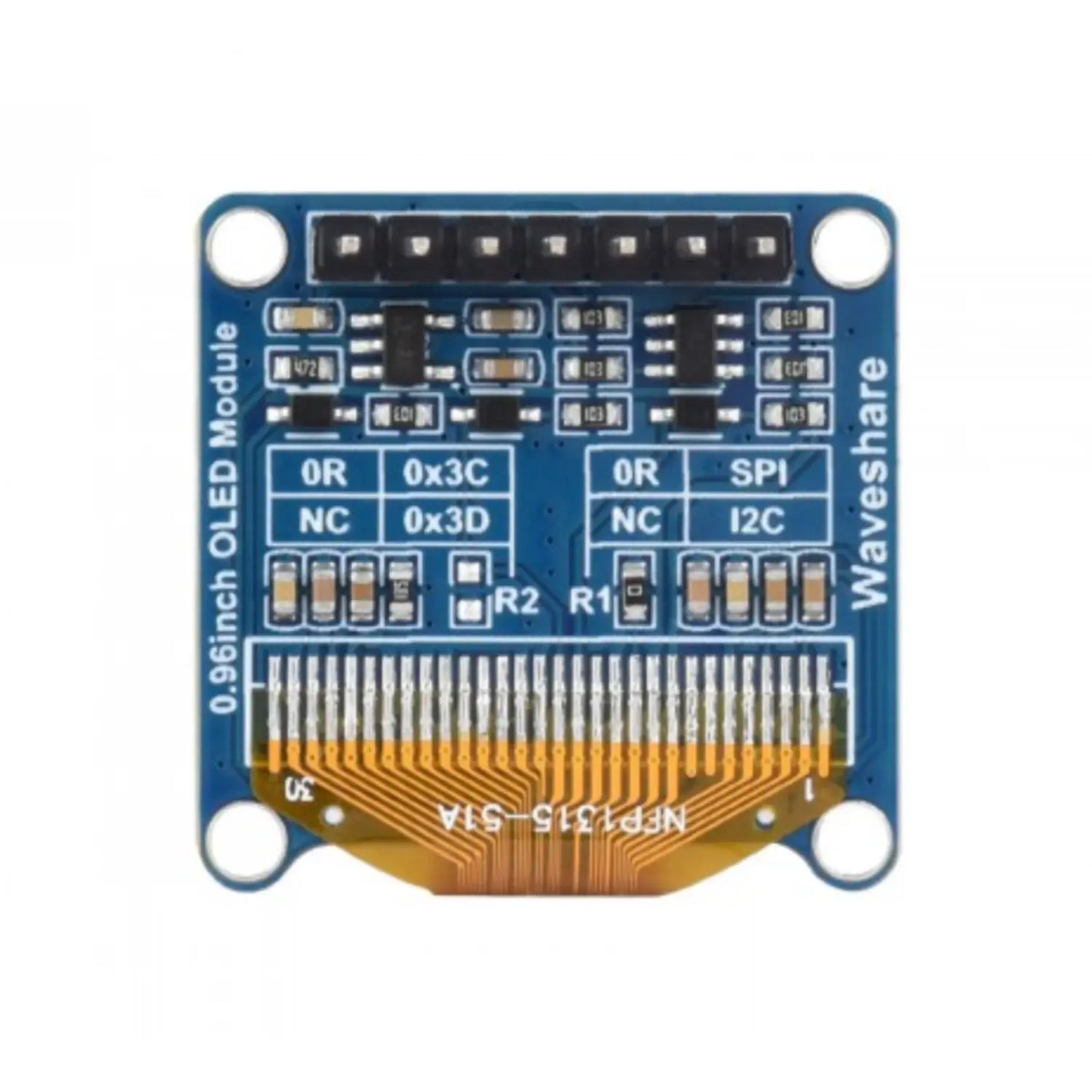

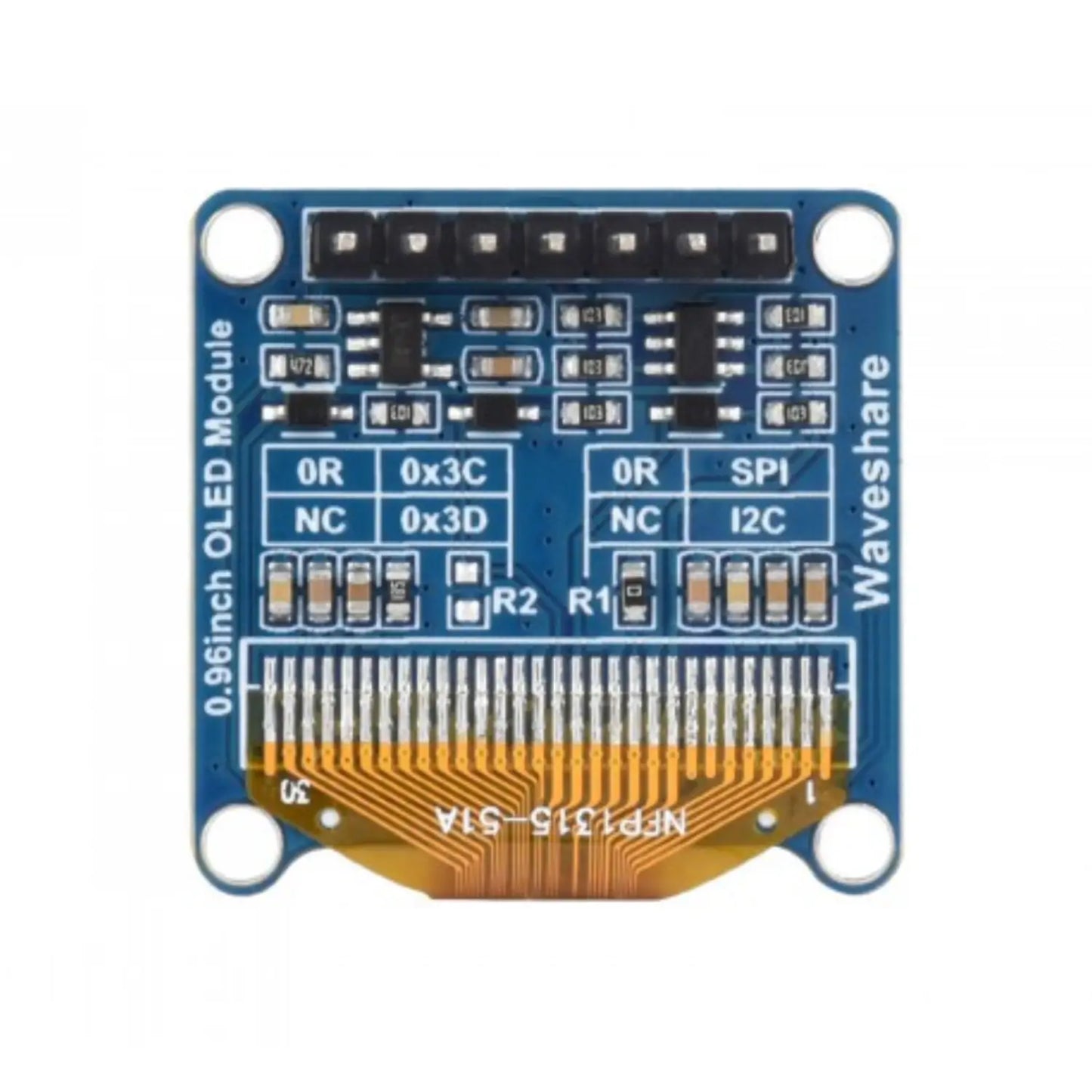

- Ultra-narrow bezel, compact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, and fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

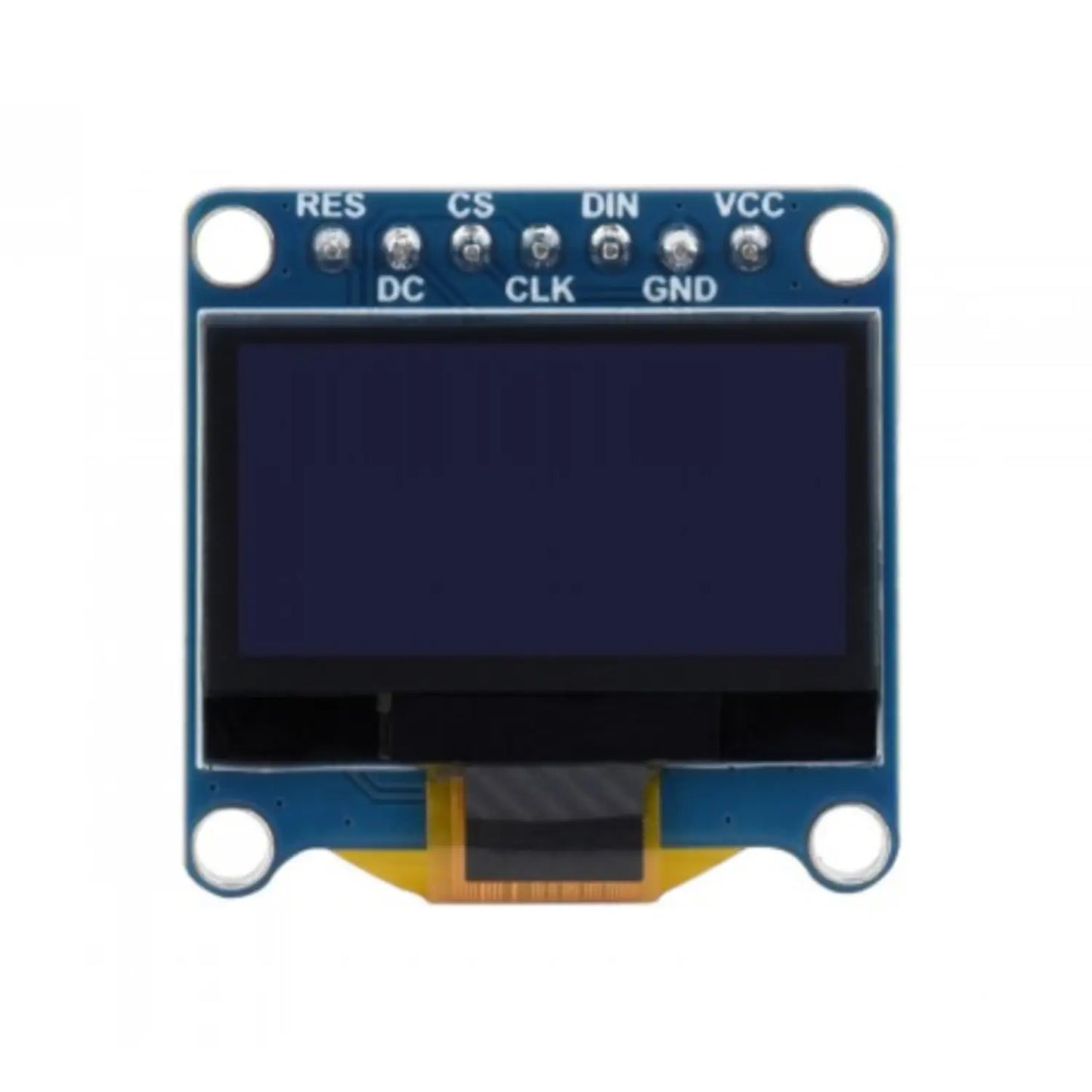

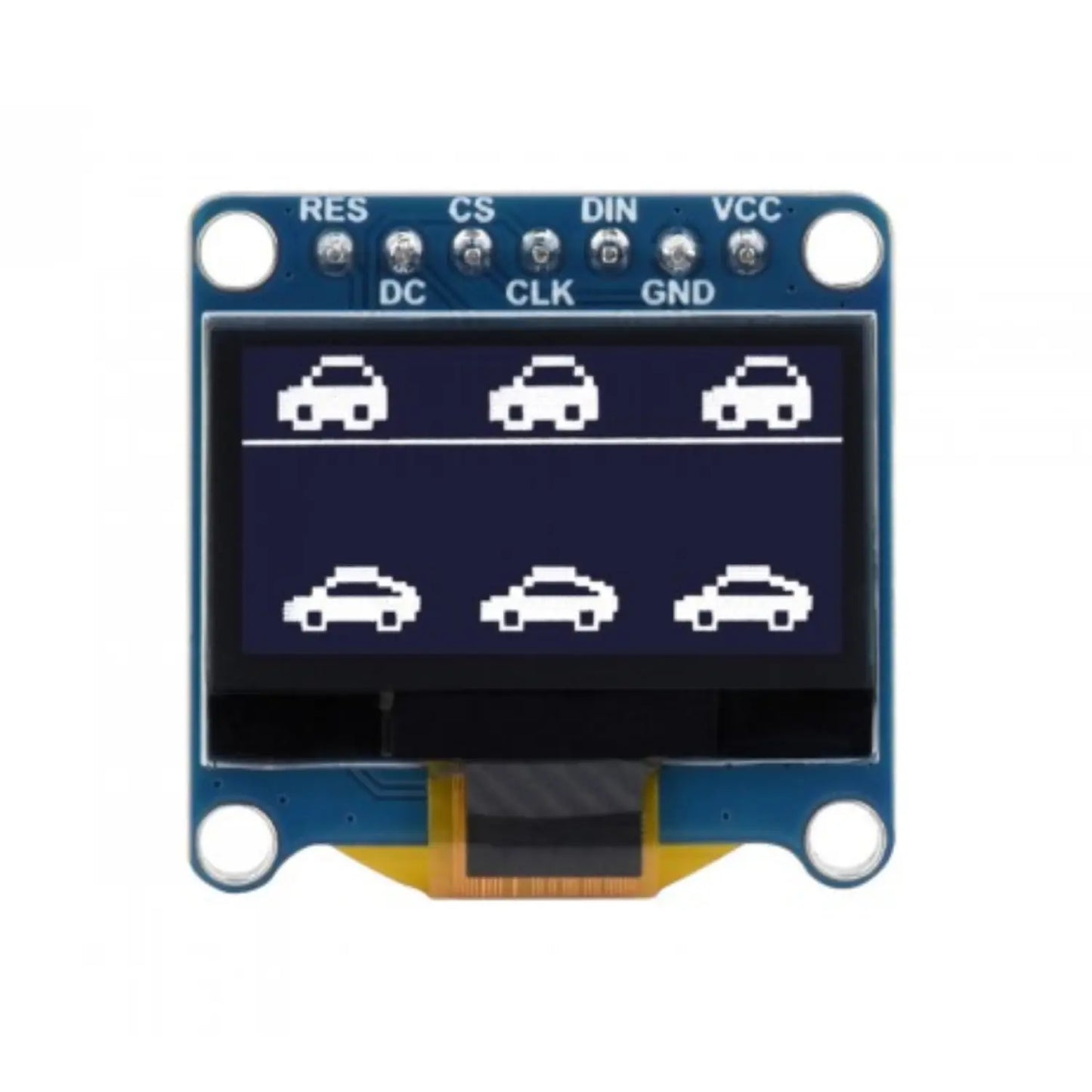

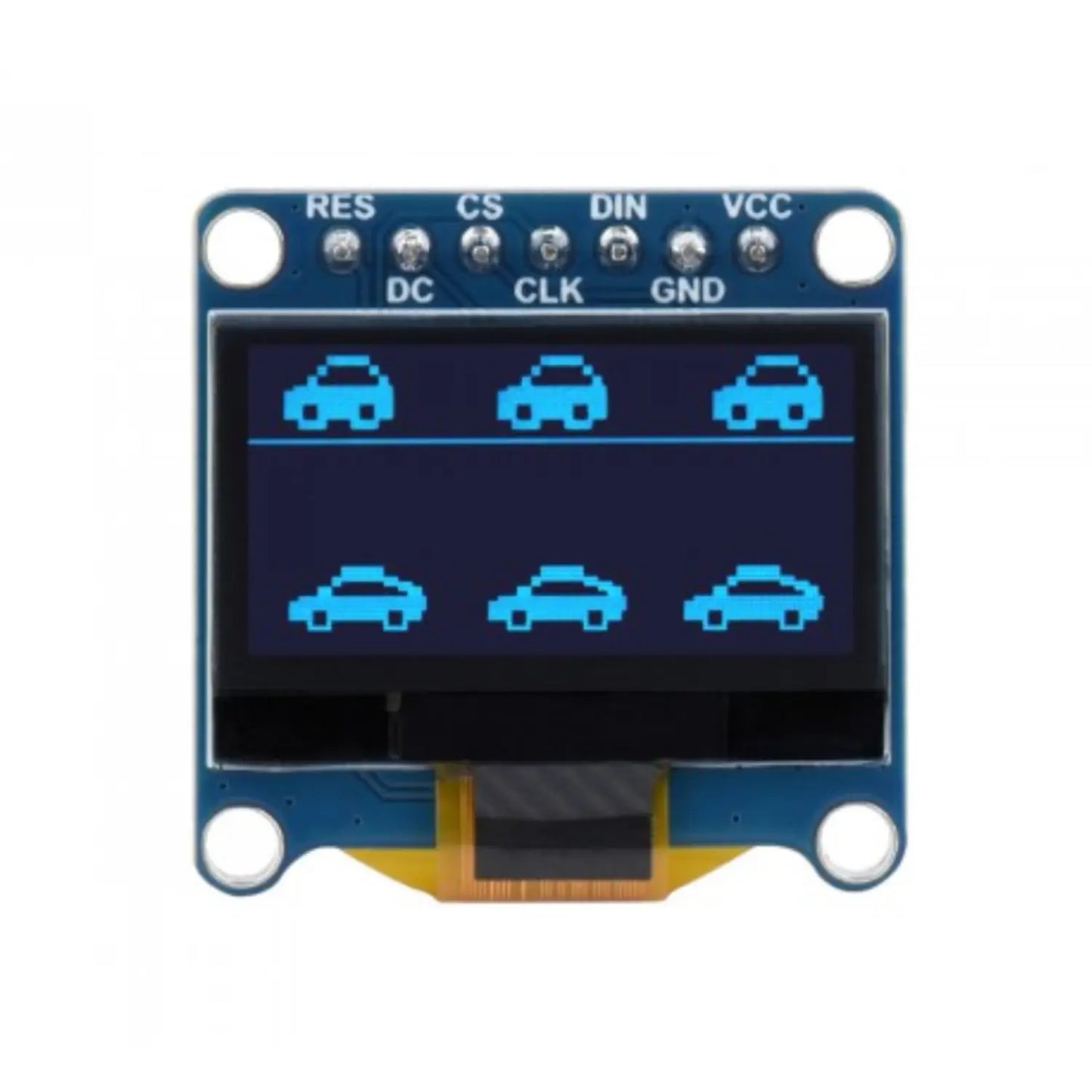

Pin Description:
| RES | Reset, low active |
|---|---|
| DC | Data/Command selection (high for data, low for command) |
| CS | Chip selection, low active |
| CLK | Clock input |
| DIN | Data input |
| GND | Ground |
| VCC | Power (3.3V / 5V input) |
Hardware connection:
Connecting with Raspberry Pi via SPI interface
Connecting with the Arduino board via the SPI interface
Useful Link:
Waveshare 0.96-inch OLED Display Module
Package Included:
- 1 x OPTIONS 0.96inch OLED Module
- 1 x Jumper cable female-female 7PIN
