Waveshare 0.95inch RGB OLED - RS2116

Waveshare 0.95inch RGB OLED - RS2116

SKU:RS2116

Low stock: 7 left

Regular price Rs. 935.00
Regular price Sale price Rs. 935.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
DRIVER CHIP 1331
INTERFACE SPI
RESOLUTION 96×64
DISPLAY SIZE 0.95inch
COLORS 65K colorful
VISIBLE ANGLE >160°
OPERATING TEMP. (℃) -20~70
STORAGE TEMP. (℃) -30~80
OPERATING VOLTAGE 3.3V / 5V
APPLICABILITY Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

Description :

0.95inch RGB OLED, SPI interface, curved/horizontal pinheader.

Specification :

DRIVER CHIP 1331
INTERFACE SPI
RESOLUTION 96×64
DISPLAY SIZE 0.95inch
COLORS 65K colorful
VISIBLE ANGLE >160°
OPERATING TEMP. (℃) -20~70
STORAGE TEMP. (℃) -30~80
OPERATING VOLTAGE 3.3V / 5V
APPLICABILITY Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

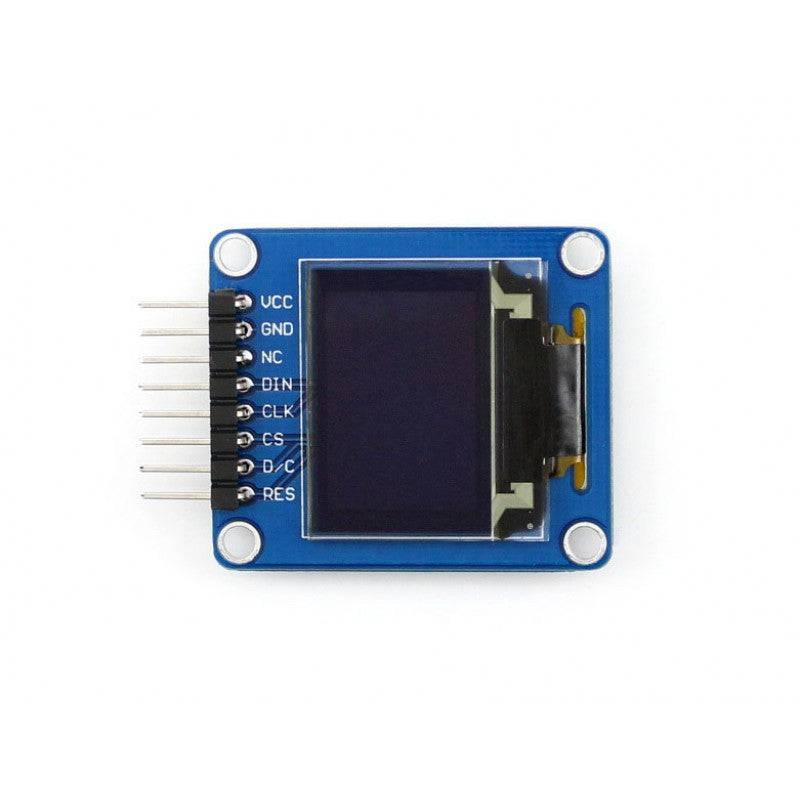

Interface

PIN NO. SYMBOL DESCRIPTION
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

Ordering Info

The 0.95inch RGB OLED provides 2 options for the onboard pinheader:

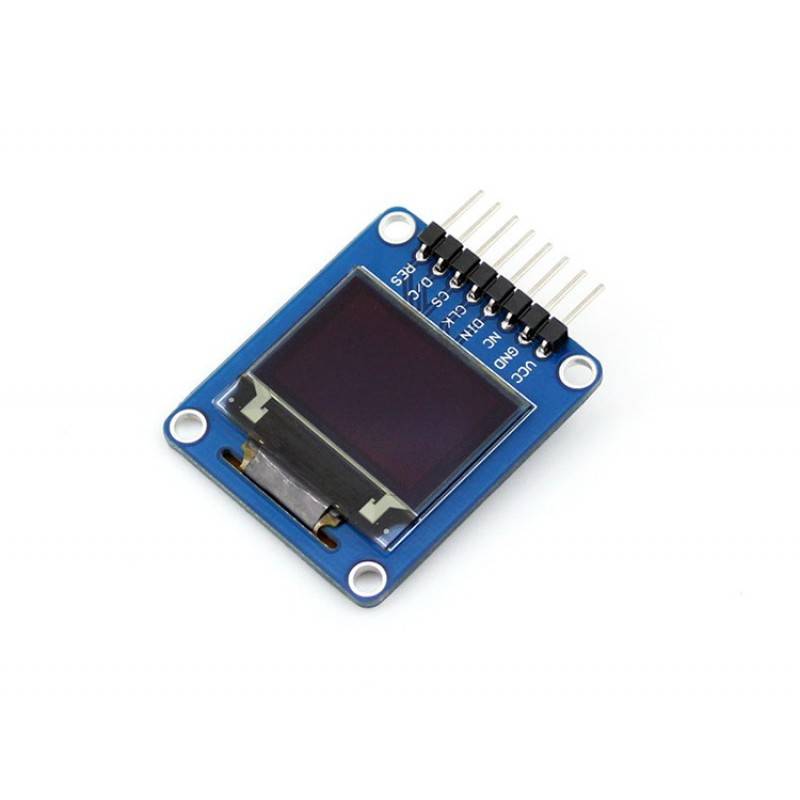

  • 0.95inch RGB OLED (A): curved/horizontal pinheader
  • 0.95inch RGB OLED (B): straight/vertical pinheader

Package Included :

0.95inch RGB OLED (A) x 1
