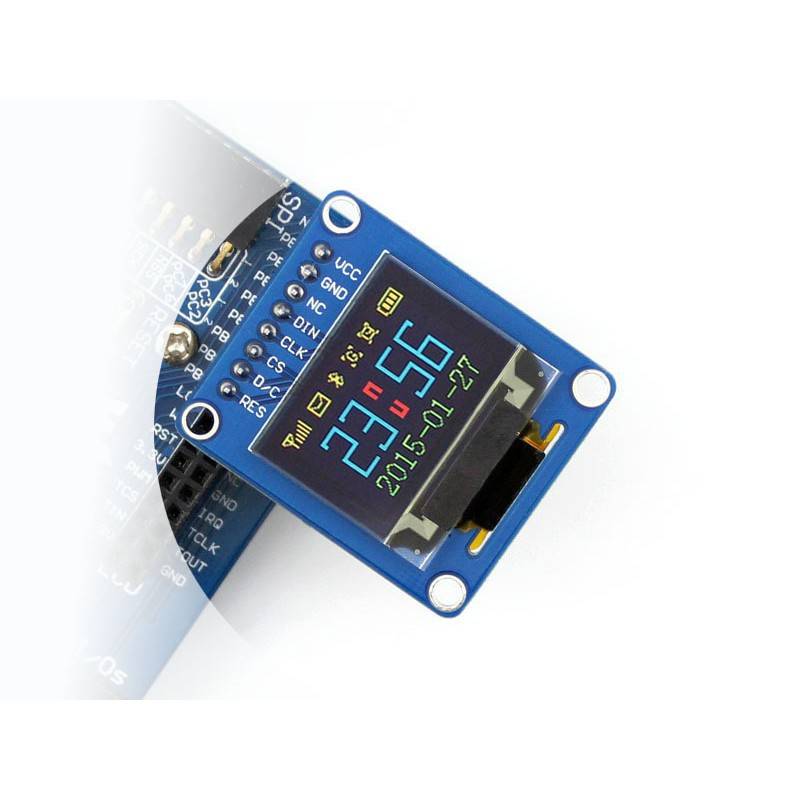

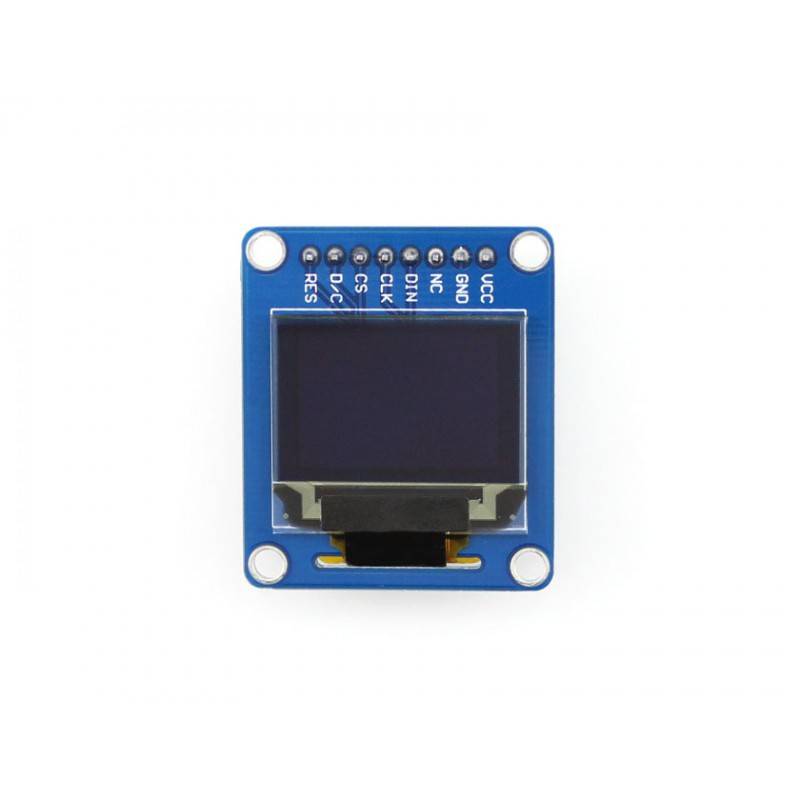

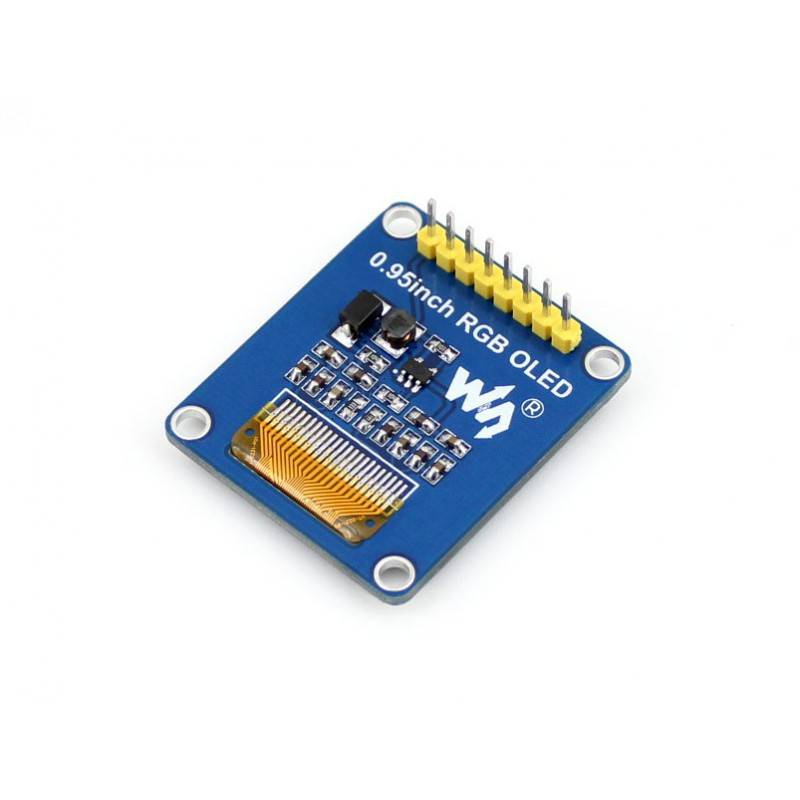

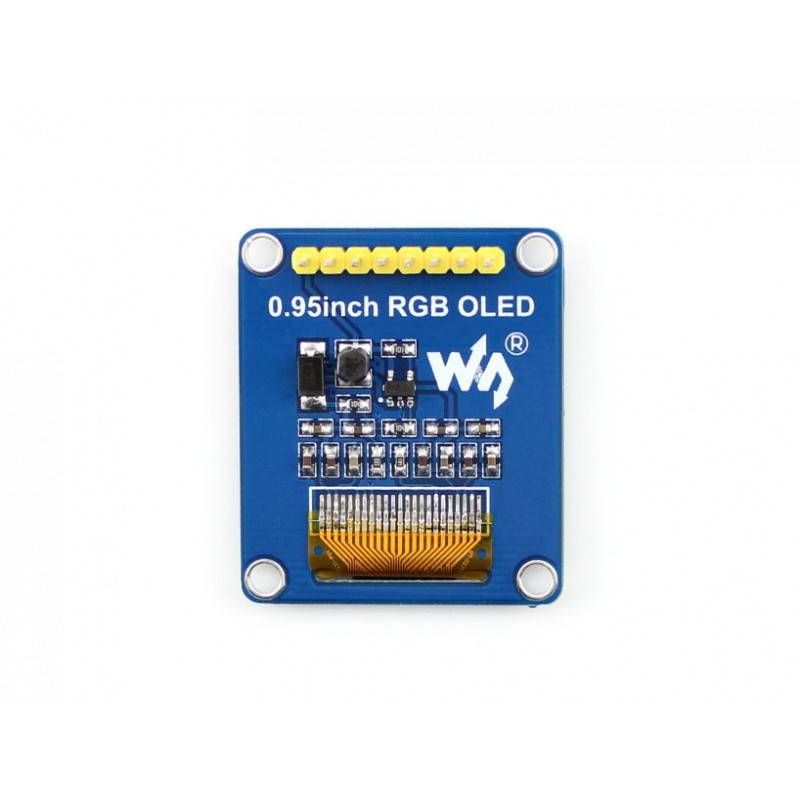

Waveshare 0.95inch RGB OLED (B) - RS1695

Waveshare 0.95inch RGB OLED (B) - RS1695

RS1695

Low stock: 9 left

Rs. 935.00
Rs. 935.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
DRIVER CHIP 1331
INTERFACE SPI
RESOLUTION 96×64
DISPLAY SIZE 0.95inch
COLORS 65K colorful
VISIBLE ANGLE >160°
OPERATING TEMP. (℃) -20~70
STORAGE TEMP. (℃) -30~80
OPERATING VOLTAGE 3.3V / 5V
APPLICABILITY Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

Description :

0.95inch RGB OLED, SPI Interface, Straight/Vertical Pinheader

Specification :

DRIVER CHIP 1331
INTERFACE SPI
RESOLUTION 96×64
DISPLAY SIZE 0.95inch
COLORS 65K colorful
VISIBLE ANGLE >160°
OPERATING TEMP. (℃) -20~70
STORAGE TEMP. (℃) -30~80
OPERATING VOLTAGE 3.3V / 5V
APPLICABILITY Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

Interface

PIN NO. SYMBOL DESCRIPTION
1 VCC Power positive (3.3~5V power input)
2 GND Ground
3 NC NC
4 DIN Data input
5 CLK Clock signal input
6 CS Chip selection, low active
7 D/C Command signal, low level for command, high level for data
8 RES Reset signal, low active

Ordering Info

The 0.95inch RGB OLED provides 2 options for the onboard pinheader:

  • 0.95inch RGB OLED (A): curved/horizontal pinheader

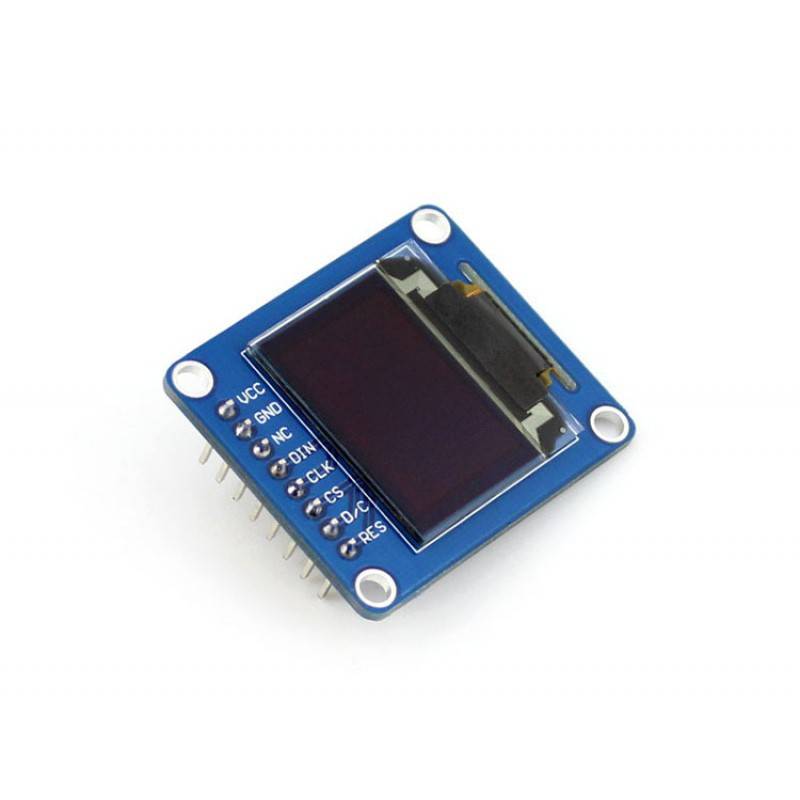

  • 0.95inch RGB OLED (B): straight/vertical pinheader

Package Included :

0.95inch RGB OLED (B) x 1
