Description:

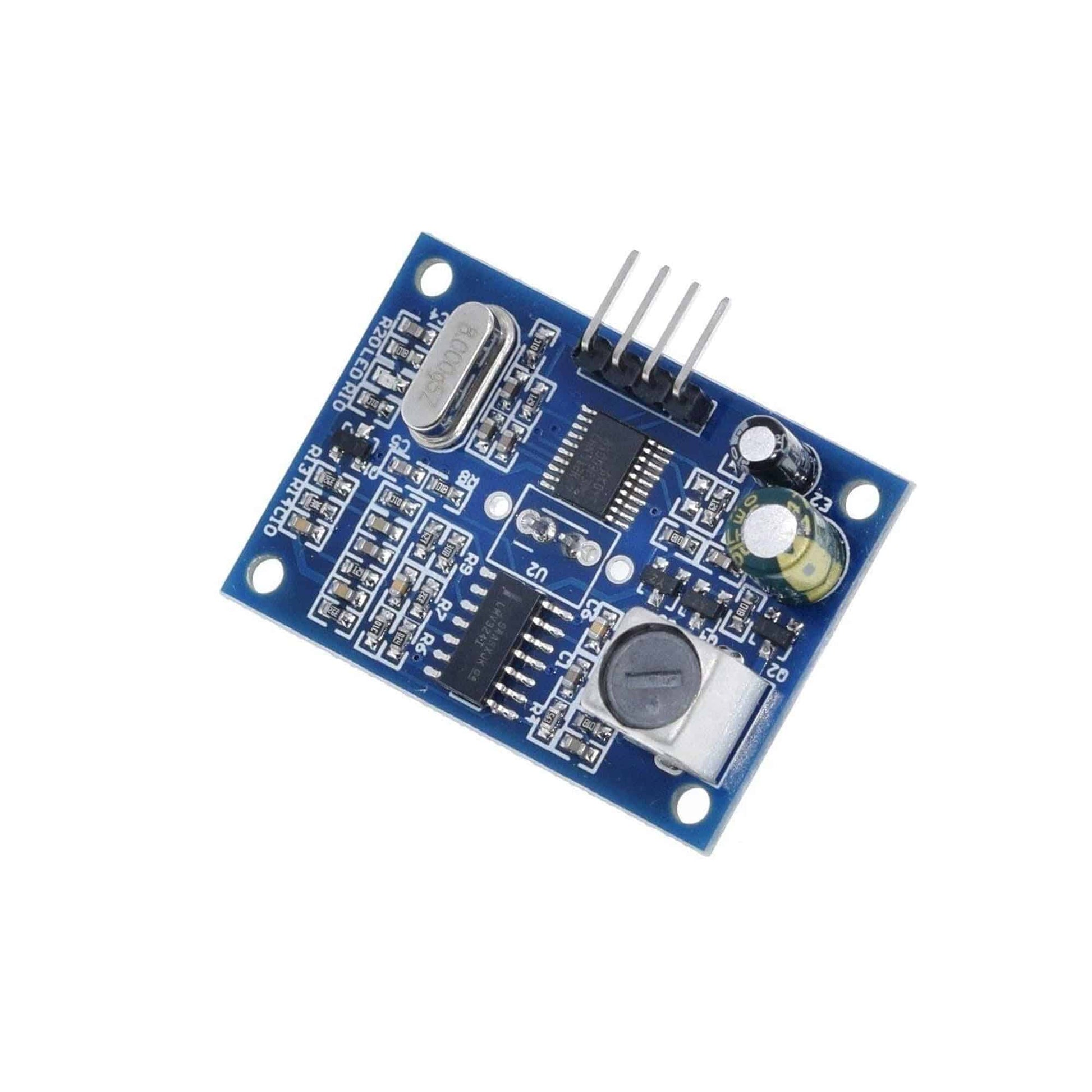

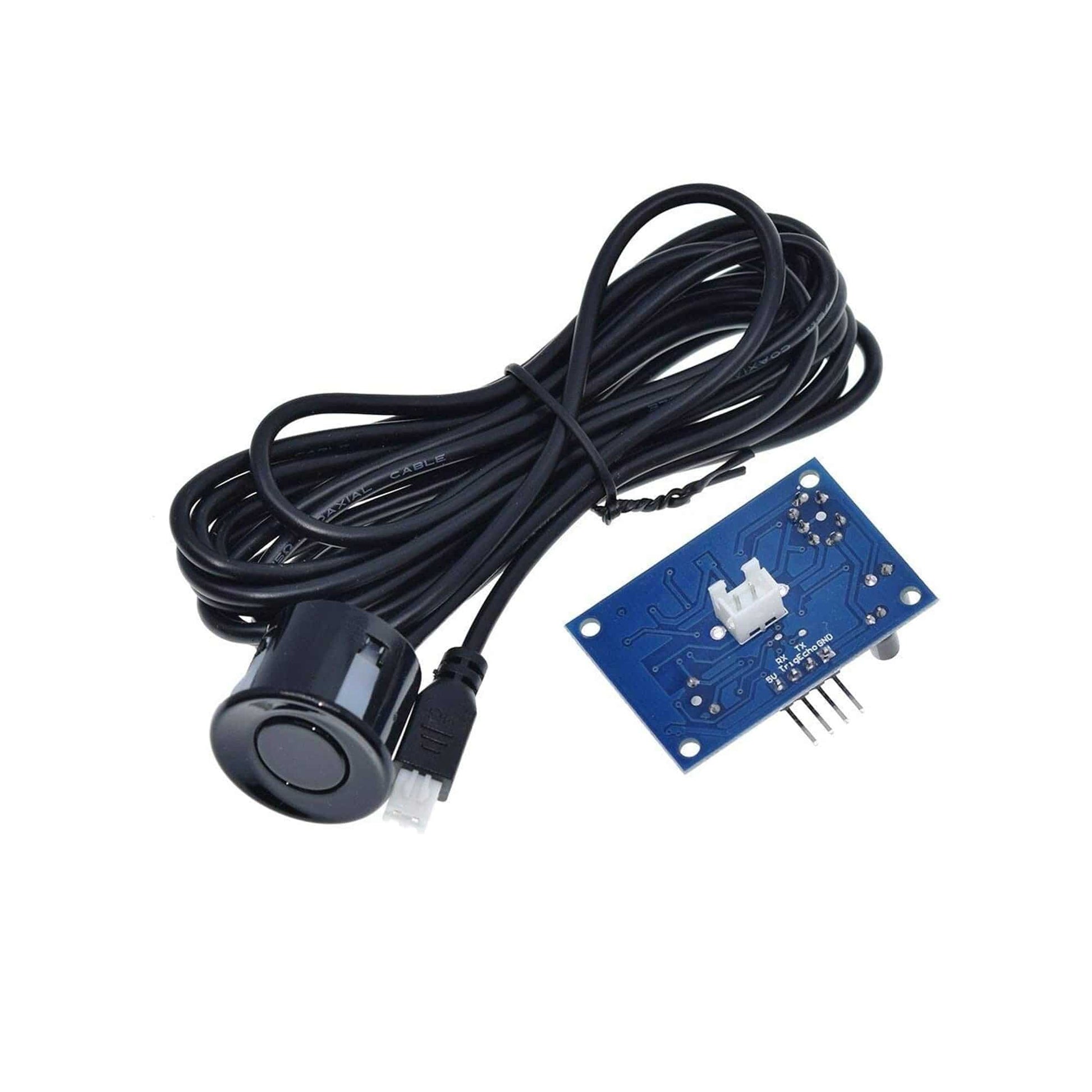

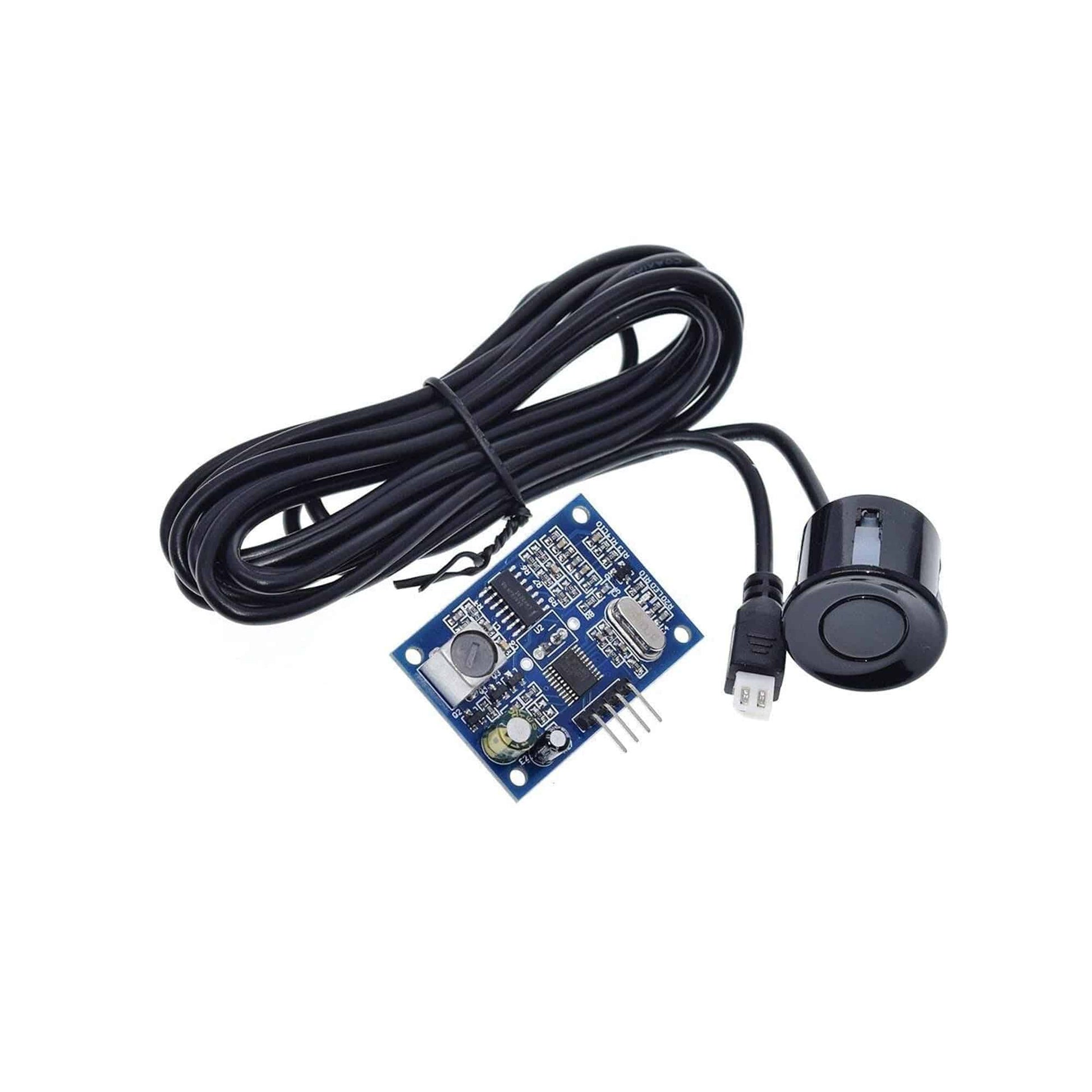

This Waterproof Ultrasonic Sensor is very similar to the ultrasonic sensors which are found in cars. This Waterproof Ultrasonic Obstacle Sensor shows some important constructional advantages over conventional sensors. A Waterproof Ultrasonic Sensor comes in two separate parts one being the transducer which is the sensing element and the other being the control board. The Waterproof Ultrasonic Sensor is capable of providing information on objects between the distance range of 250 mm to 4500 mm. The great advantage of using this Waterproof Ultrasonic Obstacle Sensor is you can put the sensing element far away from all the control circuitry.
This Waterproof Ultrasonic Sensor is an industrial-grade sensor to measure distance. Interfacing with it is the same as another cheap ultrasonic sensor, but it offers better performance is compatible with harsher environments and is waterproof too! It can be easily interfaced with Arduino and Sample codes and projects are available.
Specifications:
- Operating Voltage: DC 5V
- Quiescent Current: 5mA
- Total Current Work: 30mA
- Acoustic Emission Frequency: 40khz
- Farthest Distance: 4.5m
Applications:
- Horizontal distance
- Obstacle avoidance, automatic control
- The object approaches, there is a perceived
- Traffic control
- Security, industrial control
- Artificial intelligence, and research
Wiring:
- +5V (positive power supply)
- Trig (control side) RX
- Echo (the receiver) TX
- GND (negative)
Package Included:
1 x Waterproof Ultrasonic Sensor JSN-SR04T Waterproof Ultrasonic Obstacle Sensor Module with Probe
