Description:

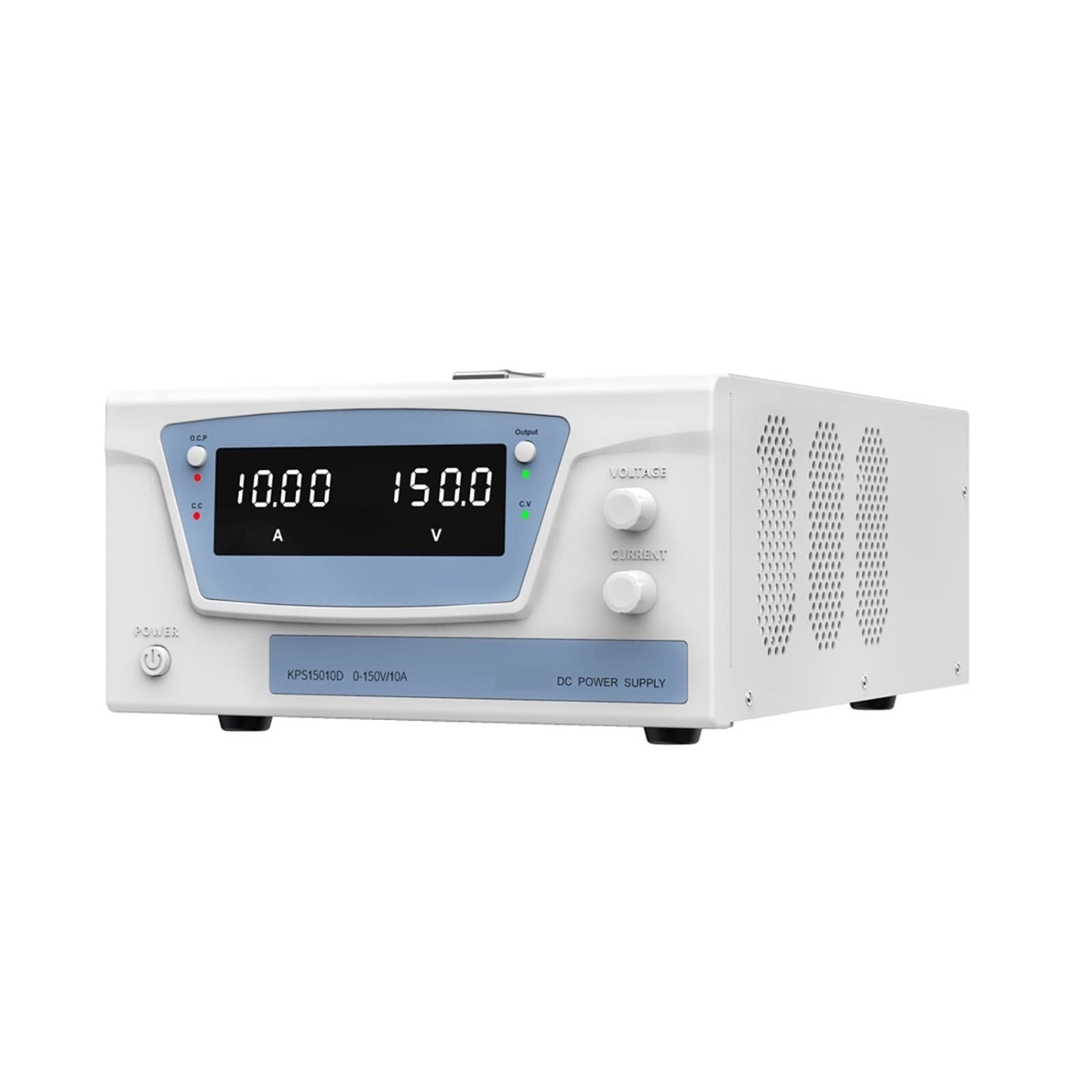

Wanptek KPS15010D 150V/10A Power Supply has a large digital display, which can directly read the voltage. It’s simple in assembly and disassembly, easy to carry, with a storage bag for compact storage. Wanptek KPS15010D 150V/10A Power Supply is from the KPS series.
LED Digital Lab Bench Power DC Wanptek has a single set of output, high precision double display switch DC power supply. Machines have complete operating protection functions, with high performance, low ripple, high stability, lightweight and small volume, etc. Current limiting protection can make KPS power supply and load against accidental damage. KPS series power supply with low-temperature control circuit, a cooling fan noise is low.
Specification:
- Auxiliary function: OUTPUT output switch, OCP short circuit protection switch
- Input voltage: AC220V, 50 Hz
- Working temperature: 0°C~40°C; relative humidity: <80%RH
- Storage temperature: -10°C~70C; relative humidity: <70%RH
- Voltage stability: ≤0.5%+3mV
- Constant pressure state: Load stability≤0.5%+3mV, Ripple noise≤0.5%V P-P, Current stability≤0.5%+3mA
- Constant current state: Load stability≤0.5%+3mA, Ripple noise≤0.5%A P-P
- Display accuracy: 0.5%+5 characters, Voltage: 00.01V, Current: 00.01A (when greater than 100V: 0.1V, when greater than 100A: 0.1A
Features:
- Output voltage: 0-nominal voltage continuously adjustable
- Output current: 0-nominal value current continuously adjustable
- Protection for Overvoltage, Overcurrent, Overload, Over-temperature, Short circuit
- Rugged and durable
- Miliamps display
- Constant voltage and current
- Smart fan
- Encoder adjustment
- Full load operation
- Low ripple & Low noise
Pin Description:
Package Included:
- 1 x Wanptek KPS15010D 10A/150V 1.5KW LED Digital Lab Bench Power DC Regulated Switching Power Supply
- 1 x Power cord
- 1 x Instruction book
