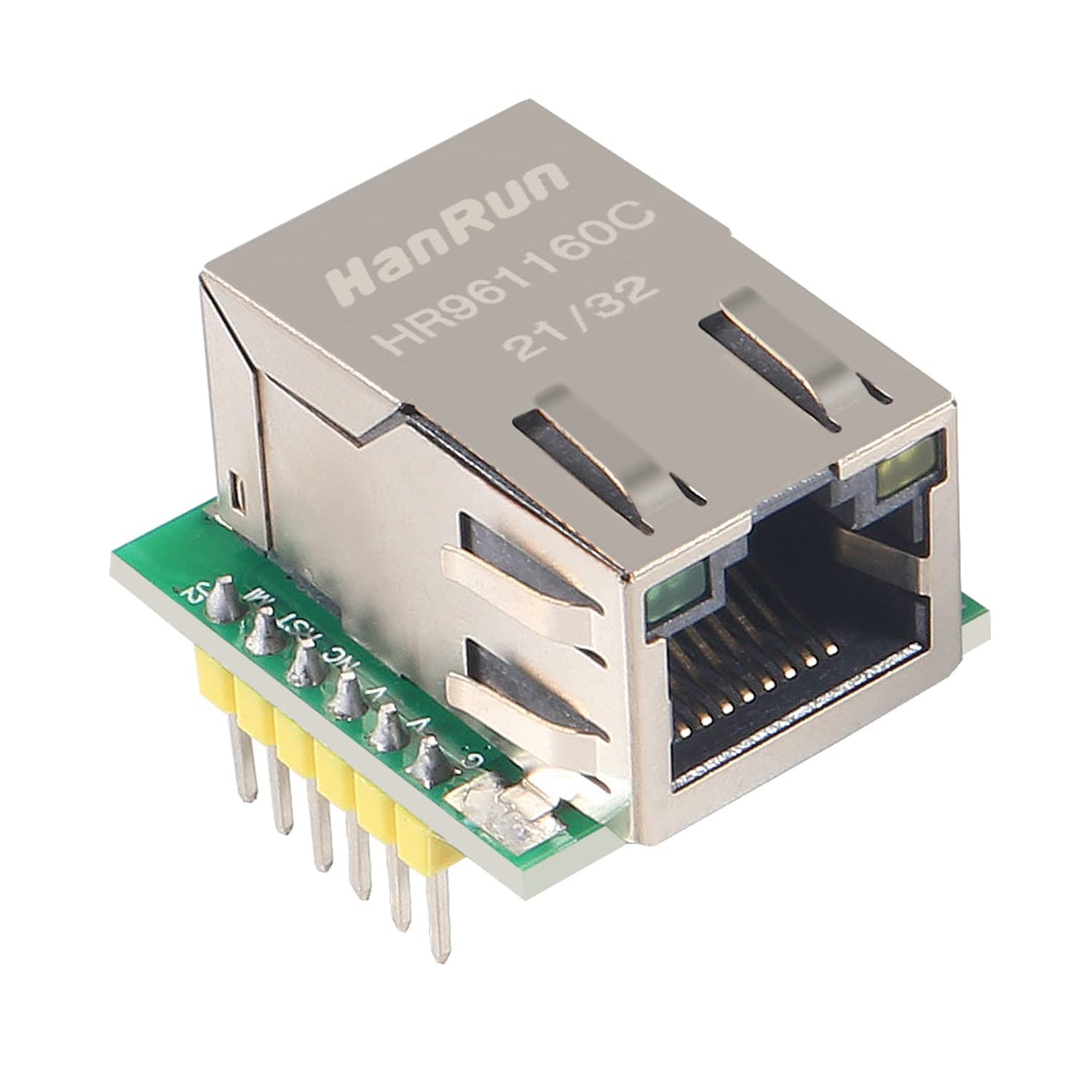

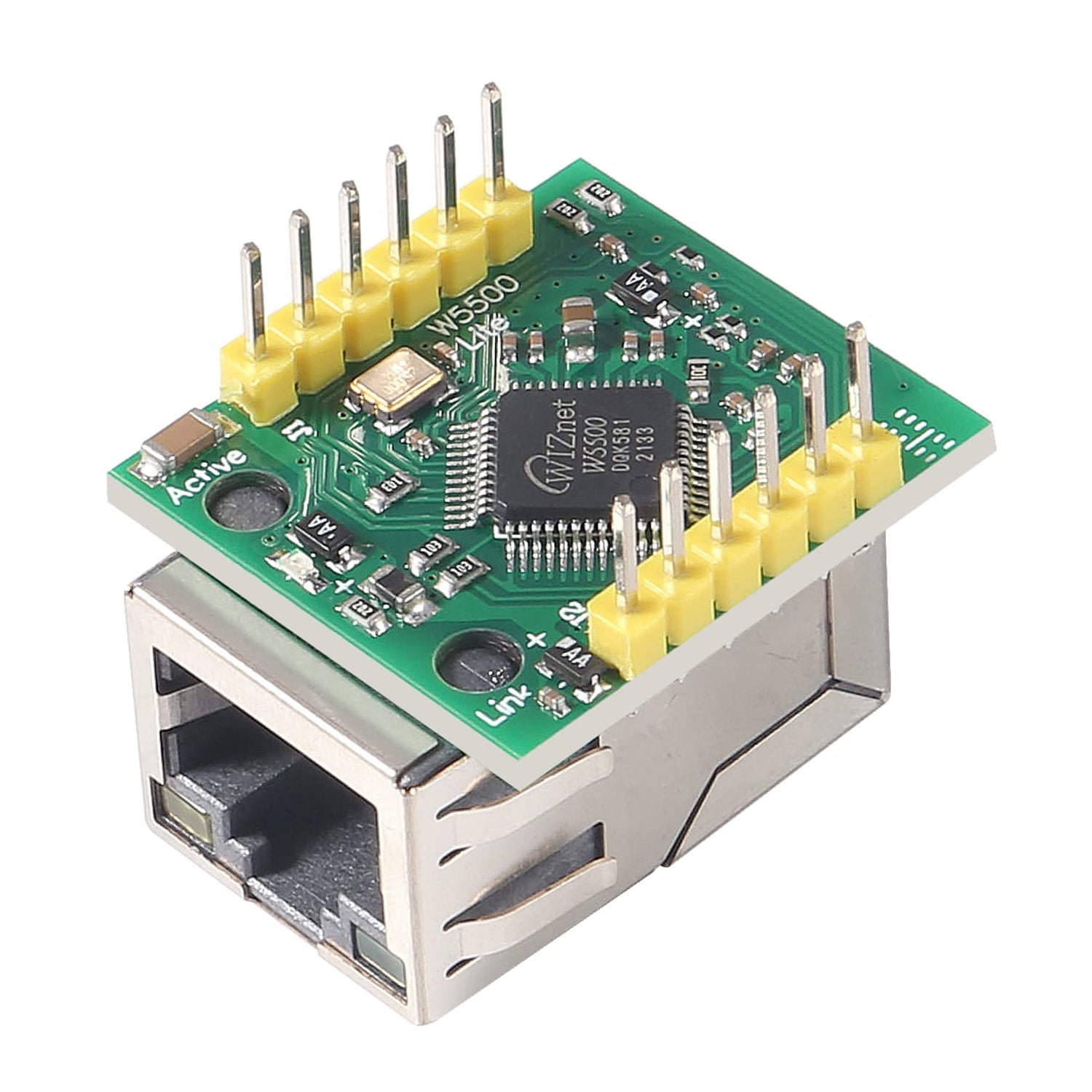

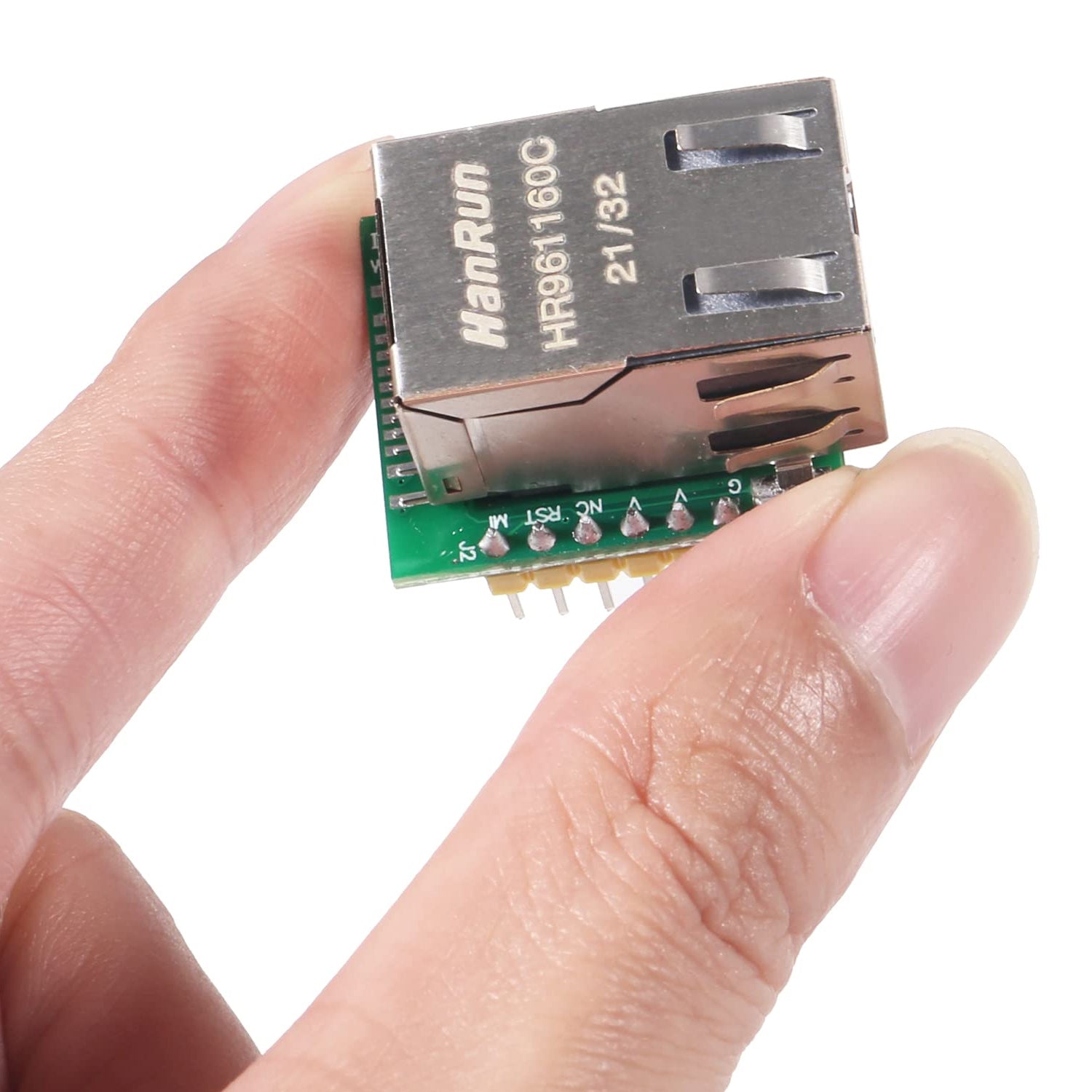

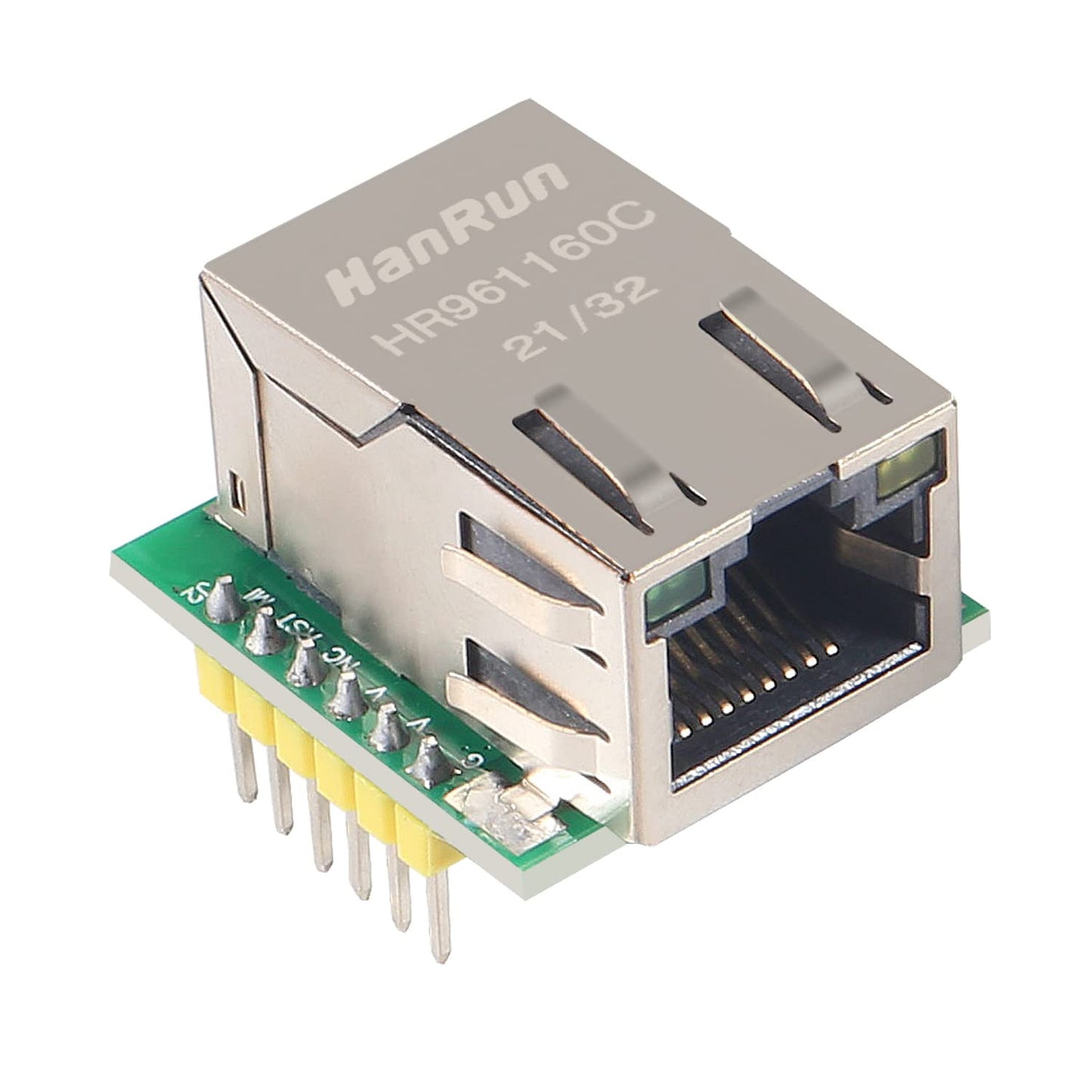

Description:
The W5500 TCP/IP Ethernet Converter is a comprehensive TCP/IP embedded Ethernet controller, offering a streamlined Internet connectivity solution for embedded systems. Employing hardware logic gates, it effectively implements the transport and network layers of the W5500 TCP/IP Ethernet Converter protocol stack, encompassing protocols such as TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE, among others. W5500 TCP/IP Ethernet Converter Integrated with a data link layer, physical layer, and 32K bytes of on-chip RAM for data transceiving buffer significantly reduces the workload of the host computer’s main control chip.
Specifications:
- Hardware Interface: Ethernet
-
Colour: sliver
Multi - Compatible Devices: Desktop
- Data Link Protocol: Ethernet
Features:
- 80MHz high-speed SPI interface
- Provide C application routines
- Support up to 8 Socket connections
- Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocol
- Integrated data link layer, physical layer
- Support power-down wake-up
- Internal 32K byte send and receive buffer
- IP fragmentation is not supported
- Ultra-small pin package for easily embedded applications
- 3.3V working voltage, I/O signal port 5V withstand voltage
- Built-in hardware TCPIP protocol stack, users need almost no knowledge of complex network protocols.
Package Included:
1 x W5500 TCP/IP Ethernet Converter TCP/IP SPI W5500 TCP / IP SPI to LAN Ethernet Interface SPI to LAN / Ethernet Converter
