- Model: XH-W1219
- Control Range: -50~110º C
- Control Precision: 0.1º C
- Measuring Input: NTC10K waterproof sensor L=0.5m
Description:

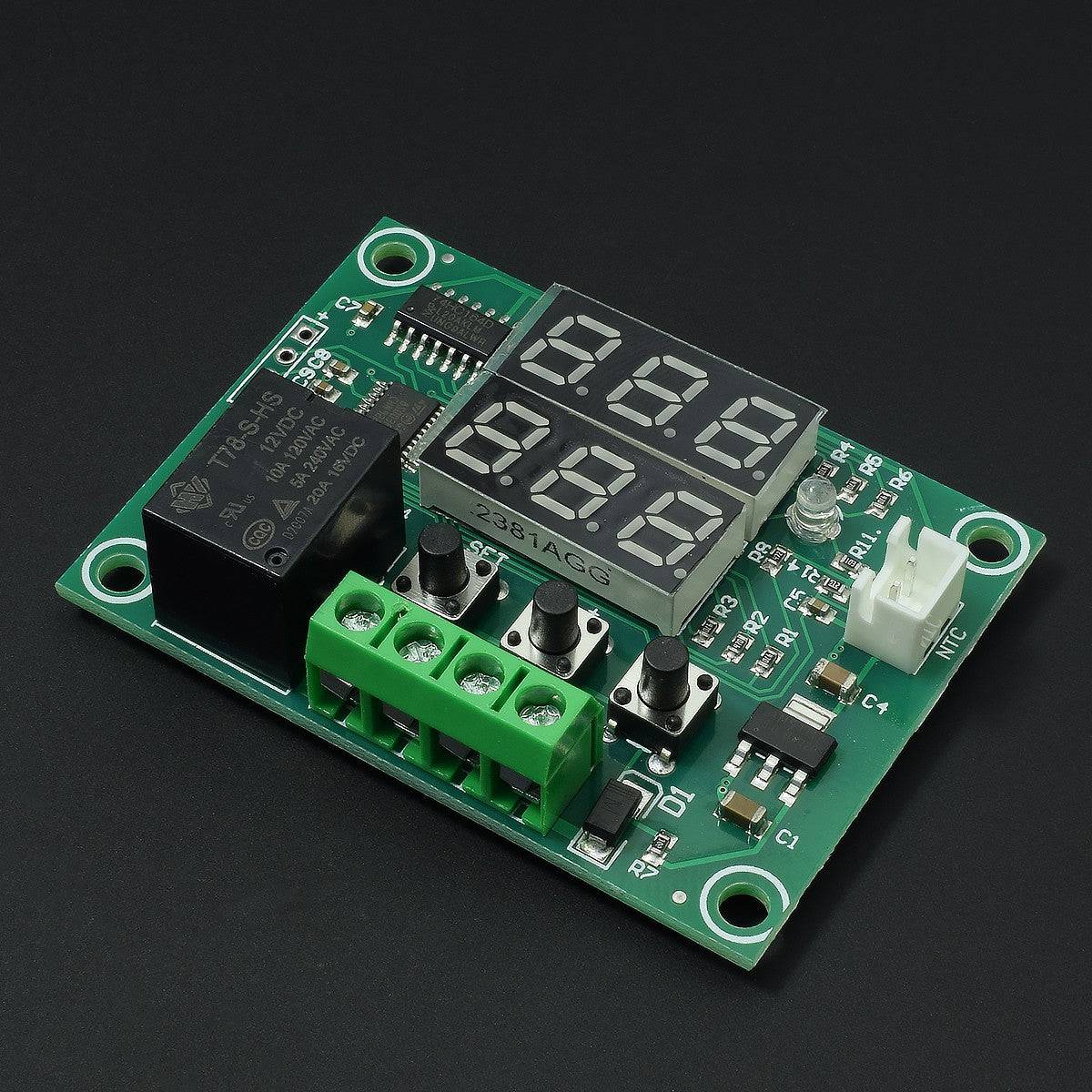

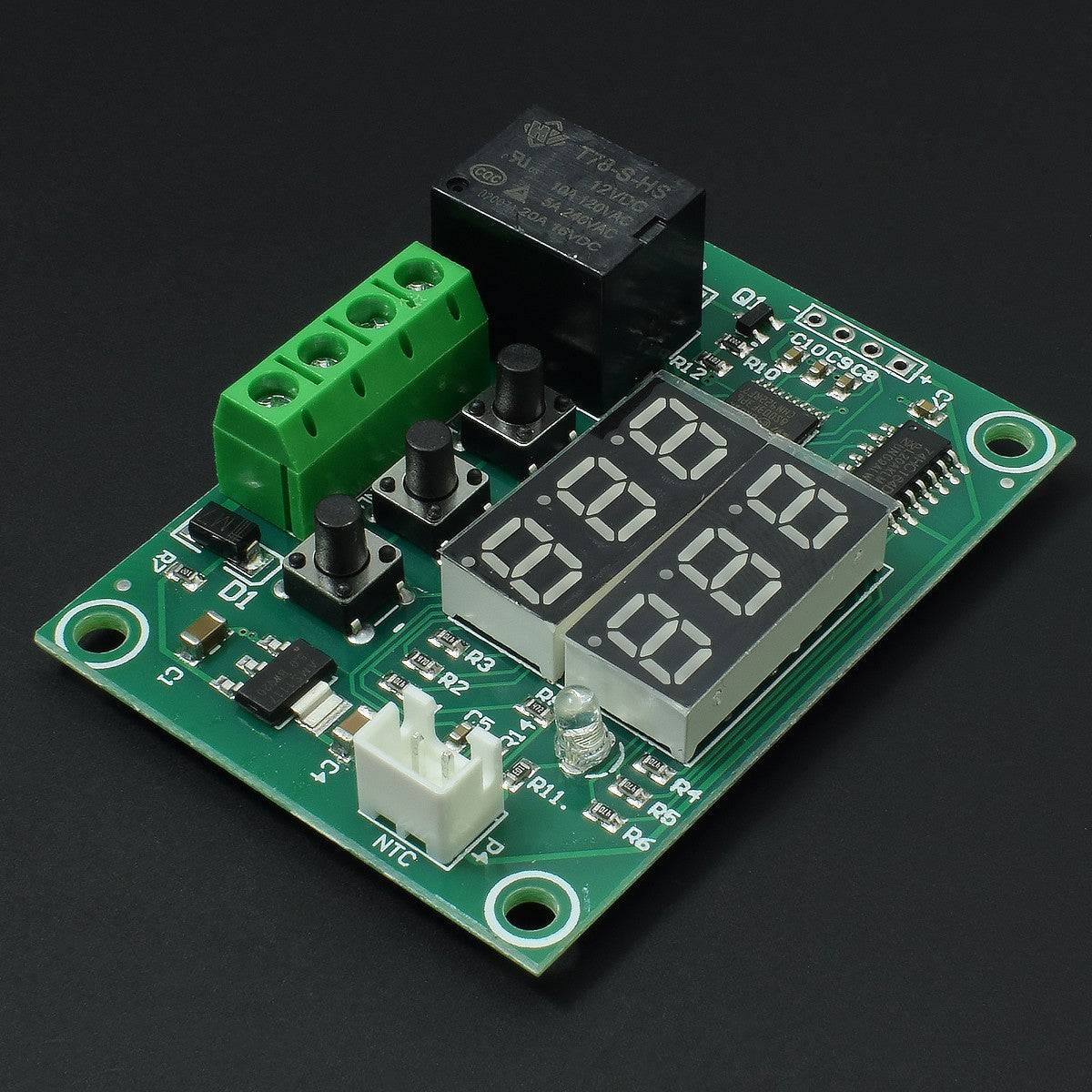

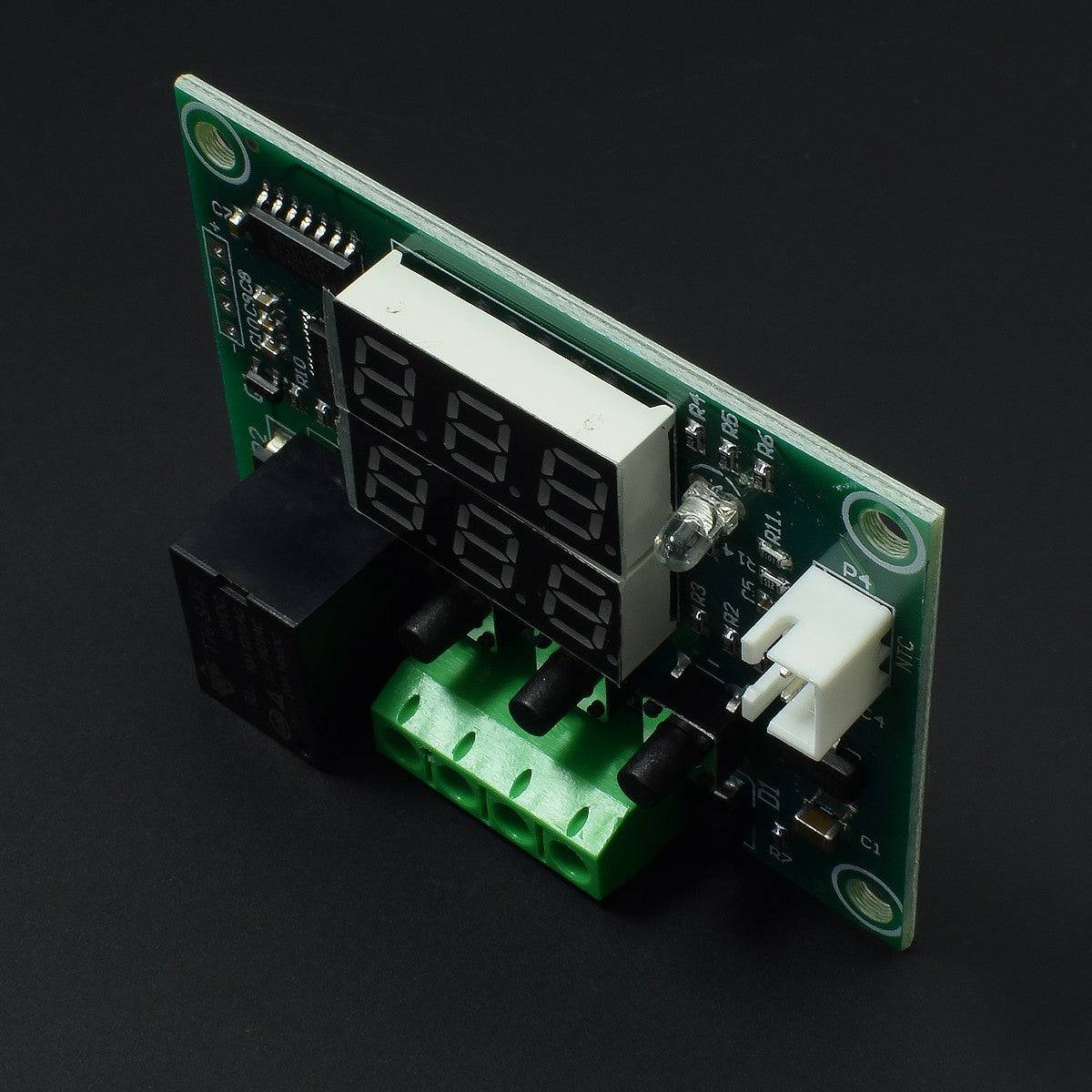

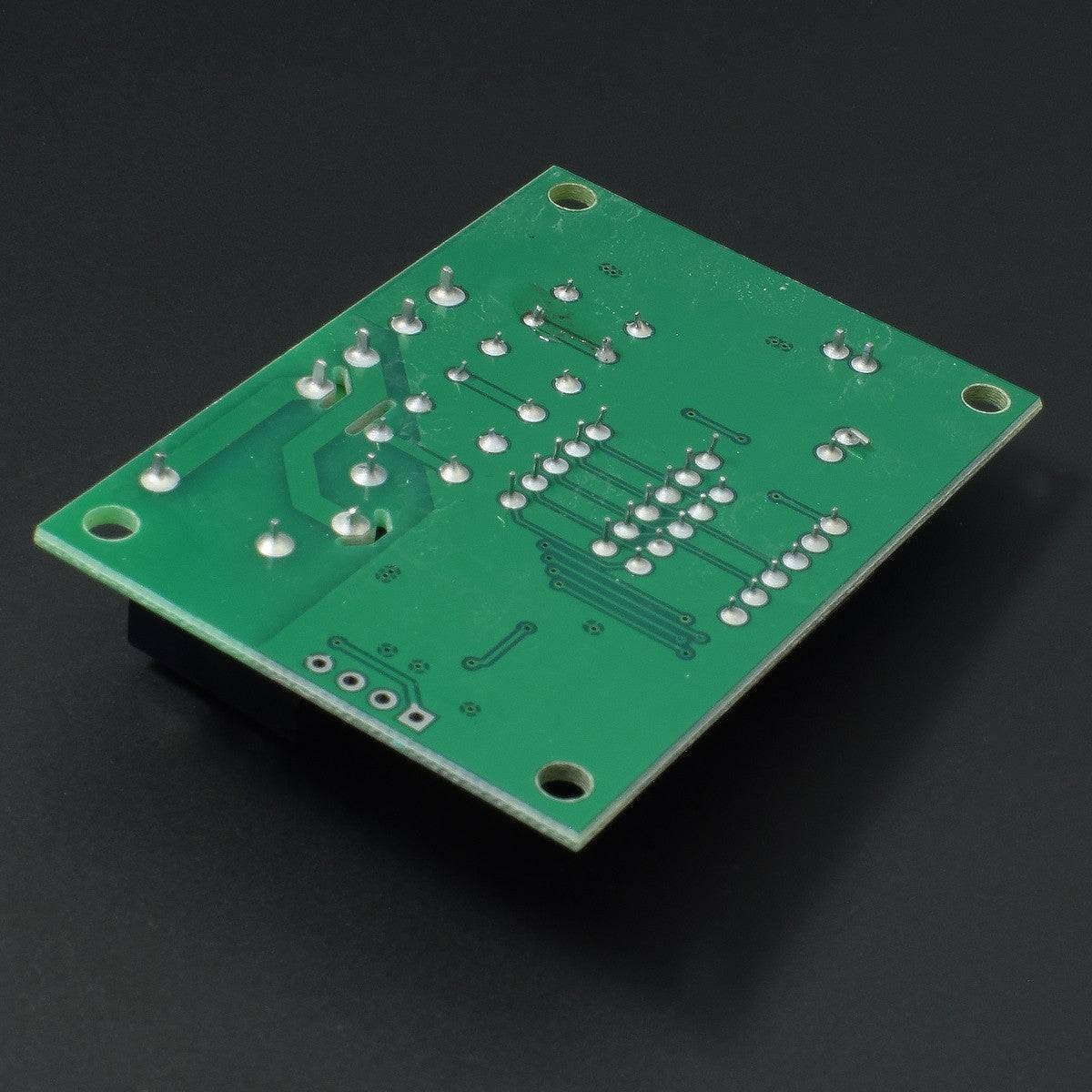

This is XH-W1219 12V Digital Temperature Controller Module W/ NTC Waterproof Temperature Sensor. The XH-W1219 thermostat module with its C and I/O (sensor input, keys, double display, relay) can be re-programmed for automation tasks, and its easy to work with. Digital thermostat module. The temperature controller/switch with waterproof NTC probe and integrated LED display in red and green. Electronic digital thermostat with double 3-digit LED display, extremely bright and red. Operation both in heating and cooling to easily control equipment and devices. The output is electronically controlled by a microprocessor, to guarantee the utmost precision of intervention and an excellent resolution of reading temperature. The NTC probe is waterproof and allows to control the temperature even of fluids, allowing the controlled heated or cooling.
Specification:
- Model: XH-W1219
- Control Range: -50~110º C
- Control Precision: 0.1º C

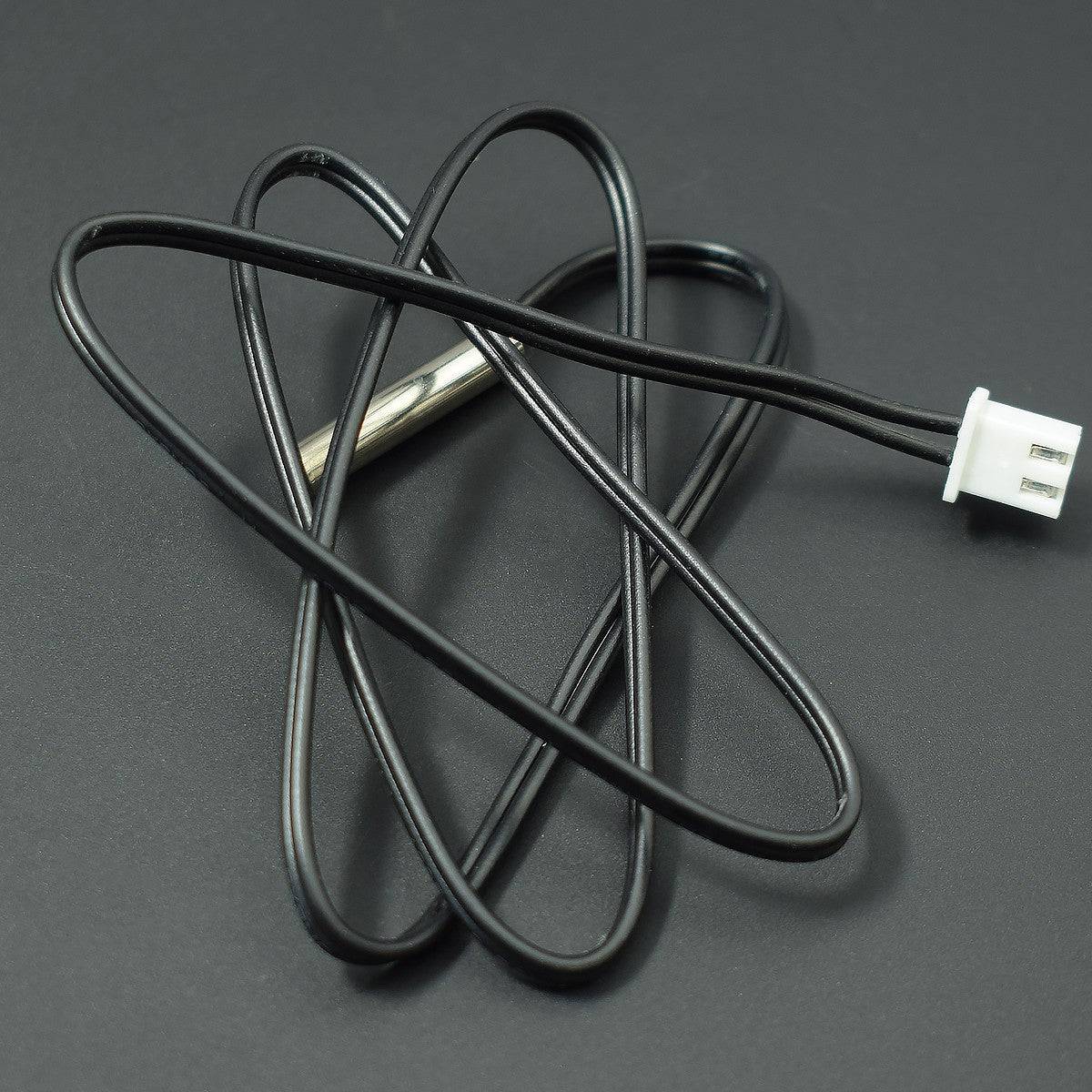

- Measuring Input: NTC10K waterproof sensor L=0.5m
- High Temperature Alarm: -49~110º C
- Input Voltage: DC 12V
- Output Type: relay output 10A (max)
- Return Difference Setting: 0.1~30º C
- Delay Starting: 0-10 min
- Temperature Calibration: -10~10º C
Function:
- P0: Temperature Control Mode: when first use this product, if it is used to heating, please set H, if used to cooling, please set C
- P1: Return Difference Setting: long press SET key entering into internal setting, choose P1 setting, then press SET key to achieve return difference value setting
- P2: Temperature Calibration: this function is for temperature calibration. If detection temperature and actual temperature is different, then users can apply this function to calibrate
- P3: Delay Start: this function is for compressor cooling
- P4: Set High Temperature Alarm Value: when actual temperature is higher than this value, screen will flash and sound an alarm
Package Included:

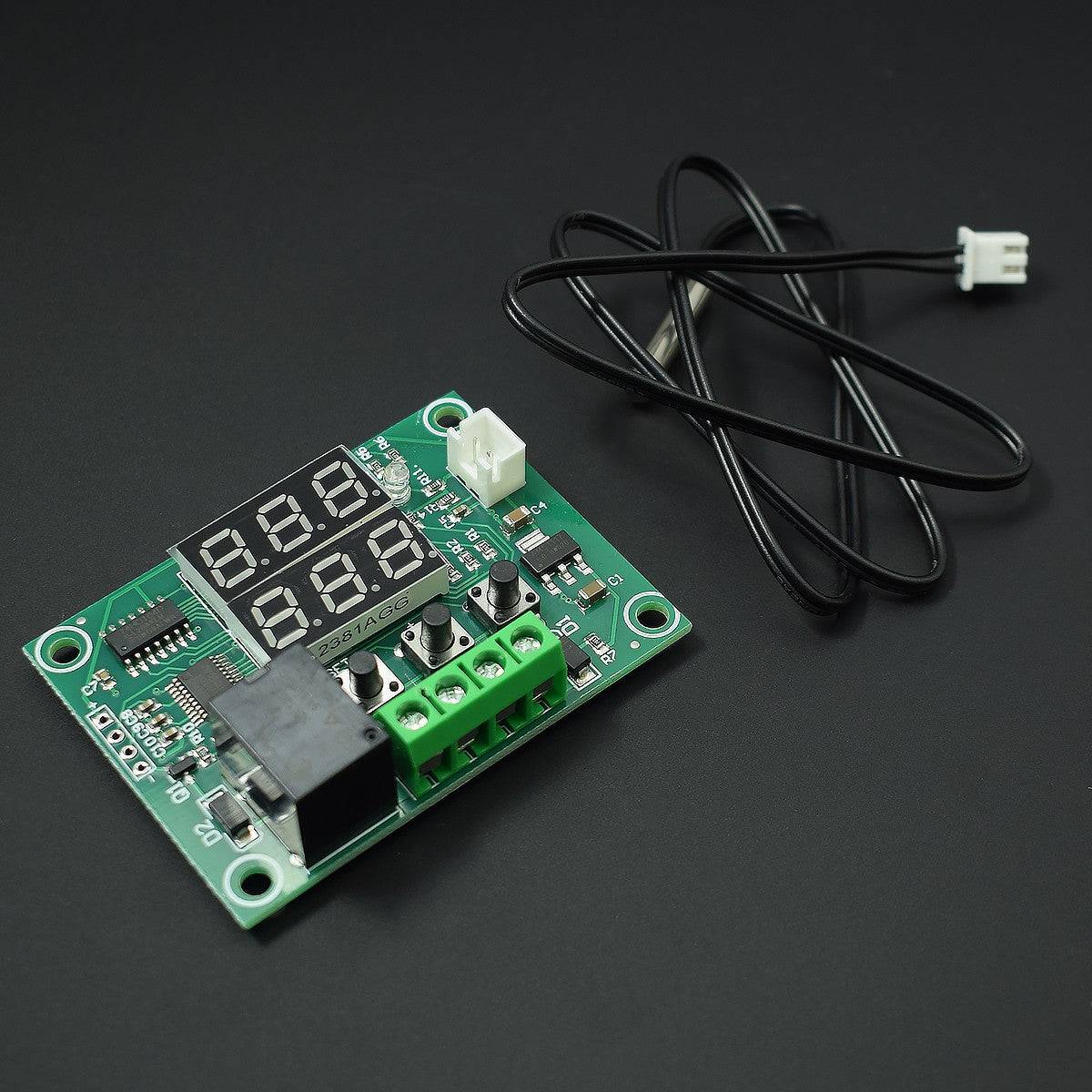

1 x W1219 Digital Thermostat Module Temperature Controller Module Switch with Waterproof NTC Probe Dual LED Display
