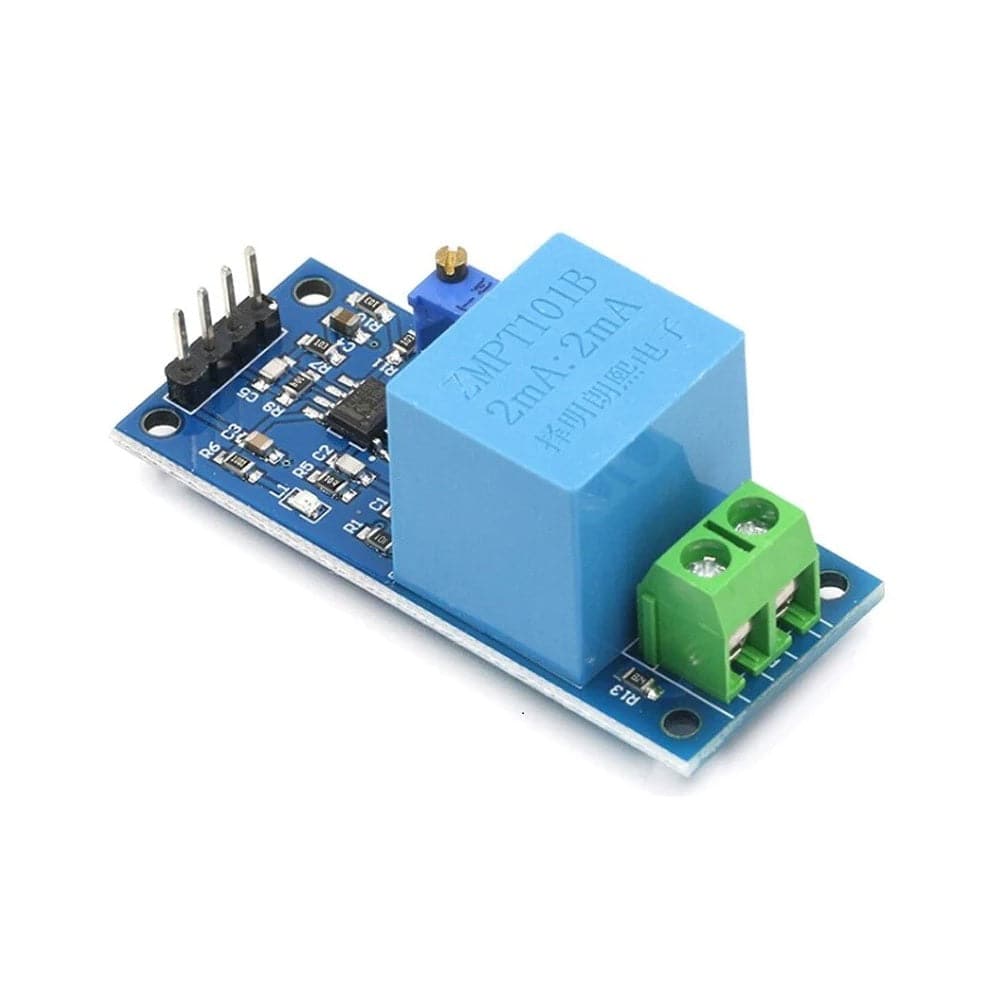

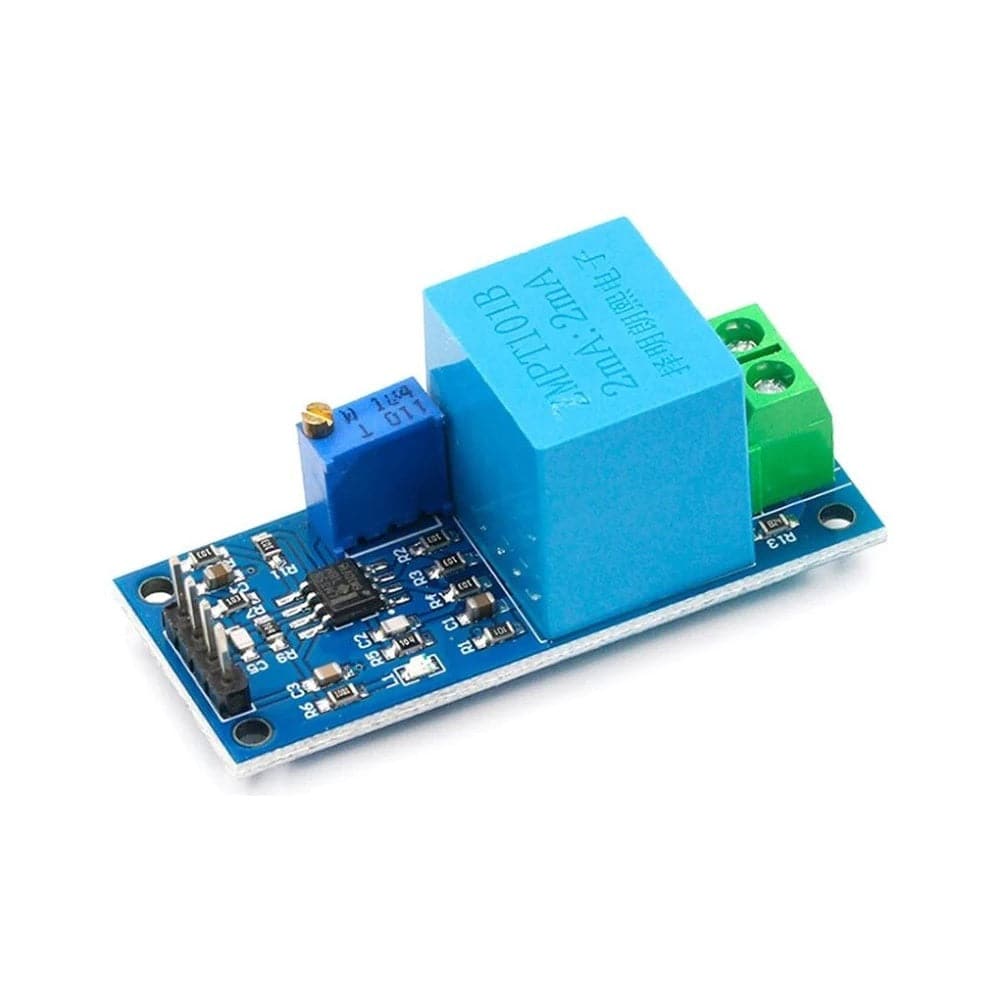

Voltage Sensor Module ZMPT101B AC Single Phase Voltage Sensor Module - RS5546

Voltage Sensor Module ZMPT101B AC Single Phase Voltage Sensor Module - RS5546

SKU:RS5546

Regular price Rs. 115.00
Regular price Sale price Rs. 115.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Operating Voltage: 250V
  • Output Signal: 0-5V
  • Operating Temperature : 40ºC ~ + 70ºC
  • Voltage Transformer: On-board Precision Micro Voltage Transformer

Description:

This is the best for the purpose of the DIY project, where we need to measure the accurate AC voltage with a voltage transformer. This is an ideal choice to measure the AC voltage using Arduino/ESP8266/Raspberry Pi like an open-source platform. In many electrical projects, an engineer directly deals with measurements with a few basic requirements like High galvanic isolation, Wide Range, High accuracy, and Good Consistency.

Onboard precision miniature voltage transformer, The active phase AC output voltage transformer module. Onboard precision op-amp circuit, the signal sampling and appropriate compensation for precise functions. Modules can be measured within 250V AC voltage, and the corresponding analogue output can be adjusted. It is brand new, good quality high performance.

Specifications:

  • Operating Voltage: 250V
  • Output Signal: 0-5V
  • Operating Temperature : 40ºC ~ + 70ºC
  • Voltage Transformer: On-board Precision Micro Voltage Transformer
  • Operational amplifier circuit: high-precision on-board amplifier circuit, the signal to do the exact sampling and appropriate compensation and other functions
  • Mode voltage output: the module can measure AC voltage within 250V, and the corresponding output mode can be adjusted.

Features:

  • Voltage up to 250 volts
  • Lightweight with on-board micro-precision voltage transformer
  • Low price
  • Small size and lightweight
  • Easy PCB mounting
  • Good consistency
  • Widely acclaimed
  • Good consistency, for voltage and power measurement
  • Very efficient and accuracy
  • High precision on-board op-amp circuit

Pin Description:

Pin Name Description
VCC Module power supply: 5V
OUT Module output which is analog
GND Ground
GND Ground

Package Included:

1 x Voltage Sensor Module ZMPT101B AC Single Phase Voltage Sensor Module
