Voltage Sensor Module Voltage Detection Sensor Module 25V - AA118

Voltage Sensor Module Voltage Detection Sensor Module 25V - AA118

SKU:AA118

122 in stock

Regular price Rs. 15.00
Regular price Sale price Rs. 15.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

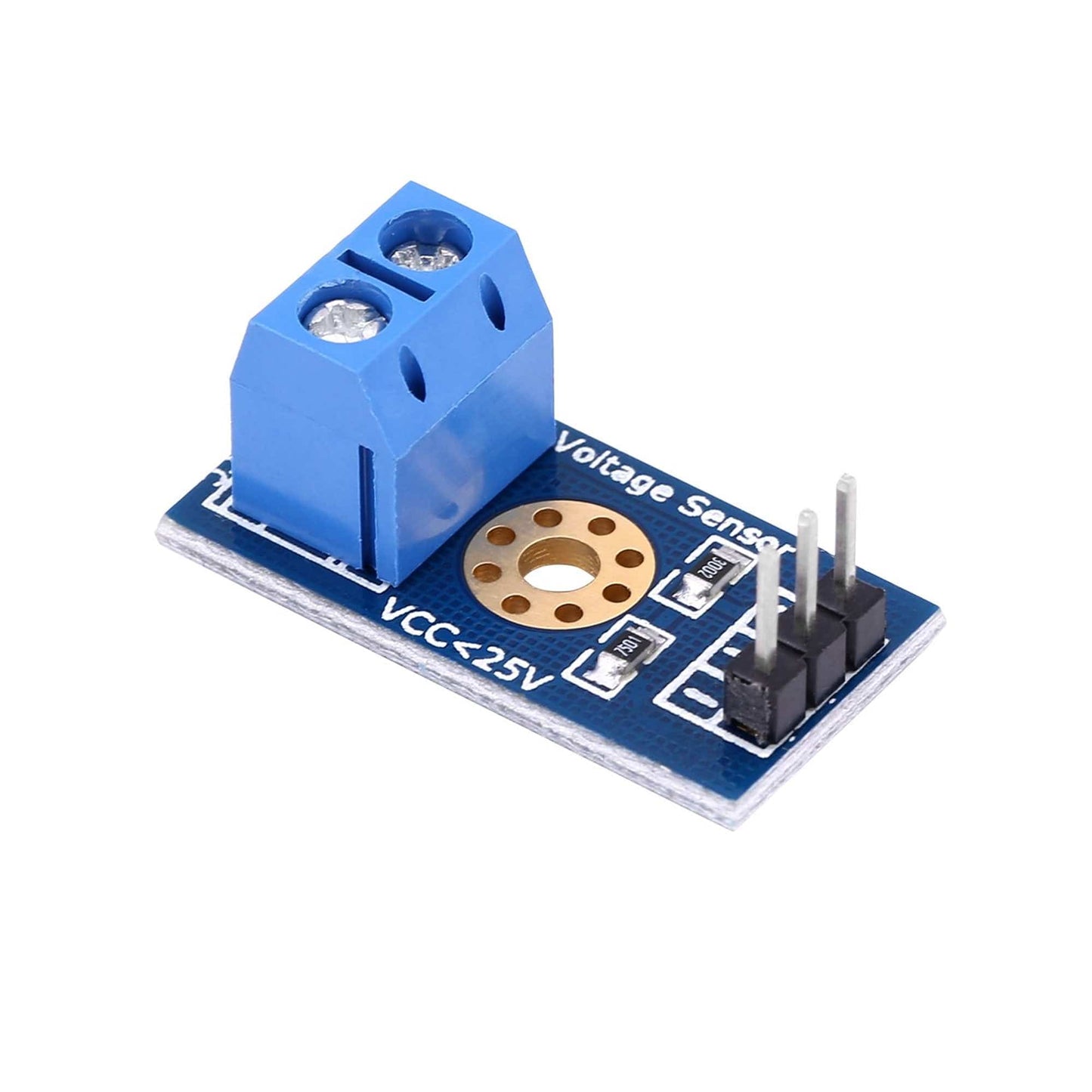

This is a simple but very useful Voltage Sensor Module which uses a potential divider to reduce an input voltage by a factor of 5. The Voltage Sensor Module allows you to use the analogue input of a microcontroller to monitor voltages much higher than it is capable of sensing. For example with a 0-5V analog input range, you can measure a voltage up to 25V. This Voltage Sensor Module also includes convenient screw terminals for easy and secure connection of a wire.

This Voltage Sensor Module is based on the principle of resistive voltage divider design, which can make the red terminal connector input voltage 5 times smaller. Arduino analogue input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V).

Arduino AVR chips have 10-bit AD, so this Voltage Sensor Module simulates a resolution of 0.00489V (5V/1023), so the minimum voltage of the input voltage detection module is 0.00489Vx5=0.02445V.

Specifications:

  • Voltage input range: DC 0-25 V
  • Voltage detection range: DC0.02445V – 25V
  • Voltage analogue resolution: 0.00489 V
  • Output Interface: “+ ” connected 5/3.3V, “-” connected GND, “s” connected Arduino AD pins
  • DC input interface: red terminal positive with VCC, negative with GND
  • By 3P connector, connect this module with the expansion of board Arduino, not only makes it easier for you to detect voltage battery but can also use the IICLCD1602 LCD to display voltage.
  • Divider ratio: 5:1
  • Resistor Tolerance: 1%
  • Max input voltage: 25V
  • Resistor Value: 30K/7.5K Ohm

Features:

  • You can also use the IICLCD1602 LCD to display voltage.
  • By 3P connector, connect this module with the expansion of board Arduino, which not only makes it easier for you to detect voltage battery.

Package Included:

1 x Voltage Sensor Module Voltage Detection Sensor Module 25V
