Description:
The VL53L0X Laser Ranging Sensor is a compact and high-precision distance measurement module that utilizes Time-of-Flight (ToF) technology to accurately measure distances. The sensor uses Time-of-Flight technology, which involves emitting a laser pulse and measuring the time it takes for the pulse to bounce back after hitting an object. This allows for accurate distance measurements.
If you want to detect Obstacles with your drones then the VL53L0X Laser Ranging Sensor is a quite good solution.No matter If you are a newbie, you can learn more things about this distance sensor.
The VL53L0X Laser Ranging Sensor is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances, unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, and opening the door to various new applications.
The VL53L0X Laser Ranging Sensor integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second-generation FlightSenseTM patented technology. The VL53L0X’s 940 nm VCSEL emitter (Vertical-Cavity Surface-Emitting Laser), is invisible to the human eye, coupled with internal physical infrared filters, enabling longer-ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.
Specifications:
- Operating Voltage: 3.3V to 5
- Measurement Range: 2M
- Measurement Accuracy: 5mm (up to 1mm in ideal conditions)
- Emitter: 940 nm laser VCSEL
- Communication Protocol: I2C
Features:
- 940 nm safe and long-ranging laser VCSEL
- In-built 2.8V linear voltage regulator
- Fast and accurate distance ranging. It can measure up to 2m
- Prevents optical cross-talk efficiently.
- VL53L0X Laser Ranging Sensor is easily integrated with microcontrollers because of I2C
Package Included:

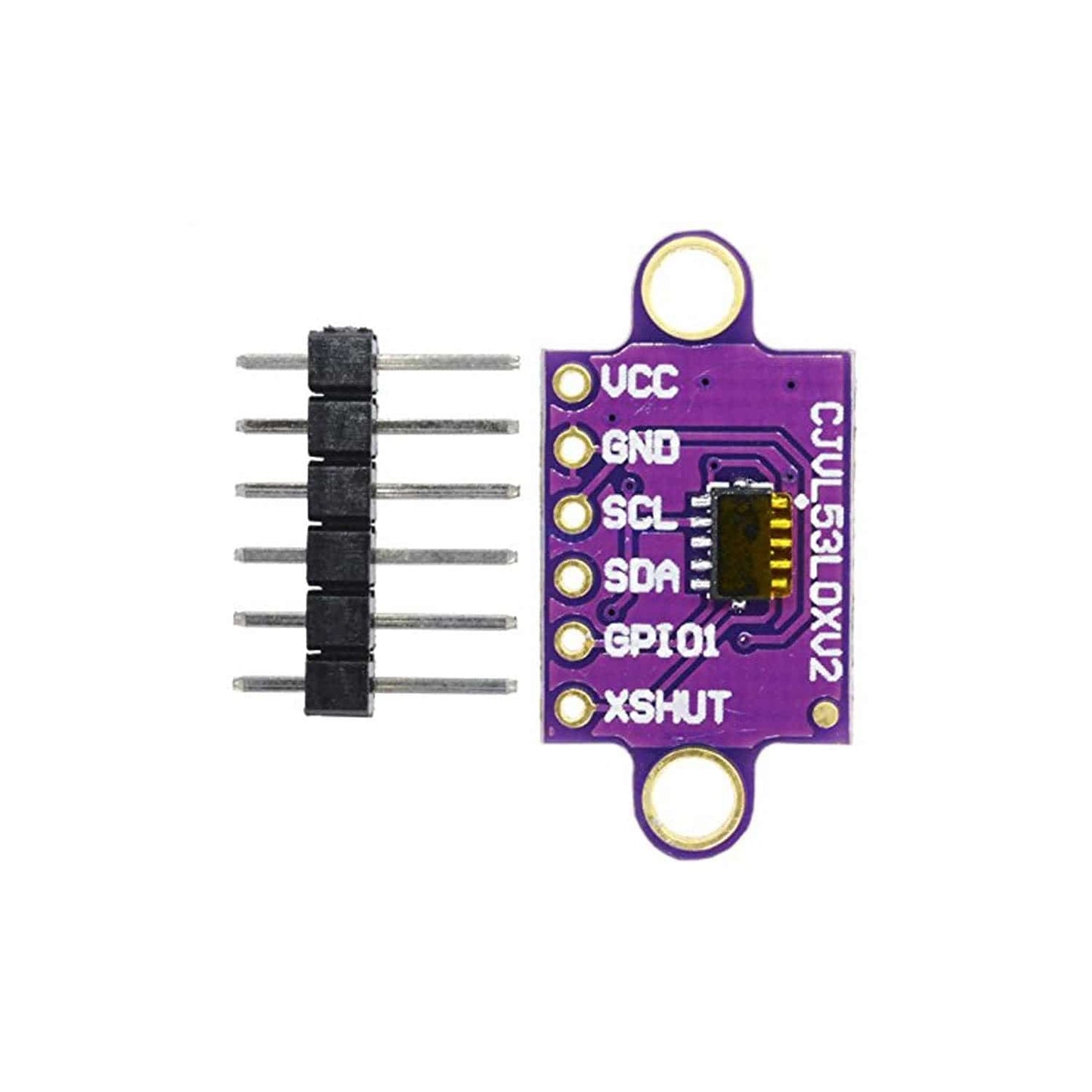

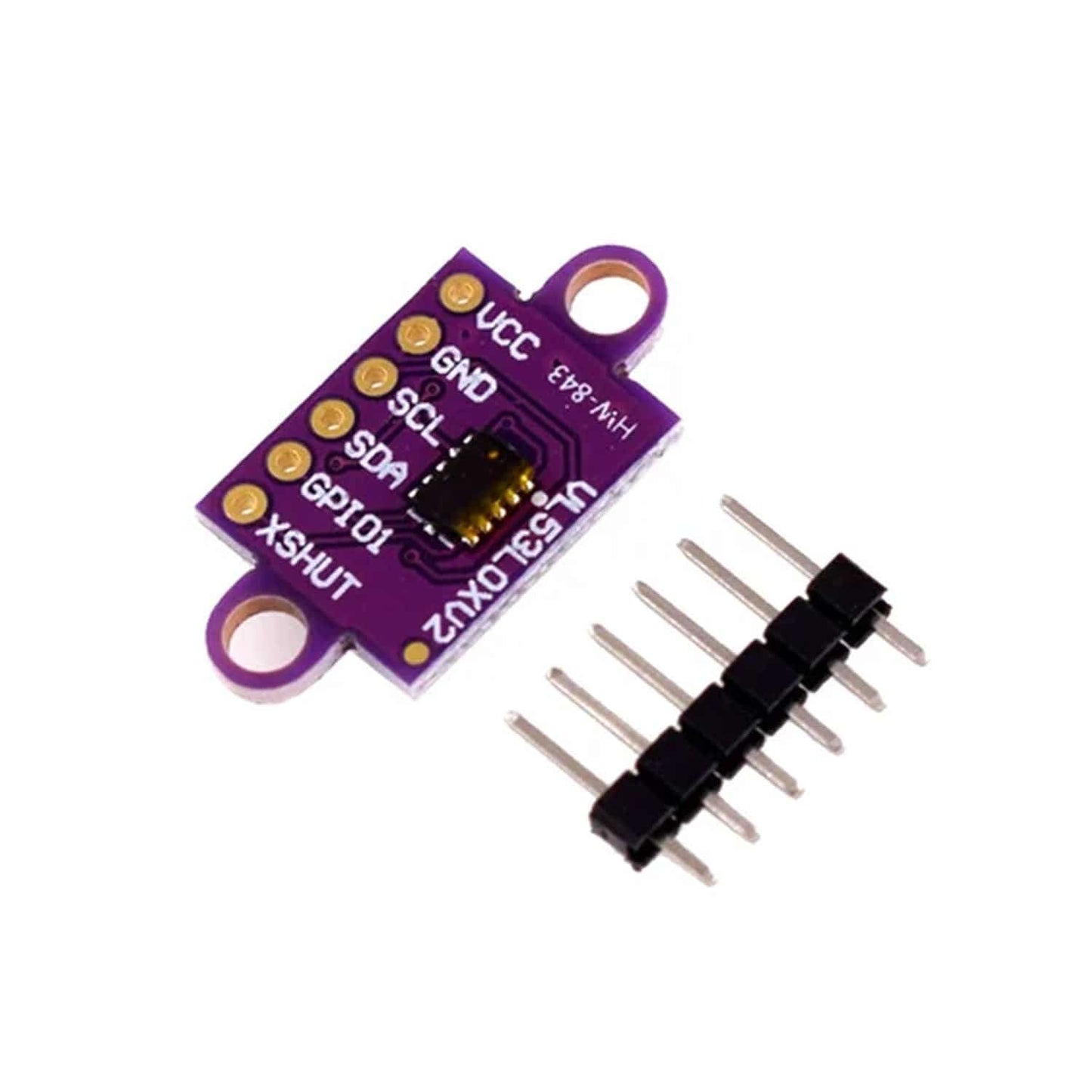

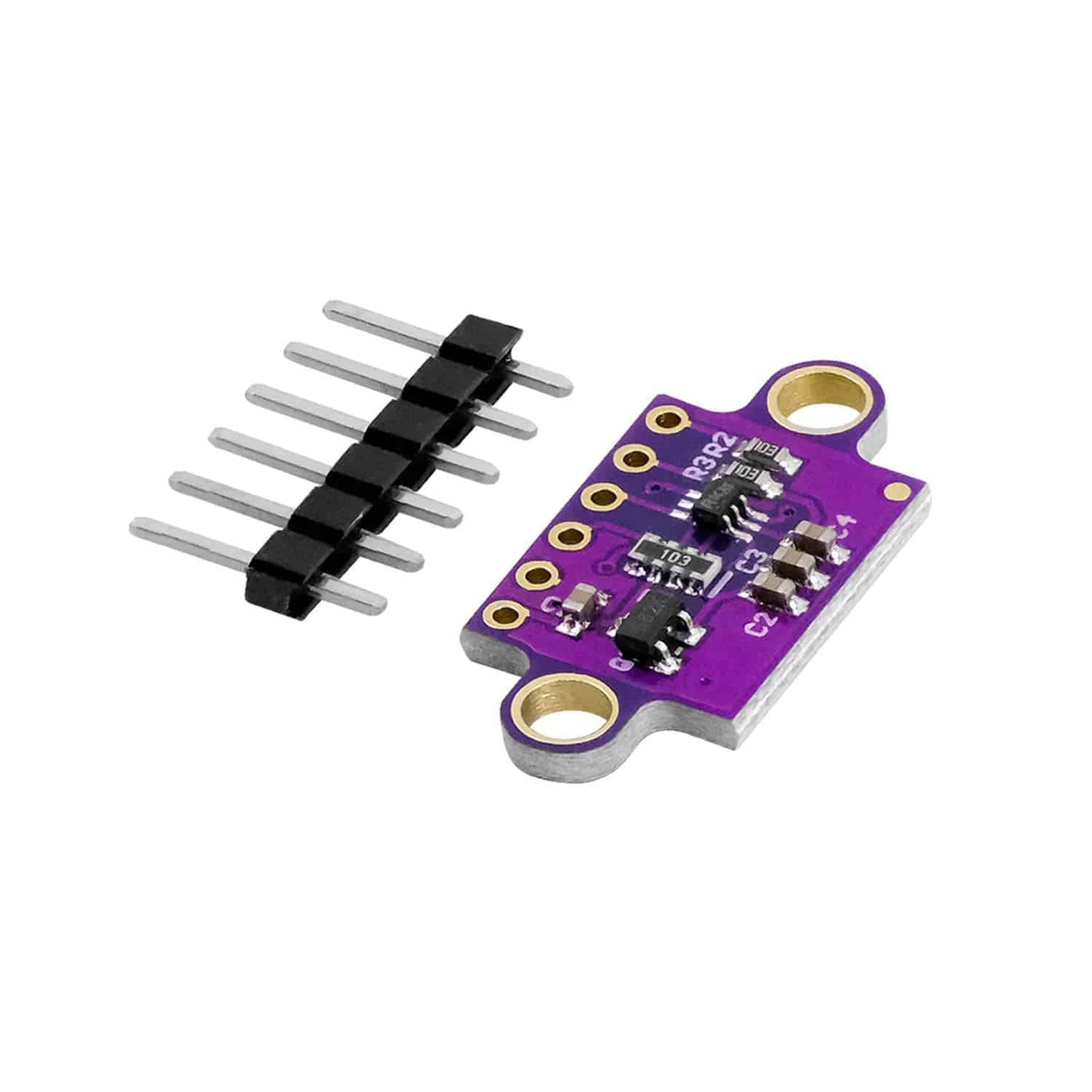

1 x VL53L0X Laser Ranging Sensor VL53L0X V2 Time-of-Flight (ToF) Laser Ranging Sensor Breakout 940nm Laser Distance Module I2C IIC
