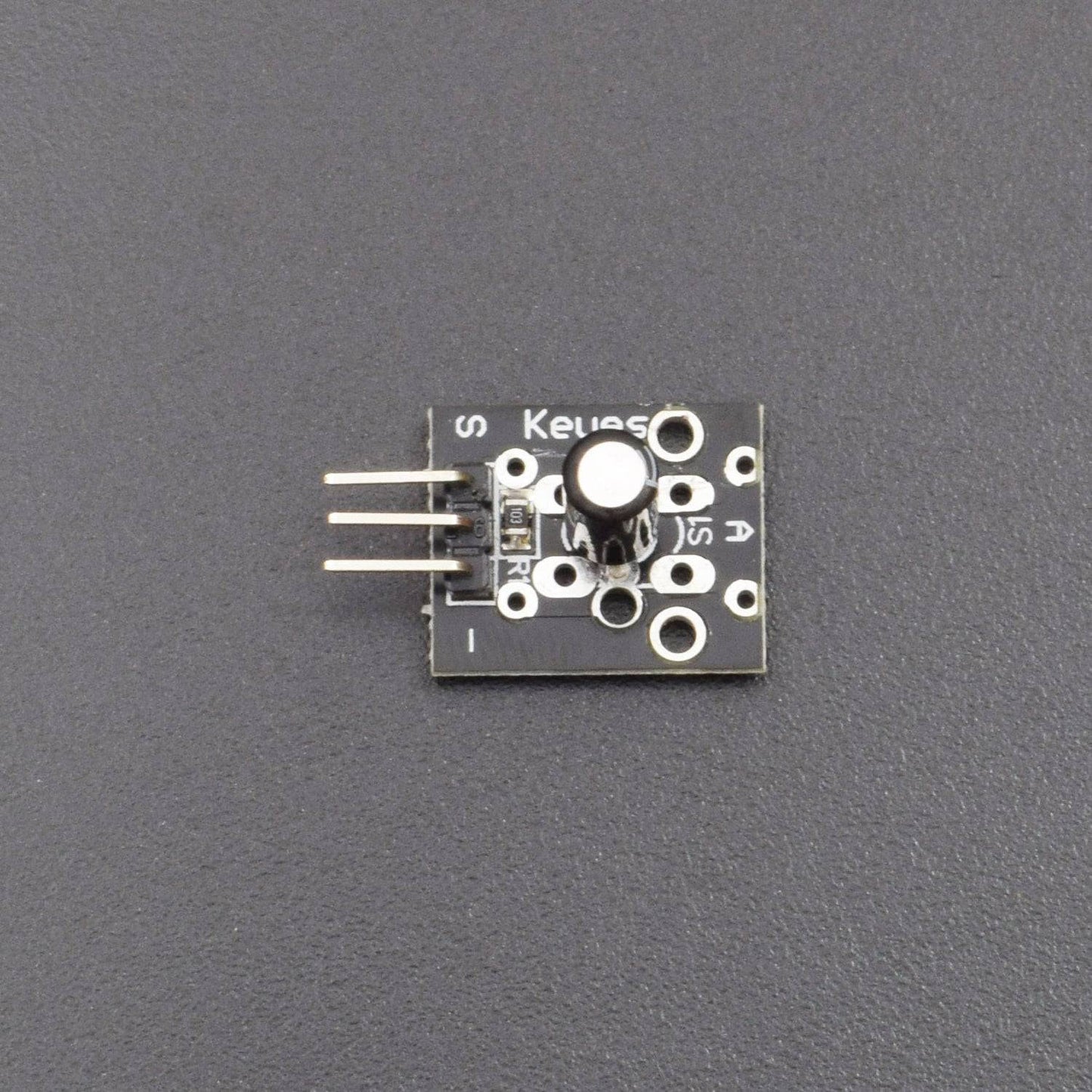

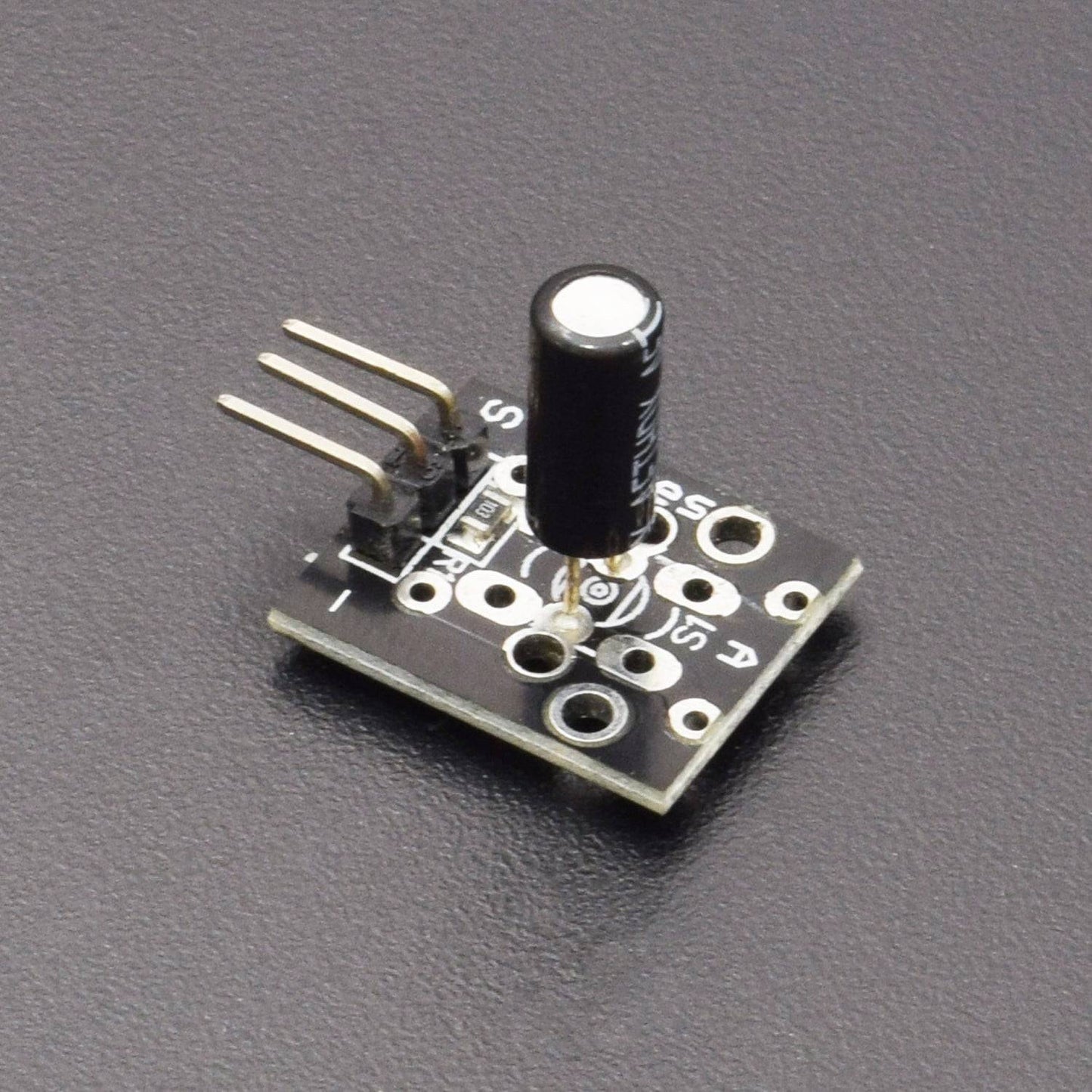

Vibration Switch 3 pin Module Shock Shake Switch Sensor For Electronic Brick Arduino - RS976

Vibration Switch 3 pin Module Shock Shake Switch Sensor For Electronic Brick Arduino - RS976

SKU:RS976

In stock

Regular price Rs. 130.00
Regular price Sale price Rs. 130.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
Parameter Value
Max Voltage Across Terminals 12 Vdc
Open Switch Resistance > 10 M Ohms
Closed Switch Resistance < 30 Ohms
Cycle Life > 100,000 Cycles
Pin Connector to board 3 pins




Description

Vibration Switch Module Shock Shake Switch Sensor For Electronic Brick Arduino DIY

Features

This switch is OFF in the resting state, when the external force to touch and to achieve a proper vibration, meet the appropriate speed or from the (partial)heart, conductive pin will momentarily conduction (ON) status, make changes in electric property, and disappear when the external force electric property open (OFF) state is restored. Omnidirectional, any Angle can trigger job
All pins are standard 0.1; spaced
Pin Connector to board : 3 Pins

Applications

  • PIC
  • Arduino

Product Instructions

  • We read the input from the shock sensor
  • If we detect a shock and we record the time the shock was detected. ( see lastShockTime)
  • If we were not already in an alarm state (see bAlarm) when a shock is detected, we set an alarm state and indicate that we’re in an alarm state by sending output to the serial monitor
  • We exit the alarm state when the following conditions are satisfied
    1. There is a high value measured at the sensor output
    2. The difference between the high measurement and the last low measurement is greater than 250 mS (set by shockAlarmTime)
    3. We are in an alarm state (see bAlarm)
  • When we exit the alarm state, we set bAlarmto false and we send an output to the serial monitor

How To Use:

Turn LED On/Off Using Shock Sensor Module

Package Included:

1 x Vibration Switch 3 pin Module Shock Shake Switch Sensor For Electronic Brick Arduino
