- Operating Voltage: 4.8-6.0V
- PWM Input Range: Pulse Cycle 20±2ms, Positive Pulse 1~2ms
- STD Direction: Counter Clockwise / Pulse Traveling 1500 to 1900µsec
- Stall Torque: 3 Kgf. cm(41.3 oz/in) at 4.8V, 3.2 Kgf. cm(44 oz/in) at 6V
- Operating Speed: 0.2 sec/ 60° at 4.8V, 0.18 sec/ 60° at 6V at no load
Description:

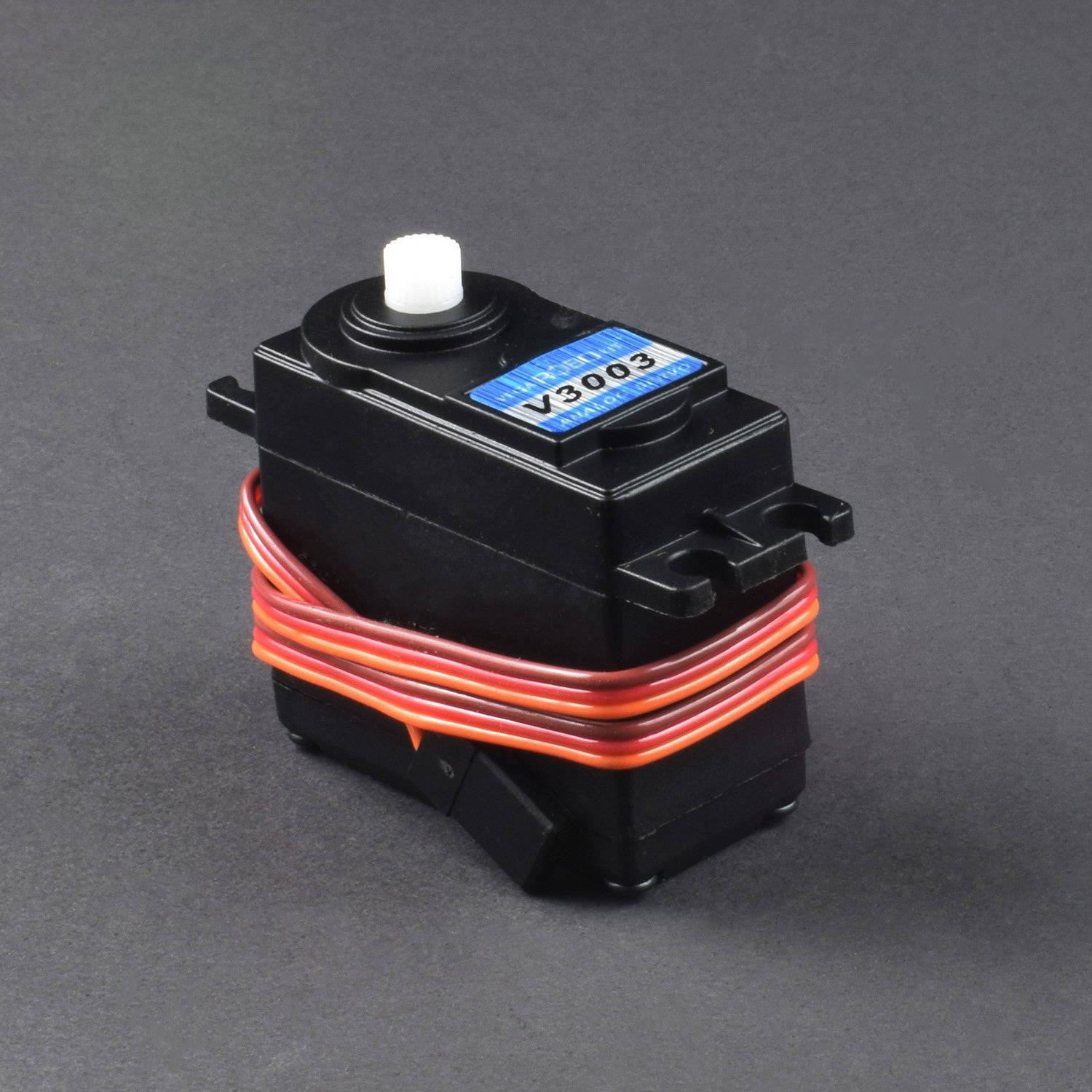

A servomotor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration. It consists of a suitable motor coupled to a sensor for position feedback. It also requires a relatively sophisticated controller, often a dedicated module designed specifically for use with servomotors. Servomotors are not a specific class of motor although the term servomotor is often used to refer to a motor suitable for use in a closed-loop control system. This is a Plastic Geared High Torque Servo Motor V3003.
Specification:
- Gear: Plastic
- Type: Analog
- Operating Voltage: 4.8-6.0V
- PWM Input Range: Pulse Cycle 20±2ms, Positive Pulse 1~2ms
- STD Direction: Counter Clockwise / Pulse Traveling 1500 to 1900µsec
- Stall Torque: 3 Kgf. cm(41.3 oz/in) at 4.8V, 3.2 Kgf. cm(44 oz/in) at 6V
- Operating Speed: 0.2 sec/ 60° at 4.8V, 0.18 sec/ 60° at 6V at no load
Features:
- Heavy Duty Plastic Gears
- Economy Servo
Application:
- Robotics
- CNC machinery
- Automated manufacturing
Package Included:

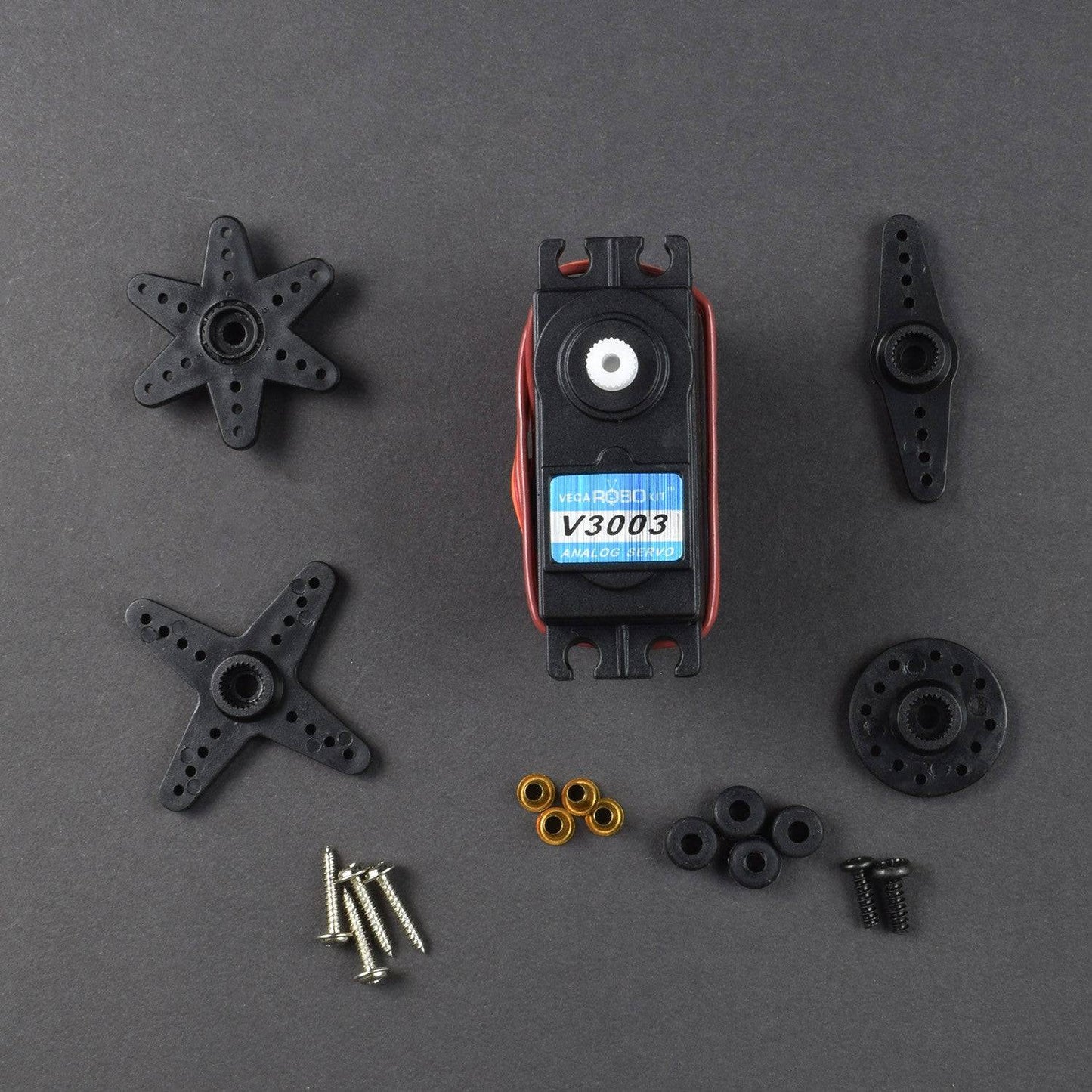

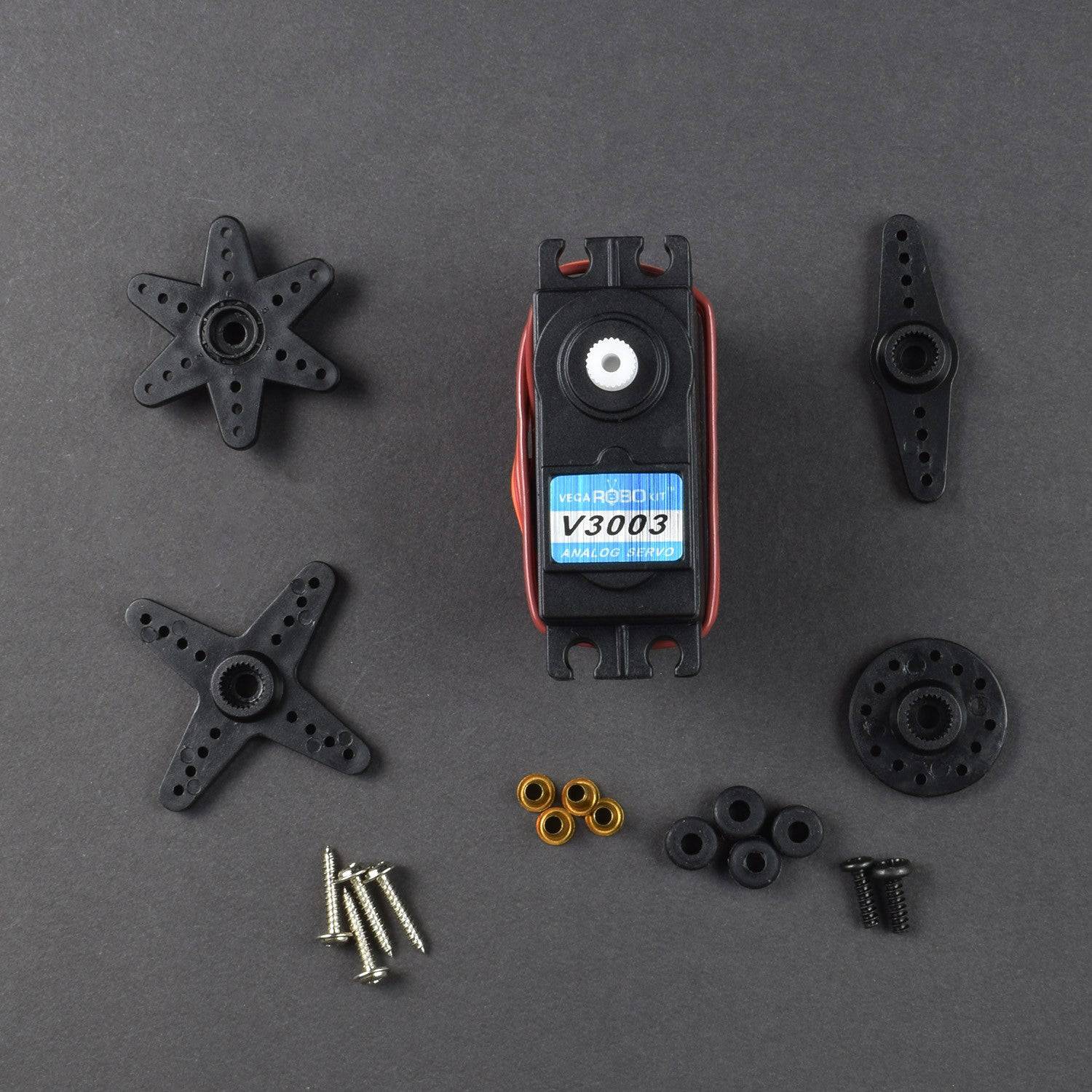

1 x V3003 ( Plastic Geared ) Servo Motor
