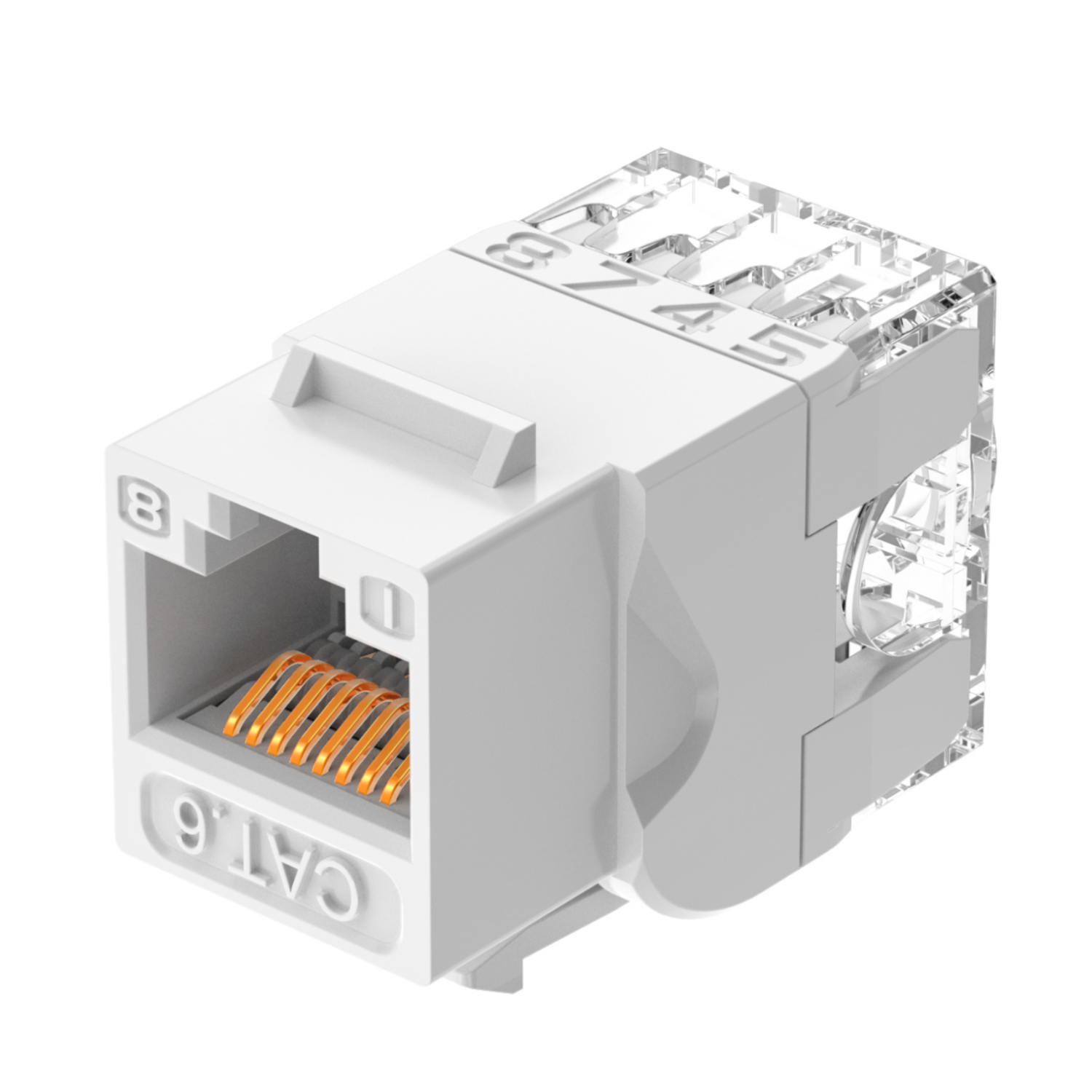

HYCONNECT UTP Keystone Jack 180° Cat6 RJ45 Ethernet Connector For Network & Structured Cabling

Description:

The HKJ-801 UTP Keystone Jack 180 Degree is a premium networking connector designed for high-performance Ethernet installations. Engineered for Cat5e and Cat6 structured cabling, this RJ45 keystone jack ensures fast, reliable, and stable data transmission for both home and office networks.

Its 180-degree design allows for easy cable management, seamless installation in wall plates and patch panels, and space-saving setups in tight networking environments. Made from durable, high-quality materials, the HKJ-801 offers long-lasting performance with minimal signal loss.

Ideal for network professionals and DIY enthusiasts, this keystone jack supports high-speed internet, data, and voice transmission, making it perfect for structured wiring systems, data centers, and Ethernet networks. Upgrade your network with the HKJ-801 UTP Keystone Jack 180 Degree for reliable connectivity and efficient cabling solutions.

Specifications:

• Model Number: HKJ-801
• Port: RJ45
• Material: PC UL94V-0

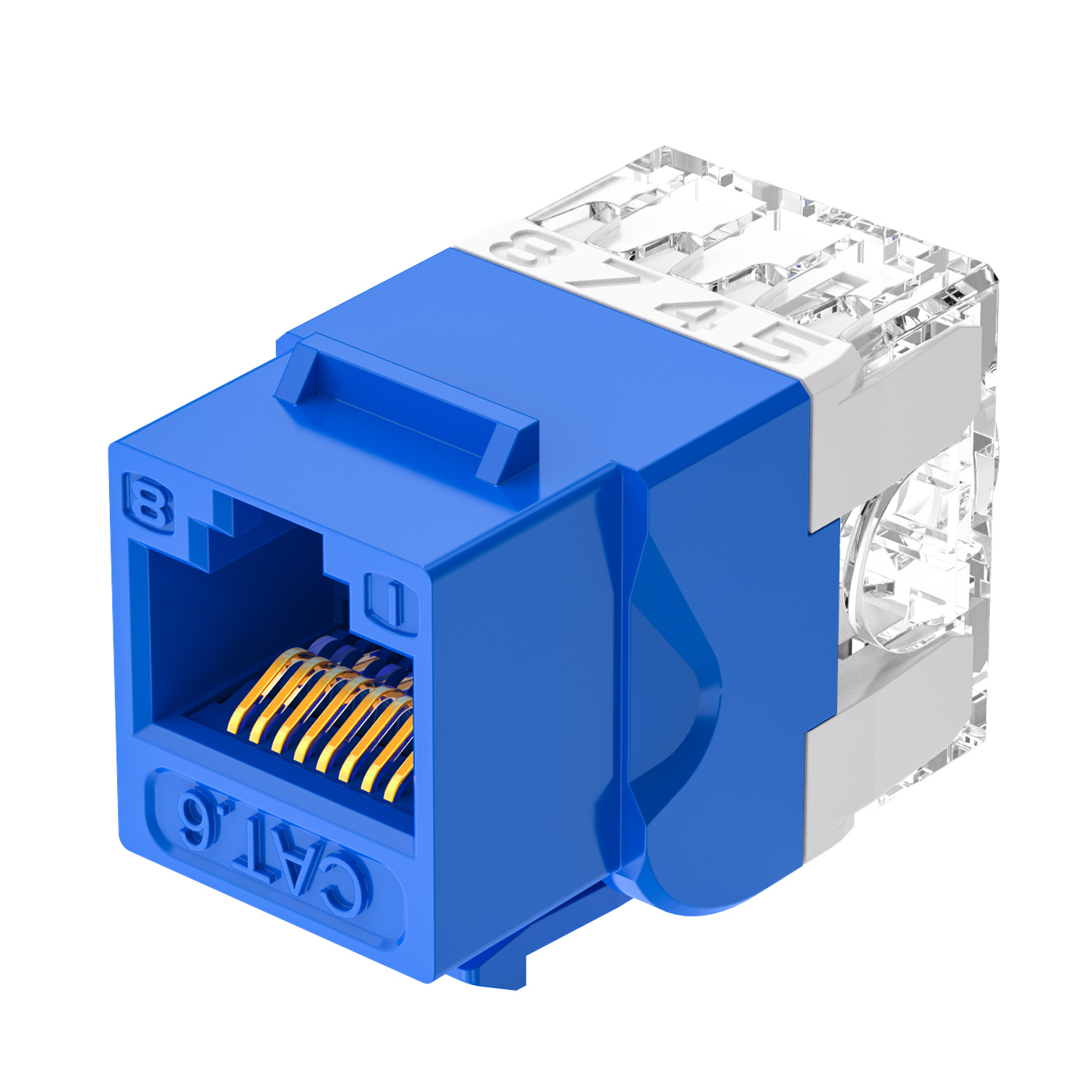

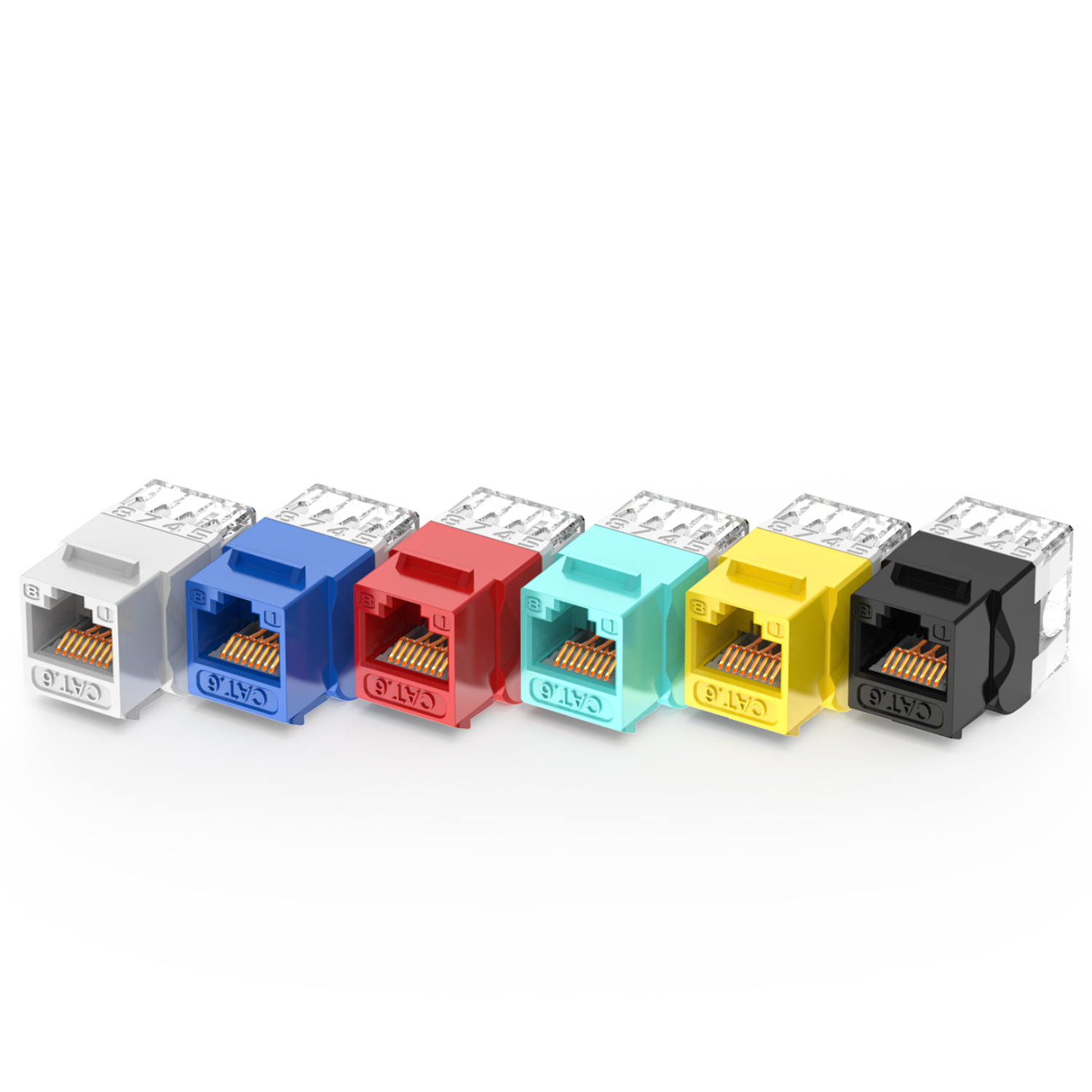

• Color: White, Blue, Black, Yellow, Red, Green

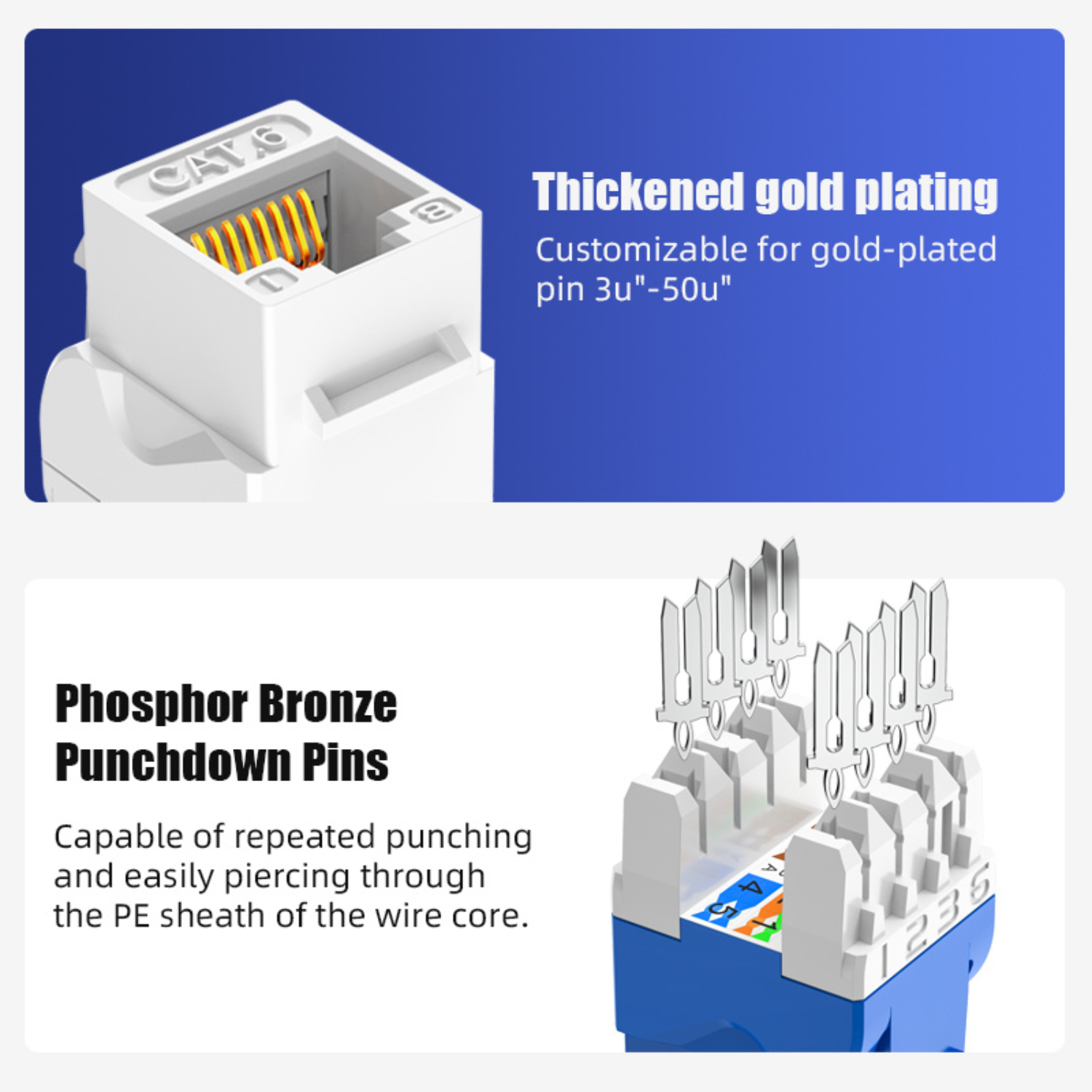

• Gold-plated: 3u"(default), 50u"(available)
• Used: Data center, work area, management room, equipment room, etc.
• Other: An LED light or a dustproof door can be equipped.

Technical characteristics:

• Standard 110 and LSA dual-purpose punching tools make the operation more convenient.
• The IDC clamp, designed with a 45-degree angle, ensures a reliable cable connection.
• According to ISO/IEC 11801 and TIA/EIA 568-B.2 Cat 6A standards, gold-plated pins, IDC clips, and internal PCB match well and provide optimal performance.
• The entire pin is nickel-plated, and the connecting pin is gold-plated to prevent oxidation and have a long service life.
• Tin-plated phosphor-bronze and nickel-plated, 250 times more reliable.

Electrical characteristics:

• DC resistance: ≤ 300mΩ
• Contact resistance: ≤ 20mΩ
• Dielectric strength: 1000V(AC750V)1min
• Insulation resistance: ≥ 1000MΩ

Physical characteristics:

• Nickel-plated phosphor bronze, gold-plated connector pins.
• IDC Clamp: Nickel-plated tin-plated phosphor-bronze pins, suitable for 22-26awg cable.
• Insertion duration: ≥ 750 times
• Punching duration: ≥ 250 times
• Jack housing plastic parts: UL94V-2, red, yellow, blue, green, black, and other colors available.
• Termination cap material UL94V-2Working temperature: -25 ℃ ~ 60 ℃

Schematic:

Applications:

• Network
• Structured cabling for transmitting data, voice, and video.
• Applying for category 6a and lower levels.
• Suitable for work areas, central rooms, management rooms, equipment rooms, and subsystem applications.

Standards:

• International Organization for Standardization/IEC11801
• TIA/EIA-568B.2-1
• EN50173
• UL 94V-0

Package Included:

1 x UTP Keystone Jack 180°
