Description:

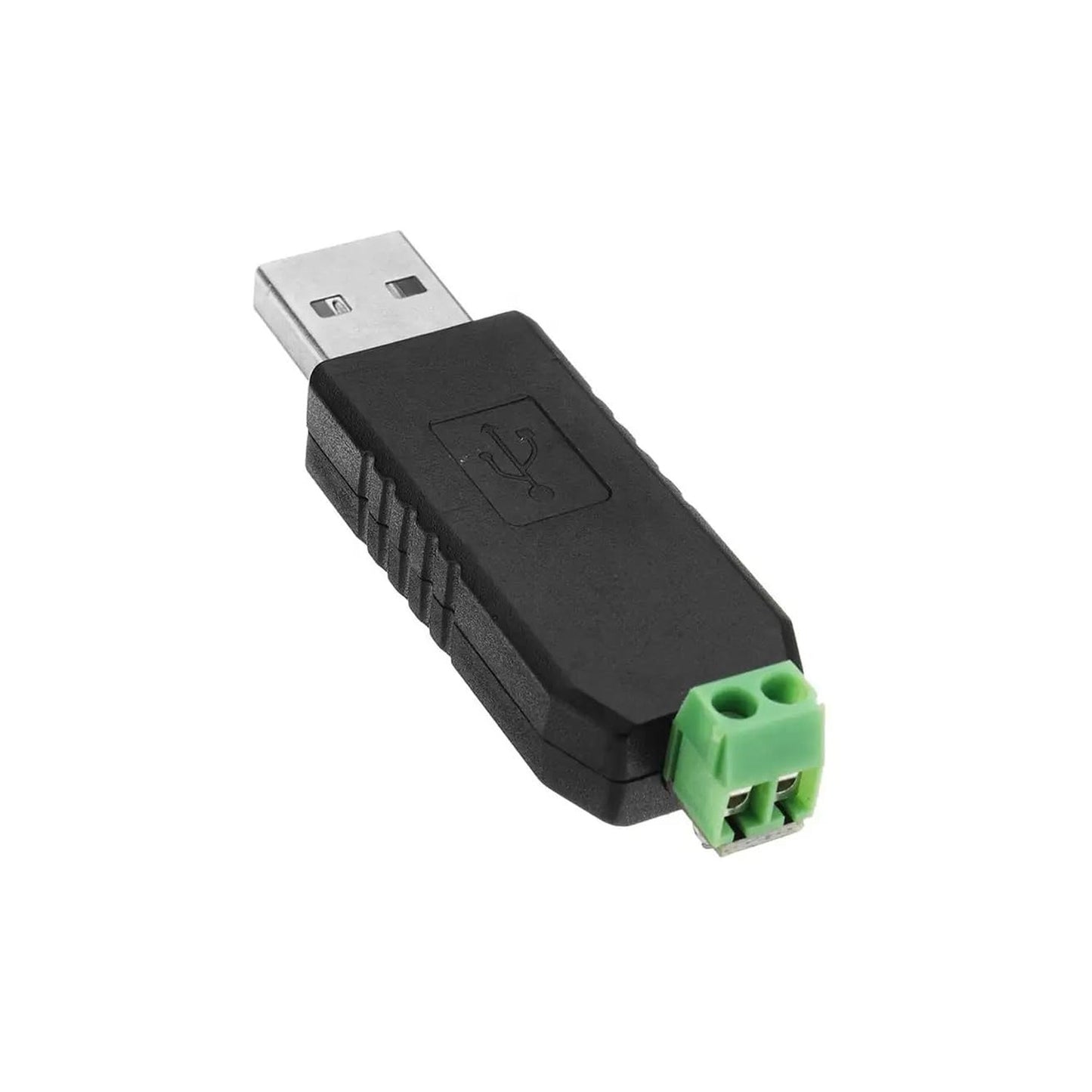

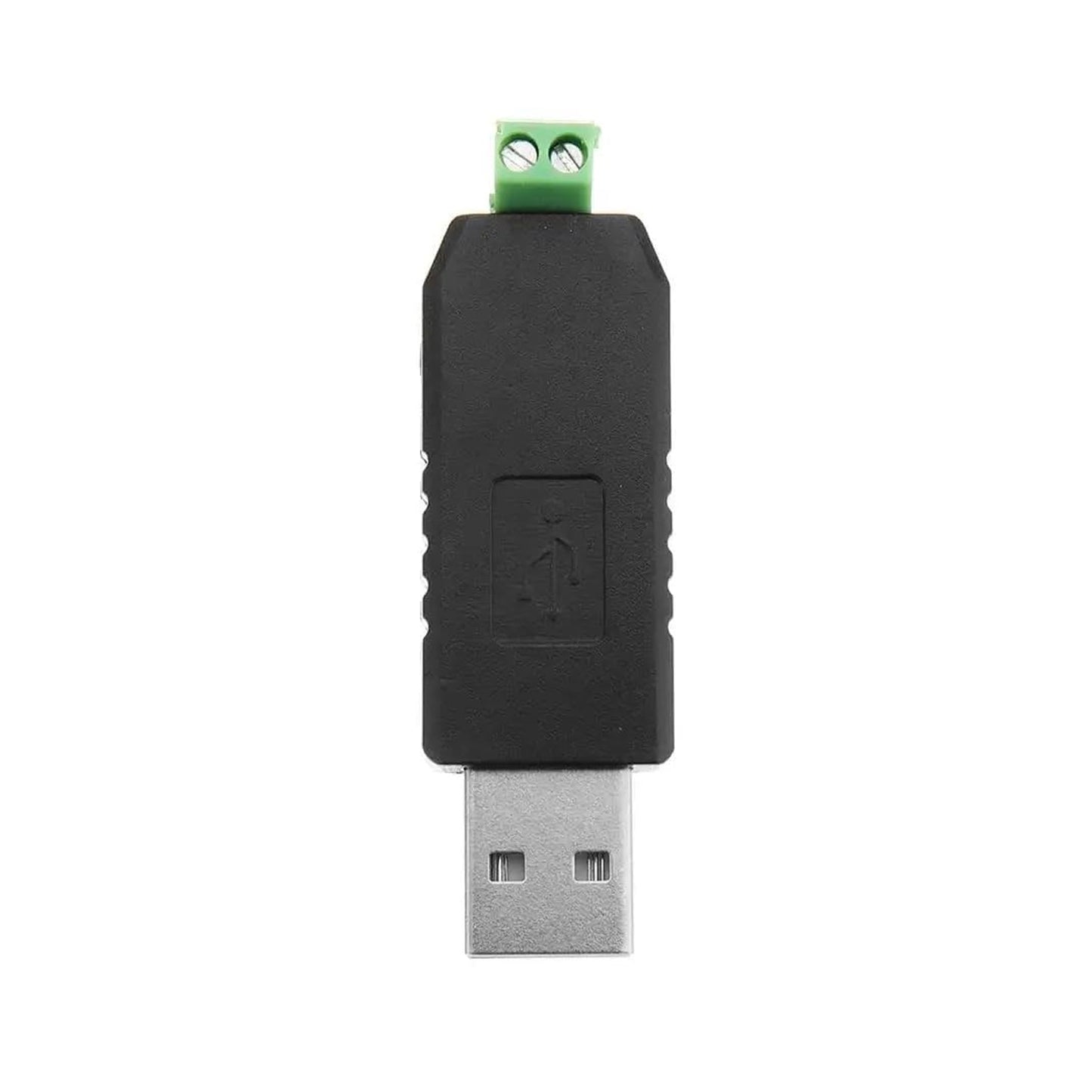

The USB to RS485 Converter Wireless Adapter module, compatible with Windows XP, Vista, Windows 7, Linux, MacOS, and Win CE 5.0 drive, facilitates easy utilization of the RS485 interface through a Virtual COM Port on the user’s system. It eliminates the need for command structures as any data sent to the Virtual COM Port is automatically converted to RS485 and vice versa.
RS485 to USB Adapter Powered by the USB bus itself, this module simplifies control and communication with your PC. As a plug-and-play device, it appears as a COM port that can be accessed from applications or hyper-terminal without requiring an external power supply. This converter supports half-duplex RS-485 communication, enhancing its functionality

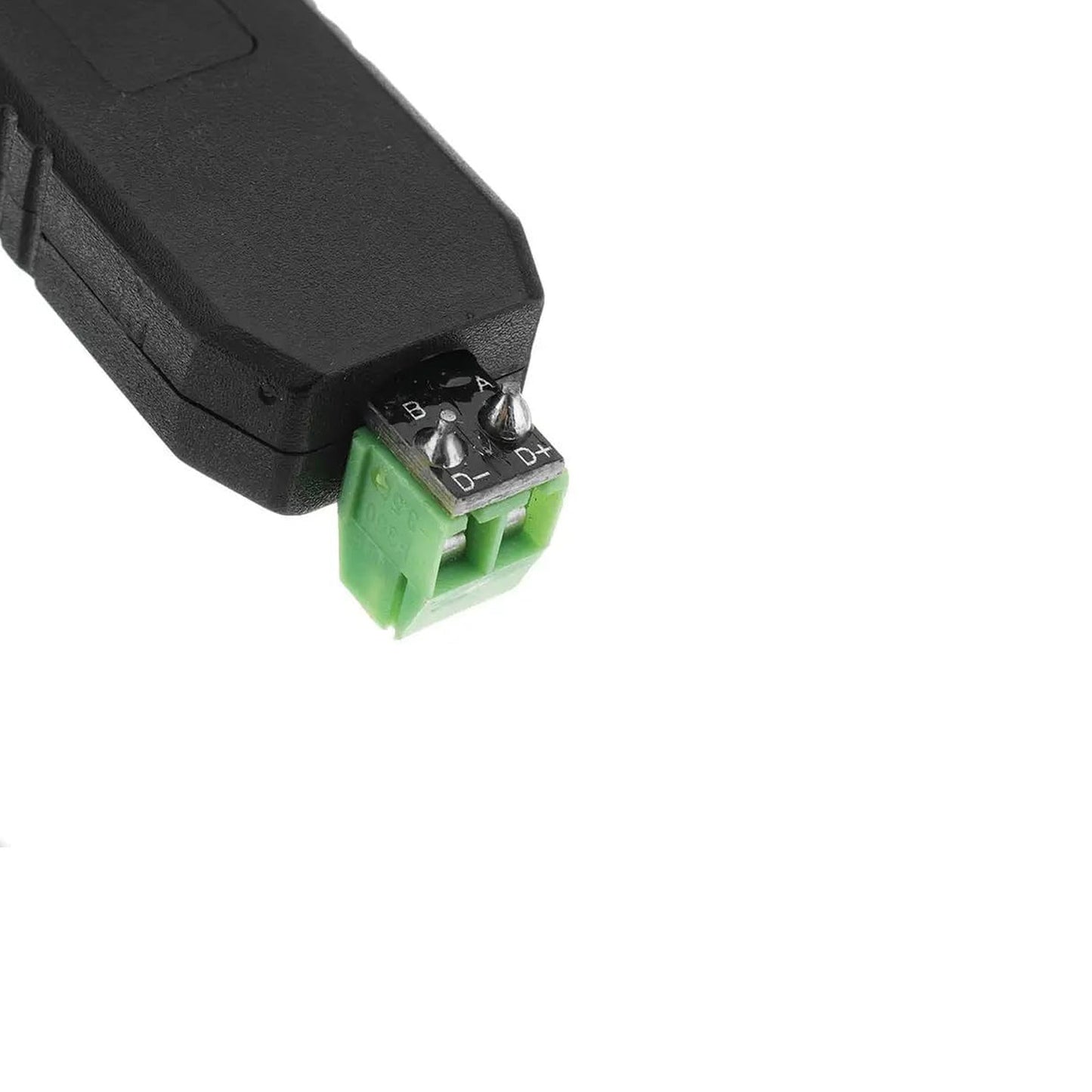

All kinds with RS485 port device parameter settings, data communication Short distance, such as parameter settings of the computer peripheral equipment, and the use of common data lines can be. A and A port of the device when the wiring is connected, B and device B connected. Some devices D + A and D, - B
Specifications:
- System Support: Windows98/ME/2000/XP/WIN7/Vista, Linux, Mac
- Support baud rate range: 75 bps -115200 bps, maximum up to 6 Mbps
- Adopt CH340 chip
- Interface protection: TVS tube protection, USB self-recovery protection
- Working temperature range: -40 to + 85 Degree
- RS485 communication uses a special +5V half-duplex chip
Features:
- Antistatic, anti-jamming, stable performance
- USB Module Virtual Com Port Comply with the USB2.0 standard, backward compatible, in line with the RS485 standard
- Wide Application: LED display communication data, Machine PLC data read and write, Monitoring data read and write and PTZ control; Centralized control of household electrical appliances; Access control systems; card; Variety of industrial automation; instrumentation; Parking; bus charges; Dining Hall; employee attendance machine; Highway toll station; ATM
Applications:
- All kinds with RS485 port device parameter settings, data communication
- LED display of communication data
- Machine PLC data reading and writing
- Monitoring data read and write, and PTZ control
- Centralized control of household electrical appliances
- Access Control System card
Package Included:
1 x USB to RS485 Converter RS485 to USB Adapter 485 Converter to USB Module Virtual Com PortSupport Win7 XP Linux Vista Mac OS WinCE5
