- Voltage: 5V
- Interface: USB Type A

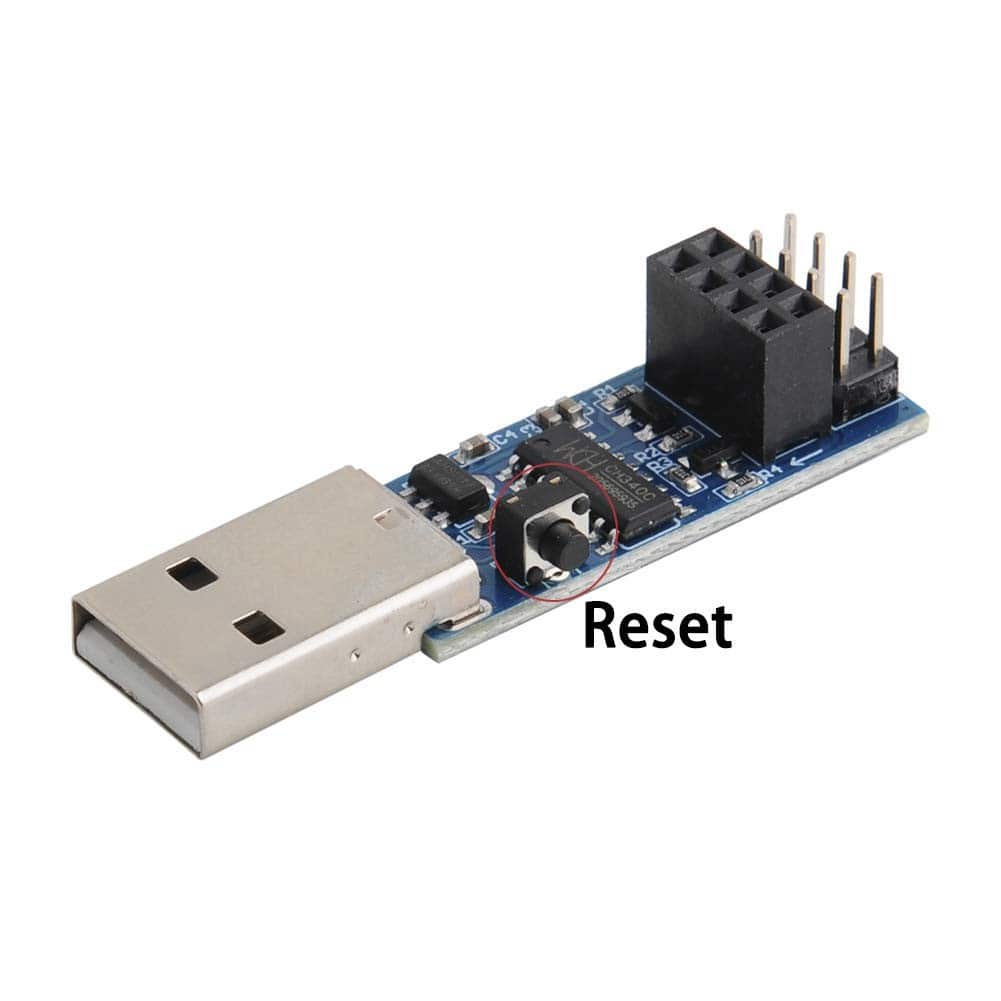

- It has a RESET tact switch, you don't need to unplug it & replug it into the program.
Description:
This USB to ESP8266 downloader uses a CH340C chip added ESP8266 auto-download circuit, it is very convenient for a user to download the program, update firmware, debugging. It supports Arduino IDE, Ai-thinker ESP8266 Flasher and Espressif FLASH_DOWNLOAD_TOOLS. Works with both ESP-01 and ESP-01s, this programming module was very easy to use without the complexity of other programmers' wiring.
Specification:
- Voltage: 5V
- Interface: USB Type A
Features:
- It has a RESET tact switch, you don't need to unplug it & replug it into the program.
- No need for connection, no need to press the button, the WiFi module will go into download mode automatically
- It can control the RESET and GPIO0 of the ESP8266, making flashing from most flashing tools fully automatic and painless.
- The pinout of the ESP8266 makes it incompatible with proto boards without an adapter. This is a programmer and breakout all in one. Add some LEDs directly to this board to test on/off program functions immediately.
- The CH340C USB to serial drivers are downloaded in Win 10 automatically.
Package Included:
1 x USB to ESP8266 Adapter Module ESP-01 Prog ESP-01S Programmer Downloader CH340C Driver with Reset Button
